GT350 FORScan Tweaks

Discussion in 'Shelby GT350 Mustang' started by Epiphany, Aug 12, 2016.

  1. Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    Quick
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    2,728
    Likes Received:
    3,402
    0   0   0
    #1 Epiphany, Aug 12, 2016
    Last edited: Aug 16, 2016

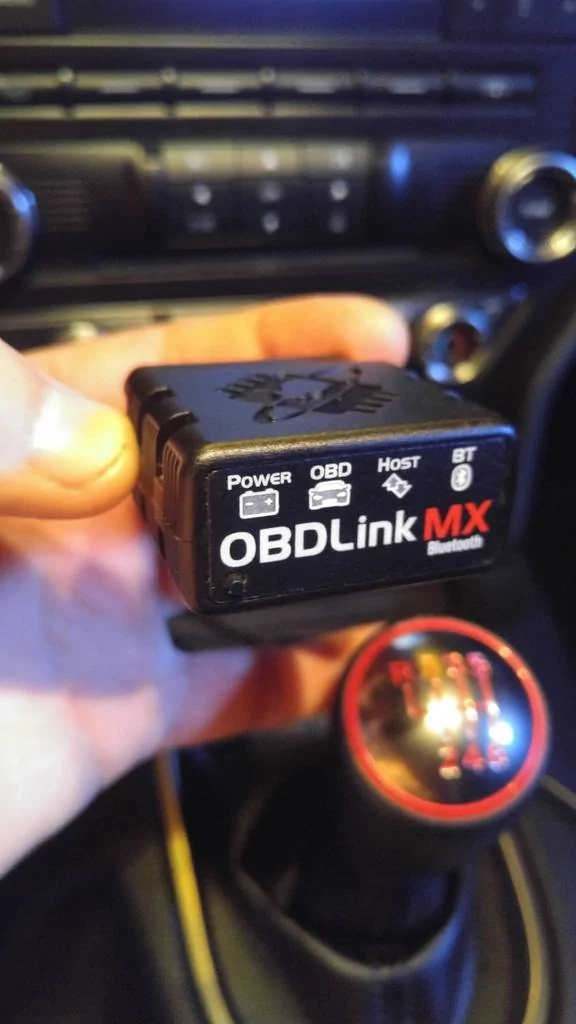

    I had a good friend over for a big family dinner and after everyone left he started talking about some changes he made to his new F150. He downloaded a program called "Forscan" and purchased a Bluetooth plug-in device that allowed linking a laptop/Forscan to the various control modules in the vehicle. Now he can turn his radio on without the vehicle being powered up, run fogs with high beams, shut off various chimes and horn beeps, etc. Basically, it was all stuff he was originally told that only a dealer could do or somebody with Ford IDS hardware, along with a commensurate VIN to make any changes. Anyway, he heard me complain about a couple of items and said that he brought everything with him if I'd like to take a look at my GT350.

    So we jump in the car, plug in the Bluetooth device, and power up his laptop.

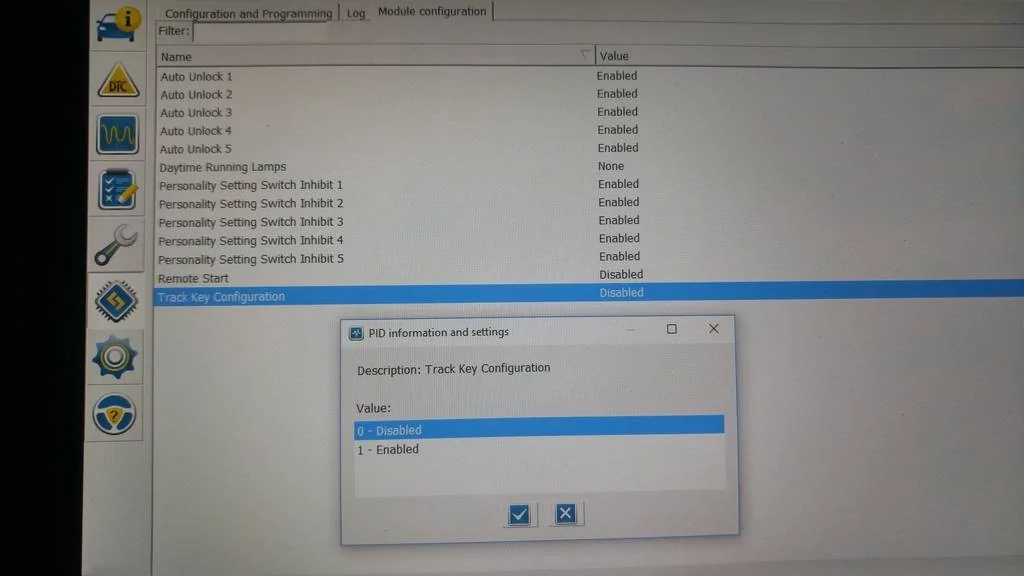

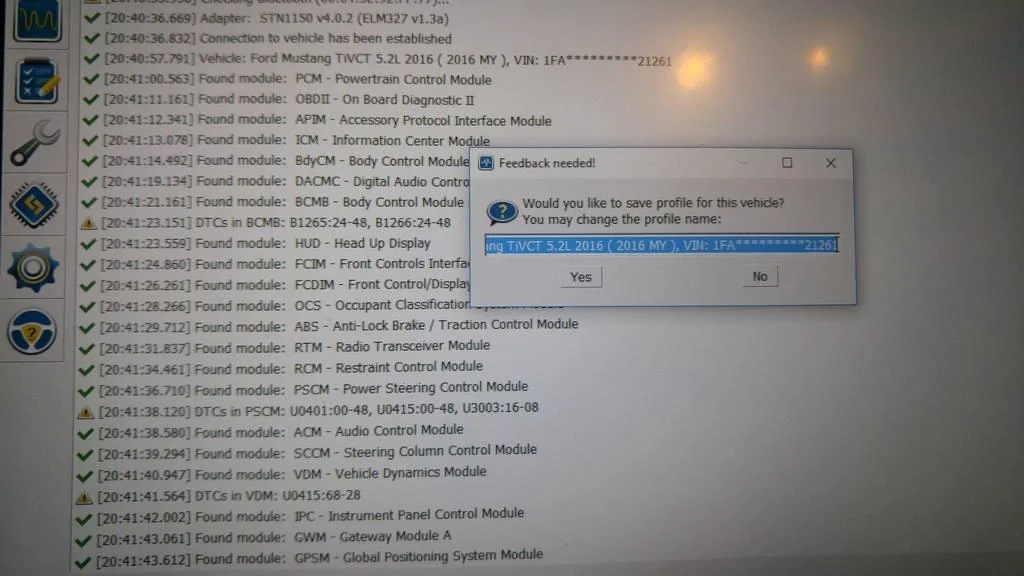

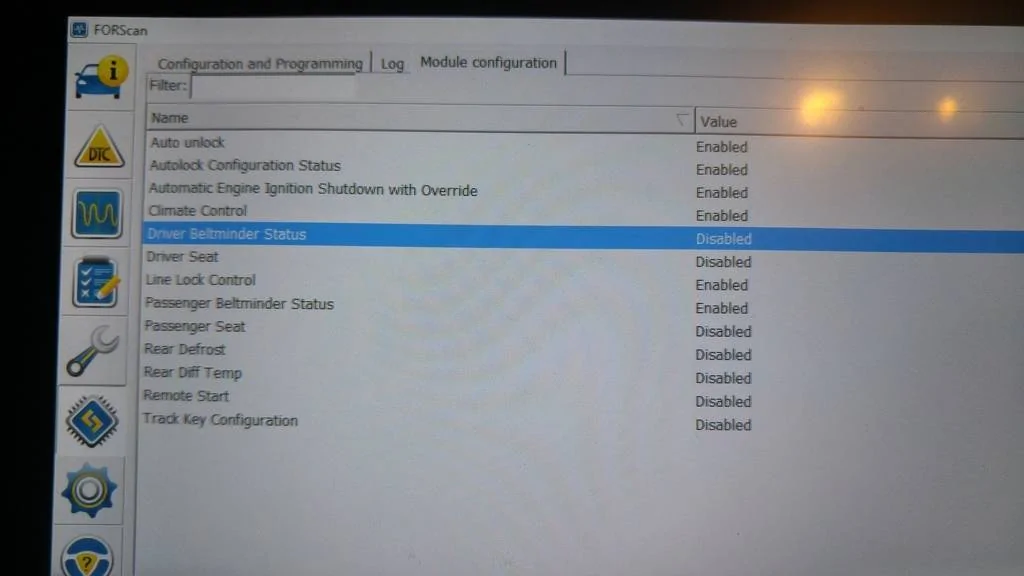

    After cycling through all the modules, as built or otherwise, I found mention of a "Track Key" buried and listed as being disabled. So it looks as though things are in place for the upcoming Ford Racing offering. Note - I did not click to "enable" but I sure wanted to!

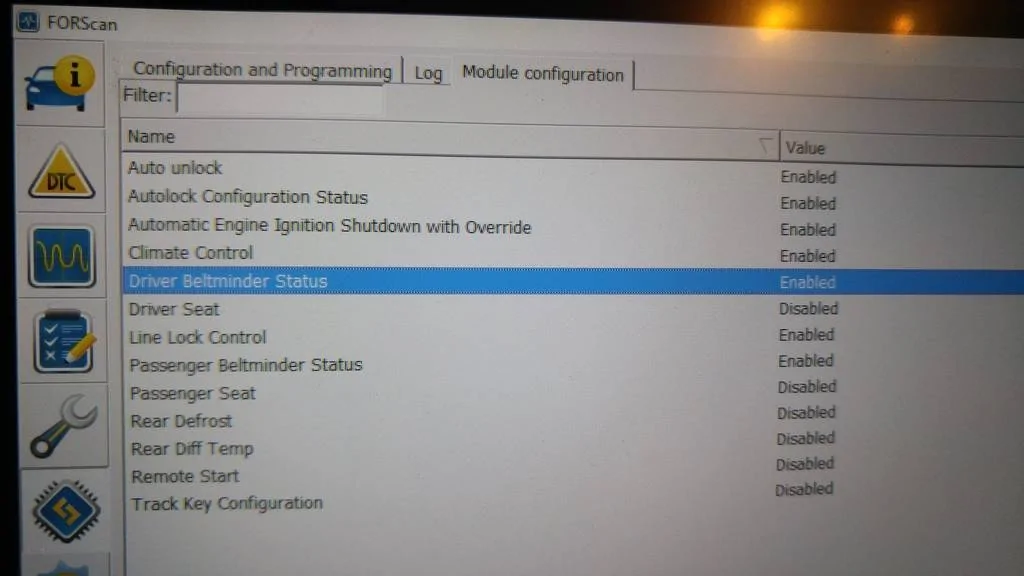

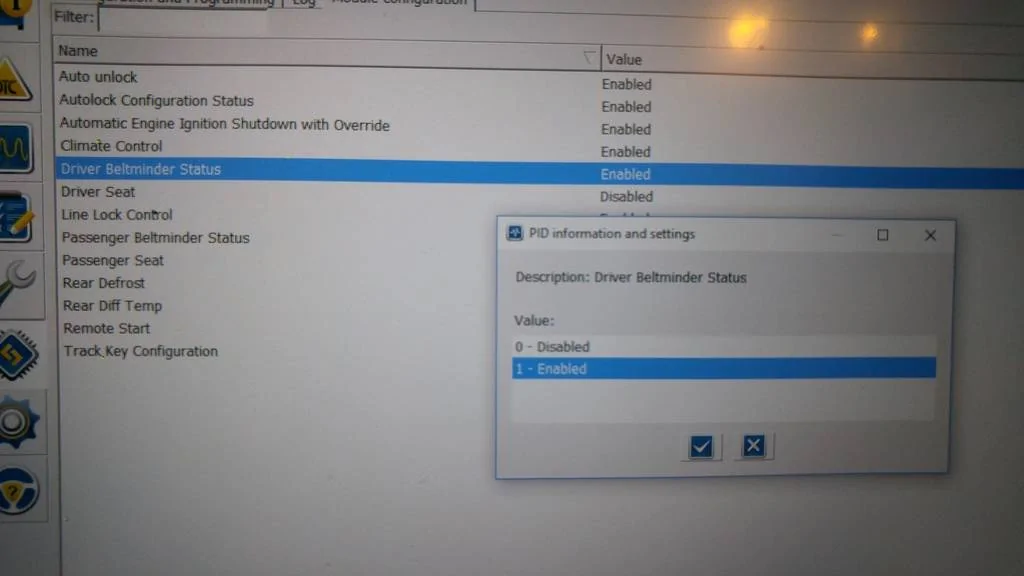

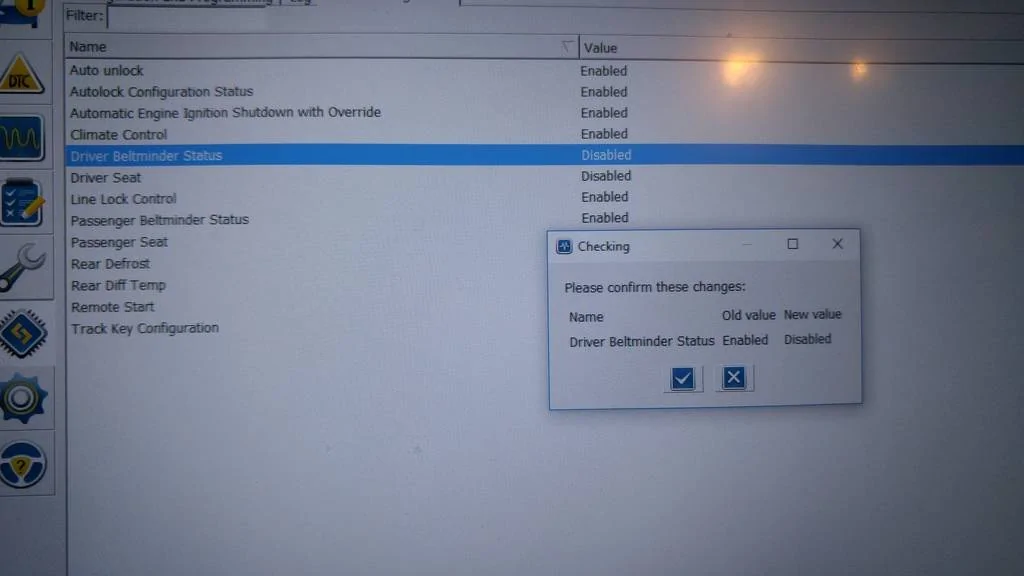

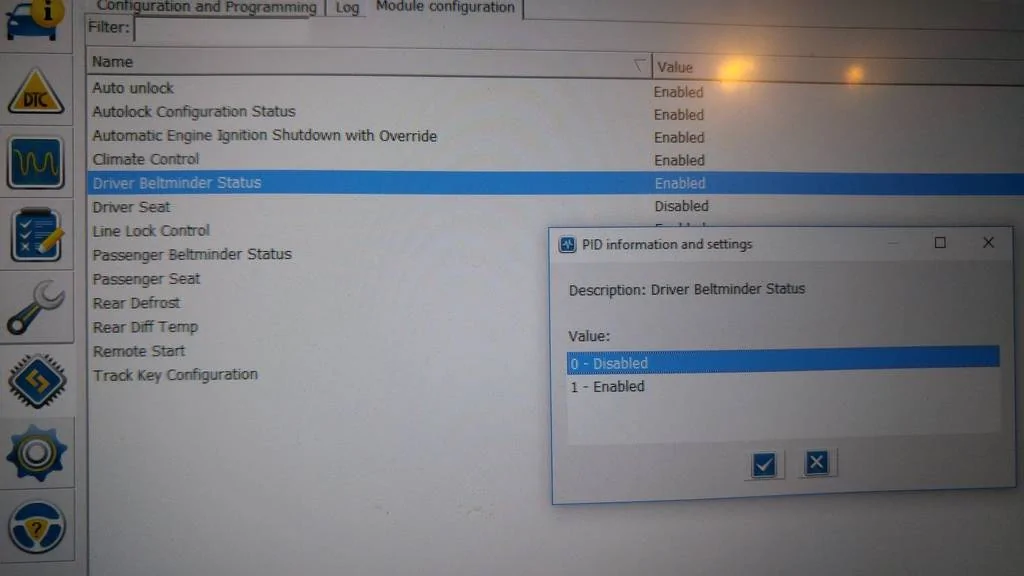

    One of the things I wanted to eliminate was the seat belt chime for both the driver and passenger belts. After finding it, we were able to click on the corresponding prompts and disable them. The process goes as shown in the next series of photos...

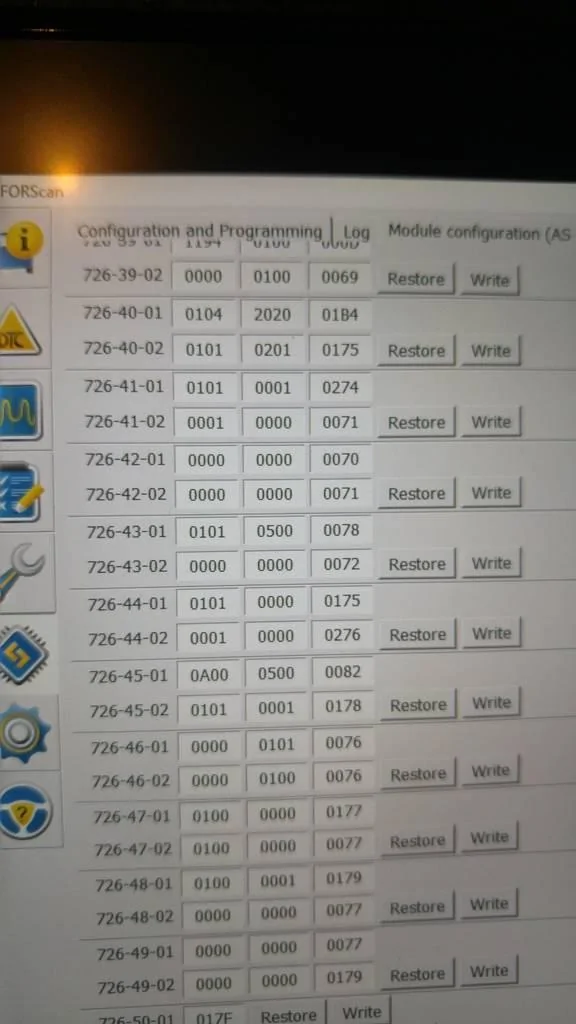

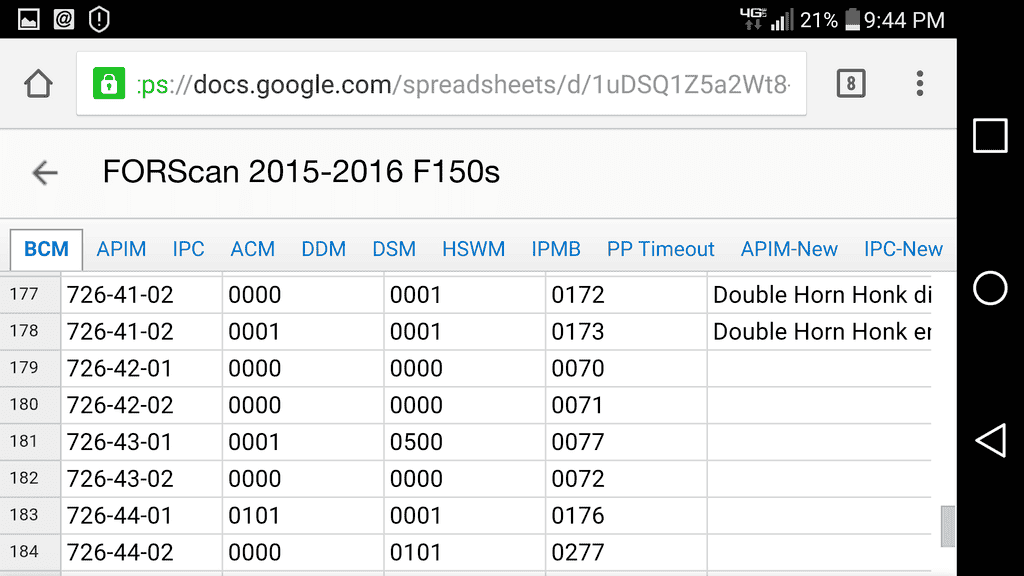

    Same procedure for passenger side. The other thing I wanted to change was the annoying double horn honk you get if the car is running and you step outside of the vehicle. Drove me nuts. Anyhow, we couldn't find an entry for it so we manually entered in the appropriate values that Ford uses for the F150. I found them on this chart, and the "double horn honk disable" correlates to the numbers 726-41-02. The three columns of numbers that follow are the ones I used to change in the GT350...






    The same 726-41-02 numbers came up on the screen in Forscan so we entered in the appropriate data in each field for the GT350.







    Just like that, no more horn honks when exiting a running car. I found a listing for the sound being piped in as well as this one for those that aren't very good at toilet etiquette...






    EDITED TO ADD mattlqx's Module Address spreadsheet (thanks Matt!) link.


    https://docs.google.com/spreadsheets/d/1k0ZBnLT5CnHuL6BbkKg0AxhCmNlE_0Zev3zVnyz-5_A/edit#gid=0

    voodoobetty, wrh3, Destro and 28 others like this.
  2. lemers

    lemers Globetrotter

    First Name:
    Mike
    Vehicle(s):
    2016 GT350
    Joined:
    Aug 30, 2015
    Location:
    Carlisle, PA
    Posts:
    3,608
    Likes Received:
    1,086
    Garage Profiles:
    1
    0   0   0
    Did you look to see if you could make the sport mode exhaust the default setting at start up?

    MakStang likes this.
  3. OP
    OP
    Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    Quick
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    2,728
    Likes Received:
    3,402
    0   0   0
    I can't believe I didn't even consider looking for that one! Next time I see him I'll take another look and see what I can find.

  4. lemers

    lemers Globetrotter

    First Name:
    Mike
    Vehicle(s):
    2016 GT350
    Joined:
    Aug 30, 2015
    Location:
    Carlisle, PA
    Posts:
    3,608
    Likes Received:
    1,086
    Garage Profiles:
    1
    0   0   0
    The number one thing on everyone's list!!!!:tsk:

    Well I'll be waiting for your next update.

    MakStang likes this.
  5. SVTDSM

    SVTDSM @Serpent_Stangs

    Vehicle(s):
    2017 Shelby GT350R
    Joined:
    Nov 25, 2013
    Location:
    Nashville area
    Posts:
    831
    Likes Received:
    387
    0   0   0
    I wonder if it could be used to keep the valves from automatically opening under WOT. That would solve a lot of people's problems at tracks that have sound restrictions.

    rick_brade likes this.
  6. mattlqx

    mattlqx Driver

    First Name:
    Matt
    Vehicle(s):
    '99 F-250, '16 Focus RS, '17 GT350
    Joined:
    Aug 21, 2015
    Location:
    Chandler, AZ
    Posts:
    2,410
    Likes Received:
    1,440
    0   0   0
    This is the Ford equivalent of VAGCOM for messing with the configuration of CAN modules.

    It's great to know you can disable the horn honk. That's the most annoying feature ever. Like I can't tell that my big honking V8 is still running.

    swamp_gas, Minn19, Tank and 4 others like this.
  7. lemers

    lemers Globetrotter

    First Name:
    Mike
    Vehicle(s):
    2016 GT350
    Joined:
    Aug 30, 2015
    Location:
    Carlisle, PA
    Posts:
    3,608
    Likes Received:
    1,086
    Garage Profiles:
    1
    0   0   0
    Ford blame ford for the horn honking. Blame the stupid Americans that will die from leaving their car running in the garage.

    Hughespj47 likes this.
  8. OP
    OP
    Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    Quick
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    2,728
    Likes Received:
    3,402
    0   0   0
    The car shuts off after running for so long with you not in it.

    Tank and lemers like this.
  9. icormba

    icormba Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    Jeep SRT8 / GT350R / FocusRS
    Joined:
    Sep 26, 2015
    Location:
    San Jose, Ca
    Posts:
    1,194
    Likes Received:
    793
    0   0   0
    I've been using the OBDLink LX modules for my cars for a few years now. I didn't realize you could do some of that cool stuff with the MX versions. :thumbsup:

  10. Kurac

    Kurac Well-Known Member

    Vehicle(s):
    2017 GT350 R
    Joined:
    Apr 9, 2016
    Location:
    NE Ohio
    Posts:
    692
    Likes Received:
    365
    0   0   0
    Really cool stuff. Should have enabled Track Key!!!!!

    lemers likes this.
  11. crazymayhem

    crazymayhem Well-Known Member

    First Name:
    Daniel
    Vehicle(s):
    2017 GT350 LB
    Joined:
    Mar 5, 2016
    Location:
    FL
    Posts:
    445
    Likes Received:
    97
    0   0   0
    Rear Defrost and Rear Diff Temp??

    Whats the name of the sound pipe module/functionality, and was it enabled or disabled?

    lemers likes this.
  12. lemers

    lemers Globetrotter

    First Name:
    Mike
    Vehicle(s):
    2016 GT350
    Joined:
    Aug 30, 2015
    Location:
    Carlisle, PA
    Posts:
    3,608
    Likes Received:
    1,086
    Garage Profiles:
    1
    0   0   0

    Are you talking about the interior exhaust sound speaker? That might be cool to disable at least to see what it is doing to the exhaust sound.

    Hughespj47 and Tank like this.
  13. crazymayhem

    crazymayhem Well-Known Member

    First Name:
    Daniel
    Vehicle(s):
    2017 GT350 LB
    Joined:
    Mar 5, 2016
    Location:
    FL
    Posts:
    445
    Likes Received:
    97
    0   0   0
    Thats what I think it is. Read this:

    That sure does sound like that... But I may be mistaken :cheers::lol:

    lemers likes this.
  14. 50 Deep

    50 Deep Signature Wheel Ford Rep

    Vehicle(s):
    2017 GT350R
    Joined:
    Dec 8, 2015
    Location:
    Sacramento, CA
    Posts:
    2,194
    Likes Received:
    1,885
    Rating:
    100%
    1   0   0
    TOB always finding all the cool shit.......

  15. Tank

    Tank 9/11 - Never Forget

    First Name:
    Jim
    Vehicle(s):
    G0853
    Joined:
    Feb 19, 2016
    Location:
    New England
    Posts:
    1,934
    Likes Received:
    1,007
    0   0   0
    How about a setting to monitor Trans temp? If you already have it (track or R), is there a setting to turn it off? Conversely, if you have a base/tech, can you turn it on?

    lemers likes this.
  16. lemers

    lemers Globetrotter

    First Name:
    Mike
    Vehicle(s):
    2016 GT350
    Joined:
    Aug 30, 2015
    Location:
    Carlisle, PA
    Posts:
    3,608
    Likes Received:
    1,086
    Garage Profiles:
    1
    0   0   0
    Against all good sense, is there a way to disable limp mode for base/tech, so it can complete a 30 min session?

    Tank likes this.
  17. Zitrosounds

    Zitrosounds Well-Known Member

    First Name:
    Harold
    Vehicle(s):
    16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
    Joined:
    Oct 20, 2015
    Location:
    Madison, AL
    Posts:
    3,053
    Likes Received:
    1,828
    0   0   0
    Awesome. Thanks for passing the information along. I will have to do some more research but this is purchase I may be making the near future.

  18. Shift

    Shift Well-Known Member

    Vehicle(s):
    a Ford
    Joined:
    Oct 28, 2015
    Location:
    CA
    Posts:
    2,258
    Likes Received:
    914
    0   0   0
    Sounds like you hit the jackpot Epiphany, keep us updated!

  19. raiderjatt02

    raiderjatt02 Well-Known Member

    First Name:
    Jessie
    Vehicle(s):
    2016 GT350 - Track Pack; 1995 GT - Saleen Clone
    Joined:
    Aug 13, 2015
    Location:
    Bay Area, CA
    Posts:
    737
    Likes Received:
    634
    0   0   0
    Epiphany...I fucking love you. I've had the MX for a while but I've only used it with the OBDII Link app it came bundled with. I'll have to get FORSCAN for sure. This is amazing. Do you have a link to that Google Doc?

  20. mattlqx

    mattlqx Driver

    First Name:
    Matt
    Vehicle(s):
    '99 F-250, '16 Focus RS, '17 GT350
    Joined:
    Aug 21, 2015
    Location:
    Chandler, AZ
    Posts:
    2,410
    Likes Received:
    1,440
    0   0   0
    There is certainly some sort of toggle for this. They don't have separate flashes for the different cars, they just config the modules differently. Somebody just needs to poke around enough to find it.

    Tank and lemers like this.
