Sold: Canada - Ontario FP Oil separator relocation kit $40 US (+$20 shipping)

StangTime

Well-Known Member
Joined
Apr 16, 2019
Threads
80
Messages
3,528
Reaction score
3,947
Location
Ontario 🇨🇦
First Name
Todd
Vehicle(s)
19' GT PP1 Manual
UPDATE: All kits sold.

PayPal only. Shipped with tracking and delivery confirmation, plus I send photos of package with completed shipping label.



-------------------------------------------------------------

Compatible only with separator (M-6766-A50A) for 2018 and up.
2015-2017 model separators (M-6766-A50) will not mount on this bracket due to the change Ford made to where the bracket can attach.

This is a DIY kit of parts for a clean way to securely relocate your Ford Performance oil separator to the passenger strut tower. Unfortunately the Ford Performance Oil-Air separator (M-6676-A50A) will not fit with the Ford Performance Tune (M-9603-M8B) due to the GT350 throttle body and spacer alignment. I designed this so that the FP air/oil separator we love can still be used with the performance tune. You will re-use the PCV quick connect fittings from the hoses that came with your FP oil separator.

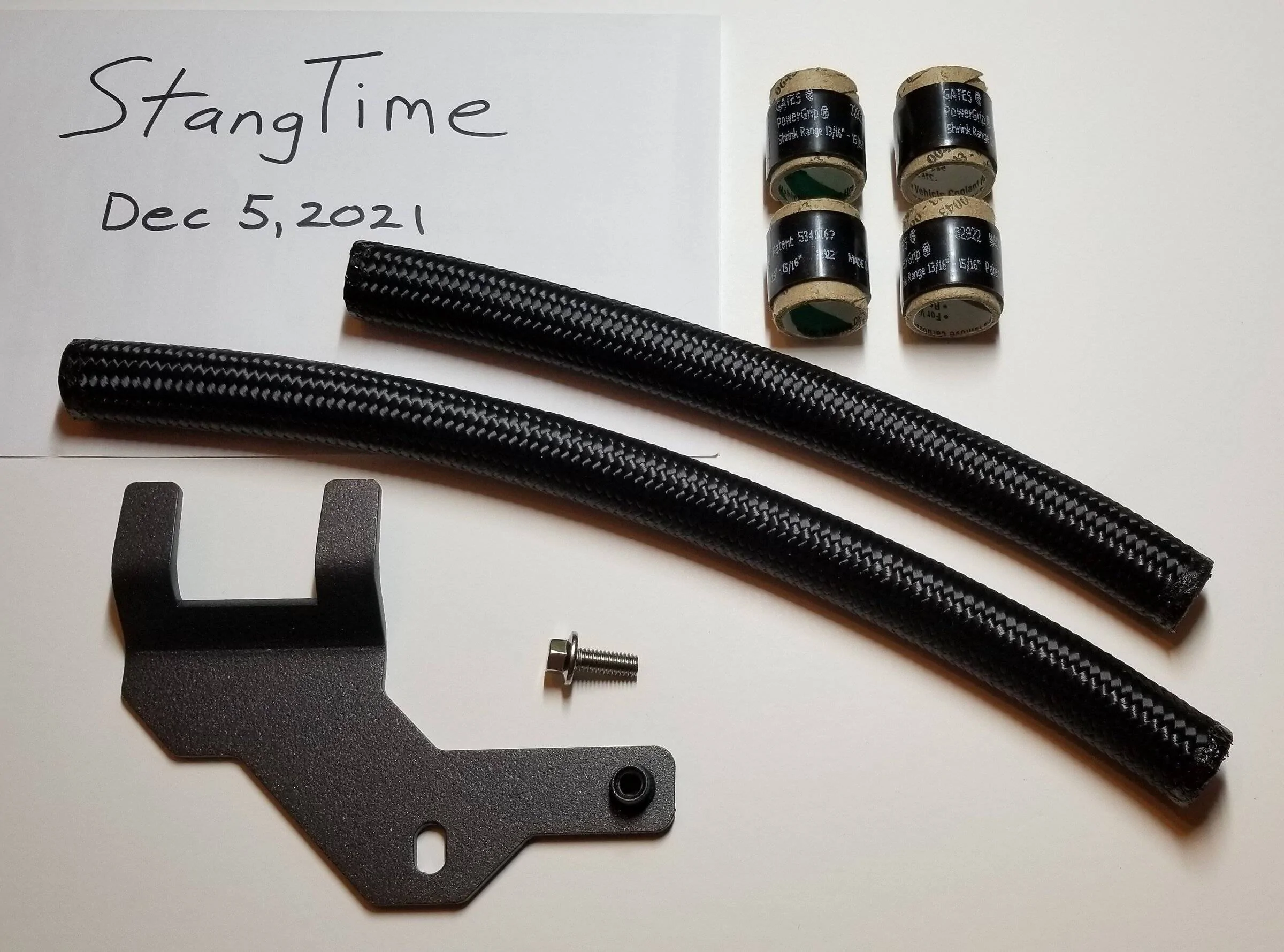

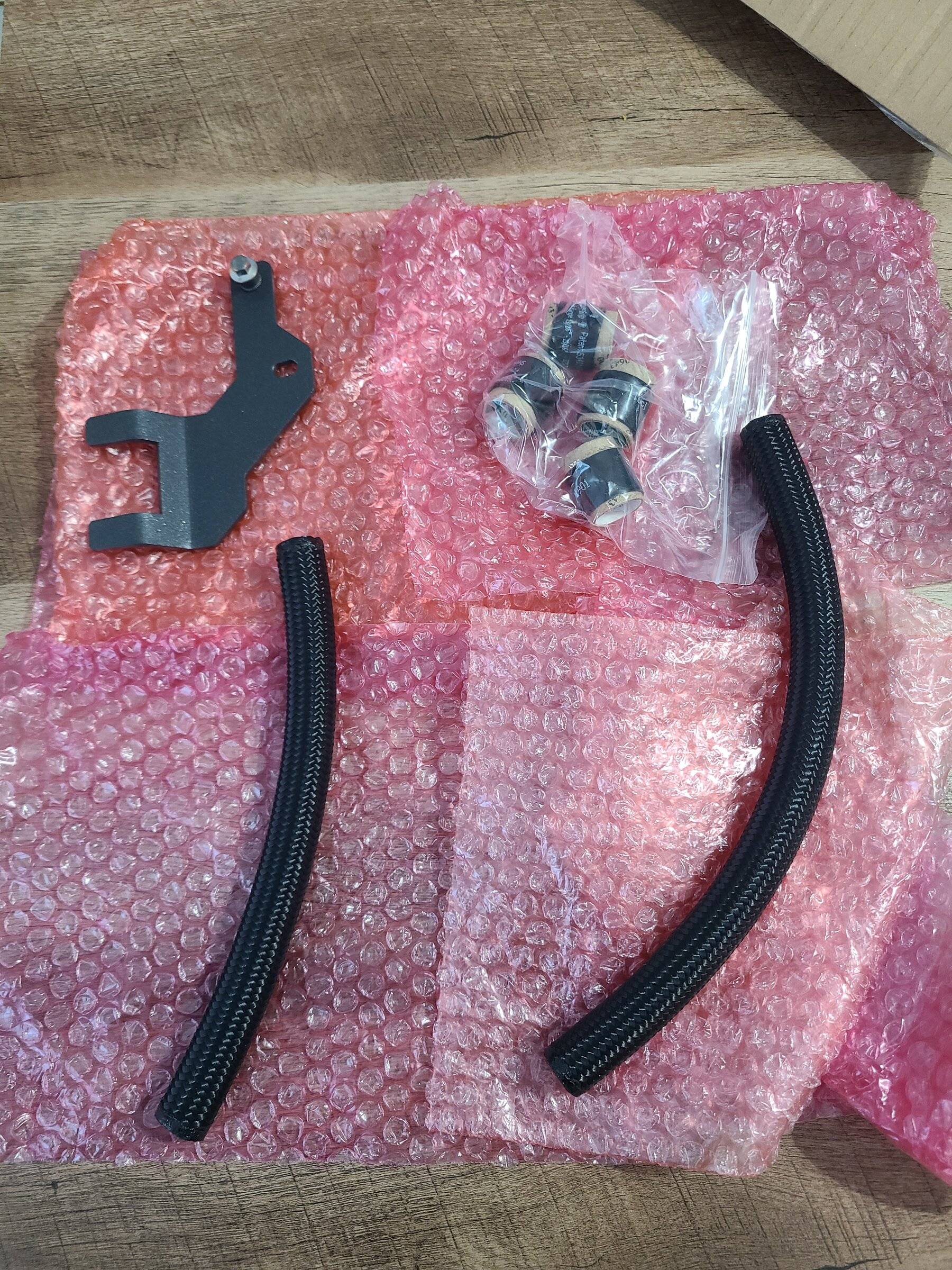

What you will receive in the DIY kit:

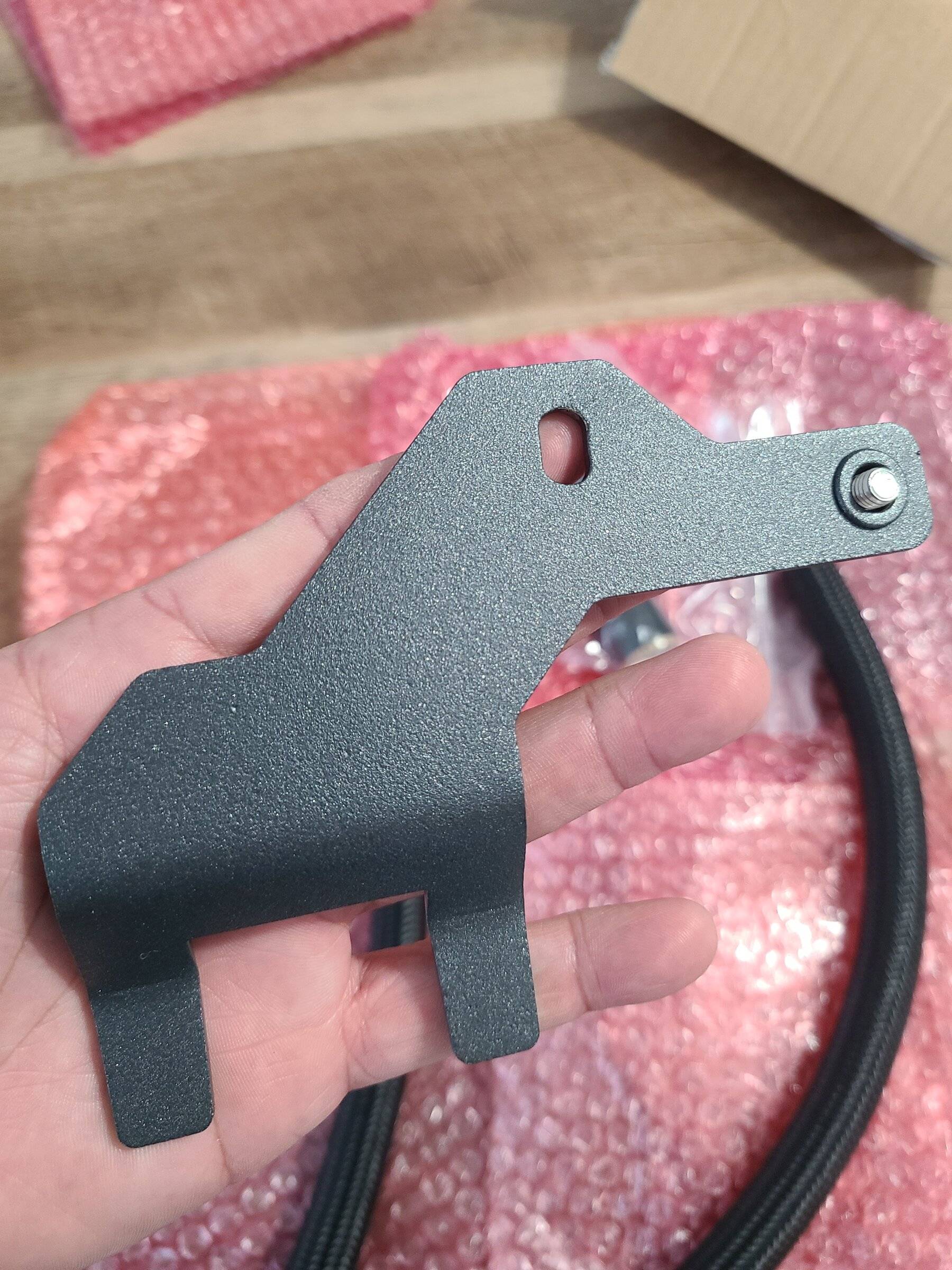

(1) Laser-cut, powder-coated 1/8" steel mounting bracket.
(1) Stainless steel M6 x 16mm flanged hex bolt.
(1) Inlet side (short) black nylon braided steel re-enforced oil/fuel line 5/8".
(1) Outlet side (long) black nylon braided steel re-enforced oil/fuel line 5/8".
(4) Gates 32922 heat shrink hose clamps.

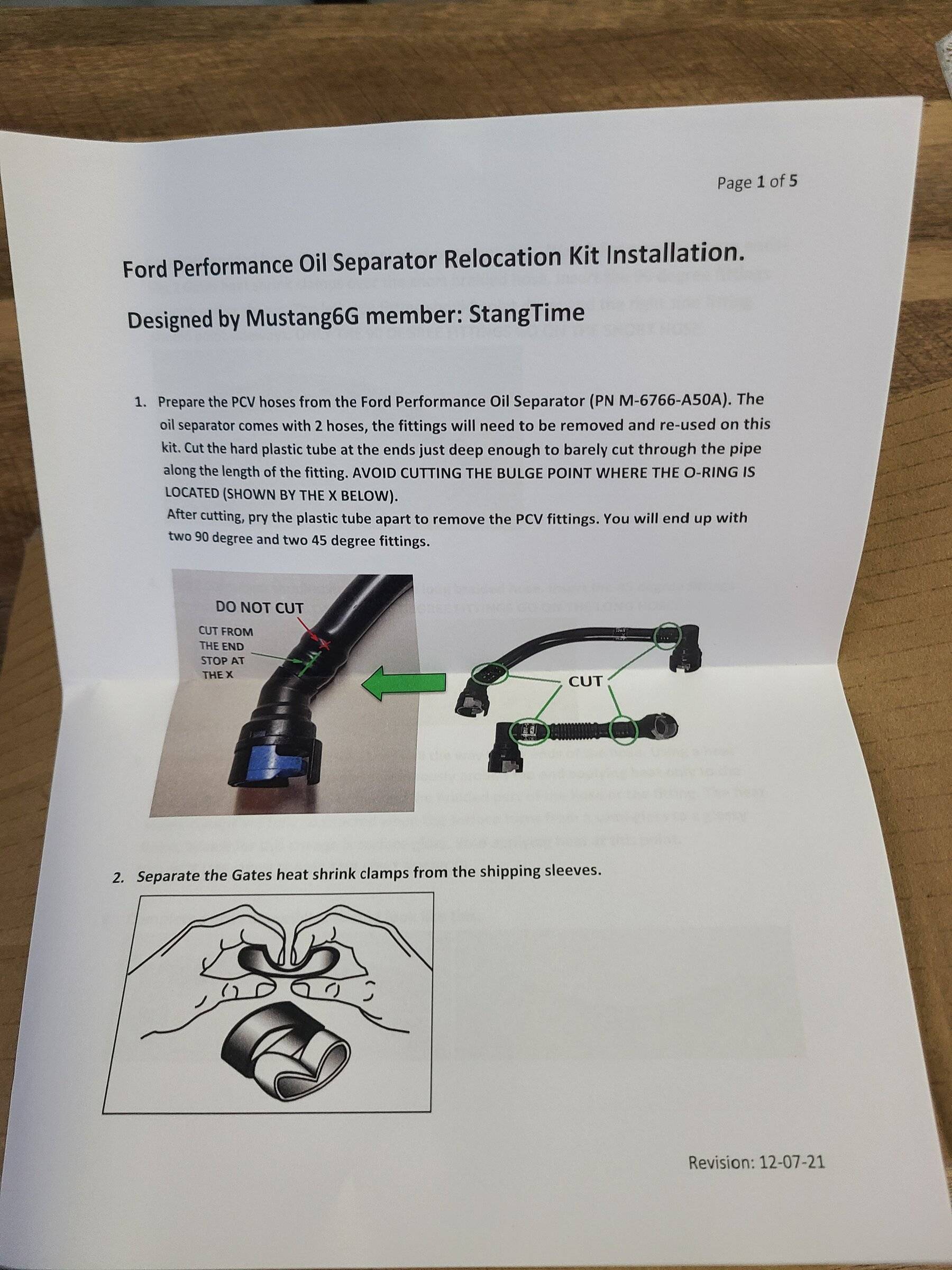

(1) Printed instructions.

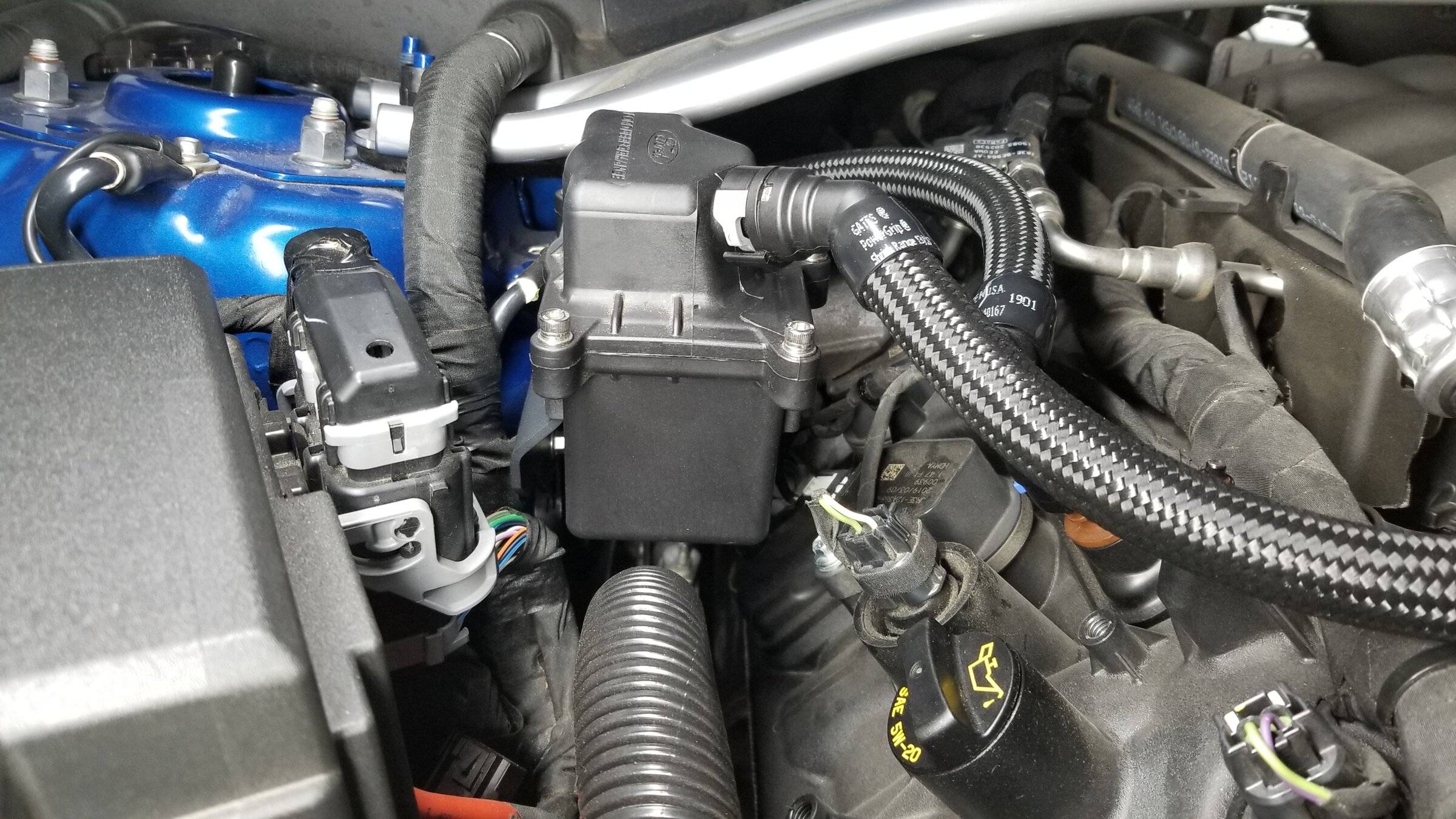

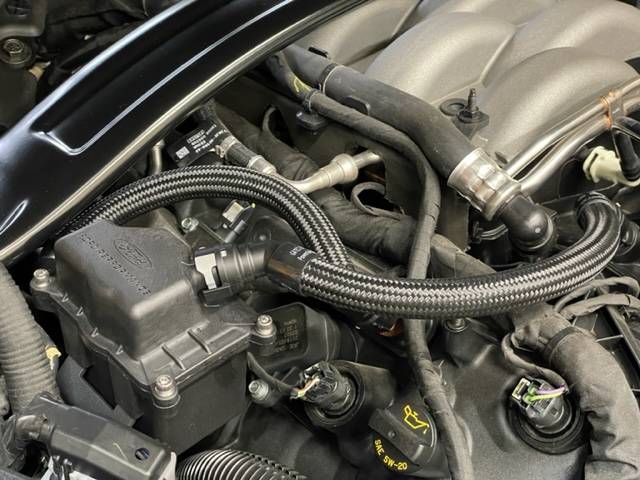

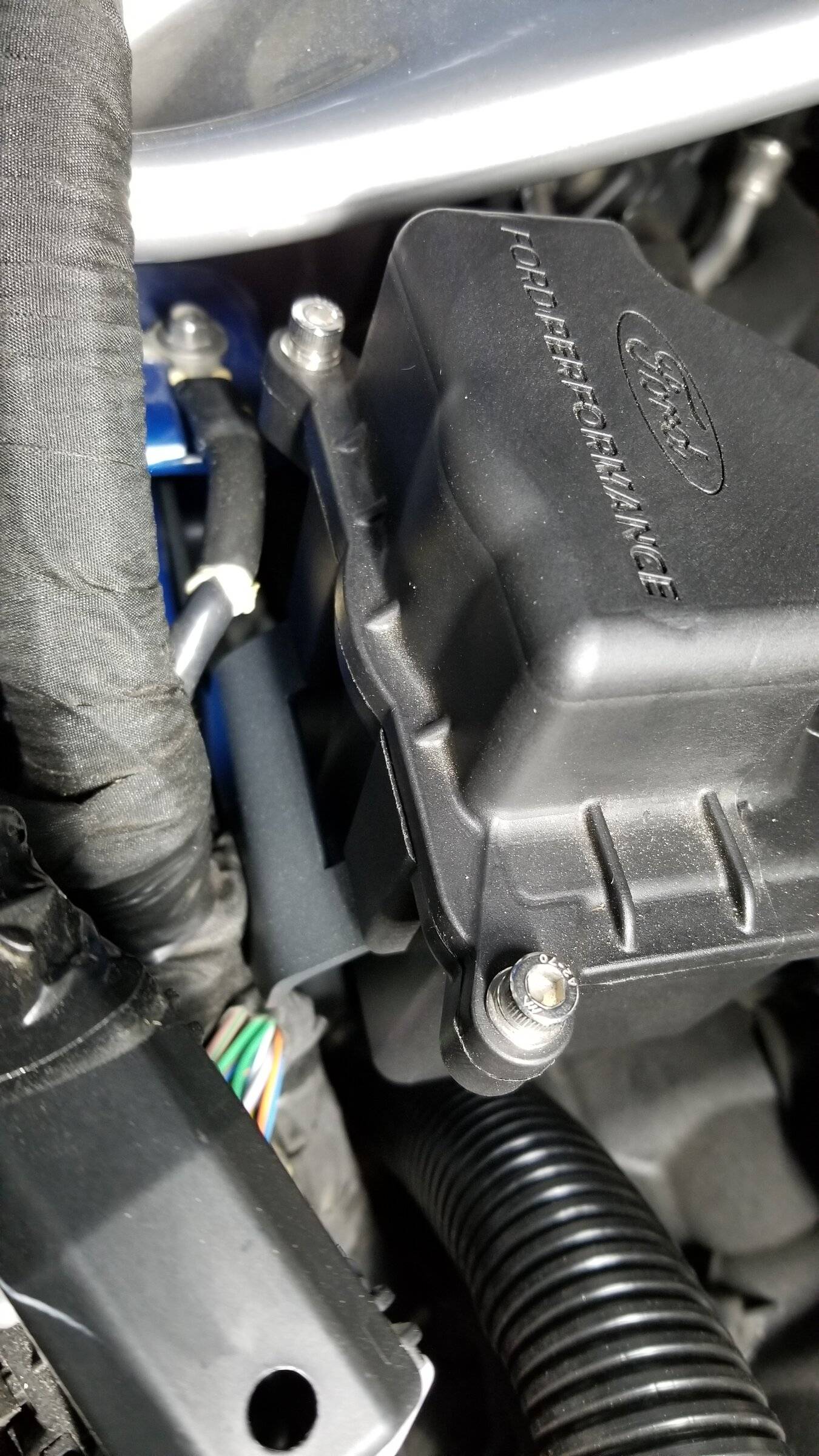

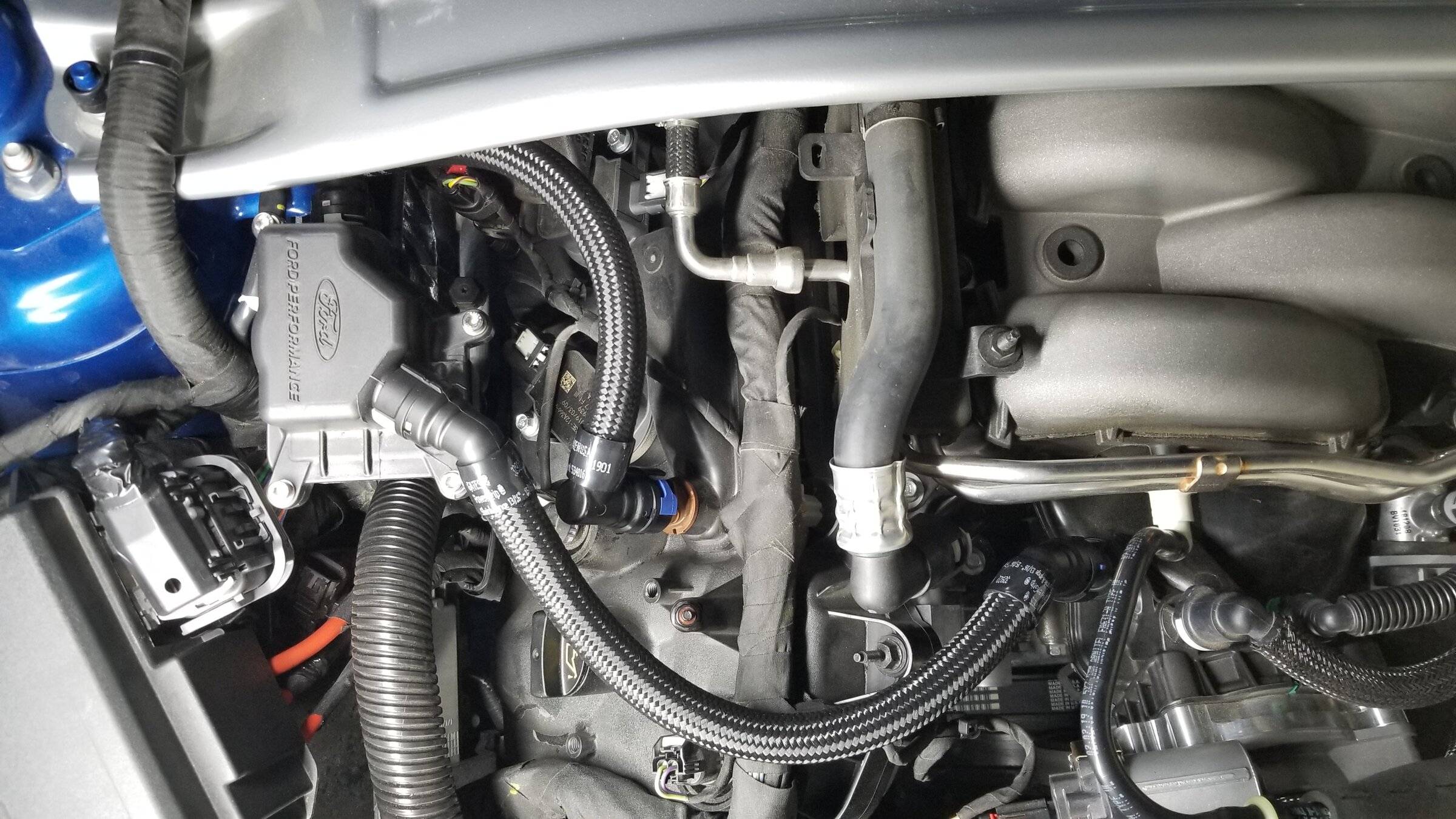

Some pictures of the completed installation:

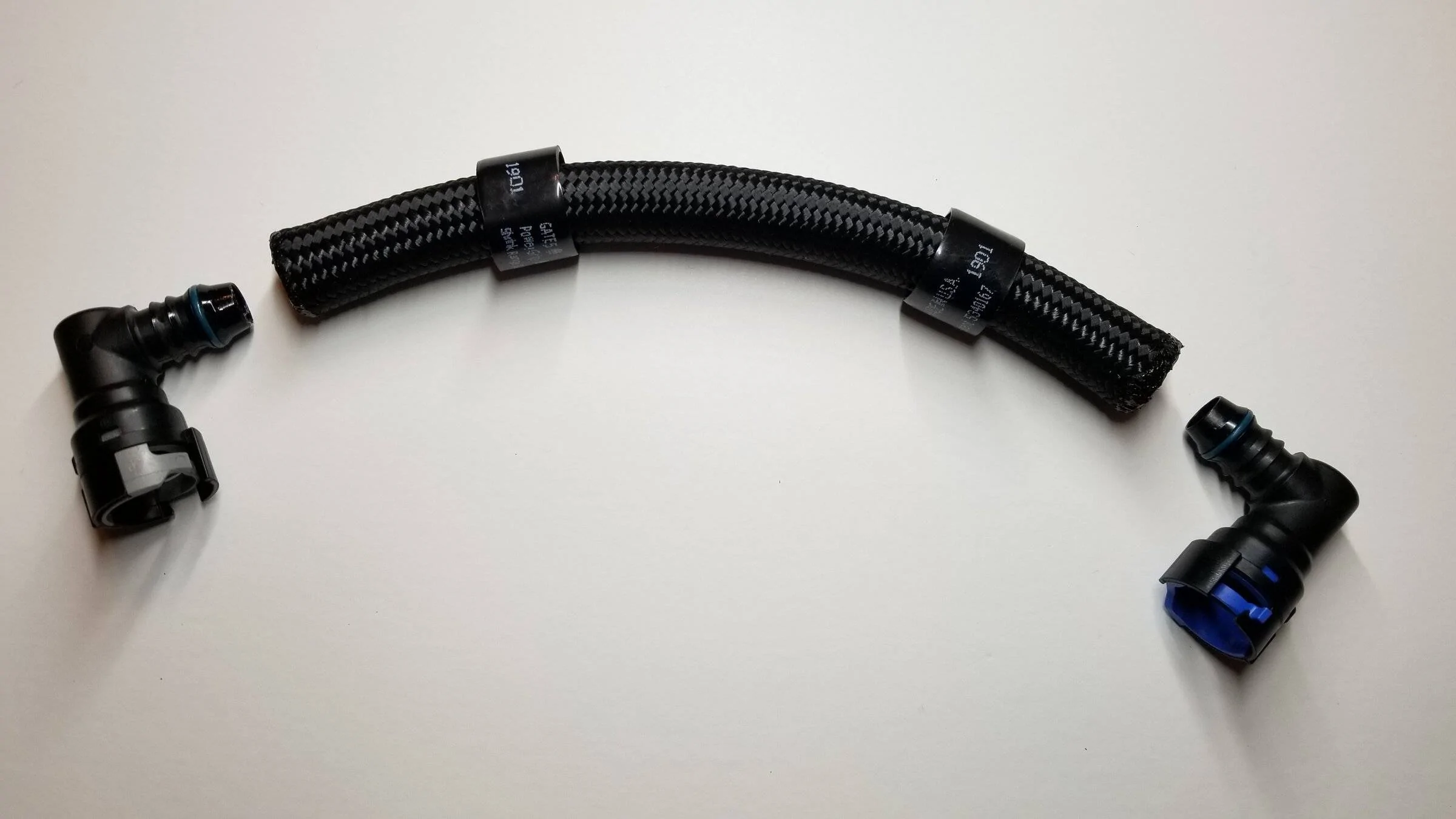

Hose assembly:

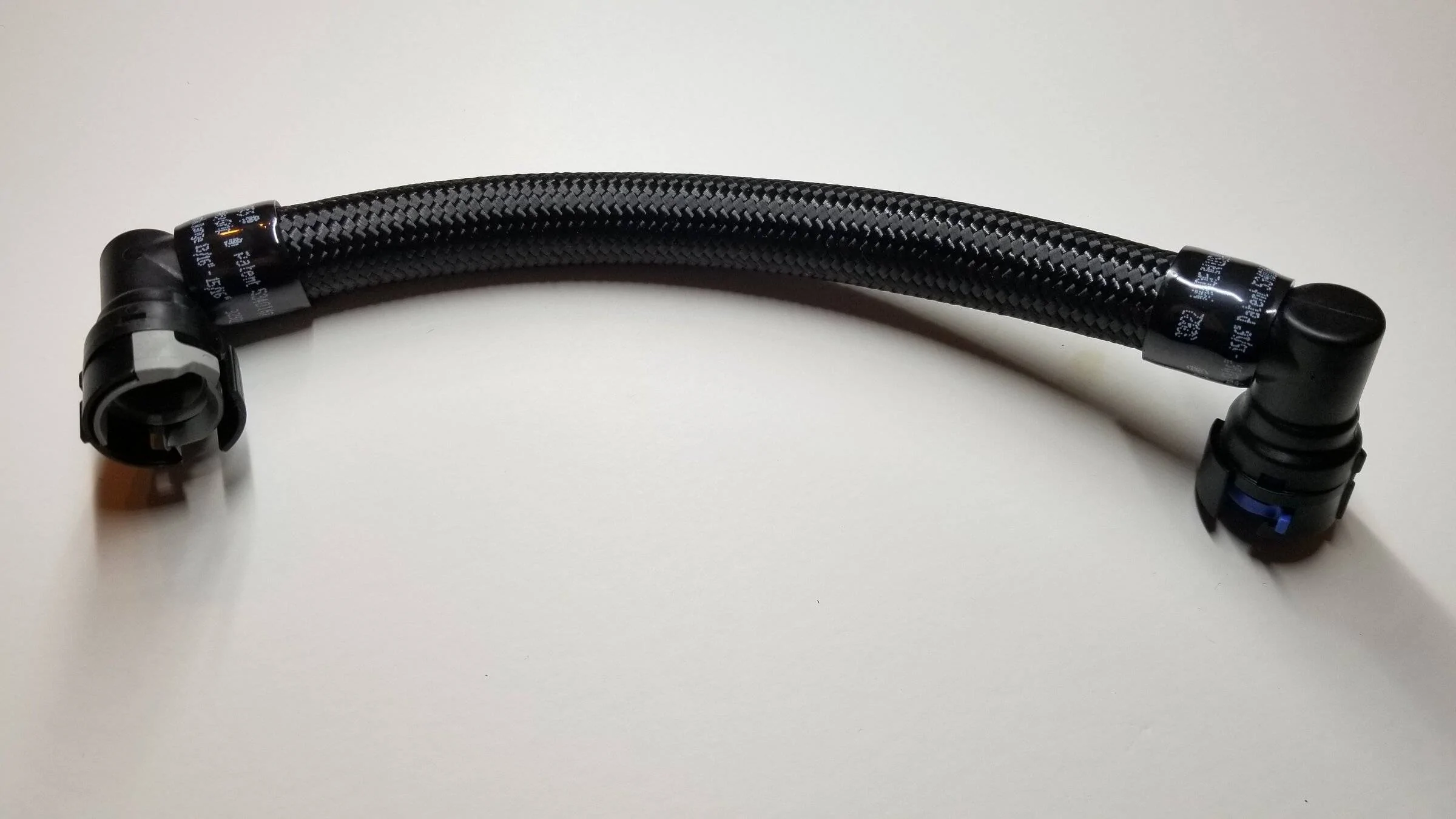

After heat shrinking the clamps:

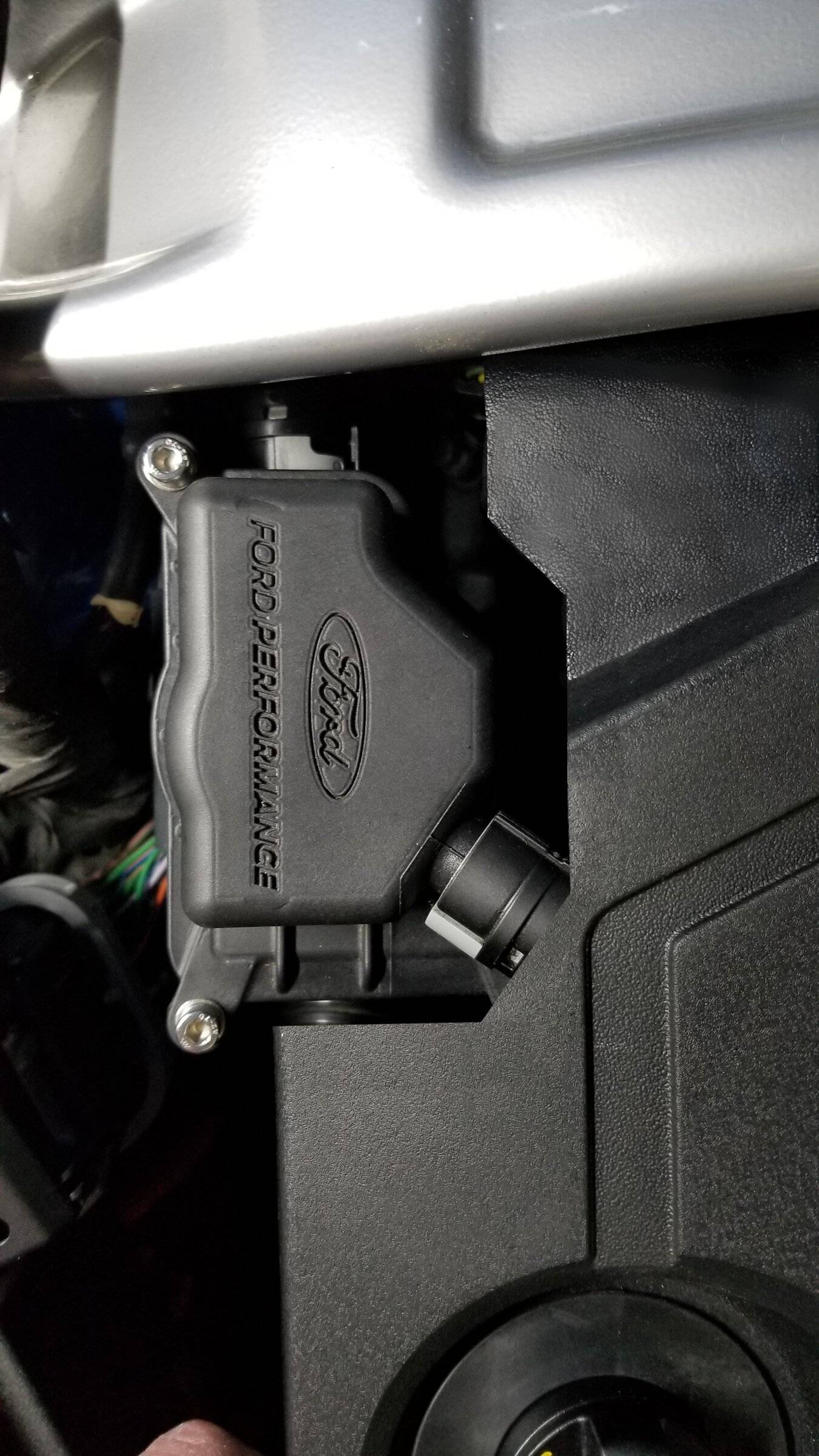

Engine cover cut-out.jpg

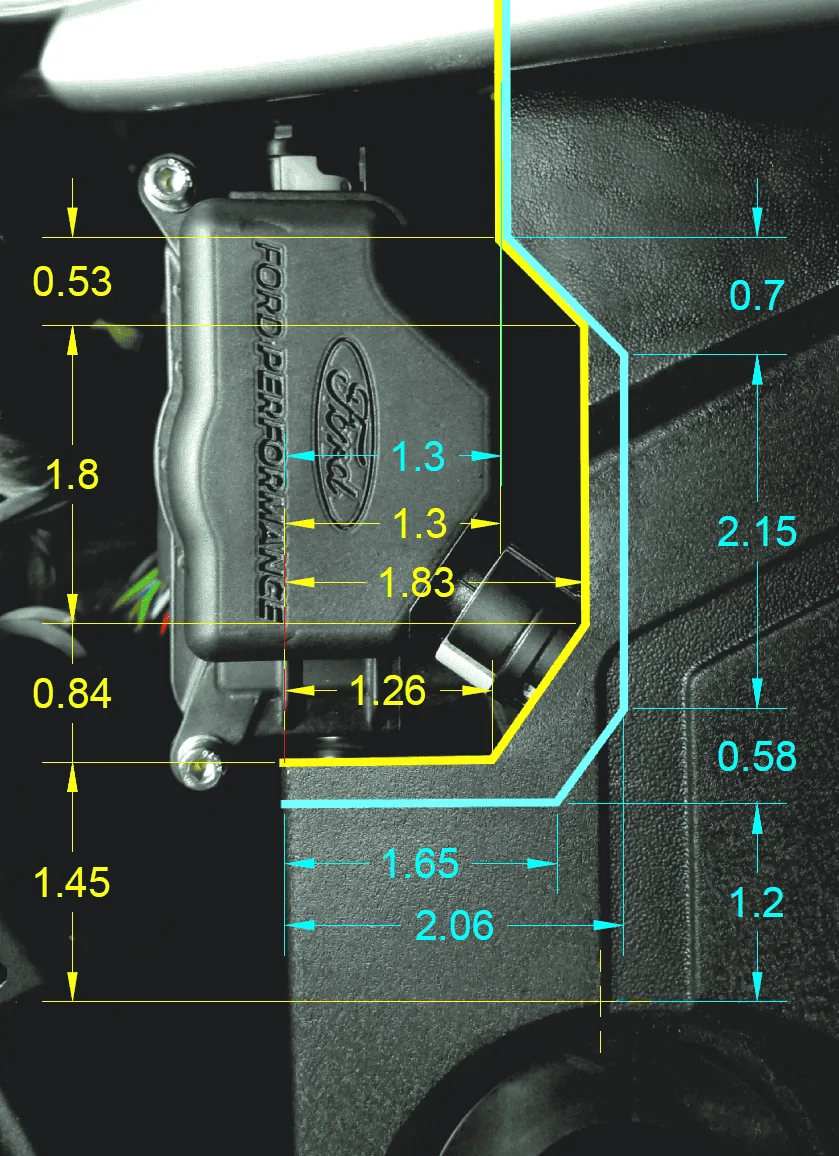

Engine cover trimming detail:
Engine Cover Trim Lines.PNG


Please note:
The kit does not include the oil separator or any PCV fittings. Reuse the fittings from the hoses that came with your FP oil separator. Cut through the hard tubing and pull the fittings off - slide heat shrink clamps onto the new hoses and insert old fittings on ends then apply heat using a heat gun. New fittings are available on ebay if you want to save your original FP hoses.

Bracket mounts using existing holes in the side of the strut tower. No drilling.

See the attached PDF below, for installation instructions.

View attachment Ford Performance Oil Separator Relocation Kit Installation Rev05-09-22.pdf
Sponsored


Last edited:

andrewzander

Active Member
Joined
May 7, 2020
Threads
3
Messages
38
Reaction score
19
Location
Silverdale, WA
First Name
Andrew
Vehicle(s)
2019 Mustang GT
I'm pleased to report that I purchased this kit and it was a very positive experience!

Shipping to the U.S. was quicker than expected. Everything was exactly as advertised. The kit installation was straight forward. The only issue I ran into was that the suspension spring (coil right in front of the whole were the screw attached to the plate) prevented me from getting a socket on it. I have a base model GT. So, this might be different for those who have other types of springs installed. I ended up having my kid (small hands) help get the screw started. Aside from this minor issue (not the seller's fault), it was an easy installation.

I purchased the hose connectors separately so that I didn't have to cut the original hoses from the FP kit. These worked fine with no issues.

In my opinion, this kit is well worth the cost in order to be able to use the FP oil separator kit.


OP
OP
StangTime

StangTime

Well-Known Member
Joined
Apr 16, 2019
Threads
80
Messages
3,528
Reaction score
3,947
Location
Ontario 🇨🇦
First Name
Todd
Vehicle(s)
19' GT PP1 Manual
I'm pleased to report that I purchased this kit and it was a very positive experience!

Shipping to the U.S. was quicker than expected. Everything was exactly as advertised. The kit installation was straight forward. The only issue I ran into was that the suspension spring (coil right in front of the whole were the screw attached to the plate) prevented me from getting a socket on it. I have a base model GT. So, this might be different for those who have other types of springs installed. I ended up having my kid (small hands) help get the screw started. Aside from this minor issue (not the seller's fault), it was an easy installation.

I purchased the hose connectors separately so that I didn't have to cut the original hoses from the FP kit. These worked fine with no issues.

In my opinion, this kit is well worth the cost in order to be able to use the FP oil separator kit.

I'm glad you like it Andrew and thanks for the positive review!

OP
OP
StangTime

StangTime

Well-Known Member
Joined
Apr 16, 2019
Threads
80
Messages
3,528
Reaction score
3,947
Location
Ontario 🇨🇦
First Name
Todd
Vehicle(s)
19' GT PP1 Manual
UPDATE: 2 kits available. Updated instructions with engine cover trimming details.

Last edited:
OP
OP
StangTime

StangTime

Well-Known Member
Joined
Apr 16, 2019
Threads
80
Messages
3,528
Reaction score
3,947
Location
Ontario 🇨🇦
First Name
Todd
Vehicle(s)
19' GT PP1 Manual

Sponsored

larr12

Well-Known Member
Joined
Jul 9, 2020
Threads
13
Messages
850
Reaction score
1,073
Location
USA
First Name
Alberto
Vehicle(s)
2020 Mustang PP1

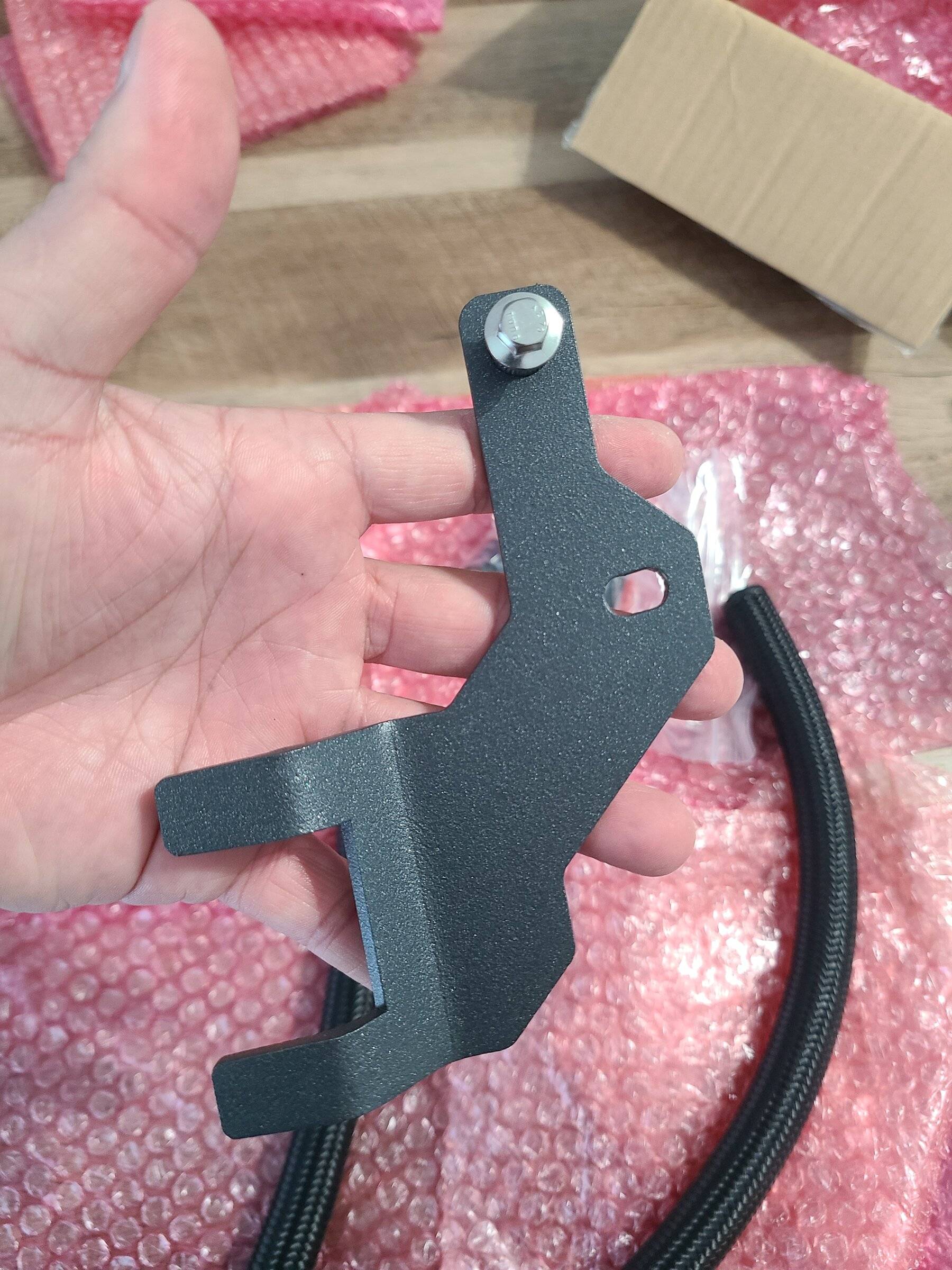

Got the kit. Excellent packaging as you can see in the pics. Amazing quality and finish.

Thanks Todd.















Brazos609

Well-Known Member
Joined
Jan 22, 2018
Threads
23
Messages
717
Reaction score
268
Location
Texas
Vehicle(s)
2015 GT Premium PP Recaro
Making more?

OP
OP
StangTime

StangTime

Well-Known Member
Joined
Apr 16, 2019
Threads
80
Messages
3,528
Reaction score
3,947
Location
Ontario 🇨🇦
First Name
Todd
Vehicle(s)
19' GT PP1 Manual

Sponsored
OP
OP
StangTime

StangTime

Well-Known Member
Joined
Apr 16, 2019
Threads
80
Messages
3,528
Reaction score
3,947
Location
Ontario 🇨🇦
First Name
Todd
Vehicle(s)
19' GT PP1 Manual
OP
OP
StangTime

StangTime

Well-Known Member
Joined
Apr 16, 2019
Threads
80
Messages
3,528
Reaction score
3,947
Location
Ontario 🇨🇦
First Name
Todd
Vehicle(s)
19' GT PP1 Manual

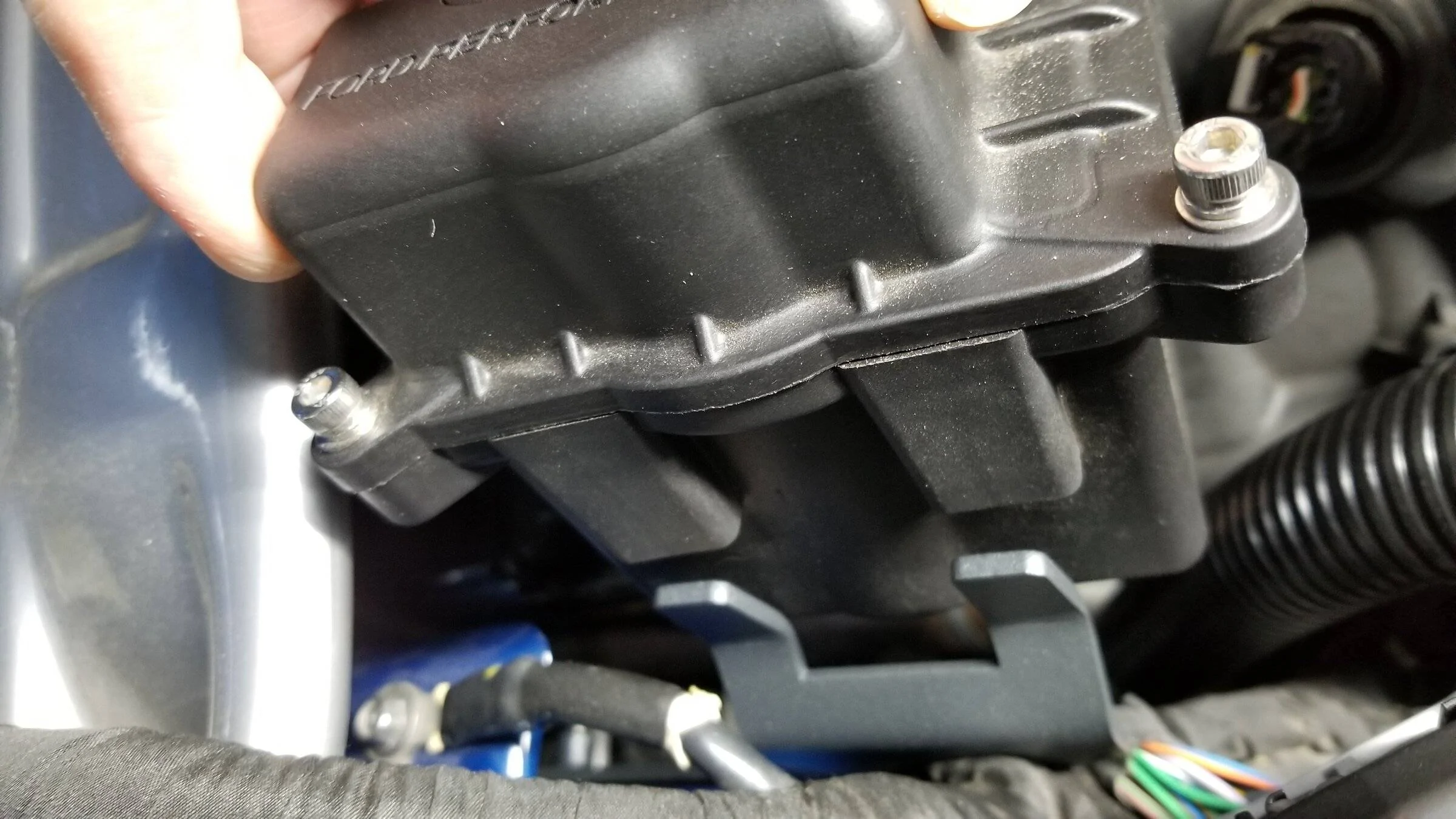

Does the separator simply lift straight off the two tabs?
Yes. Easy access. Just unclip the hoses and lift it off.


ZenkaiRacer

Well-Known Member
Joined
Apr 2, 2016
Threads
8
Messages
205
Reaction score
70
Location
Utah
Vehicle(s)
2016 GT AT
I just realized my oil separator for my 2016 does not have the provisions for the bracket. :(
