Ford Mustang Pigtail Connectors

Discussion in 'LevittownFordParts.com' started by LevittownFordParts, Aug 25, 2016.

  1. LevittownFordParts

    LevittownFordParts Well-Known Member
    Diamond Sponsor


    First Name:
    Benny
    Vehicle(s):
    S550's!
    Joined:
    Jun 27, 2014
    Location:
    Worldwide
    Posts:
    1,464
    Likes Received:
    379
    Rating:
    100%
    2   0   0

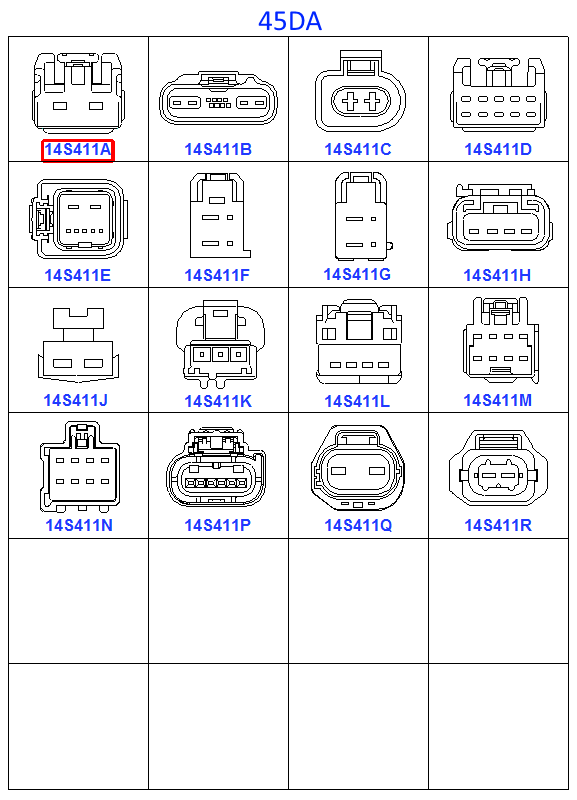

    Guys I have created this post in order to help identify needed pigtail connectors. Over time I have had requests for coil connectors, oil pressure sender connectors etc... but the way ford lists them makes it difficult to identify. Therefore I have attached our parts diagrams so that the end user can first identify what the connector resembles then I can verify this by Ford's description after to confirm it is the one thats needed.

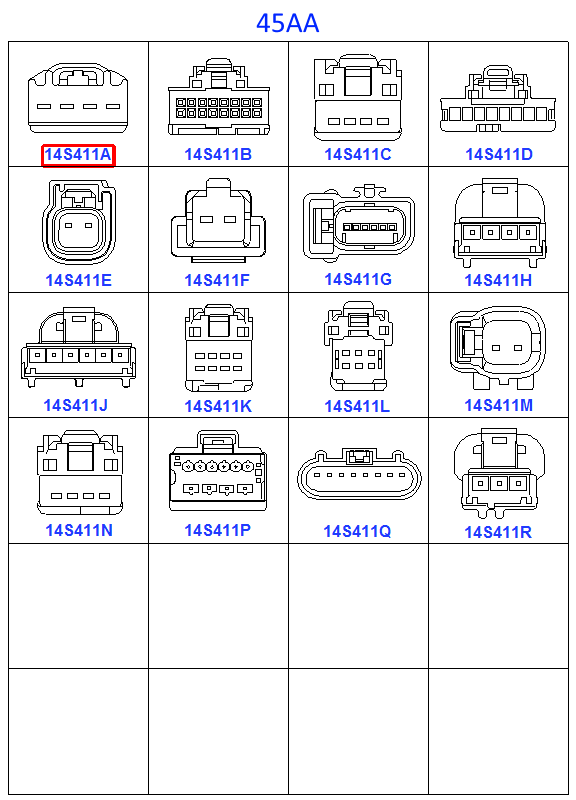

    When referencing the part code under the connector please reference the category it is in for Example 14S411A in 45AA



    Hope this helps,

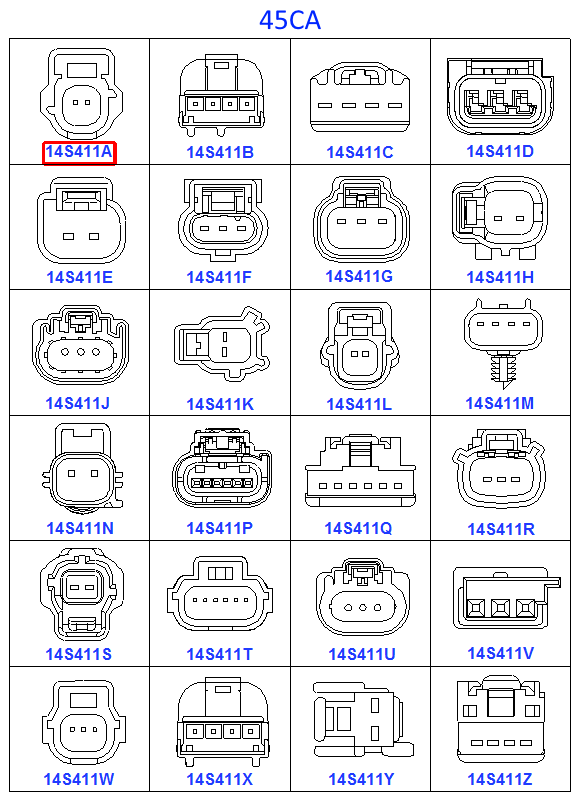

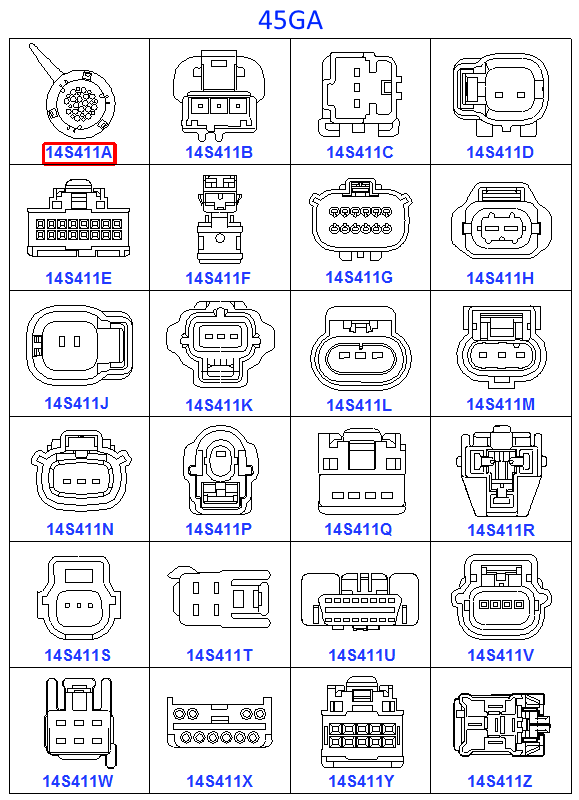

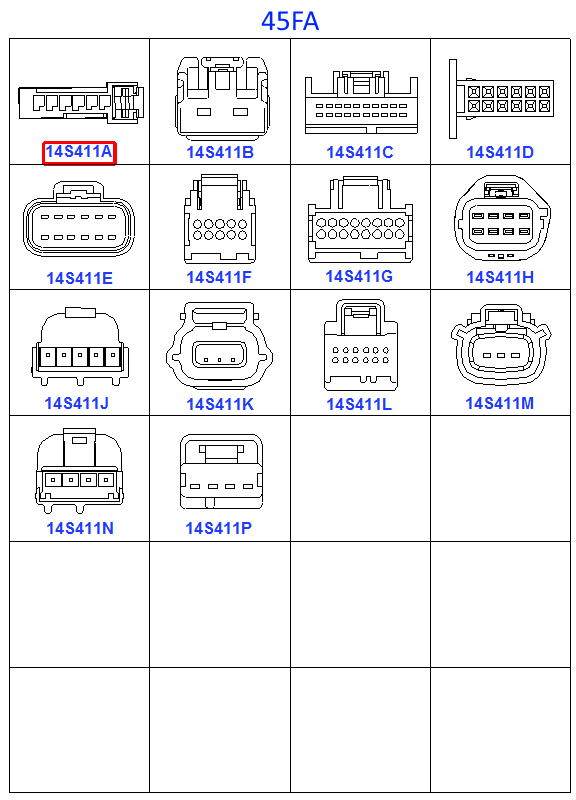

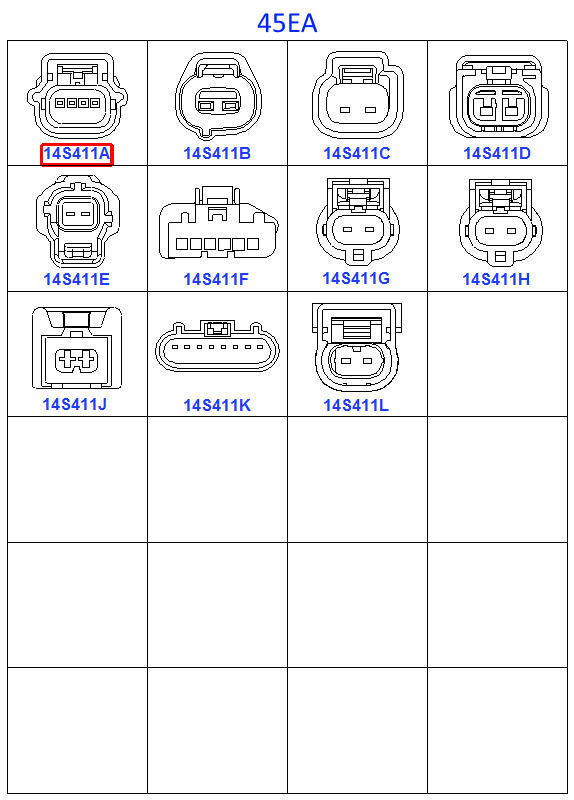

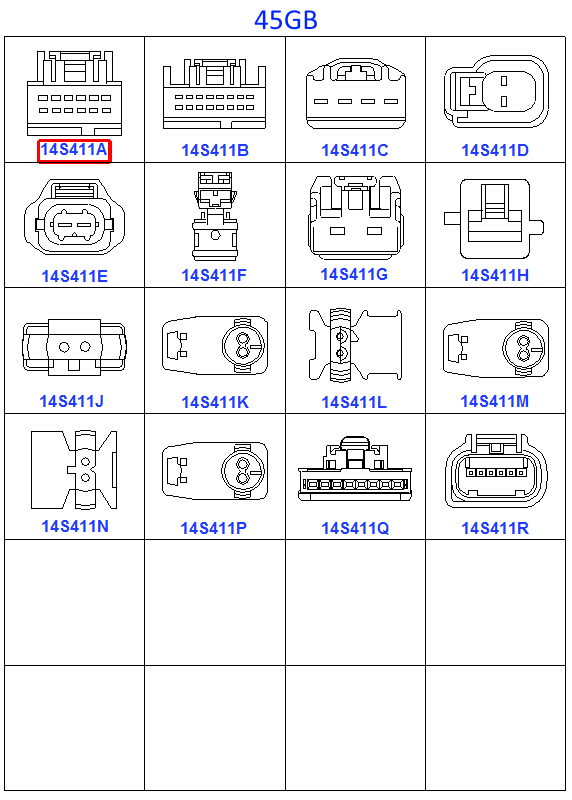

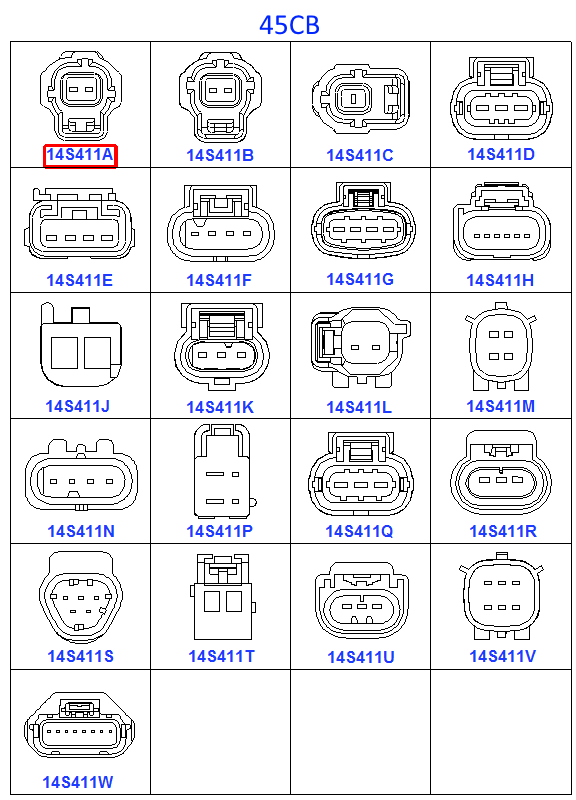

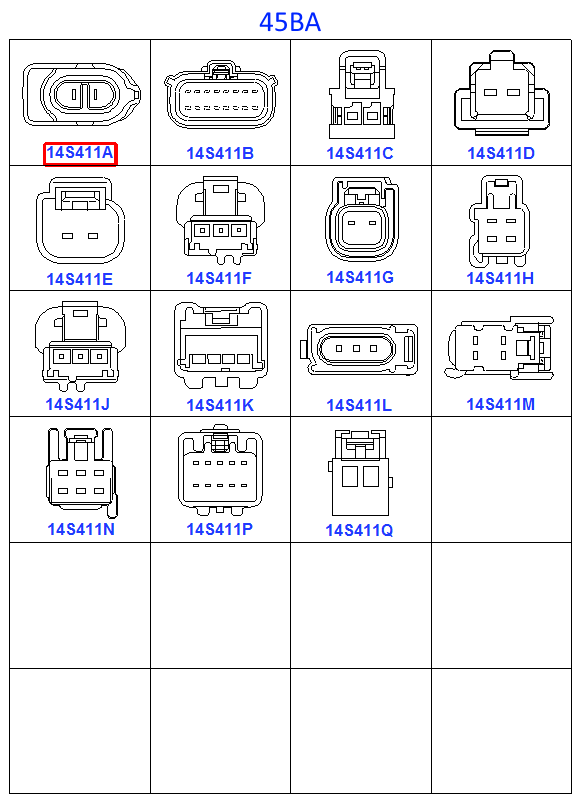

    Benny FORD_CONNECTORS.gif 2 connectors.gif 3 connectors.gif 4 connectors.gif 5 connectors.gif 6 connectors.gif 7 connectors.gif 8 connectors.gif 9 connectors.gif
