Ford Euros on a 2020 500

SvtSk1tz0

New Member
Joined
Apr 6, 2021
Messages
4
Reaction score
0
Location
Georgia
First Name
Aaron
Vehicle(s)
2013 Boosted GT / 2020 GT500
I know this has been around a bit... but everything I’ve tried to re-pin my connectors to run the Ford Euros hasn’t worked...

many any any all help would be great!!!

i need the proper wiring layout for the oem American connector





Advertisement



Snoopy49

Well-Known Member
Joined
Jul 24, 2019
Messages
3,727
Reaction score
5,638
Location
California
First Name
Earl
Vehicle(s)
2013 GT500 and 2020 GT500
2020 Mustang Tail Light Wiring Diagram.jpg



2020 Mustang C498 Connector LH Rear Tail Light.jpg



2020 Mustang C499 Connector RH Rear Taillight.jpg

OP

SvtSk1tz0

New Member
Joined
Apr 6, 2021
Messages
4
Reaction score
0
Location
Georgia
First Name
Aaron
Vehicle(s)
2013 Boosted GT / 2020 GT500
  • Thread starter
  • Thread Starter
  • #3

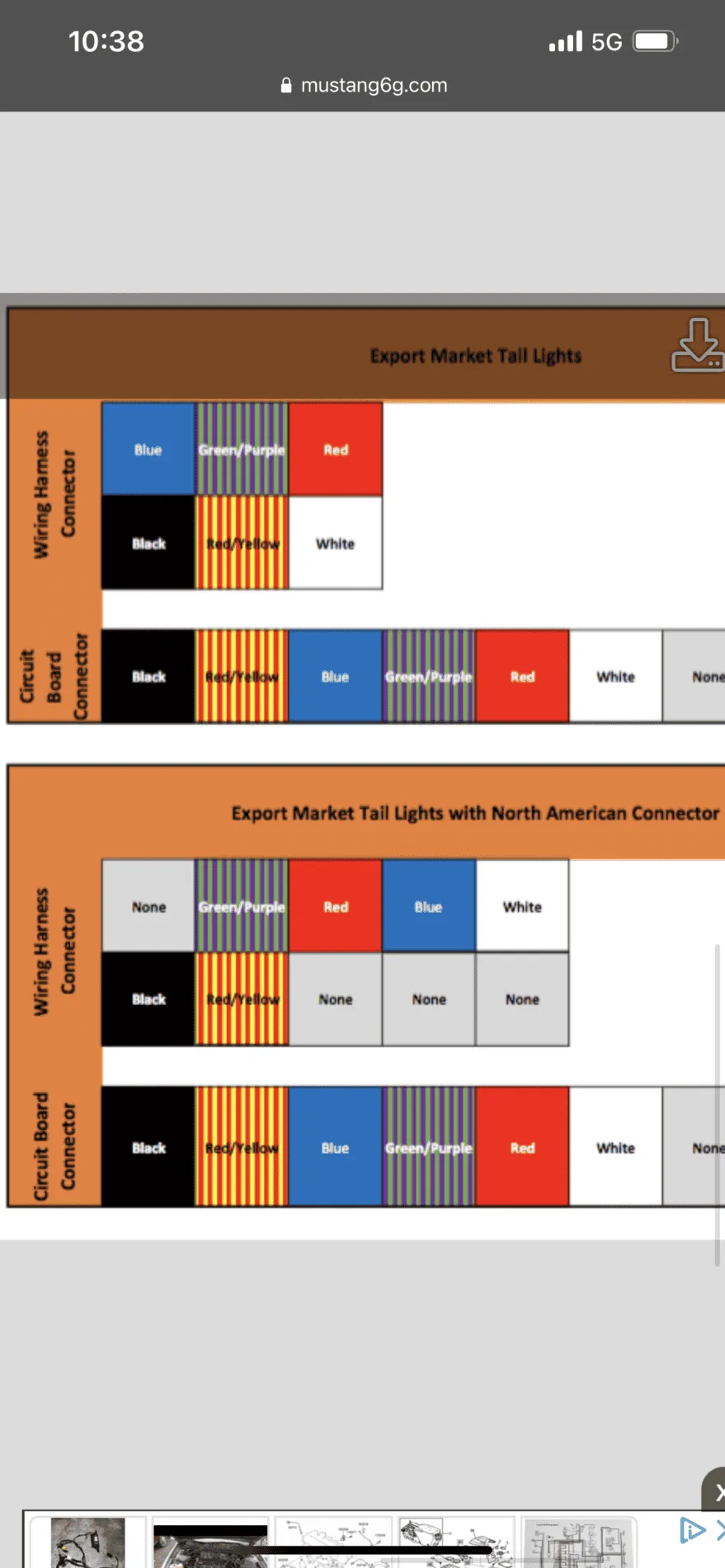

So here’s the issue... I don’t have any of those colors in a 2020 GT500... I’ve tried everything... as of today they work BUT inside the car it hyper flashes and outside the car it works fine.... I’m straight over it....


Semp1

Well-Known Member
Joined
Apr 26, 2019
Messages
872
Reaction score
346
Location
Valhalla
Vehicle(s)
2018 Mustang GT PP1 Magneride
Did you actually get the OEM euros. I believe legit modifications need to be done for them to actually function perfectly.

OP

SvtSk1tz0

New Member
Joined
Apr 6, 2021
Messages
4
Reaction score
0
Location
Georgia
First Name
Aaron
Vehicle(s)
2013 Boosted GT / 2020 GT500
  • Thread starter
  • Thread Starter
  • #5
Did you actually get the OEM euros. I believe legit modifications need to be done for them to actually function perfectly.
Yes sir 100% FORD oem euros


Jmeo

You said member ;)
Joined
May 28, 2014
Messages
7,136
Reaction score
5,370
Location
Massachusetts
First Name
Jaime
Vehicle(s)
2020 GT500, 2020 F150 Limited
Vehicle Showcase
2
There are video's out there of how to re-pin them, it has been done. You will still have amber blinkers. Actually the outer most light will always be amber, no matter the function.


Snoopy49

Well-Known Member
Joined
Jul 24, 2019
Messages
3,727
Reaction score
5,638
Location
California
First Name
Earl
Vehicle(s)
2013 GT500 and 2020 GT500

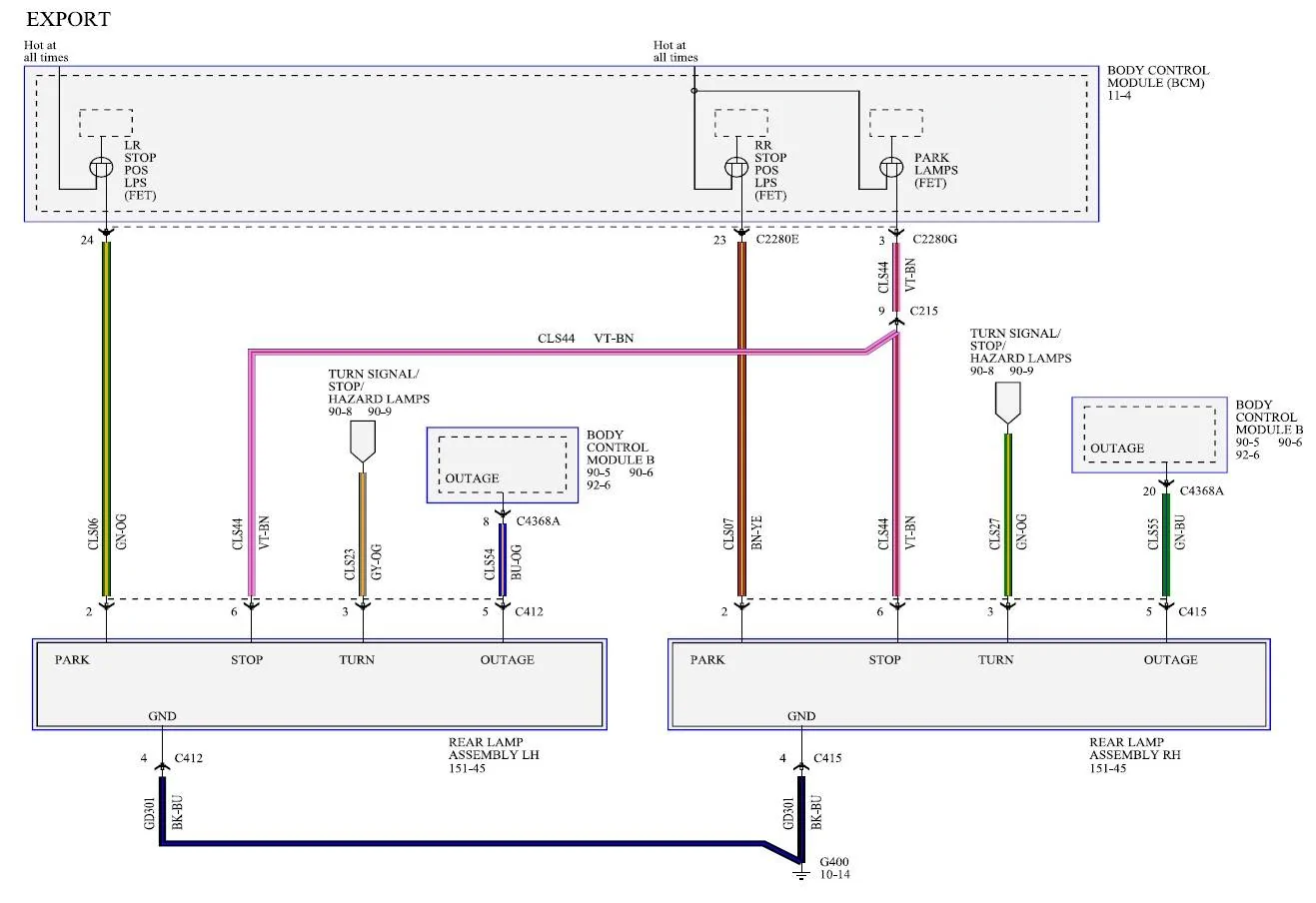

2020 Export Mustang Tail Light Wiring Diagram.jpg

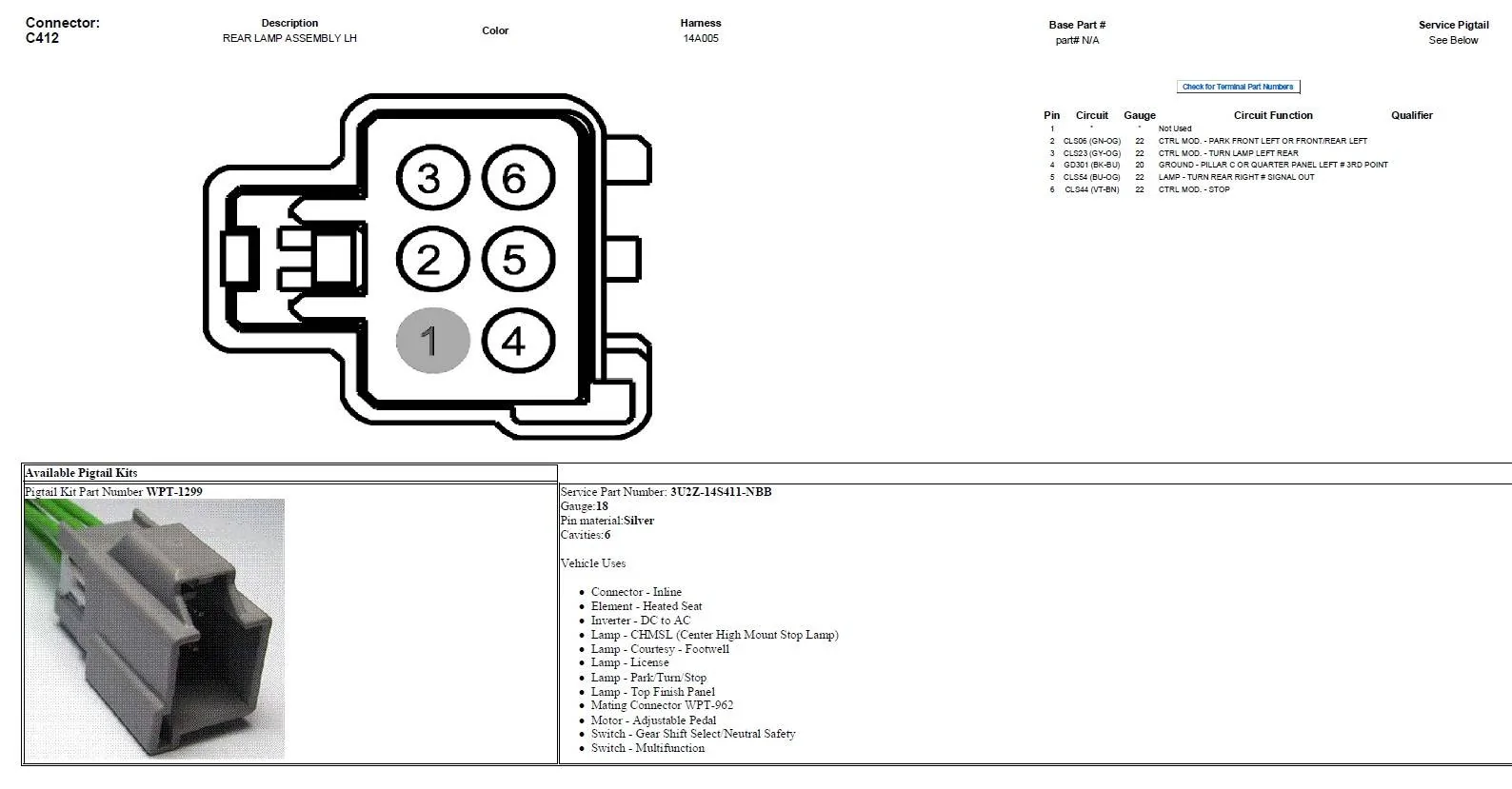

2020 Export Mustang C412 Connector LH Rear Tail Light.jpg

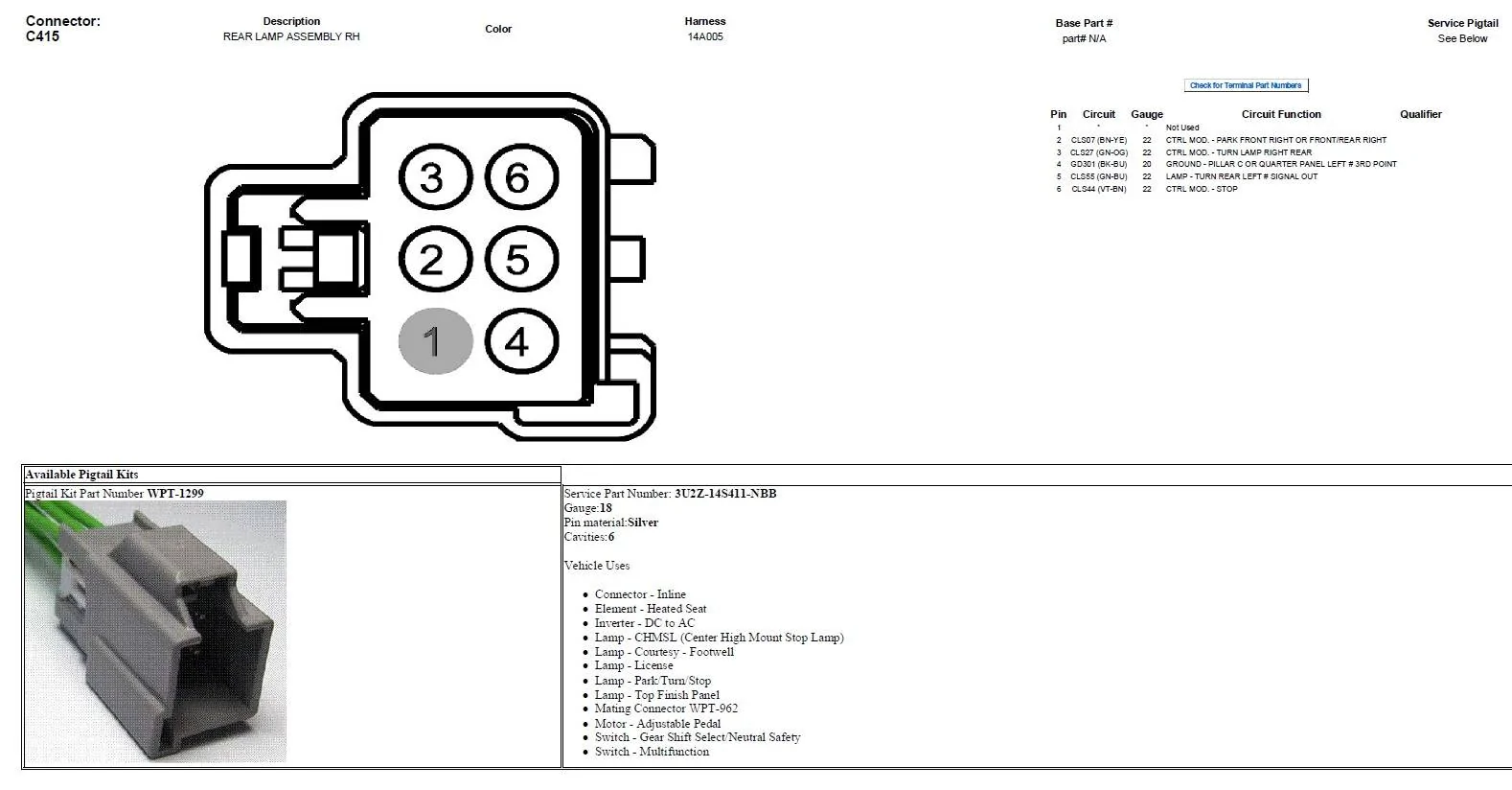

2020 Export Mustang C415 Connector RH Rear Tail Light.jpg
