Explain 3" exhaust system advantage.

WD Pro

Well-Known Member
Joined
Jan 18, 2018
Threads
121
Messages
5,667
Reaction score
10,885
Location
United Kingdom
Vehicle(s)
Lime GT
Vehicle Showcase
1
Why do the stock post cat connections neck down to like 2 1/4, does anyone know? Seems like it will make any 3 inch system kind of pointless.
Well the GT350 and I believe the GT500 are 63mm (2.375) and the 5.0 is 2.25”.
It was explained to me the sizes are more than adequate within the designed requirements by the Ford engineers.
Personally I’m still on the fence that the reduction is similar to a header collector choke but that’s going down a deep rabbit hole.
There is a (easily removed) 2.0” restriction in the GT (and Mach) :

Standard GT resonator does a similar thing :
  • Standard pipe diameter = 2.5"
  • Diameter at front manifold clamps = 2.25" (same for standard resonator and resonator deletes).
  • Diameter at resonator outlet joint = 2.00" (removed with resonator delete).
WD :like:
WD :like:
Sponsored



WD Pro

Well-Known Member
Joined
Jan 18, 2018
Threads
121
Messages
5,667
Reaction score
10,885
Location
United Kingdom
Vehicle(s)
Lime GT
Vehicle Showcase
1
15-17 only
Gen3 18+ received a size increase in that area.
I'm a 2020 ... ?

I know I'm a euro, but we get the active exhaust which is a single piece (so defo a facelift part).

The mufflers are identical to a USDM as I checked the stamped part numbers to other photos I had found on here.

I still have the resonator, so we can cross check that part number with a USDM car (if it's important) :like:

WD :like:


WD Pro

Well-Known Member
Joined
Jan 18, 2018
Threads
121
Messages
5,667
Reaction score
10,885
Location
United Kingdom
Vehicle(s)
Lime GT
Vehicle Showcase
1
I’m referencing the diameter of the front flex joint. Are you referring to another area reduced to 2.0” ?
Yes, from my post above :

"Diameter at resonator outlet joint = 2.00" (removed with resonator delete)"

WD :like:


Sponsored

K4fxd

Well-Known Member
Joined
Apr 2, 2020
Threads
102
Messages
10,227
Reaction score
8,280
Location
NKY
First Name
Dan
Vehicle(s)
2017 gt, 2002 FXDWG, 2008 C6,
I agree 100% about a BB 426 hemi. But a SB 305 with a 3.64 bore/3.62 stroke doesn't move as much air as a 426 with a 4.24 bore/3.75 stroke.
It has nothing to do with the valve diameter or engine size. It is the amount of HP the engine can make. 450 HP from a small block is the same airflow as 450HP from a big block.


WildHorse

N/A or GO HOME
Joined
Jun 28, 2017
Threads
216
Messages
8,340
Reaction score
6,369
Location
Home World: CLASSIFIED
First Name
ⓇⒾⒸⓀⓎ ⓈⓅⒶⓃⒾⓈⒽ
Vehicle(s)
'17 S550
Vehicle Showcase
1
450 HP from a small block is the same airflow as 450HP from a big block.
no. cause your not making the same horsepower at the same rpm.


K4fxd

Well-Known Member
Joined
Apr 2, 2020
Threads
102
Messages
10,227
Reaction score
8,280
Location
NKY
First Name
Dan
Vehicle(s)
2017 gt, 2002 FXDWG, 2008 C6,
no. cause your not making the same horsepower at the same rpm.
It's still the same airflow at whatever RPM it makes the 450 HP


junits15

Well-Known Member
Joined
Jul 7, 2022
Threads
13
Messages
636
Reaction score
704
Location
MA
First Name
Justin
Vehicle(s)
2019 Mustang GT
It's still the same airflow at whatever RPM it makes the 450 HP
I'll add that the flow rate is the same but the frequency of the pulses is different, which will do weird stuff in an exhaust. This may explain why there is some different "tribal wisdom" coming from the guys used to running older motors.


GregO

Well-Known Member
Joined
Mar 5, 2018
Threads
41
Messages
2,315
Reaction score
1,545
Location
Illinois
Vehicle(s)
S550 GTPP
In the air compressor industry HP and CFM are directly proportional.
An internal combustion reciprocating piston engine has far too many variables for HP and CFM to be directly proportional and constant.


Sponsored

Need4SpeedMotors

Well-Known Member
Diamond Sponsor
Joined
Nov 17, 2014
Threads
180
Messages
20,556
Reaction score
4,810
Location
Los Angeles, CA
Website
www.n4sm.com
First Name
N4SM Team
Vehicle(s)
S550 Mustang & Shelby GT350 platform
I'm old school as in 60s and 70s muscle cars. Majority of people feel that 3"+ pipes are only good for Hemi's and big block strokers because there isn't enough restriction (velocity) for smaller engines for the exhaust system to work properly. Please explain why they work on these engines.
On these s550 coyote motors they make all their power in the upper rpm they naturally lack torque. Going to a 3" will help increase that upper rpm flow for HP. The factory 2.5" piping creates more back pressure resulting in more torque feel. Felt this on my personal car. Car felt quick with the factory exhaust. Once I put a 3" I felt the slight torque loss but the car felt stronger in the upper rpms.

OP
OP
Racer57

Racer57

Well-Known Member
Joined
Jun 26, 2023
Threads
24
Messages
117
Reaction score
184
Location
East Central Illinois
Vehicle(s)
2022 Mach 1 1970 Cuda 383cu Tremec 5 speed.
It has nothing to do with the valve diameter or engine size. It is the amount of HP the engine can make. 450 HP from a small block is the same airflow as 450HP from a big block.
Ever seen the headers on a 900hp Indycar or 1,500hp Pro Stock ?

Last edited:

K4fxd

Well-Known Member
Joined
Apr 2, 2020
Threads
102
Messages
10,227
Reaction score
8,280
Location
NKY
First Name
Dan
Vehicle(s)
2017 gt, 2002 FXDWG, 2008 C6,

furdfan2018

Well-Known Member
Joined
Feb 23, 2023
Threads
1
Messages
311
Reaction score
407
Location
AZ
First Name
John
Vehicle(s)
Mustang
I agree 100% about a BB 426 hemi. But a SB 305 with a 3.64 bore/3.62 stroke doesn't move as much air as a 426 with a 4.24 bore/3.75 stroke.

A 1970 Hemi barracuda made 426 horsepower, trapped 107 mph in the quarter mile and weighed, what... 3300 lbs?


A 2018 Mustang GT makes 460 horsepower, weighs several hundred pounds MORE than the Hemi car, and traps 112-115mph more regularly than a 0700 bowel movement.

I can promise you, the tiny 302 moves more air.

Last edited:

K4fxd

Well-Known Member
Joined
Apr 2, 2020
Threads
102
Messages
10,227
Reaction score
8,280
Location
NKY
First Name
Dan
Vehicle(s)
2017 gt, 2002 FXDWG, 2008 C6,

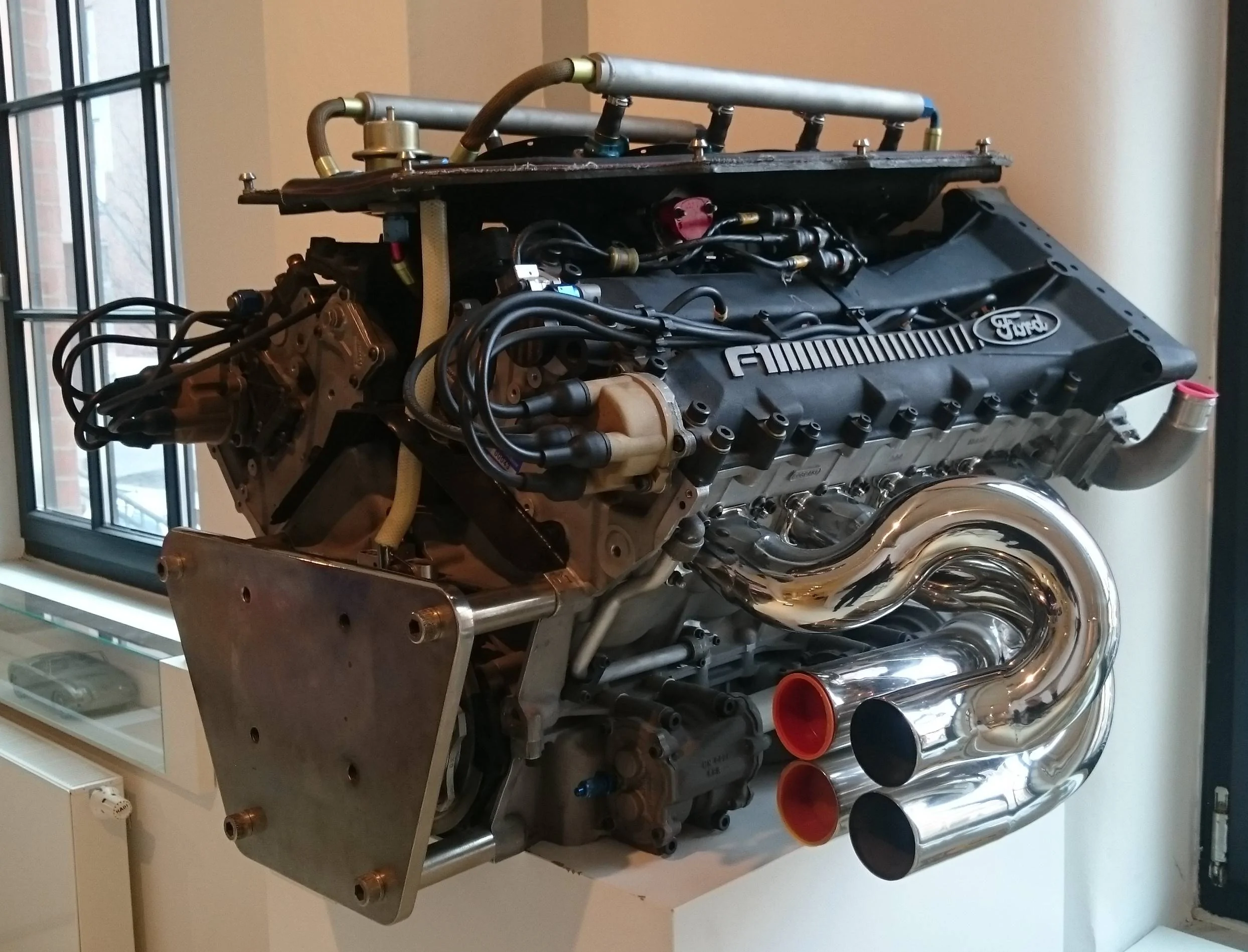

Stock file pic of Cosworth V8
