Ecoboost Jims exhaust. $225.00

EcoboostJim

Well-Known Member
Joined
Jan 18, 2015
Threads
22
Messages
169
Reaction score
19
Location
Manheim PA
Vehicle(s)
2015 Oxford white Ecoboost Performance Package

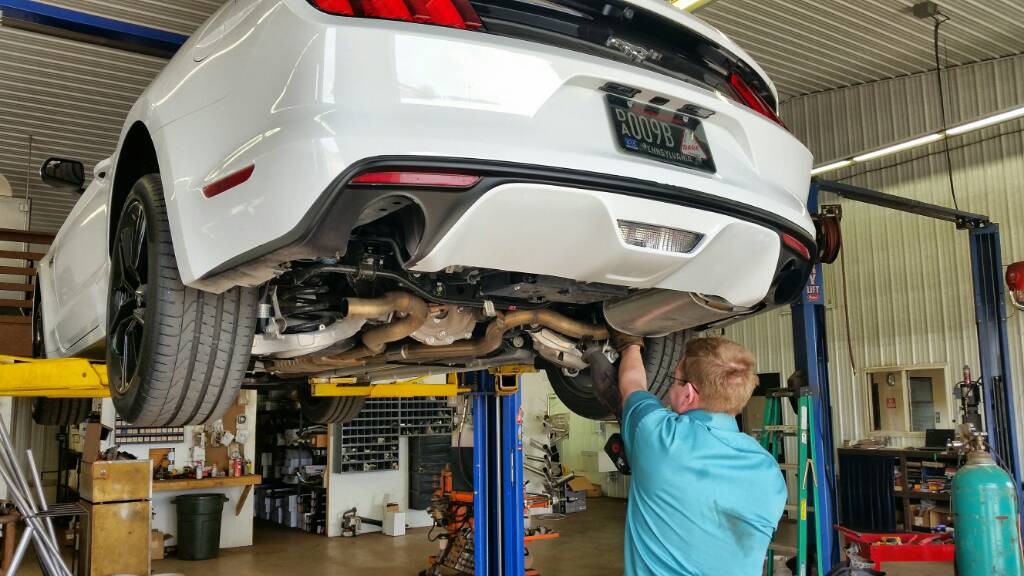

Cut out the resonator

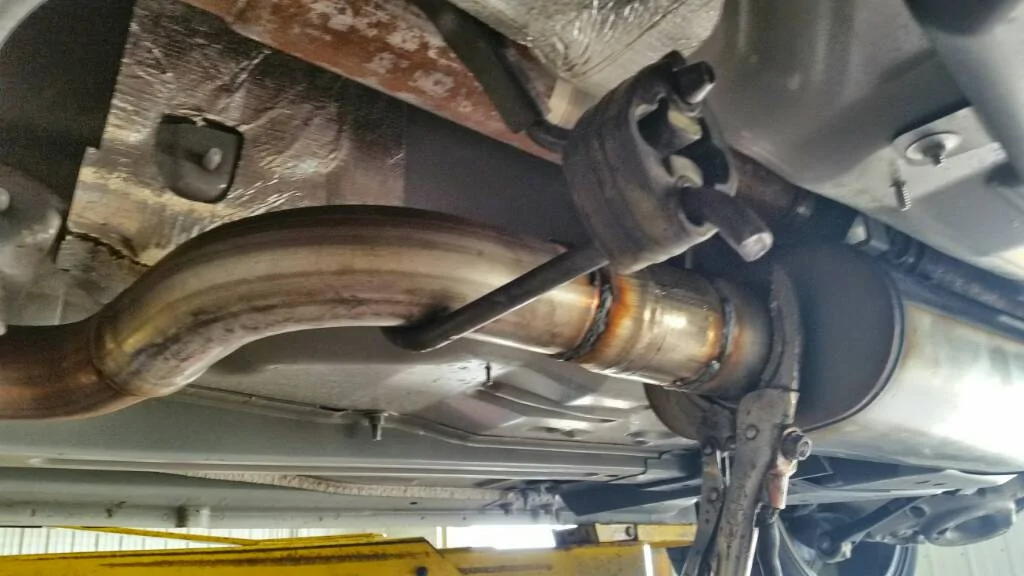

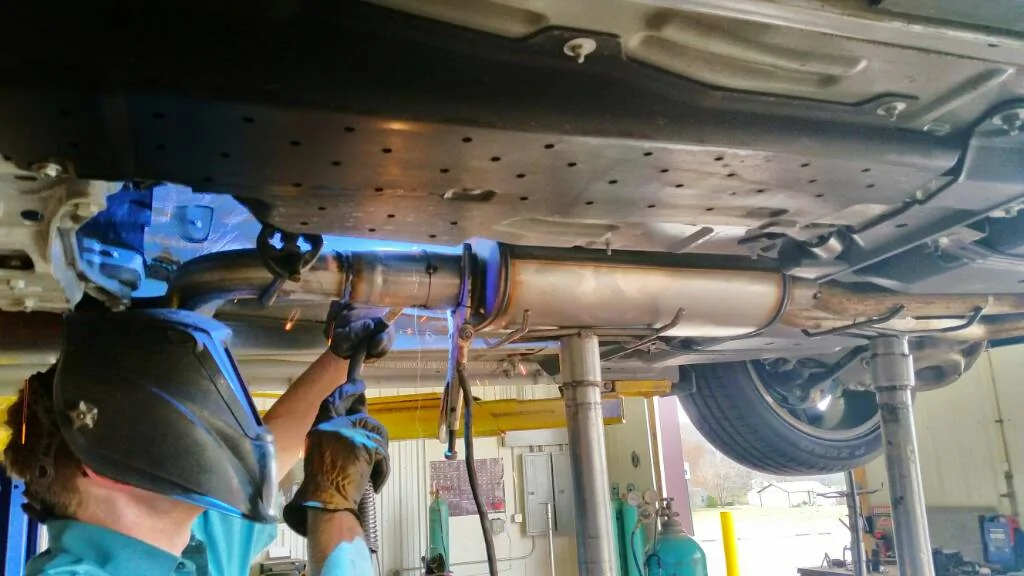

Weld in 3 inch mandrel bent 90° from the factory down pipe to the 3 inch inlet of the straight through design muffler.We took out the flex piece on the factory pipe.

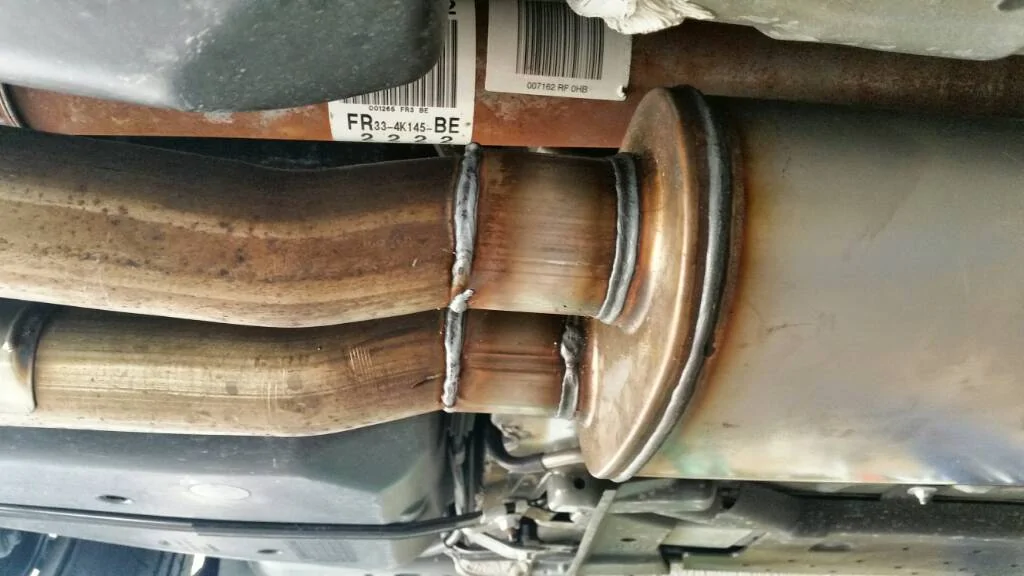

Weld in new muffler. 3 inch inlet dual 2.25 outlets. http://pages.ebay.com/motors/link/?nav=item.view&id=171524686727&alt=web

Keep factory piping .

Cut out mufflers before the 90° bend.

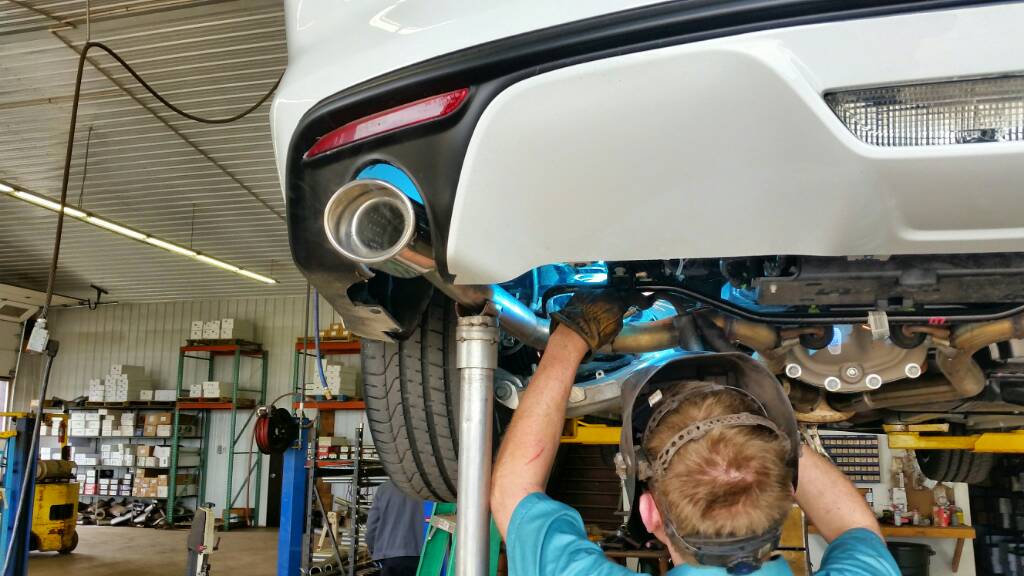

Weld in new 2.25 straight pipe.

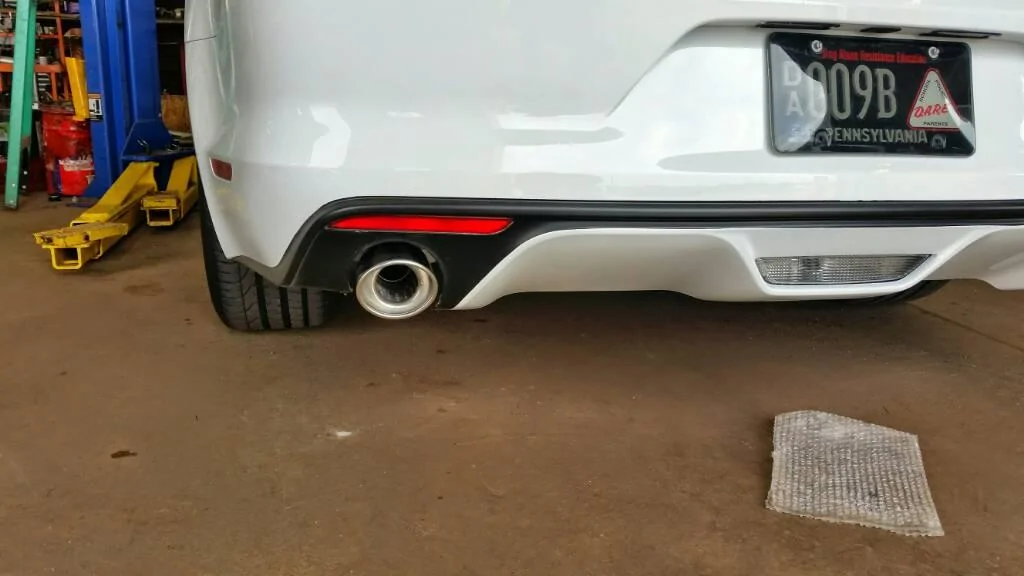

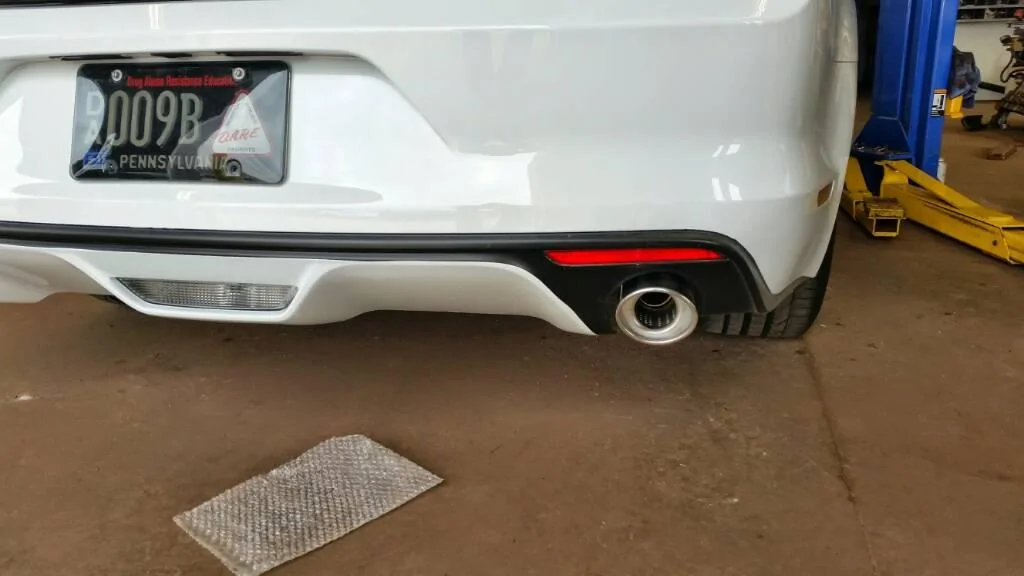

Weld on 2.25 inlet resonated tips.

I will say I'm not happy with the style of the tip sometime soon I hope to change them to more of a resonated round slash cut.















[ame]
[ame]
[ame]


Last edited:

dragonacc

Well-Known Member
Joined
Aug 20, 2013
Threads
13
Messages
1,667
Reaction score
409
Location
TN
Vehicle(s)
2015 Ecoboost PP
Yeah, the tips are a little funky, check out the Borla resonated tips. They have a very nice appearance.

Didn't you post a vid before of this? I can't remember.

edit: Oops, missed the video links.


Cool idea though, I actually was doing the same thing but never replaced the center section before sending my car off to get built.

OP
OP
EcoboostJim

EcoboostJim

Well-Known Member
Joined
Jan 18, 2015
Threads
22
Messages
169
Reaction score
19
Location
Manheim PA
Vehicle(s)
2015 Oxford white Ecoboost Performance Package
Yeah, the tips are a little funky, check out the Borla resonated tips. They have a very nice appearance.

Didn't you post a vid before of this? I can't remember.

edit: Oops, missed the video links.


Cool idea though, I actually was doing the same thing but never replaced the center section before sending my car off to get built.
Yes dragon you and ericRN inspired me.
Will do on the tips.


Fast64ranchero

Well-Known Member
Joined
Mar 31, 2015
Threads
15
Messages
375
Reaction score
124
Location
Meridian, Idaho
First Name
Walt
Vehicle(s)
63 Ranchero, 1972 Pinto, 2015 Mustang
Turbo's need that flex, don't be surprised if you end up with an exhaust leak.

I've been kicking around the idea of doing something like this also.



dgc333

Well-Known Member
Joined
Dec 6, 2014
Threads
13
Messages
1,637
Reaction score
458
Location
MA
First Name
Dave
Vehicle(s)
15 Mustang Ecoboost Premium
Turbo's need that flex, don't be surprised if you end up with an exhaust leak.

I've been kicking around the idea of doing something like this also.
I have had 4 turbo cars that did not have a flex pipe from the factory and never had a leak issue. 3 of the 4 had well over 200,000 miles on the factory exhaust, the 4th had about 130,000 miles.

Don't think it is much of an issue especially with the longitudinal mounting of the engine.

OP
OP
EcoboostJim

EcoboostJim

Well-Known Member
Joined
Jan 18, 2015
Threads
22
Messages
169
Reaction score
19
Location
Manheim PA
Vehicle(s)
2015 Oxford white Ecoboost Performance Package
Dgc333 it's all about the engine mounting. That's why I'm not scared

OP
OP
EcoboostJim

EcoboostJim

Well-Known Member
Joined
Jan 18, 2015
Threads
22
Messages
169
Reaction score
19
Location
Manheim PA
Vehicle(s)
2015 Oxford white Ecoboost Performance Package
Not sure. I'm getting an accessport soon


ThaHMan

Well-Known Member
Joined
Dec 22, 2014
Threads
6
Messages
52
Reaction score
3
Location
Houston
Vehicle(s)
2015 White Ecoboost
I just might get mine done the same way, sounds decent


Yruyur

Well-Known Member
Joined
Jan 10, 2015
Threads
2
Messages
45
Reaction score
10
Location
Tri-Cities, WA
Vehicle(s)
RRed EB 50YAP, JLT CAI, Unleashed, custom exhaust
I went this route last Saturday (replace resonator with muffler and delete stock mufflers). The sound is perfect! Nice bass tone, not too loud, and just enough exhaust note in the cockpit to let you know what the engine is doing. I went with 4 inch tips. The improvement in looks alone was well worth the $ spent. I ended up spending $270 for the work and tipped the technician $20. Thanks EricRN and EcoboostJim for leading the charge on this mod and sharing the Intell. :headbang:


ZXERT

Well-Known Member
Joined
Feb 25, 2015
Threads
14
Messages
140
Reaction score
36
Location
United States
Vehicle(s)
2015 Mustang Ecoboost
I went this route last Saturday (replace resonator with muffler and delete stock mufflers). The sound is perfect! Nice bass tone, not too loud, and just enough exhaust note in the cockpit to let you know what the engine is doing. I went with 4 inch tips. The improvement in looks alone was well worth the $ spent. I ended up spending $270 for the work and tipped the technician $20. Thanks EricRN and EcoboostJim for leading the charge on this mod and sharing the Intell. :headbang:
Can you comment on power change, if any? Also if you can post what muffler you used and if you have time a soundclip/ Phone video.

Thanks


Yruyur

Well-Known Member
Joined
Jan 10, 2015
Threads
2
Messages
45
Reaction score
10
Location
Tri-Cities, WA
Vehicle(s)
RRed EB 50YAP, JLT CAI, Unleashed, custom exhaust
ZXERT,

There is a perceptible increase in power and overall efficiency at reaching speed with the exhaust mod. Combined with the JLT CAI and Unleashed tune, the car is my version of automotive perfection. The muffler is a high quality Magnaflow type; straight through (not chambered) with one input and two outputs.

[ame]
YRUYUR

Last edited:

Corfly02

Well-Known Member
Joined
Apr 30, 2015
Threads
3
Messages
49
Reaction score
3
Location
atl
Vehicle(s)
Lightning blue GT 6spd
What dimentions did you use for the replacement muffler? I really like the sound btw congrats.
