Hello ladies and gents! Just wanted to share my car and its recent addition!!

It's kind of been a long process but, assuming my pictures attach and post, the car is 90% done, doing street data logs as the days pass.

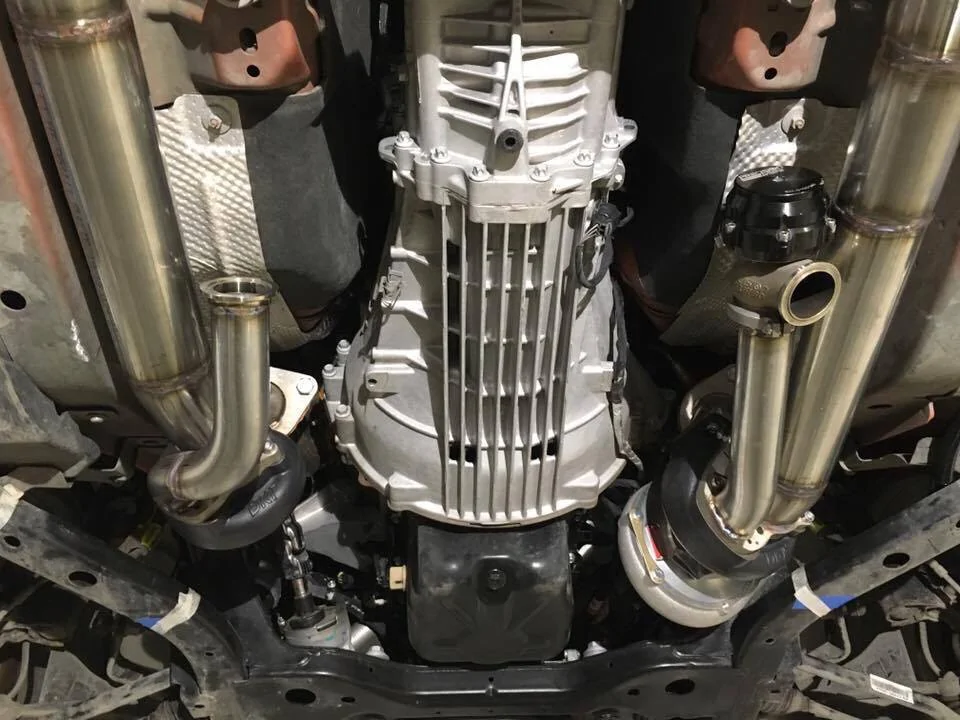

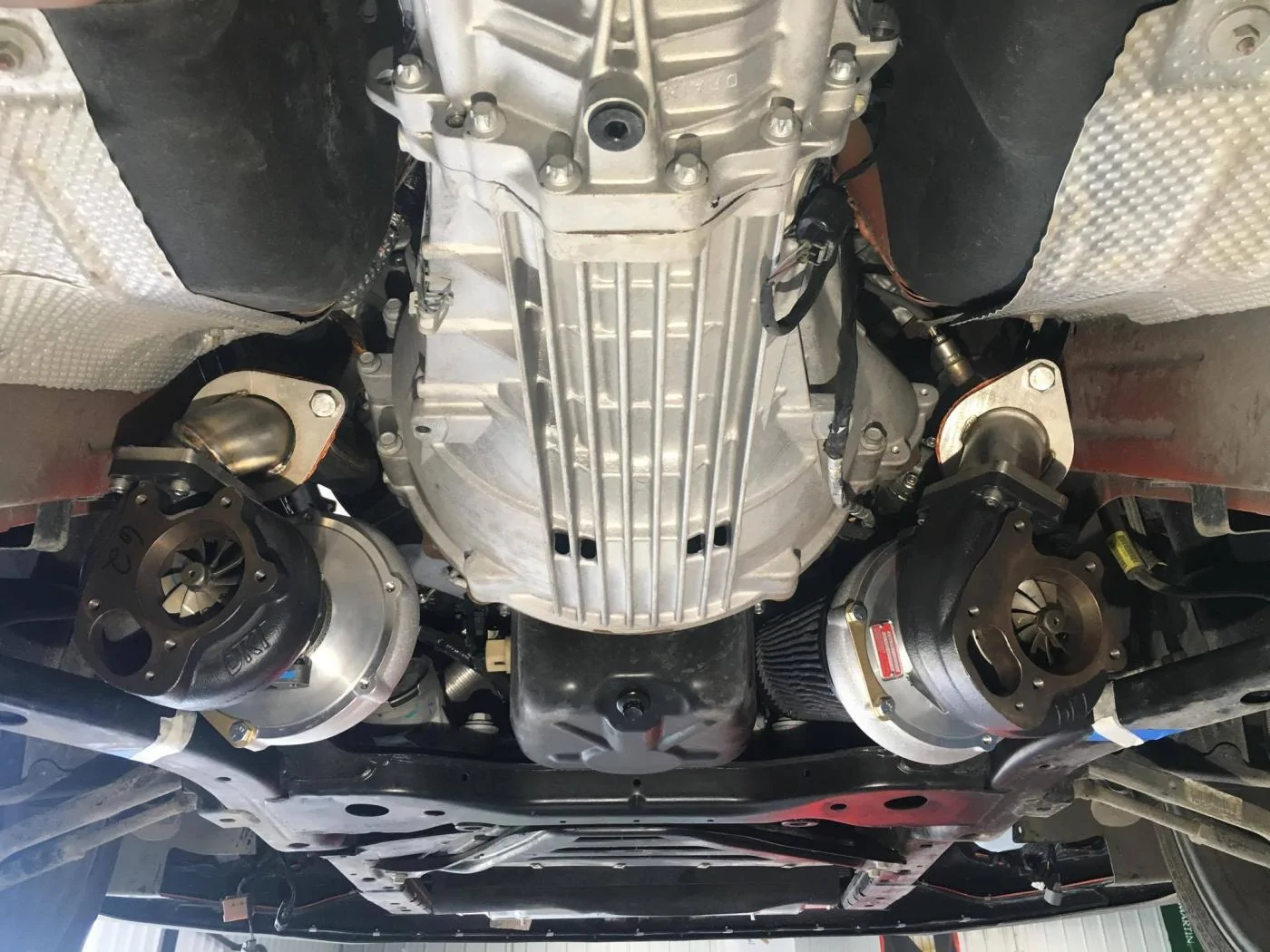

What we have is pretty simple, it's a low mount kit running precision 6062 ball bearing turbos. The flange is custom made with its size being about the middle between a t3 and t4 flange. From there we have all the obvious things wastegates piping etc.

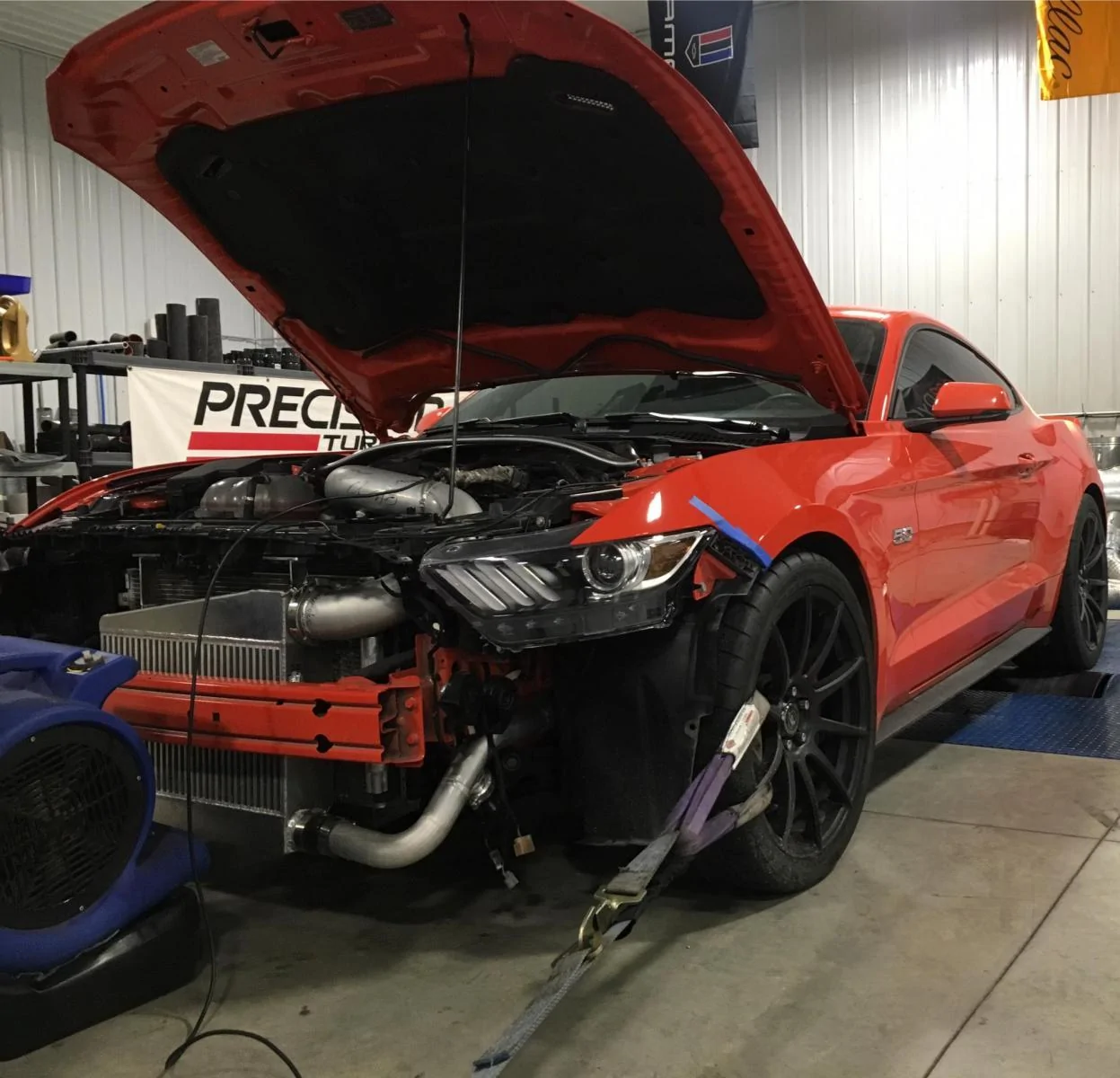

As of right now it starts getting pretty well into boost around 3k rpm (can't get too throttle happy beings the tune isn't finished which amounts to the biggest tease you'll ever have in a boosted car) and we are expecting easily 700 hopefully closer to 800 at the wheels on a mustang dyno at ~9.5lbs.

PS. when it's fully tuned I'll have a Dyno video and maybe a street pull video or two posted for everyone to enjoy !

Not really sure what else to add so if ya have any extra questions or suggestions feel free to let me know and I'll do what I can to answer!
13956949_10154343836642464_683934326_n (1).jpg





Advertisement


Last edited:

Andrewg

Sun, Sea, Sand and Camels
Joined
Mar 24, 2016
Posts
312
Reaction score
78
Location
Dubai, U.A.E.
First Name
Andy
Vehicle(s)
2015 Guard Metallic GT 401A
Nice work. Looking forward to the updates and finished product. Hopefully going this way myself. What oil situation are you going to use for the turbos?

OP
TheGrimm

TheGrimm

Member
Joined
Sep 27, 2015
Posts
24
Reaction score
11
Location
Iowa
First Name
Joe
Vehicle(s)
2015 GT Premium C/O PP Recaros
  • Thread starter
  • Thread Starter
  • #3
Nice work. Looking forward to the updates and finished product. Hopefully going this way myself. What oil situation are you going to use for the turbos?

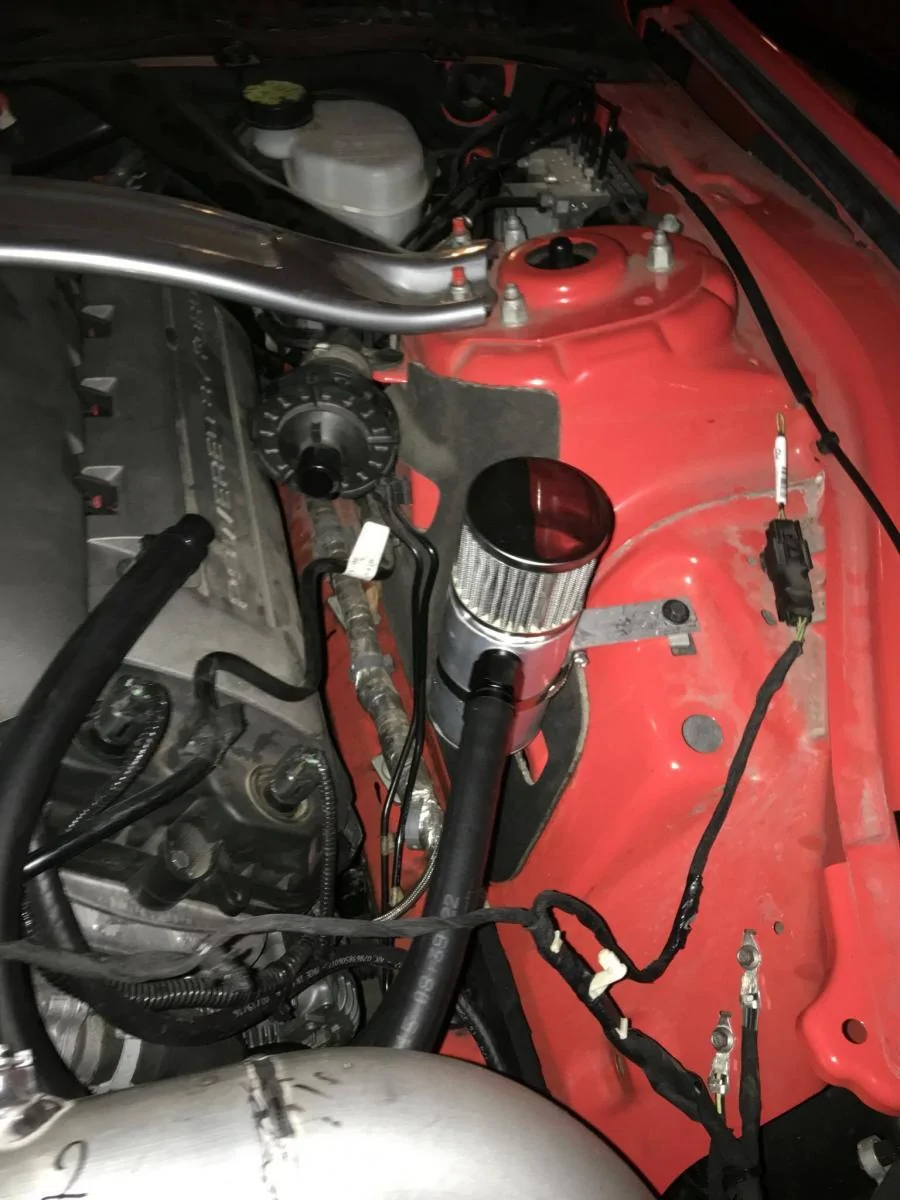

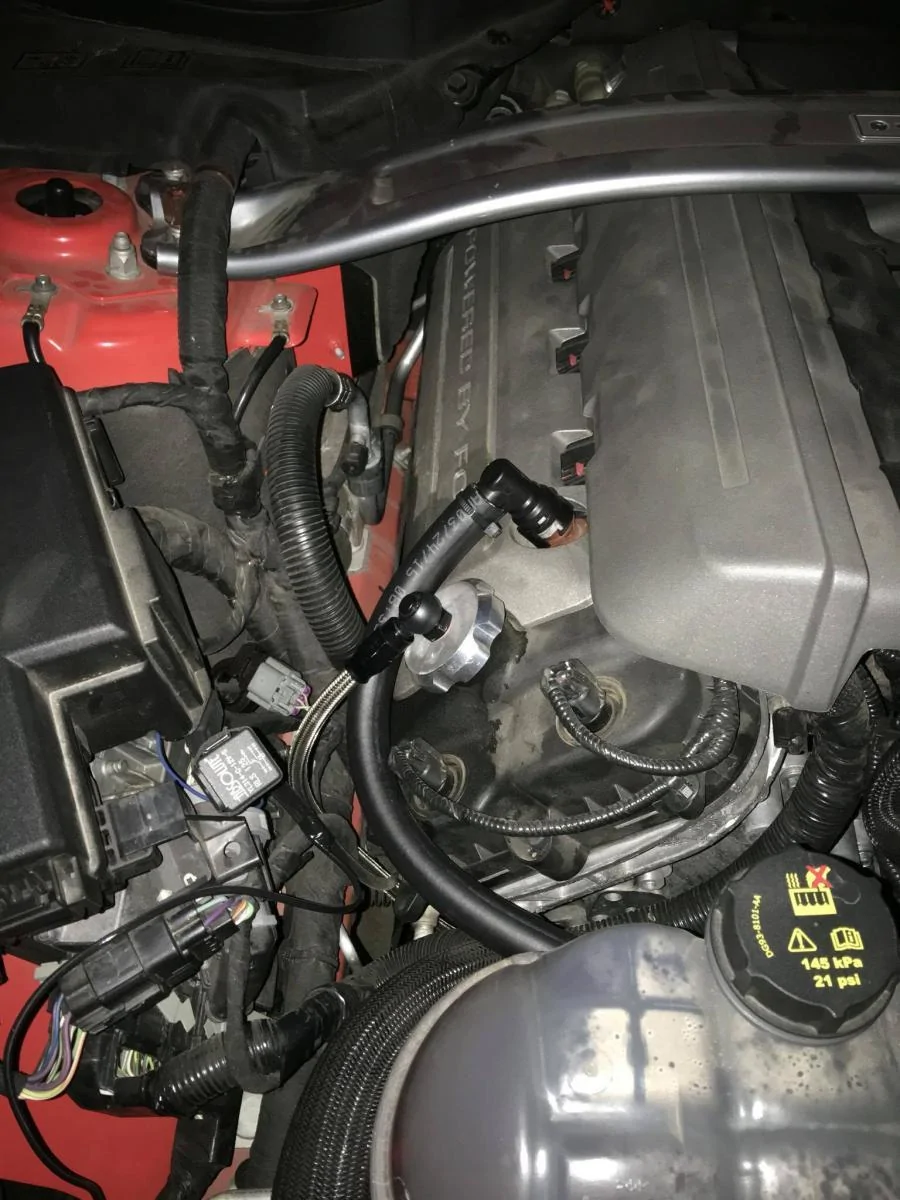

Currently we are running a scavenge pump from under the passenger side up into the car. It's a pretty sweet set up I'll snake a couple picture of the catch can system and the oil recirc after I get off work here in a couple hours.

Last edited:

venumous

Well-Known Member
Joined
May 18, 2016
Posts
961
Reaction score
215
Location
PA
Vehicle(s)
16' Procharged GT
That's awesome. You need to pull your sound tube though, haha.


Ninjak

Posting from the Shadows
Joined
Aug 19, 2013
Posts
1,474
Reaction score
764
Location
The Shadows
Vehicle(s)
2017 GT350:Sasha Black 64.5 C:Esmeralda 68 GTA:Valencia 16 F150 Lariat:Black Ops Betty
Man that looks good. In for results and more Turbo pron....

OP
TheGrimm

TheGrimm

Member
Joined
Sep 27, 2015
Posts
24
Reaction score
11
Location
Iowa
First Name
Joe
Vehicle(s)
2015 GT Premium C/O PP Recaros
  • Thread starter
  • Thread Starter
  • #8
That's awesome. You need to pull your sound tube though, haha.
Lol yeah first thing I aim to do just gotta get a plug. I have no clue where the on I had went. :headbonk:

OP
TheGrimm

TheGrimm

Member
Joined
Sep 27, 2015
Posts
24
Reaction score
11
Location
Iowa
First Name
Joe
Vehicle(s)
2015 GT Premium C/O PP Recaros
  • Thread starter
  • Thread Starter
  • #10
So you are using the stock manifolds?
Yessir! We swapped out the drivers side header for an 11-14, pretty sure it's drivers been forever, due to it being a solid piece from header into cat. The factory headers are great for boost any of these aftermarket shortys etc don't really make a difference from what we've learned, at least nothing worth the money.


BadGTR

Well-Known Member
Joined
Sep 6, 2015
Posts
291
Reaction score
68
Location
Belen, NM
First Name
Mike
Vehicle(s)
15 GT Auto, 1400HP GTR
What is the thickness on that core? I am looking to upgrade from 3.5" and wondering what will fit.

OP
TheGrimm

TheGrimm

Member
Joined
Sep 27, 2015
Posts
24
Reaction score
11
Location
Iowa
First Name
Joe
Vehicle(s)
2015 GT Premium C/O PP Recaros
  • Thread starter
  • Thread Starter
  • #12

rredd14

Well-Known Member
Joined
Oct 9, 2015
Posts
157
Reaction score
16
Location
Mississippi
First Name
Robert
Vehicle(s)
Magnetic 2018 GT A10
Where did you get the breathers? Looking for something else other than the valve cover breathers I currently have.

OP
TheGrimm

TheGrimm

Member
Joined
Sep 27, 2015
Posts
24
Reaction score
11
Location
Iowa
First Name
Joe
Vehicle(s)
2015 GT Premium C/O PP Recaros
  • Thread starter
  • Thread Starter
  • #14
Where did you get the breathers? Looking for something else other than the valve cover breathers I currently have.
It's custom fabbed by my builder. 402 dyno LLC out of Omaha NE. He can point ya in the right direction for that.


rredd14

Well-Known Member
Joined
Oct 9, 2015
Posts
157
Reaction score
16
Location
Mississippi
First Name
Robert
Vehicle(s)
Magnetic 2018 GT A10
It's custom fabbed by my builder. 402 dyno LLC out of Omaha NE. He can point ya in the right direction for that.
I will look them up. Thanks!
