Custom fog light install wiring

Boyd

Well-Known Member
Joined
Sep 17, 2023
Threads
12
Messages
266
Reaction score
702
Location
Southeast Tennessee
First Name
Boyd
Vehicle(s)
17 F5 Cobra, 93 Fox race car, 21 Mach 1, 23 F150
I'm working on a harness for a set of fog lights on a '21 Mach 1. I'm using a GT headlight switch which has the foglight function included. I'm not paying hundreds of $'s for a harness that only partly does what I want.

Can anyone confirm my suspicion that the headlight switch simply controls grounds to the BCM? I've done a lot of searching and this seems to be the fact. I do not plan to use the BCM at all for this project, just the headlight switch.

I'm also looking for confirmation that headlight switch gray wire pin 14 as being the one to cut into (going into the headlight switch) to get that foglight switched ground for a relay.

Please dont ask about lights, mounting, etc. I have some thoughts on that, but no real work yet. I'll post up when I have something complete.

Thanks...
Sponsored



traxiii

Mustang is my middle name
Joined
Nov 8, 2012
Threads
32
Messages
2,675
Reaction score
4,017
Location
Nor Cal
First Name
Bill
Vehicle(s)
Mustang Thunderbird F150 & '22 Mach 1 on order.
Looking forward to what you come up with!

OP
OP
Boyd

Boyd

Well-Known Member
Joined
Sep 17, 2023
Threads
12
Messages
266
Reaction score
702
Location
Southeast Tennessee
First Name
Boyd
Vehicle(s)
17 F5 Cobra, 93 Fox race car, 21 Mach 1, 23 F150
Sort of answered my own question... The GT headlight switch with the fog light function sends 3.0vdc to the BCM indicated switch on/off. So that cant be used to operate a traditional relay.

Leads to my next question... I'll find a ForScan thread to ask this one.

:wink: :thumbsup:

OP
OP
Boyd

Boyd

Well-Known Member
Joined
Sep 17, 2023
Threads
12
Messages
266
Reaction score
702
Location
Southeast Tennessee
First Name
Boyd
Vehicle(s)
17 F5 Cobra, 93 Fox race car, 21 Mach 1, 23 F150
My intention: Investigate if factory-like fog light wiring is possible in our Mach 1's.

1. Installed a GT fog light / headlight switch in my Mach 1. That switch outputs 3v at pin 14 gray to connector C2280B pin 20 gray at the BCM. This wire is factory installed and working.

2. The BCM does not need programming to enable or disable the fog lights.

3. The BCM outputs 12v to the fog lights in BCM connector C2280G pin 5 Ye/Or Right and pin 12 Bro Left. It appears these wires do not exist in the Mach 1 wiring harness. Very difficult to tell because the BCM connectors use 90 degree stress relief. But looking from the open side of the connecter, it appears there's no pins, so no wiring from BCM to park lights for fog light operation.

4. It would be very difficult to add wires to the BCM connector. Pins are available, but requires special crimping tools and disassembly of the BCM connector. Broken plastic pieces are a real possibility, so adding wiring to the BCM is not a real winner of an idea.

My result is that we do need to use an external relay / switch / wire harness to operate any type of fog light on the Mach 1. Using the GT fog light / head light switch is not possible because it only supplies a very small signal voltage to the BCM... nothing capable of triggering a relay.

I know some may think this is ridiculous, I'm just trying to do this the best, right way. I know there are harnesses out there for just this purpose and the easy thing to do is just slap it in. But I'm a retired aircraft mechanic... I don't just slap anything in, especially without knowing why.

I'll have more to post as this goes along. Follow or not, maybe it'll help someone some day.

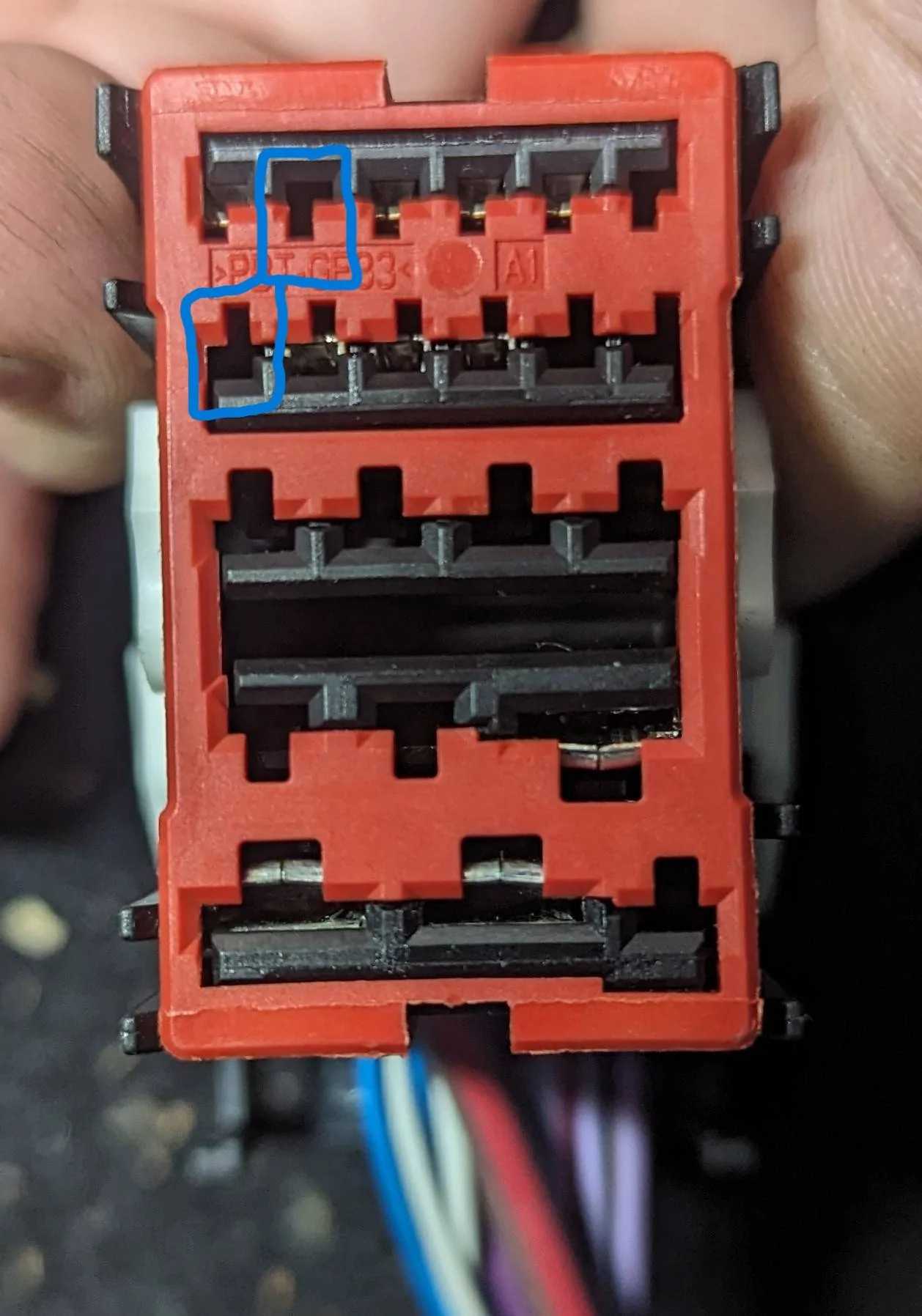

Picture is connector C2280G at the BCM.



Sponsored

Rael

Grateful Member
Joined
Jan 12, 2017
Threads
10
Messages
479
Reaction score
699
Location
South California
Vehicle(s)
2022 Mach 1
I'd be happy if I could glue in yellow or amber glass lenses without electronics.


traxiii

Mustang is my middle name
Joined
Nov 8, 2012
Threads
32
Messages
2,675
Reaction score
4,017
Location
Nor Cal
First Name
Bill
Vehicle(s)
Mustang Thunderbird F150 & '22 Mach 1 on order.
My intention: Investigate if factory-like fog light wiring is possible in our Mach 1's.

1. Installed a GT fog light / headlight switch in my Mach 1. That switch outputs 3v at pin 14 gray to connector C2280B pin 20 gray at the BCM. This wire is factory installed and working.

2. The BCM does not need programming to enable or disable the fog lights.

3. The BCM outputs 12v to the fog lights in BCM connector C2280G pin 5 Ye/Or Right and pin 12 Bro Left. It appears these wires do not exist in the Mach 1 wiring harness. Very difficult to tell because the BCM connectors use 90 degree stress relief. But looking from the open side of the connecter, it appears there's no pins, so no wiring from BCM to park lights for fog light operation.

4. It would be very difficult to add wires to the BCM connector. Pins are available, but requires special crimping tools and disassembly of the BCM connector. Broken plastic pieces are a real possibility, so adding wiring to the BCM is not a real winner of an idea.

My result is that we do need to use an external relay / switch / wire harness to operate any type of fog light on the Mach 1. Using the GT fog light / head light switch is not possible because it only supplies a very small signal voltage to the BCM... nothing capable of triggering a relay.

I know some may think this is ridiculous, I'm just trying to do this the best, right way. I know there are harnesses out there for just this purpose and the easy thing to do is just slap it in. But I'm a retired aircraft mechanic... I don't just slap anything in, especially without knowing why.

I'll have more to post as this goes along. Follow or not, maybe it'll help someone some day.

Picture is connector C2280G at the BCM.

There are relays that use 3vdc to control 10a 12vdc
https://www.amazon.com/Channel-Opto...1_3?keywords=3.3v+relay&qid=1704775504&sr=8-3

OP
OP
Boyd

Boyd

Well-Known Member
Joined
Sep 17, 2023
Threads
12
Messages
266
Reaction score
702
Location
Southeast Tennessee
First Name
Boyd
Vehicle(s)
17 F5 Cobra, 93 Fox race car, 21 Mach 1, 23 F150
OP
OP
Boyd

Boyd

Well-Known Member
Joined
Sep 17, 2023
Threads
12
Messages
266
Reaction score
702
Location
Southeast Tennessee
First Name
Boyd
Vehicle(s)
17 F5 Cobra, 93 Fox race car, 21 Mach 1, 23 F150

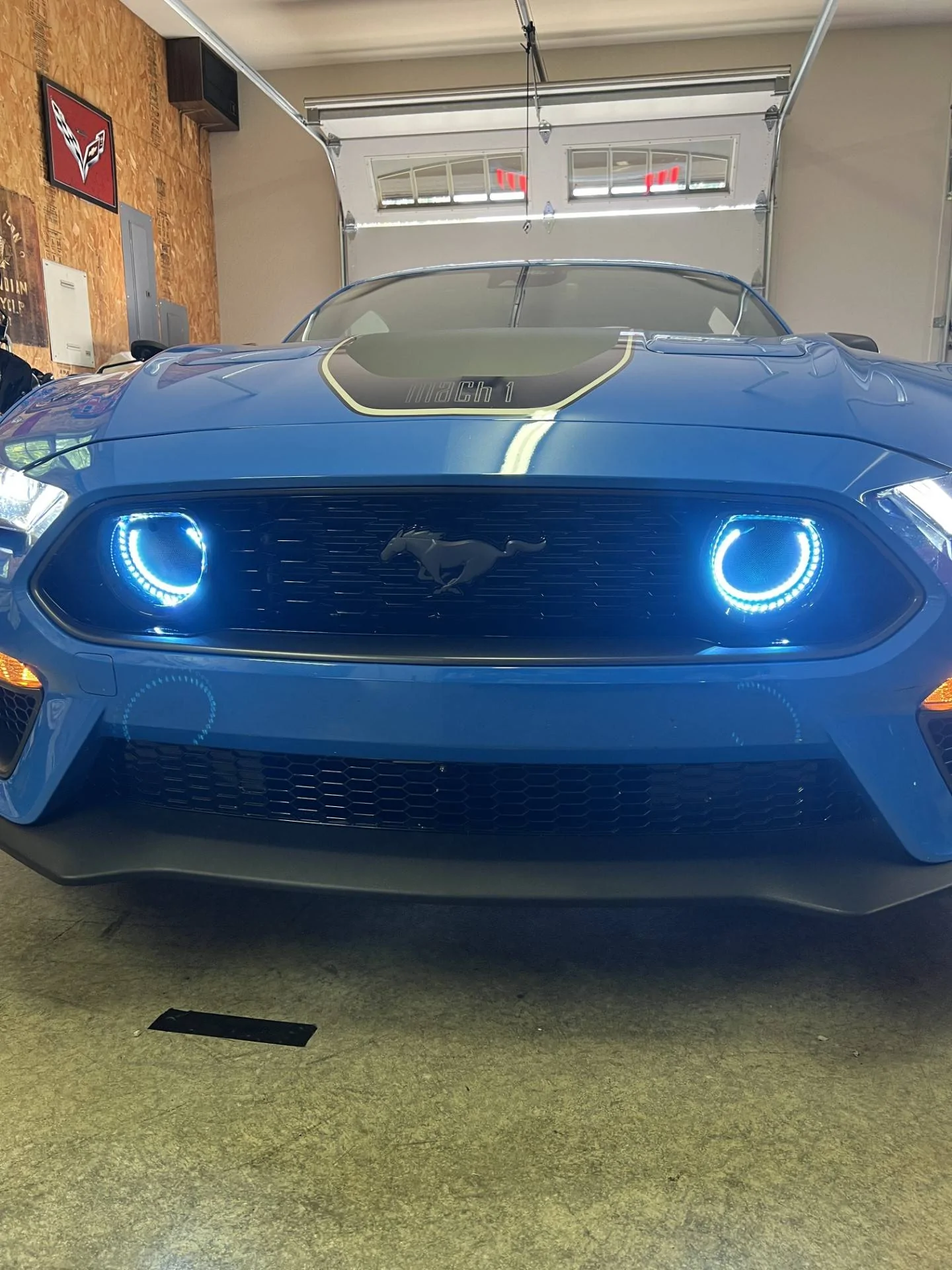

Have you considered this ? I can change them to whatever color I want. 2021+ Mustang Mach1 Grill Halos | eBay
