CS700 Supercharged Mustang GT (700HP) by Clive Sutton

Topnotch

Well-Known Member
Joined
Aug 1, 2012
Threads
592
Messages
4,565
Reaction score
3,782
Location
NYC
Vehicle(s)
2018 Mazda CX-9 Touring
CLIVE SUTTON REVEALS HIGH-PERFORMANCE TUNING PACKAGES FOR FORD MUSTANG


  • Power, handling, styling upgrades for new right-hand drive Ford Mustang
  • Power increased by as much as 68%; options for 330bhp to 700bhp
  • Suspension changes sharpen dynamics
  • Carbon fibre detailing brings added visual muscle

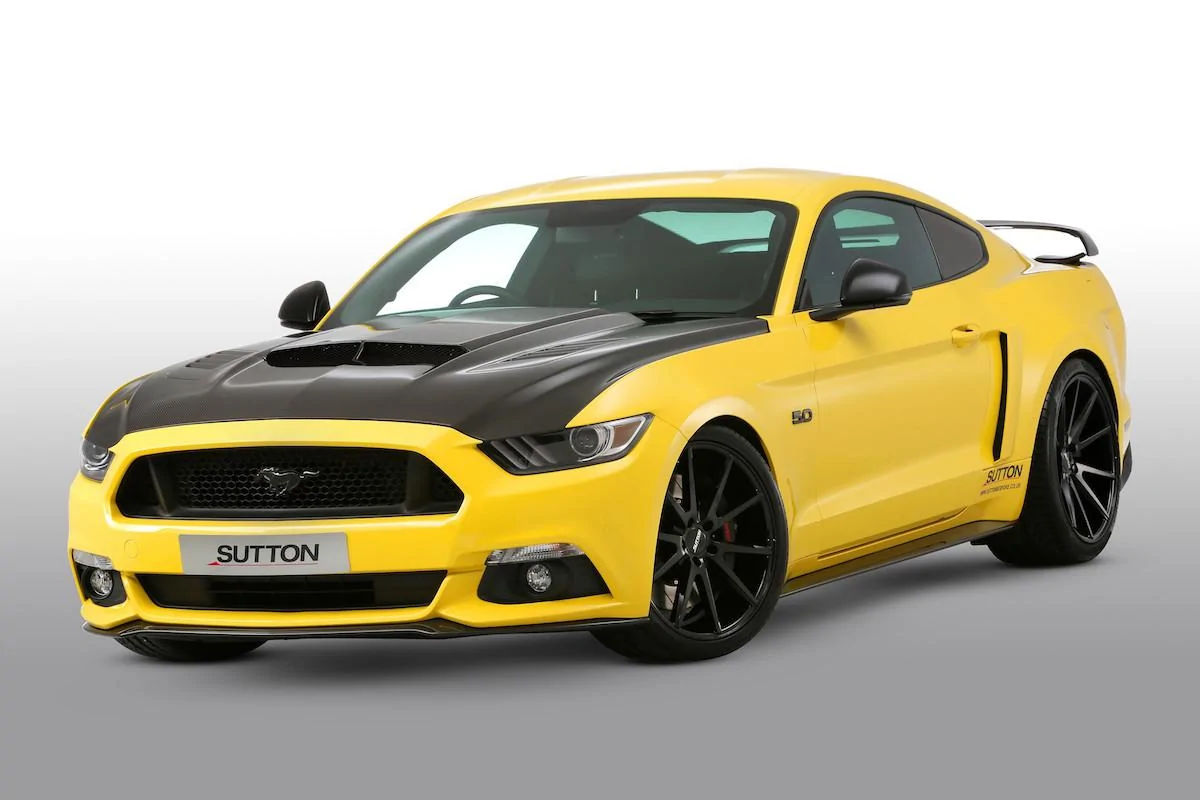

Renowned supercar dealer Clive Sutton has revealed its Sutton Bespoke tuning programme for the new right-hand drive Ford Mustang, transforming the standard model into a true muscle car with up to 700bhp. The programme comprises a suite of packages that enhance the car’s performance, handling and styling.

While the focus with many American upgrade programmes is on straight-line performance and quarter-mile times, Clive Sutton has carefully engineered its packages to appeal specifically to UK and European buyers. The upgraded suspension is a particular highlight, which delivers sharper on-the-limit handling without compromising comfort over broken road surfaces.

The Sutton Bespoke Power Packages are offered in CS350, CS500 and supercharged CS700 specification. The first applies only to the 2.3-litre EcoBoost model, while the latter two are for Ford’s 5.0-litre V8, delivering thrilling levels of performance and response.

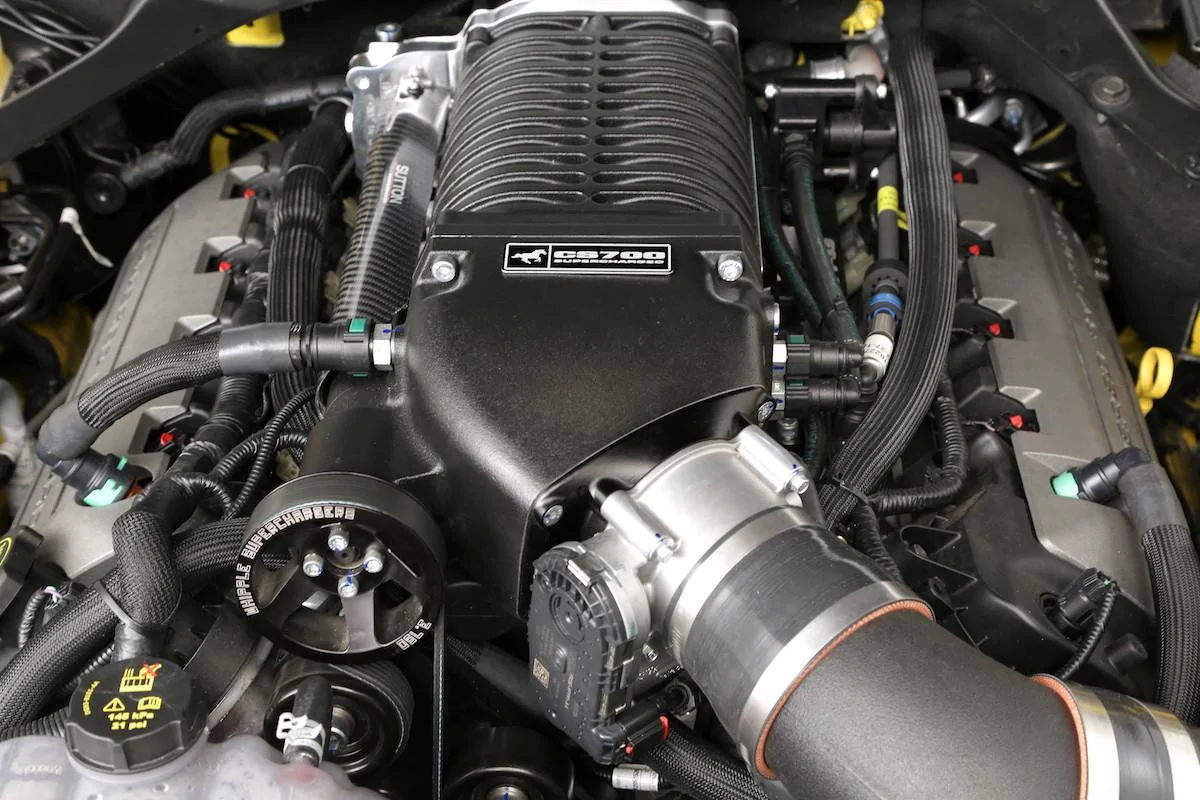

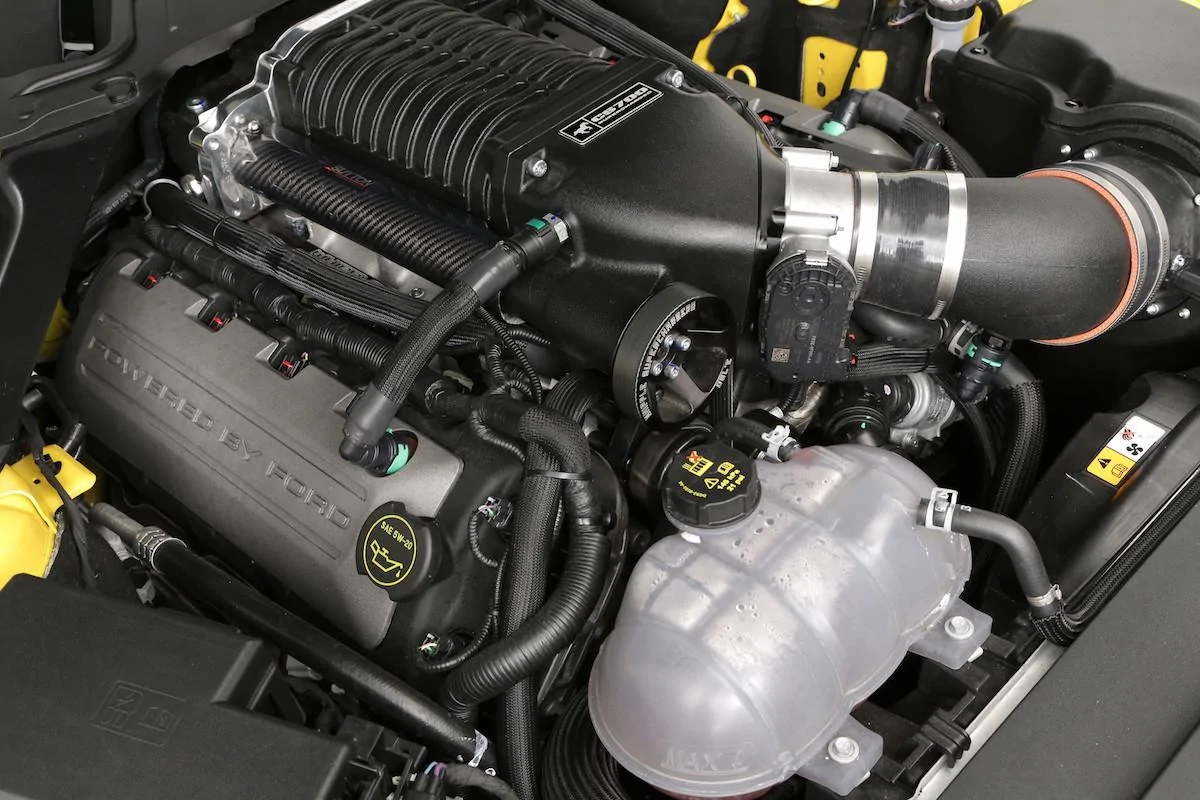

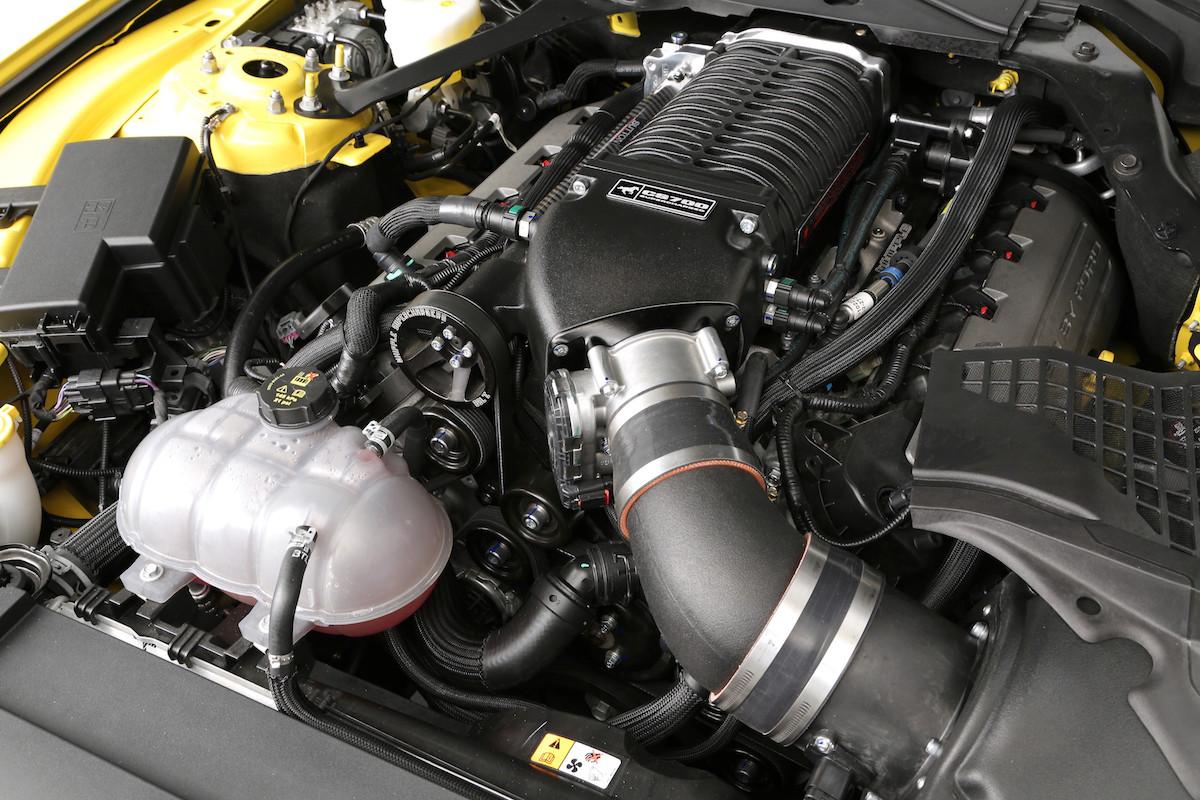

The range-topping CS700 Power Package delivers a dramatic increase in the peak power of the standard car’s V8, lifting it from 416bhp to 645bhp – a rise of 55%. This is achieved through the addition of a Whipple supercharger, upgraded intercooler and a new quad-tailpipe active exhaust system. Performance can be taken to an even higher level by specifying a larger throttle body, uprated injectors and a different pulley – which together take peak power to over 700bhp, a 68% increase over the standard car. Clive Sutton worked hand-in-hand with Whipple Superchargers, based in Fresno, CA, to develop the supercharger and tune the engine for optimal reliability and performance.

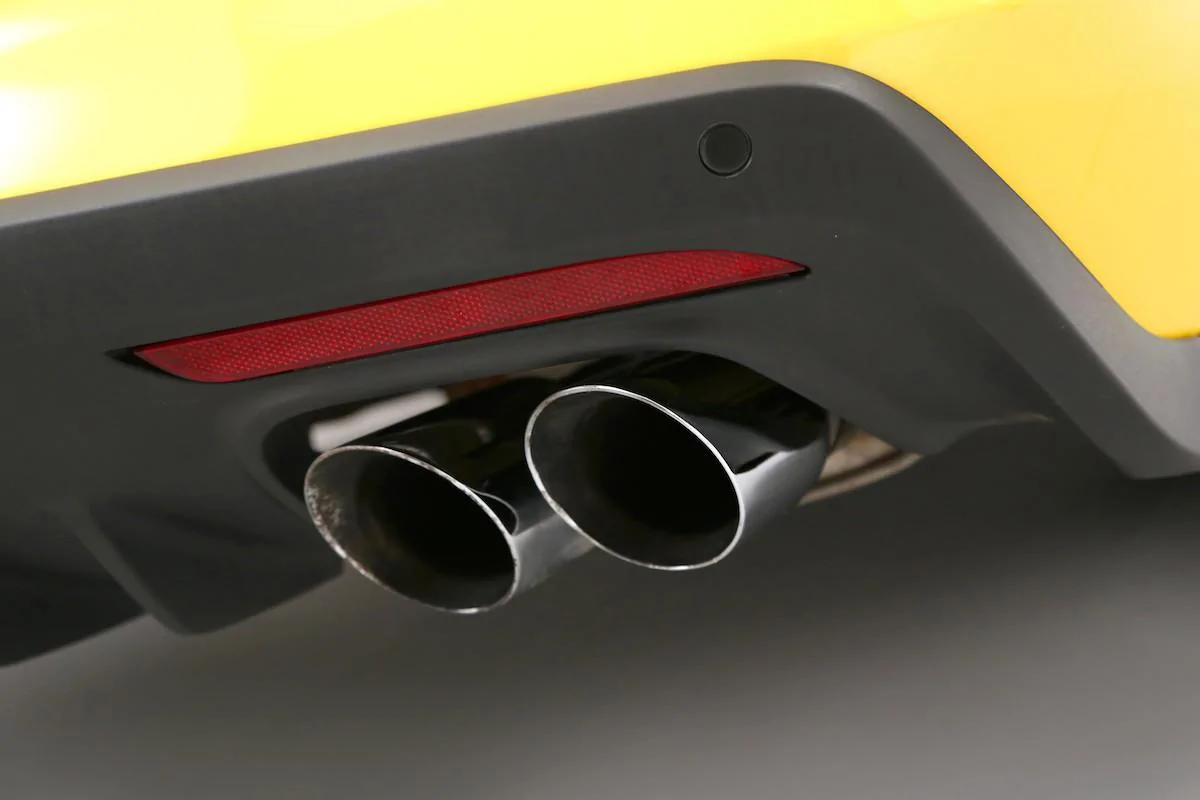

The CS500 Power Package incorporates an upgraded cold-air intake, helping to lift peak power to 440bhp. For buyers of the 2.3-litre EcoBoost, the Sutton Mustang CS350 Power Package improves the standard figures to 330bhp. These packages also share the CS700’s quad-tailpipe active exhaust system and bespoke rear valance.

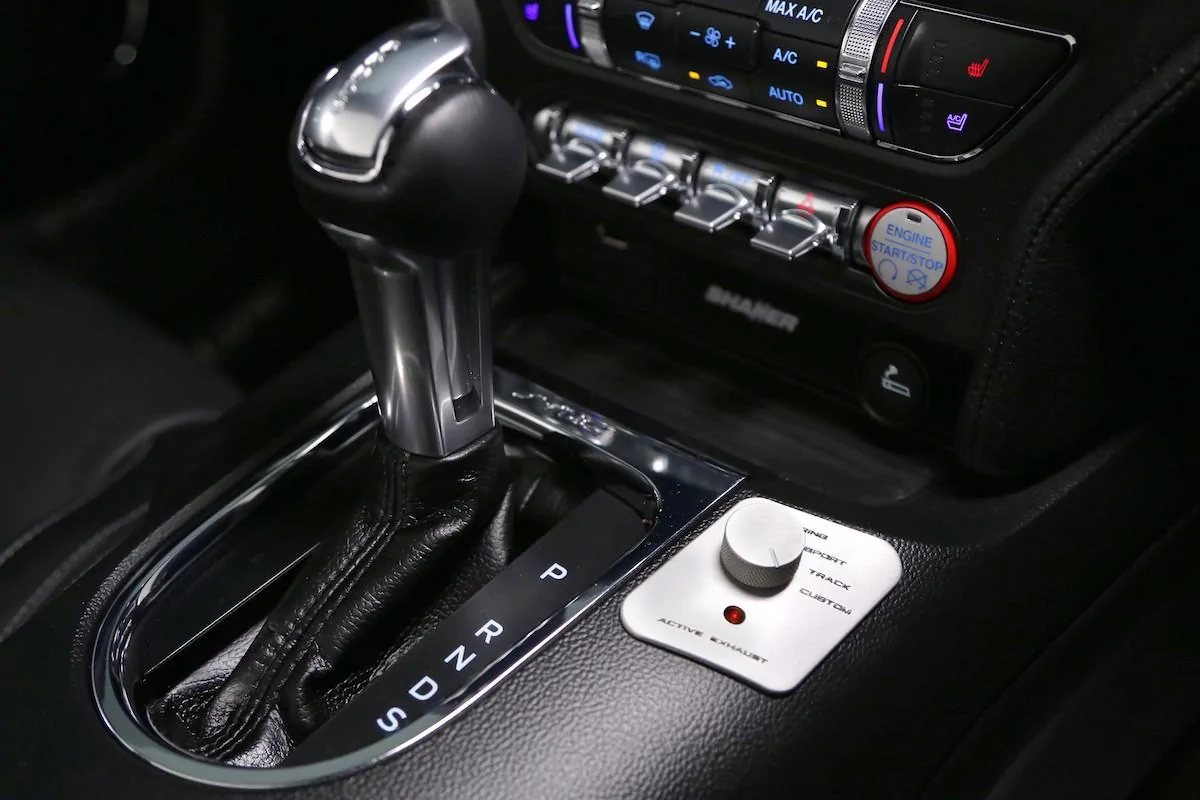

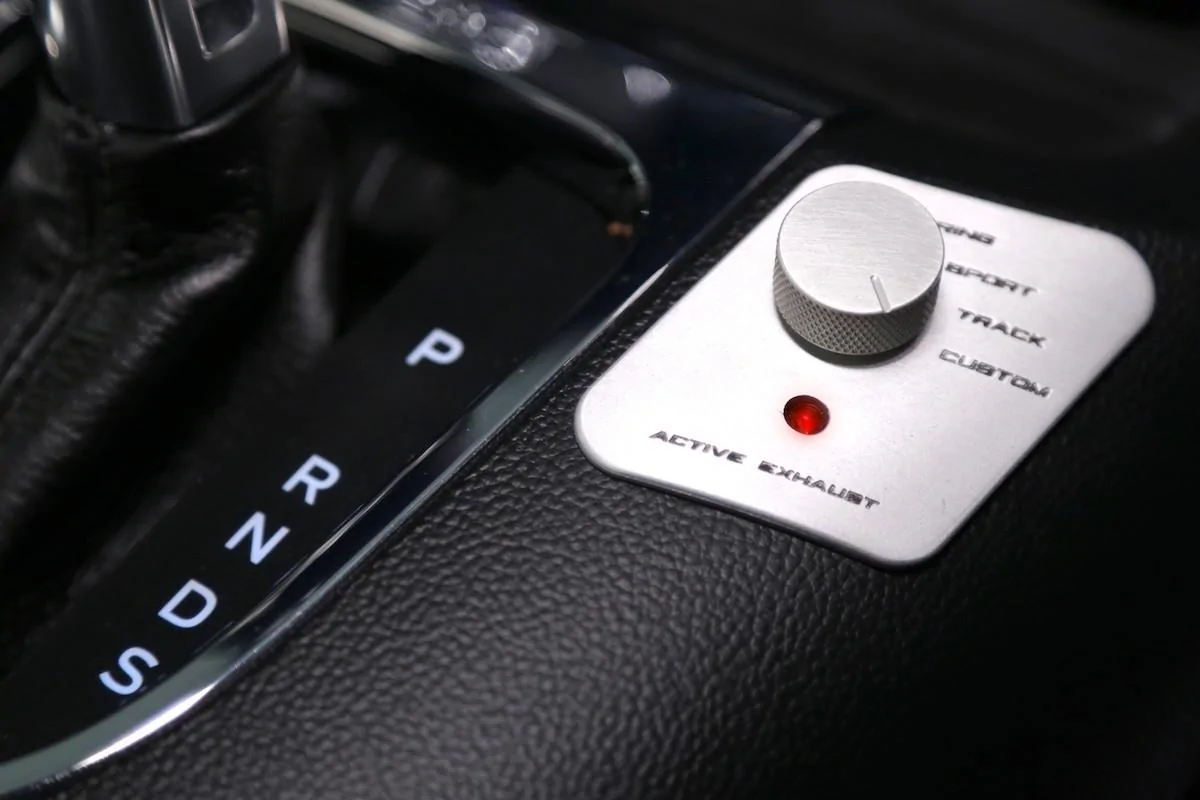

All of the Power Packages feature Active Exhaust Control. Activated by a switch located on the centre console, the system allows the driver to adjust the volume and tone of the exhaust sound, choosing from Touring, Sport, Track and Custom settings. The Custom mode is programmable via a built-in WiFi module and an associated Apple iOS app.

Customers can specify handling modifications that complement the power upgrades. These include a Sutton Bespoke Ride Package that includes KW coilovers and adjustable springs at the front, with matched dampers at the rear, reducing ride height by 30mm.

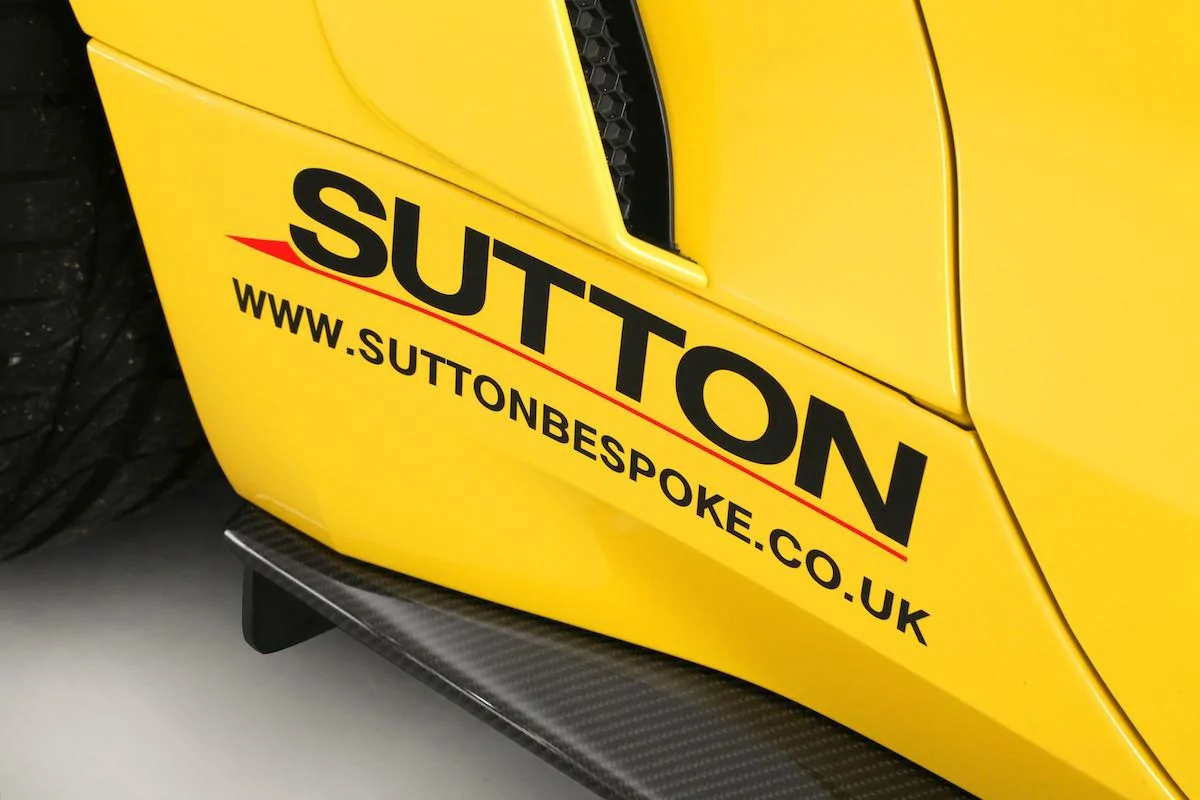

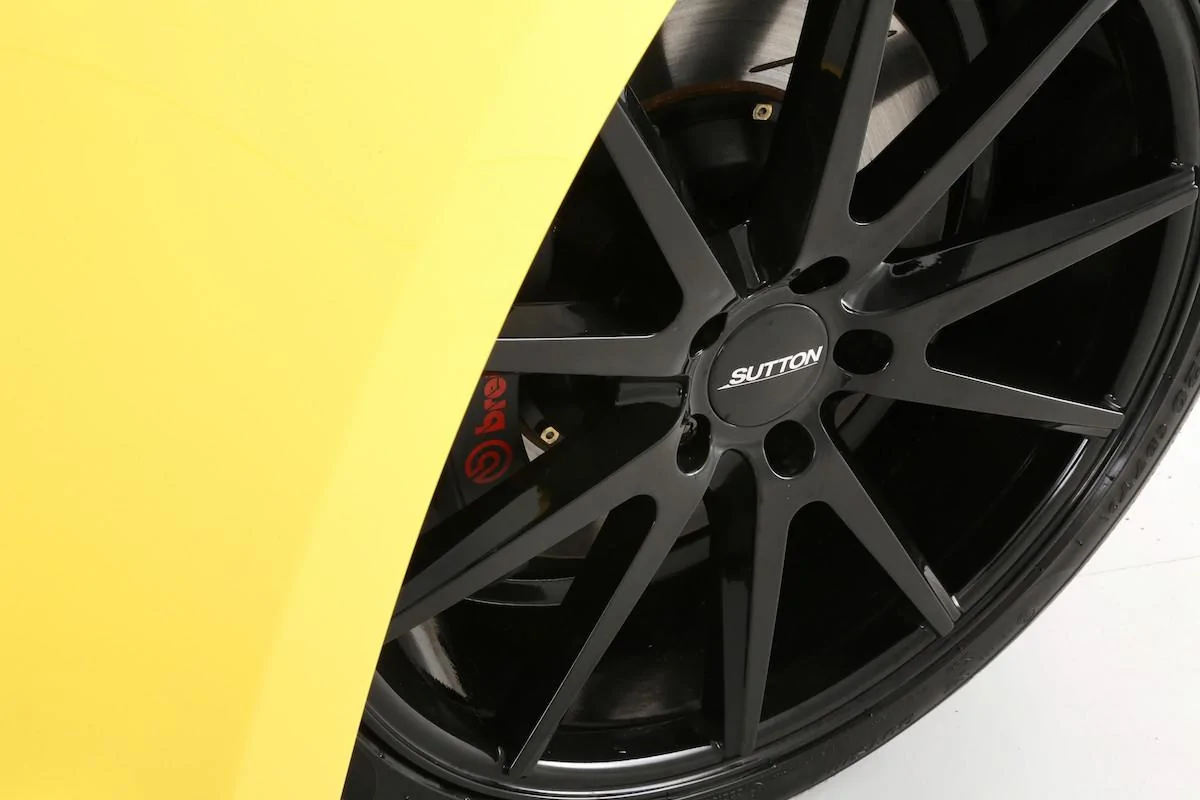

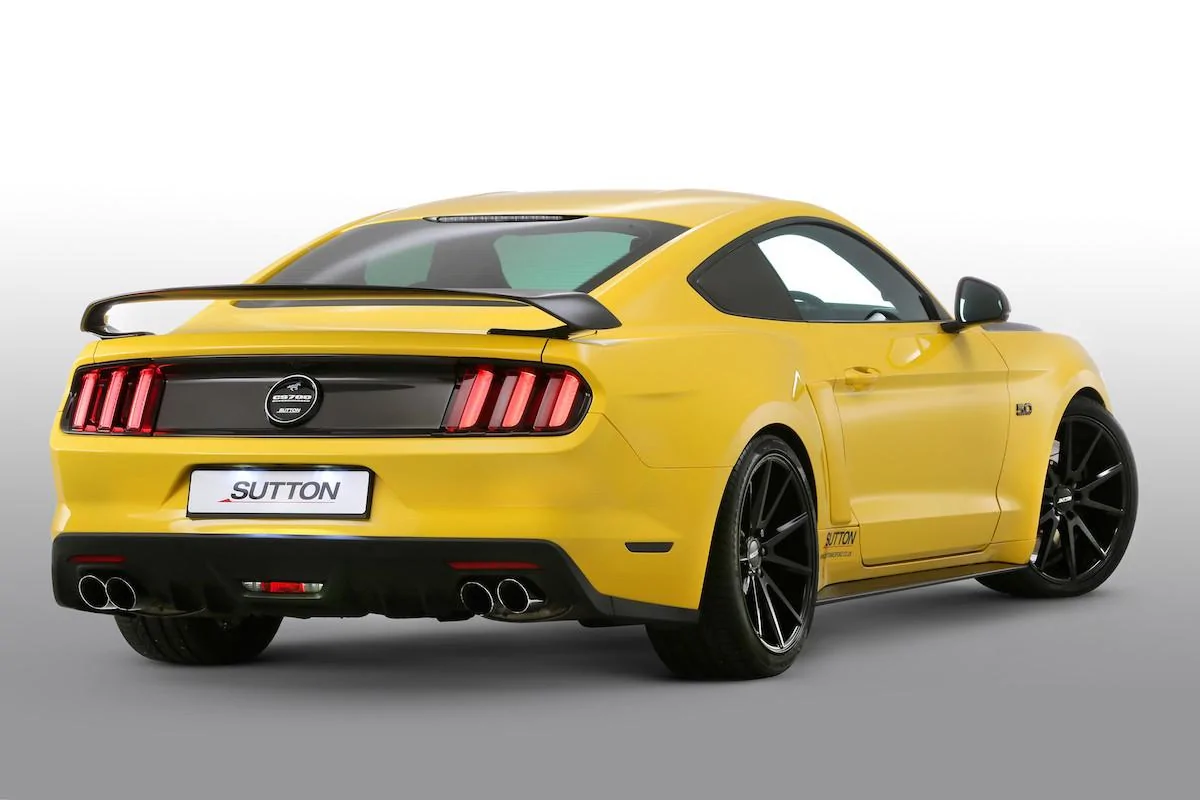

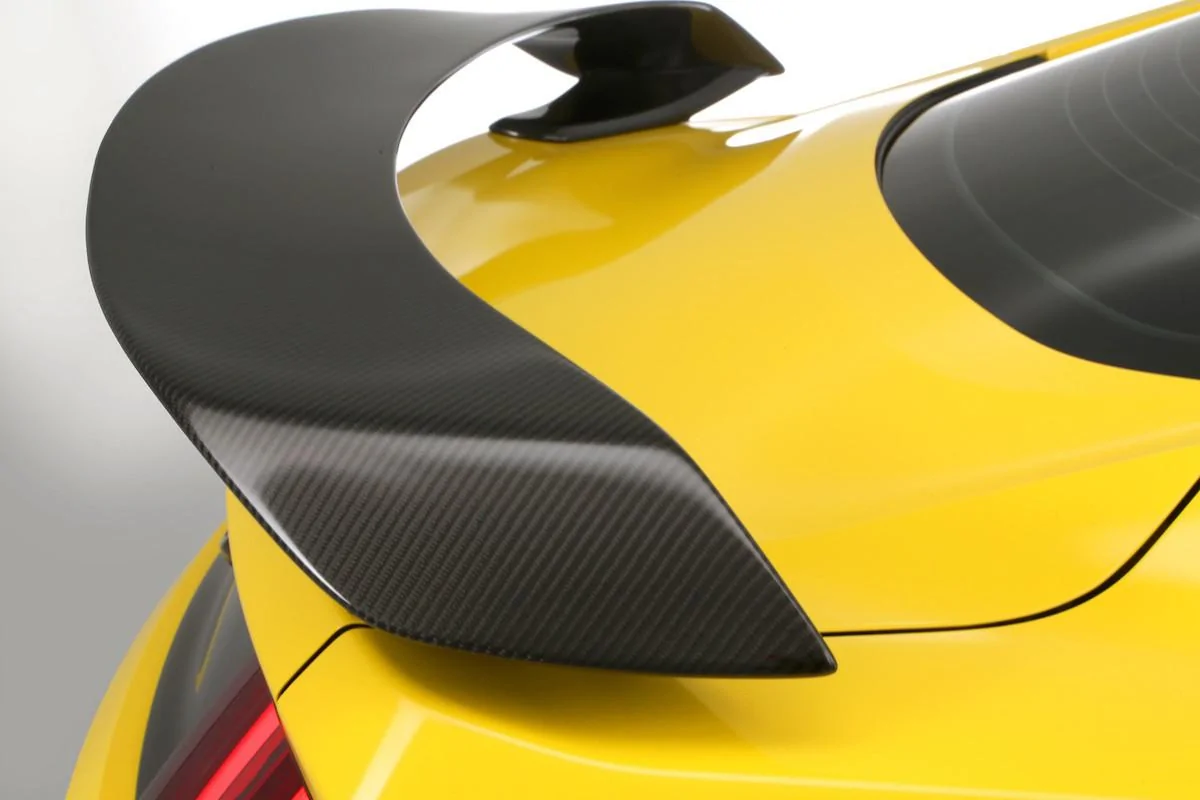

Available on all models, the optional Appearance Package includes a carbon fibre decklid panel, chin spoiler, rear wing and side skirts; painted wing mirrors, gloss black ‘Pony’ emblem and – for the V8 – gloss black ‘5.0’ wing motifs. A Brake Package with uprated discs is also offered, featuring two-piece rotors that reduce mass and improve heat management. New 20-inch, 10-spoke custom finished gloss black alloy rims supplied by Vossen fill the wheel arches.

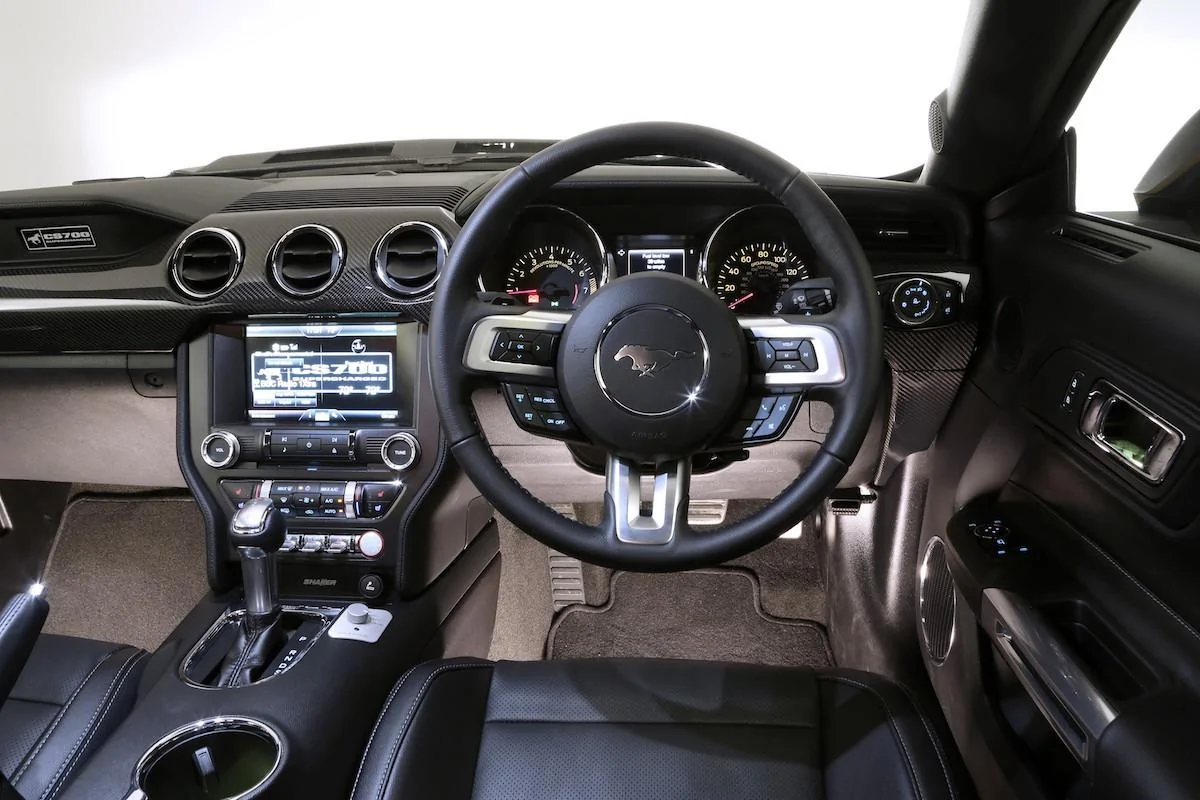

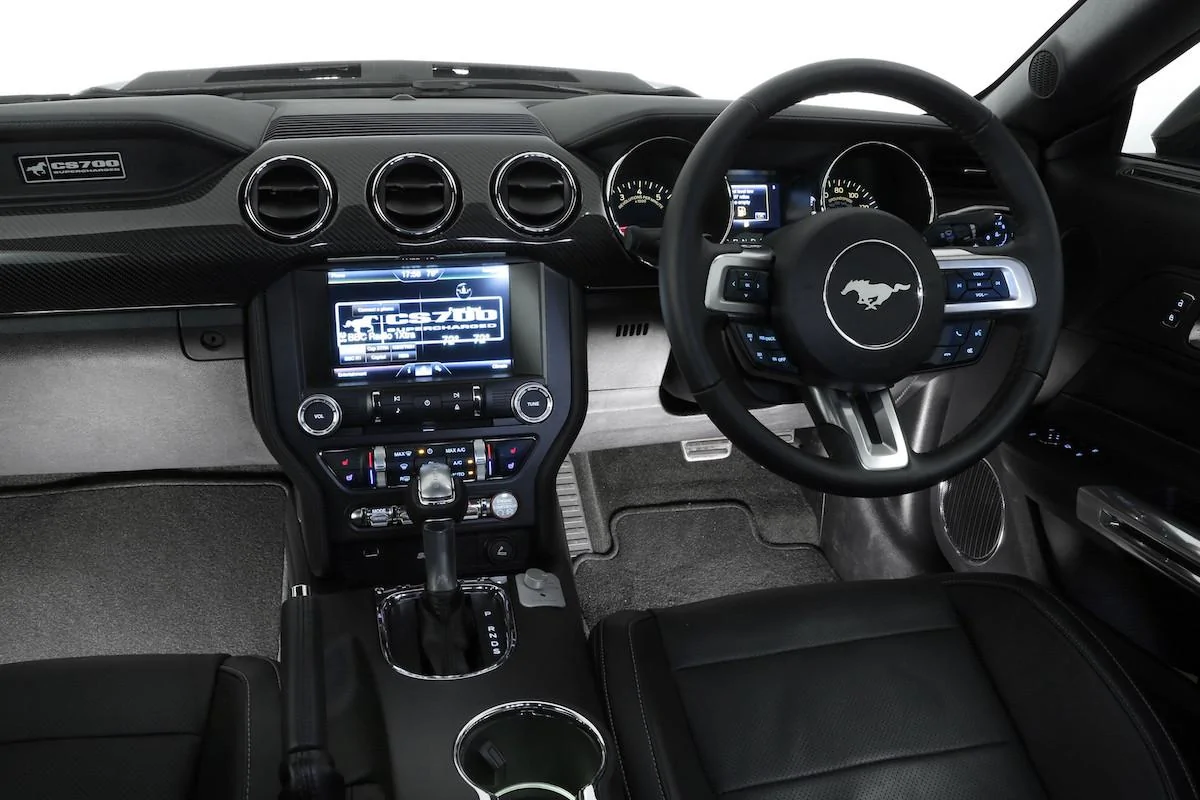

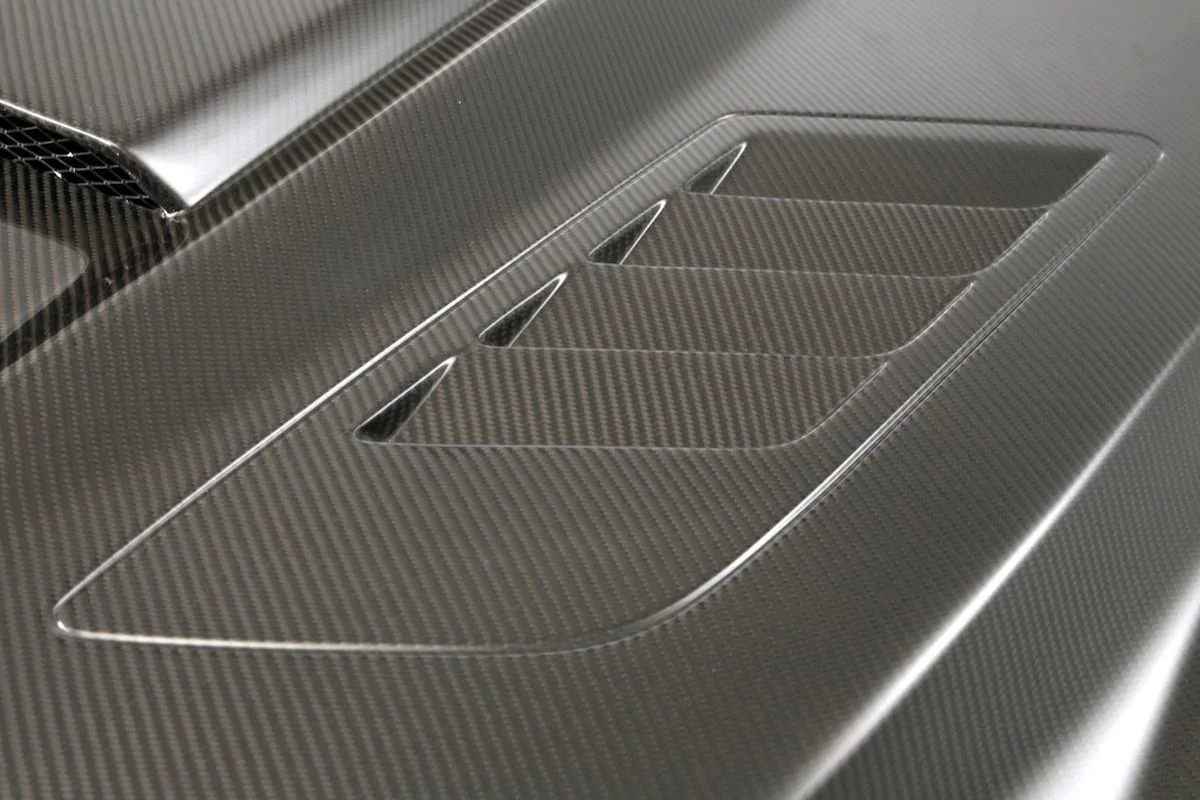

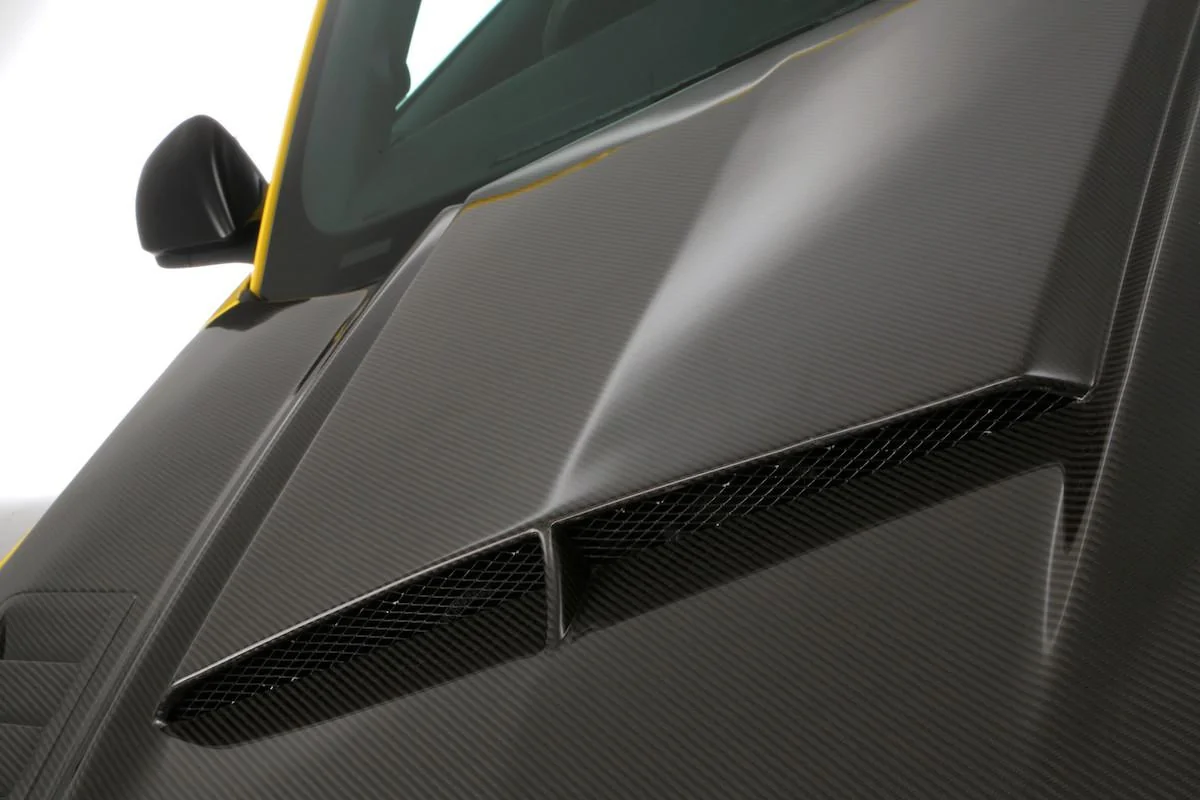

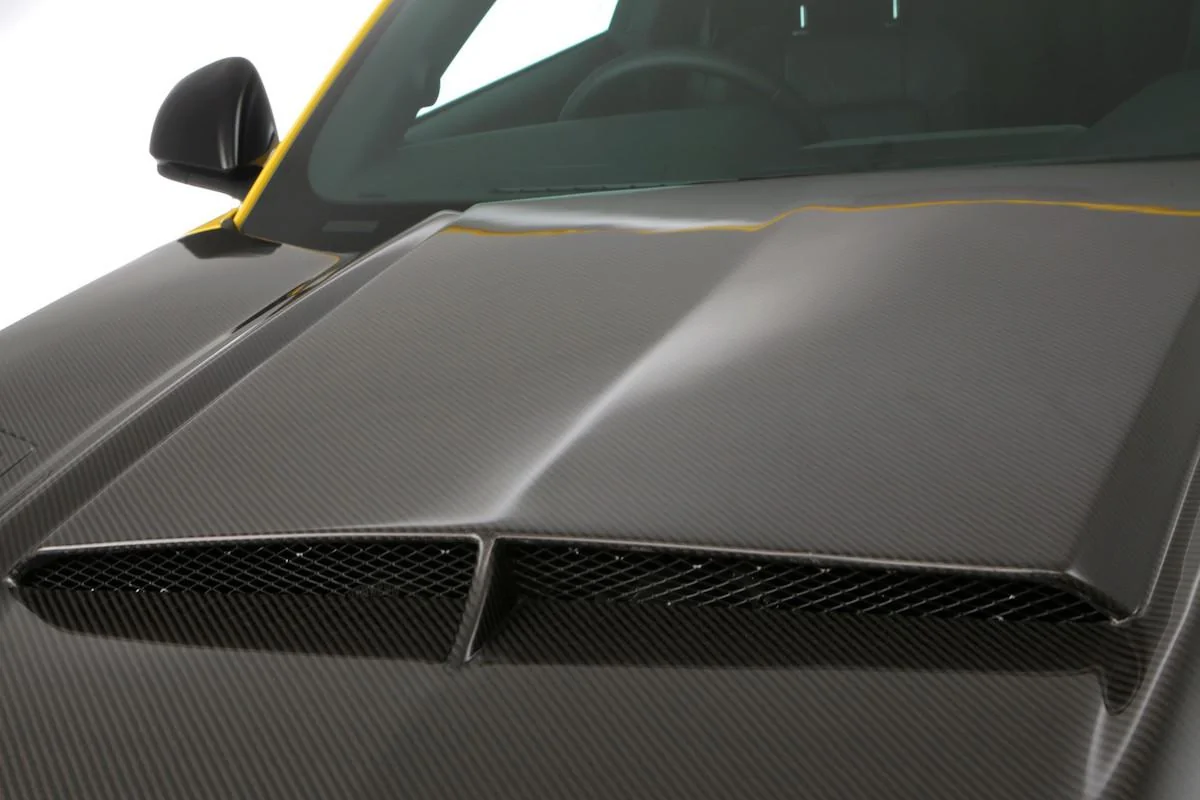

Further personalisation can be achieved through the Individual Options list, which includes a bespoke carbon fibre bonnet with functional ‘ram air’ scoop and carbon fibre rear window louvres. For the interior the options include an eye-catching four-piece carbon fibre dashboard and a high-power audio system.

Sutton Bespoke will also be offering a 'tailor-made' service, giving customers the chance to create their own unique Ford Mustang. The packages can be supplied either to existing owners or as a complete service, with the base Ford Mustang vehicle sourced for the client. Attractive funding options are available to enable the car and the upgrade package to be financed together.

UPGRADE SPECIFICATIONS AND PRICES (ALL INC. VAT AND FITTING)

FEATURE SPECIFICATION PRICE


  • Power Package CS700 (V8) – Power Package includes, Supercharger, Inter-Cooler, Quad Exhaust, Active Exhaust System & Rear Valance £14,510
  • CS700 (V8) – Extended Power Package (in conjunction with the above) adds larger throttle body and carbon fibre inlet tubes £1,150
  • CS500 (V8) – CS500 Power Package includes, Cold Air Intake, Quad Exhaust, Active Exhaust Control & Rear Valance £4,990
  • CS350 (EcoBoost) – CS350 Power Package includes, Cold Air Intake, Quad Exhaust, Active Exhaust Control & Rear Valance £4,990
  • Ride Package For CS700 – CS700 Ride Package includes, CS700 Suspension which reduces ride height by 30mm, 20" Wheels available in custom finish & Bridgestone tyres £6,090
  • For CS500 and CS350 – Ride Package for CS500 & CS350 includes, CS springs which reduces ride height by 25mm,, Original wheels finished in custom colour. £950
  • Brake Package For all models – upgraded slotted lightweight discs £1,975
  • Appearance Package For all models – Appearance package includes, Carbon side skirt rockers, Carbon deck-lid panel, Carbon chin front splitter, Carbon rear spoiler, Painted wing mirrors, Gloss black 5.0 emblem (pair), Gloss Black "Pony" emblem. £3,240
Individual Options
(cost when fitted in conjunction with Power Package)

  • Carbon fibre ‘ram air’ bonnet £3,570
  • Carbon fibre four-piece dashboard £2,900

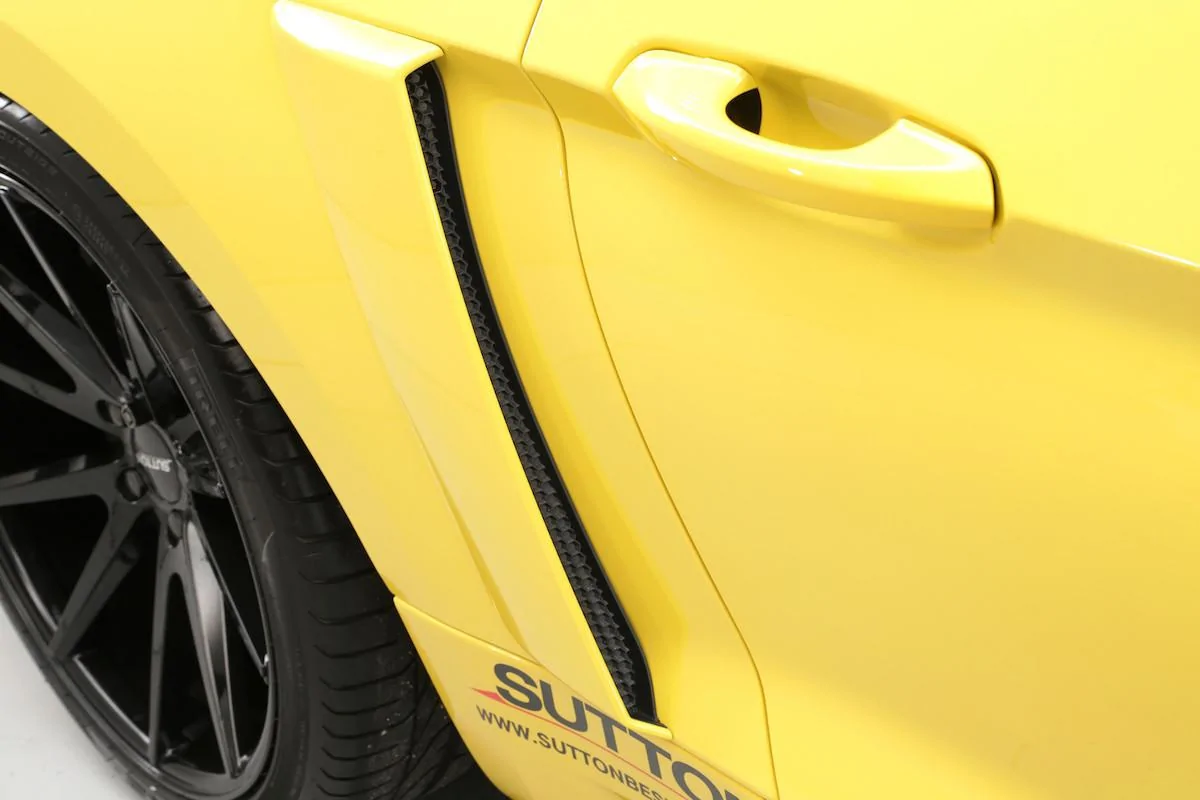

  • Quarter panel side scoop £348
  • Carbon fibre window louvres £390
  • Body colour window louvres £465
  • Body colour bonnet scoop £600
  • Rear aluminium louvres (Fastback only) £505

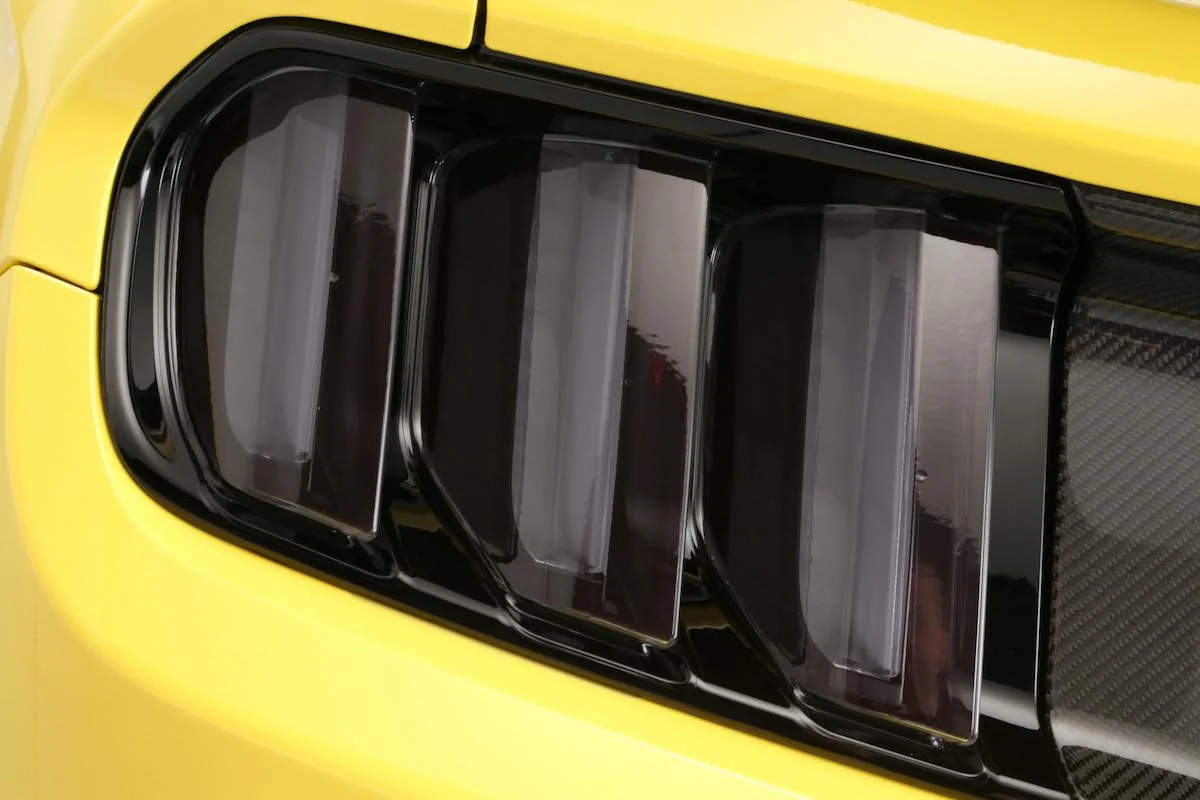

  • Exterior custom lighting pack £1,200
  • Super HiFi Audio package £TBC
















































Sponsored



Spartan

Well-Known Member
Joined
Apr 29, 2014
Threads
94
Messages
3,883
Reaction score
569
Location
MD
Vehicle(s)
Ford Explorer Sport
The car was actually built by our very own Dave [MENTION=13889]djone101[/MENTION] at GT101 :headbang:
Nice!

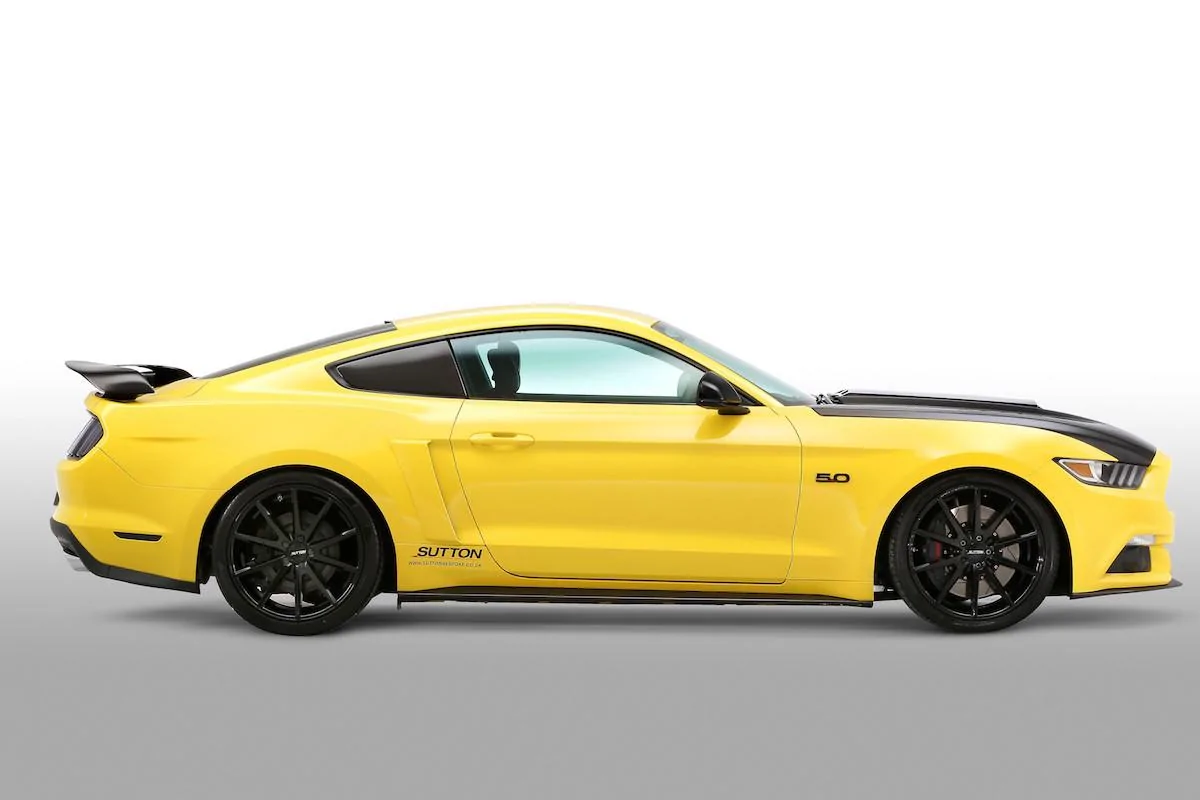

Interesting to see the profile and the painted hood from the side. Hood definitely doesn't follow the side body lines..looks odd when you see it like this.


HawaiianStang

Member
Joined
Mar 12, 2016
Threads
1
Messages
19
Reaction score
4
Location
Honolulu, HI
First Name
Kanani
Vehicle(s)
SN95 Mustang GT
I can say that I care for the hood, but it is an impressive car. Good to see how well the S550 is doing in Europe. Ford definitely hit a home run with this car.


gtlaw

JcRoush hater
Joined
Oct 14, 2014
Threads
5
Messages
329
Reaction score
98
Location
pittsburgh
Vehicle(s)
a car
euro roush rice


Sponsored

5starr0

Well-Known Member
Joined
Apr 27, 2015
Threads
47
Messages
1,133
Reaction score
244
Location
Charlotte, NC
Vehicle(s)
2015 Mustang GT Premium
all that money and they put the steering wheel on the wrong side


JWS

Well-Known Member
Joined
May 3, 2014
Threads
0
Messages
1,004
Reaction score
237
Location
Dunnellon, Florida
First Name
James
Vehicle(s)
2015 WW-50th LE Auto-0745-Grandé
A little confused on the larger throttle body. Is that a larger one on the Whipple? What size is it and what size is the air cleaner tube? Just wondering how far it is necked-down between the filter and the throttle body. Would like to know the size in mm for both.


Hi-PO Stang

Well-Known Member
Joined
Nov 11, 2013
Threads
3
Messages
1,559
Reaction score
606
Location
Minnesota
Vehicle(s)
2014 Shelby GT500
I love the hood. If I had a 2016 Mustang, I would want the hood. Yellow is probably the best color for a black hood and black rear deck spoiler. Orange might be okay. The Sutton package looks really good as shown.


101charley

Well-Known Member
Joined
Dec 24, 2014
Threads
18
Messages
424
Reaction score
82
Location
Franklin TN
First Name
Charley
Vehicle(s)
2015 GT Magnetic, 400A, 6AT, 3.55, MBRP Street

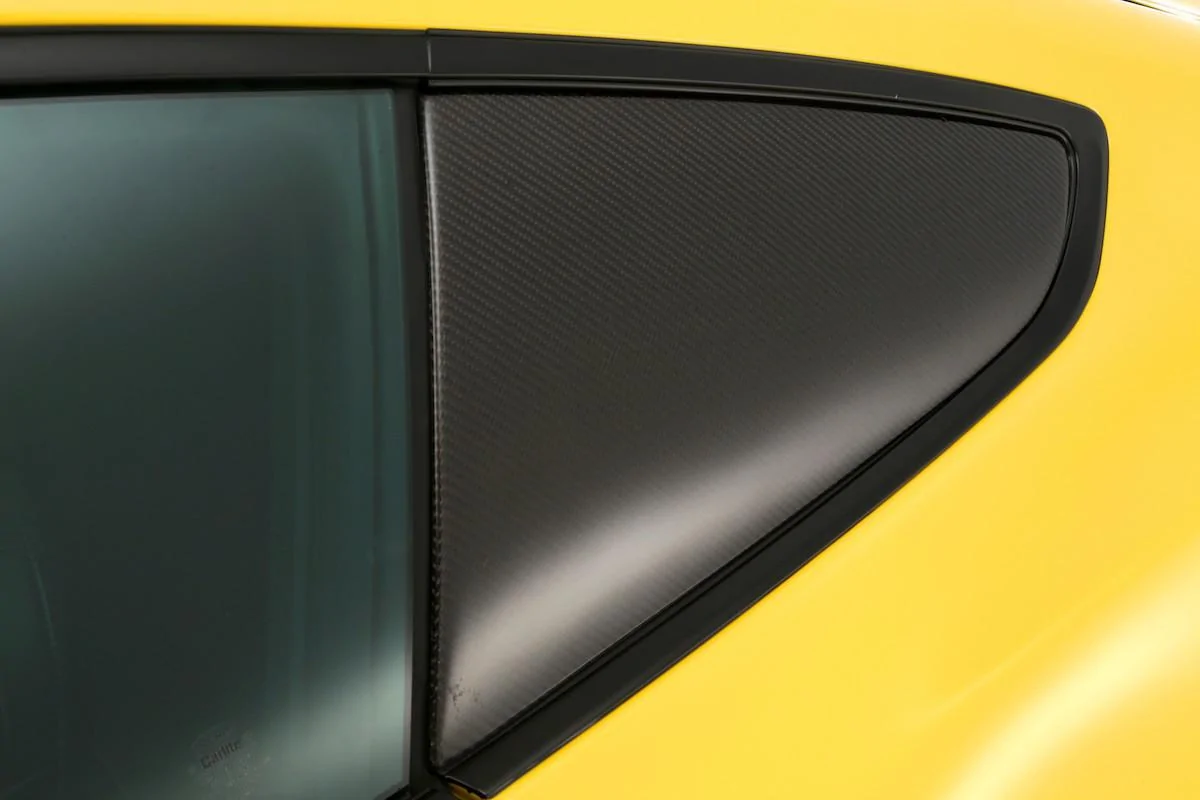

Beautiful car. However, I note that the carbon fibre window "louvre" does not seem to be a louver at all - just a solid black out piece. And I see the pair is £390. Which is like $570.00. Wow!


Chad11491

Well-Known Member
Joined
Nov 9, 2015
Threads
5
Messages
765
Reaction score
364
Location
Roswell, GA
Vehicle(s)
17 Lightning Blue GT Premium PP
Not my thing at all, but that's nice I guess. Seems like the add-one are way overpriced. But maybe that's what they cost over there. Glad they have the option for it if they want it though.


Sponsored

SpaceGhost

Well-Known Member
Joined
Jan 10, 2015
Threads
18
Messages
333
Reaction score
48
Location
KC
Vehicle(s)
S550
I like it. Is that the first use of an enclosed air box with a supercharged application?
