Creaky clutch pedal

Discussion in 'Issues, Repairs, Warranty, TSB, Recalls' started by mindys, Aug 1, 2017.

  1. mindys

    mindys Well-Known Member

    First Name:
    Mindaugas
    Vehicle(s):
    2015 GT Premium PP DIB | 2006 Mazdaspeed 6 GT
    Joined:
    Jul 15, 2015
    Location:
    Chicago Suburbs
    Posts:
    441
    Likes Received:
    163
    0   0   0
    So go this issue for a few months where my clutch pedal starts to creak when it is being depressed. It seems like if I push the pedal to the left (towards the drive side of the vehicle), it causes the sound. If I push the pedal to the right (towards the passenger side) it goes away. Tried to figure out where it is coming from, but I had no luck. Anyone else have something similar occur and know where this sound is originating from?

    [ame]

  2. blakbearddelite

    blakbearddelite Active Member

    Vehicle(s):
    2015 GT Premium in DIB
    Joined:
    May 12, 2015
    Location:
    South Elgin, IL
    Posts:
    40
    Likes Received:
    10
    0   0   0
    I have the same issue, really annoying. There was another thread on here that talked about greasing up some white plastic piece. It quieted it down, but the noise came back.

  3. OP
    OP
    mindys

    mindys Well-Known Member

    First Name:
    Mindaugas
    Vehicle(s):
    2015 GT Premium PP DIB | 2006 Mazdaspeed 6 GT
    Joined:
    Jul 15, 2015
    Location:
    Chicago Suburbs
    Posts:
    441
    Likes Received:
    163
    0   0   0
    White plastic piece? The cylindrical piece? I do not see it :shrug:

  4. blakbearddelite

    blakbearddelite Active Member

    Vehicle(s):
    2015 GT Premium in DIB
    Joined:
    May 12, 2015
    Location:
    South Elgin, IL
    Posts:
    40
    Likes Received:
    10
    0   0   0
    I'll see if I can find the thread. It should pop up in a search of 'squeaky clutch pedal' or something similar.

  5. DeerLick

    DeerLick Blehhhhhh.....

    First Name:
    Derrick
    Vehicle(s):
    2020 Rapid Red GT Premium PP1 6MT
    Joined:
    Jul 20, 2018
    Location:
    Southern California
    Posts:
    16
    Likes Received:
    7
    Occupation:
    Accountant
    0   0   0
    Did OP end up figuring out where the noise was coming from and what was needed to remedy the creaking?

    I also have the same creak and it's really annoying me, especially since I'm in stop-n-go traffic every morning and evening.

  6. OP
    OP
    mindys

    mindys Well-Known Member

    First Name:
    Mindaugas
    Vehicle(s):
    2015 GT Premium PP DIB | 2006 Mazdaspeed 6 GT
    Joined:
    Jul 15, 2015
    Location:
    Chicago Suburbs
    Posts:
    441
    Likes Received:
    163
    0   0   0
    Yup, I actually did. It most likely was cause by the pedal cracking and slowly failing. Look at my thread here: https://www.mustang6g.com/forums/threads/clutch-brake-pedal-assembly-removal.104338/

    I think that creaking was one side of the pedal mounting area cracking. Almost a year later both sides cracked my pedal kinda "dangled". I removed the entire assembly and had it welded up.

    Joshad1986 and DeerLick like this.
  7. jrsimon27

    jrsimon27 Well-Known Member

    Vehicle(s):
    Mustang GT 2016 PP
    Joined:
    Apr 3, 2015
    Location:
    Outside the USA
    Posts:
    588
    Likes Received:
    125
    0   0   0
    #7 jrsimon27, Jun 13, 2019
    Last edited: Jun 13, 2019
    With my cars clutch pedal i used lithium grease in spray and pointed the spray towards the clutch spring now it stopped making the creaking noise hope it doesnt break as yours.

  8. Joshad1986

    Joshad1986 New Member

    First Name:
    josh
    Vehicle(s):
    2015 mustang gt 03 gt
    Joined:
    Apr 28, 2020
    Location:
    72126
    Posts:
    3
    Likes Received:
    0
    0   0   0


    I had same noise right before my pedal cracked but I can't get this thing out

  9. Lime1GT

    Lime1GT Well-Known Member

    First Name:
    Thomas
    Vehicle(s):
    2017 Mustang GT PP
    Joined:
    Nov 12, 2016
    Location:
    Winnipeg, Mb. Ca.
    Posts:
    194
    Likes Received:
    56
    0   0   0
    On my now gone 05, after years of a squeaking clutch pedal and changing out the clutch master cylinder to no avail, I finally found the problem. Loosening off the bolts that hold the clutch assy to the firewall I pulled the assy about an inch away. Using a mirror I could see where the bottom right corner of the plastic pedal support had rubbed through the paint on the firewall. I placed two of my fingers between the pedal support and firewall and pressed the clutch pedal down. No Squeak. I then used Ford's Brake Silicone and Dielectric Grease to lube the firewall area where the rub marks were and the noise is now gone.

    Hope this may help others with this issue.

  10. Thoriniv

    Thoriniv Active Member

    Vehicle(s):
    2015 Magnetic GT
    Joined:
    Jun 4, 2015
    Location:
    Fort Worth , TX
    Posts:
    26
    Likes Received:
    6
    0   0   0

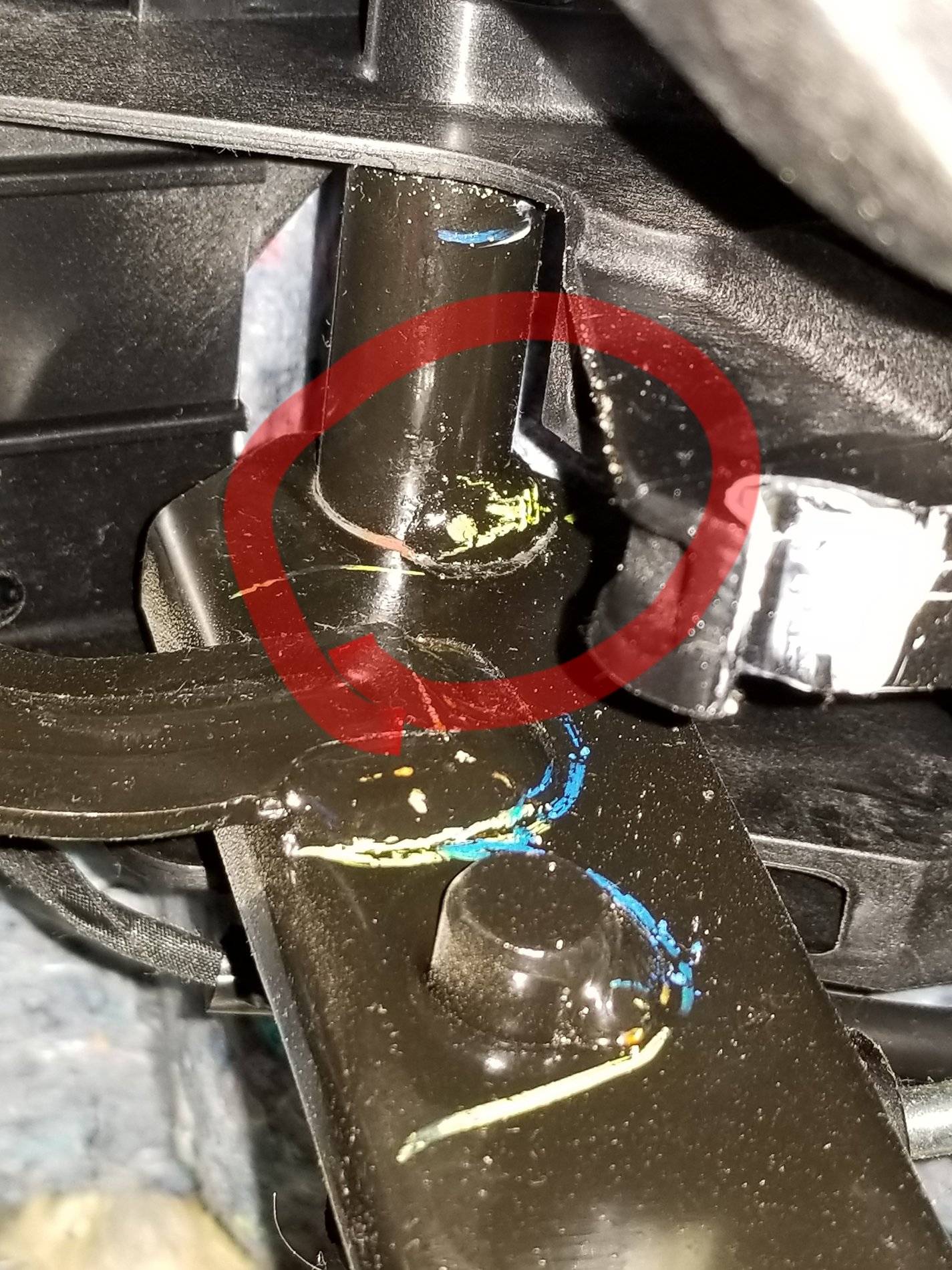

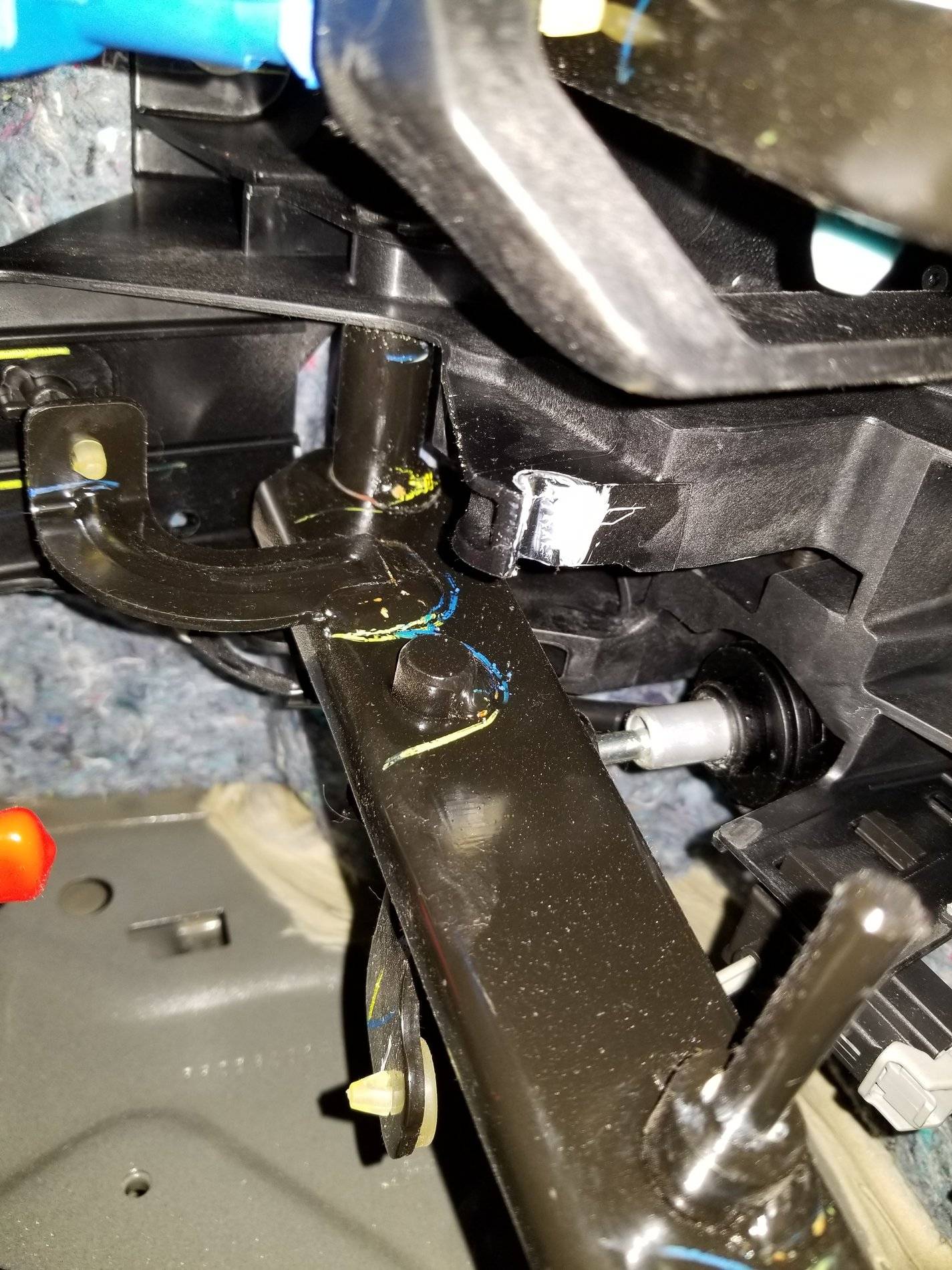

    Just for visibility, this is most often from the welds breaking near the top of the pedal arm. See pics. 20200730_021227.jpg 20200730_021528.jpg

    DeerLick likes this.
