Cooler install Photos

[TonyJ5150]

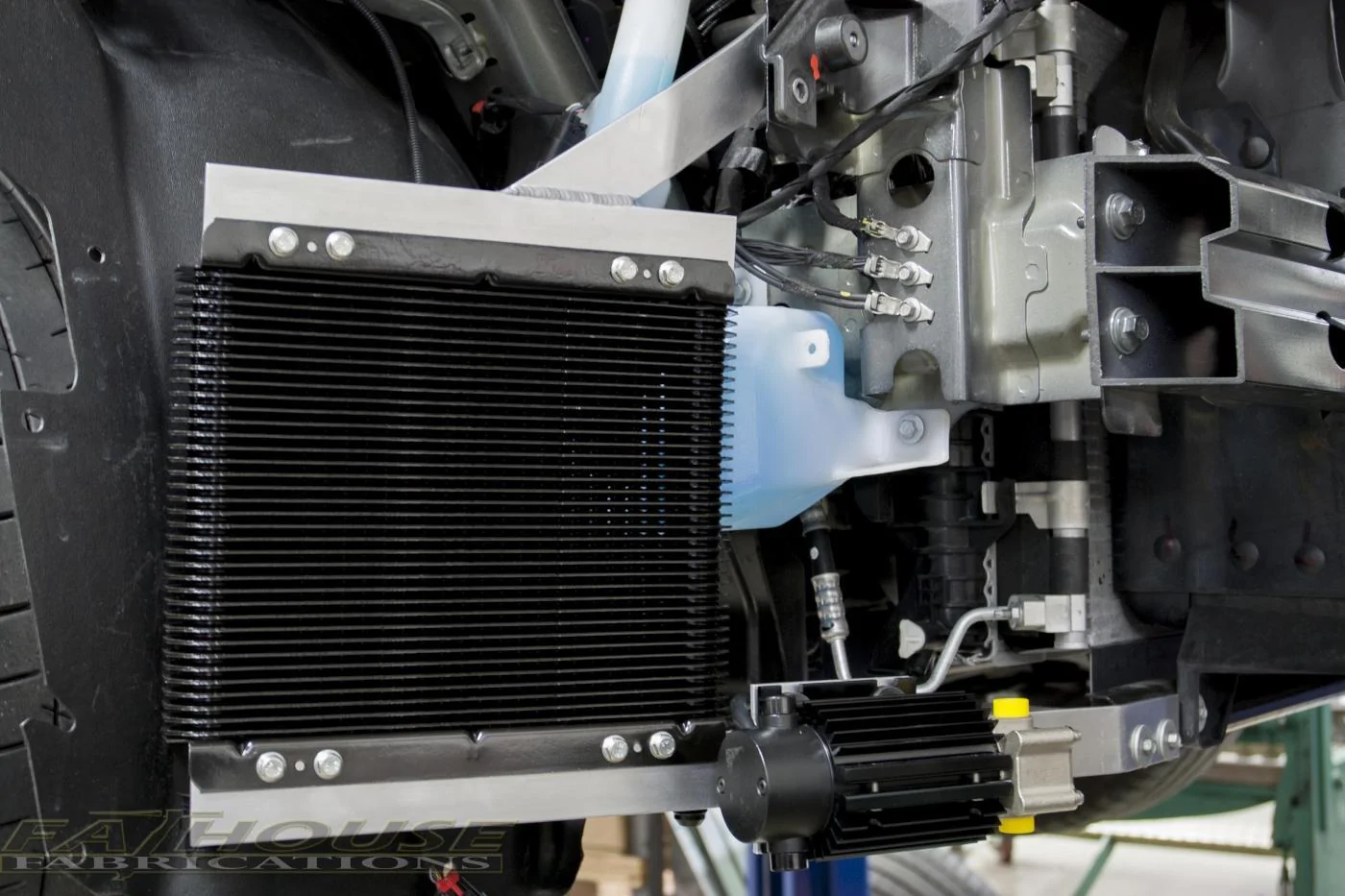

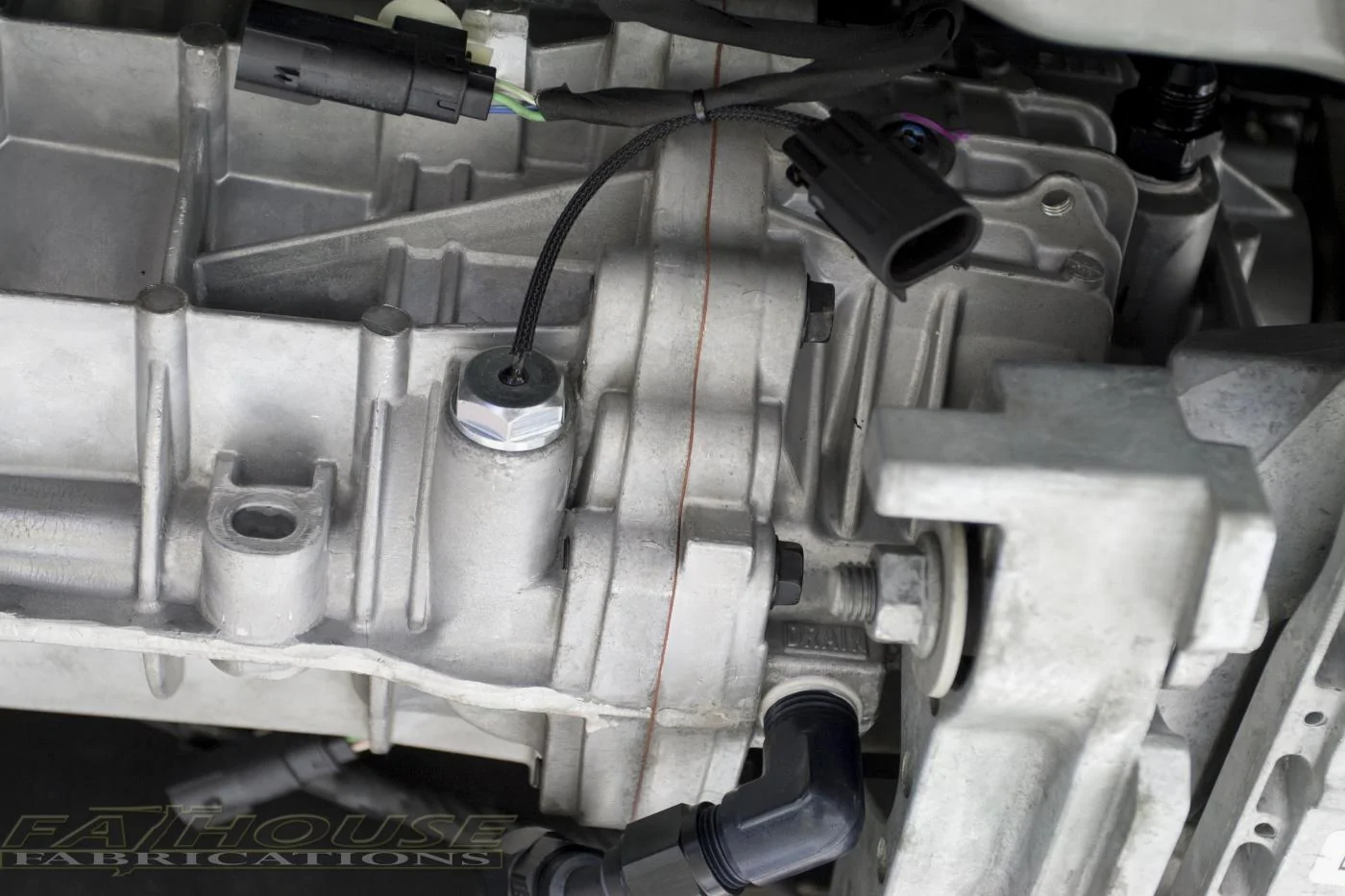

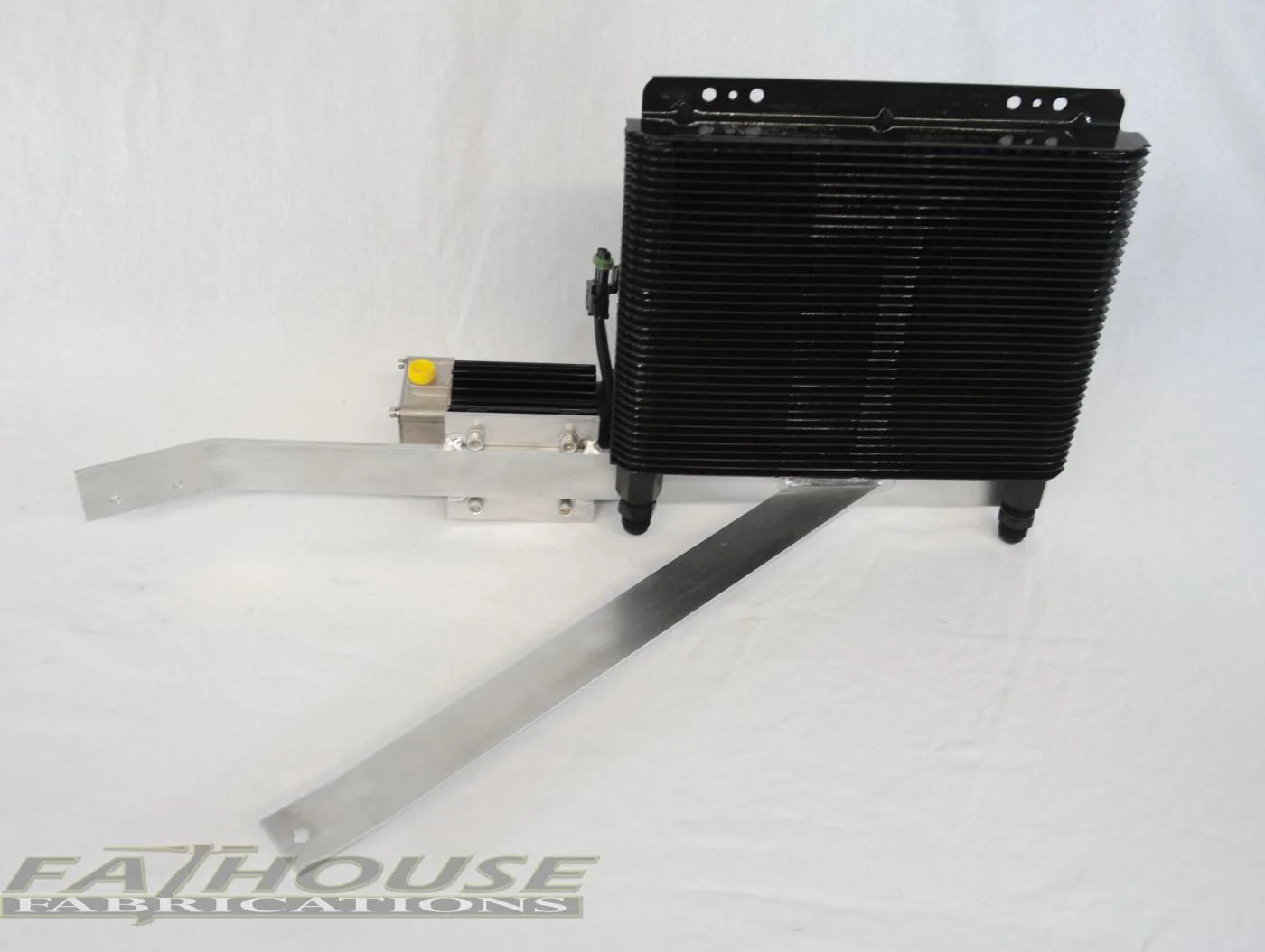

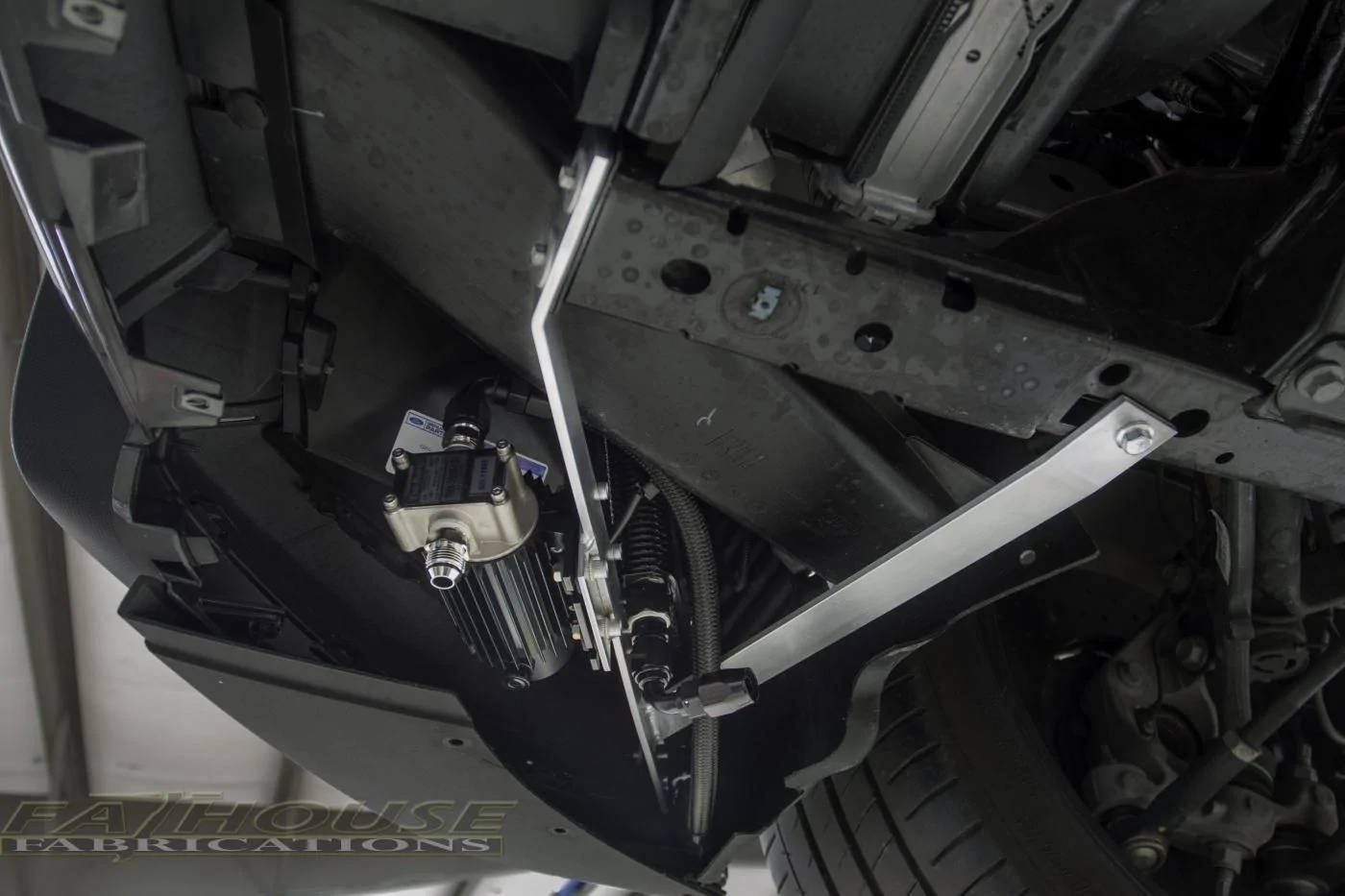

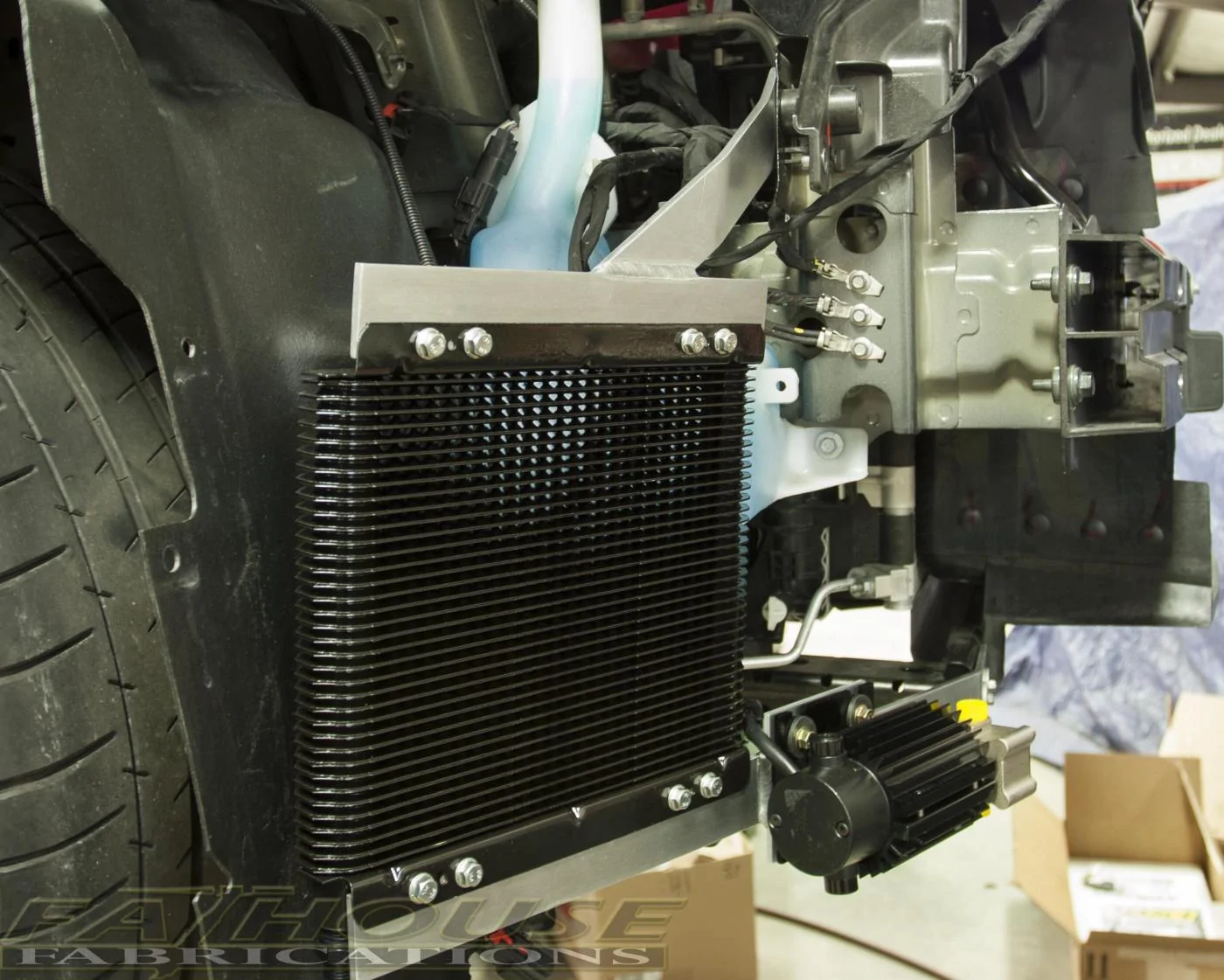

Here are a few pics as we progress thru installing a thermostatically controlled Trans cooler and a diff cooler!

Sponsored



[lemers]

Looks nice. Anymore info and pics?



[SchultzLT1]

Clean, professional install.



[montreal ponies]

Very professionnally done, give us some more details if you can on parts, cost. Thx for sharing.



[Epiphany]

Why was the structural casting rib ground down?



[Tank]

Here are a few pics as we progress thru installing a thermostatically controlled Trans cooler and a diff cooler!

Excellent! Thanks Tony

Looking forward to seeing your progress :cheers:

Edit: It looks like you removed the fender in your last two photos??



[john@fatfab]

That was done at the factory.

Why was the structural casting rib ground down?



[50 Deep]

Looking forward to seeing the end result. Thanks for sharing



[SVTDSM]

Very nice work!



[Hack]

are those aluminum brackets?



[live2ride90]

Looks good man, to bad I cant take my car to you for this.



[Zombo]

Why was the structural casting rib ground down?

Looks like that is the casting parting line, where the 2 outer halves of the mold (Cope and Drag) meet. It normally get's ground down/smoothed out.



[Epiphany]

I'm familiar with post-cast touch up. I asked because the grinding done on this rib exceeds what I've seen on my own transmission in the same spot as well as on a TR3160 purchased through Ford Parts and Service that I had for some time.



[08fordgt]

subbed for pics, parts, and prices.



[TonyJ5150]

I'm familiar with post-cast touch up. I asked because the grinding done on this rib exceeds what I've seen on my own transmission in the same spot as well as on a TR3160 purchased through Ford Parts and Service that I had for some time.

Any grinding was done at the factory.
