    I was a big fan of the S550 design styling when it debuted at the end of 2013. This forum is a wealth of information when I was doing my research prior to buying my 17 GT and since when it comes to modding. I think I was a forum member for 2 years before I made my first post. I guess I should have started this journal back in May when I picked up the car. Thanks to Members American, GT_Tommy and Nathanbrummer as I borrowed styling cues from their builds.

    I picked up the car on Memorial Day weekend from Koons Ford in Sterling, VA. They had the best price on the east coast. Their Wow price was $8K under MSRP and I couldn't find a dealer within 100 miles of the greater Charlotte area to match the price. My wife and I fly for free so we flew up to IAD and our sales person picked us up at the airport and drove us to the dealership. 90 minutes later we were driving back home to SC.

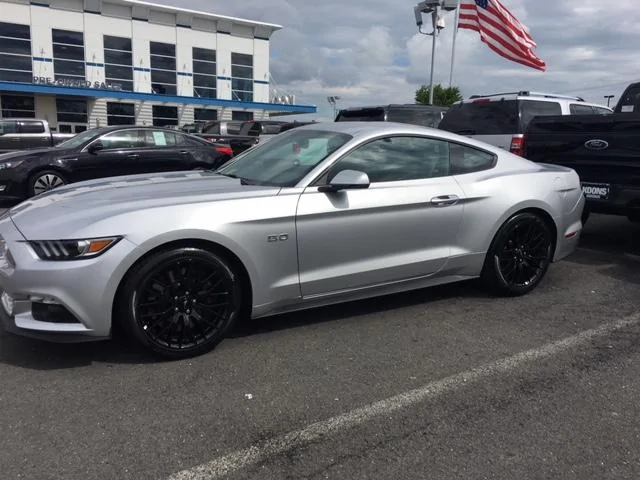

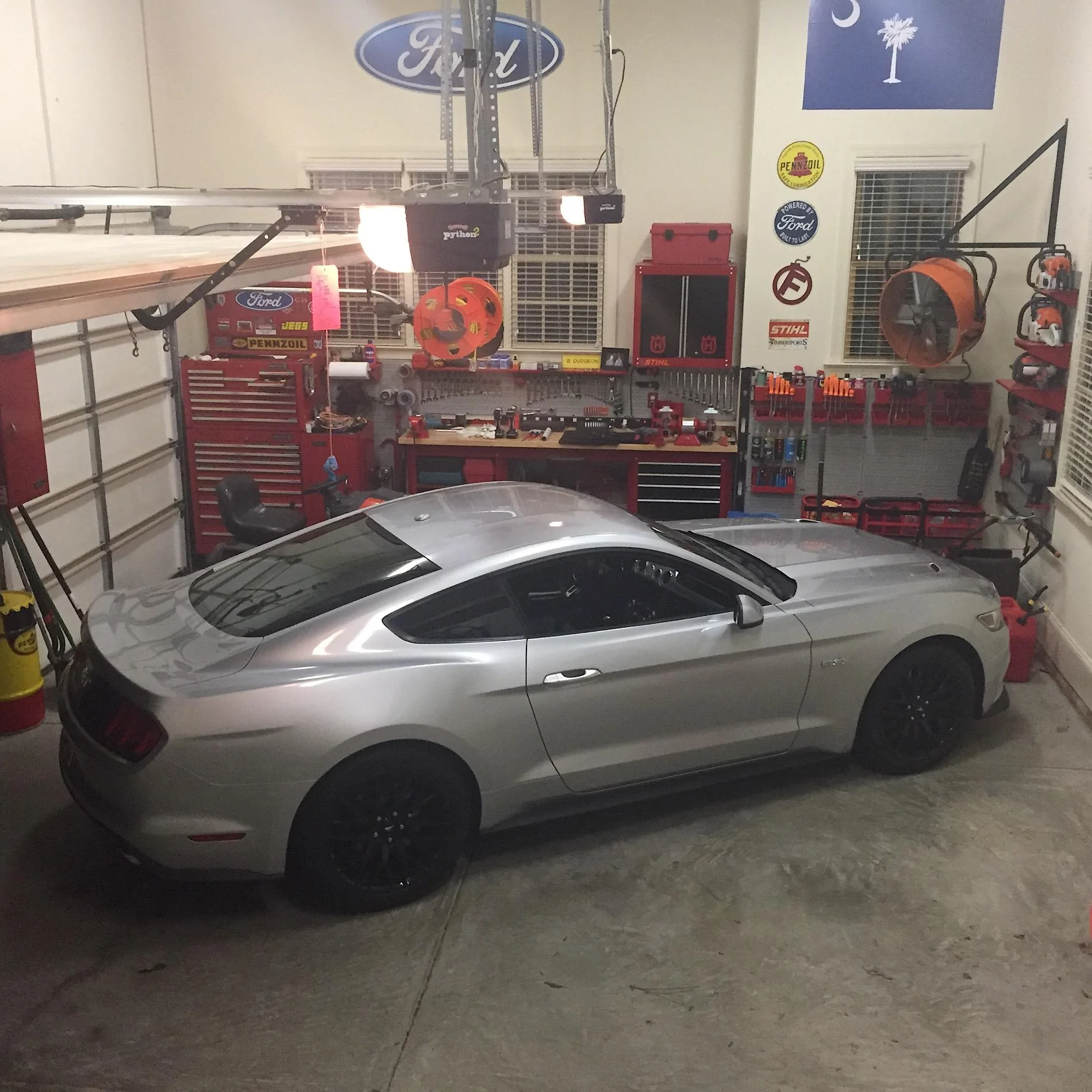

    This was the car when we picked it up and the when we got it home. IMG_2339.JPG B3F30EBF-B319-41B3-B2D8-CD527C7D1CF7.jpeg

  2. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

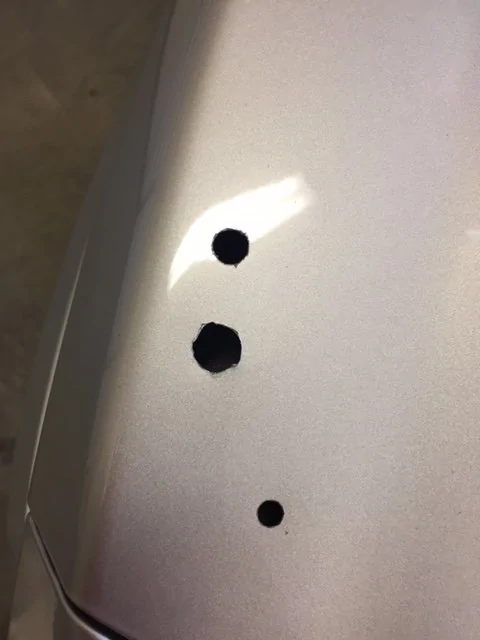

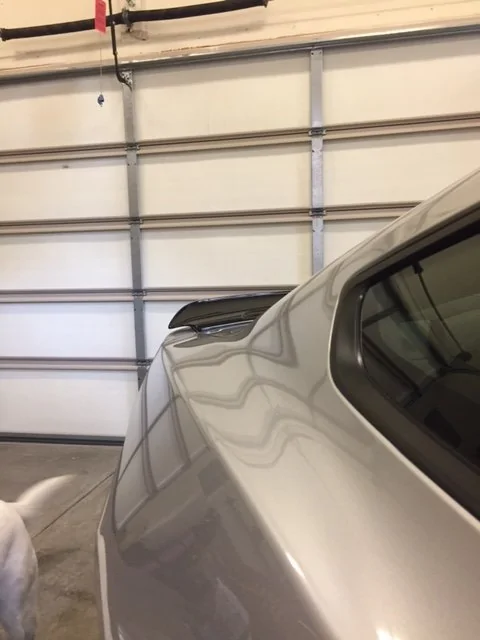

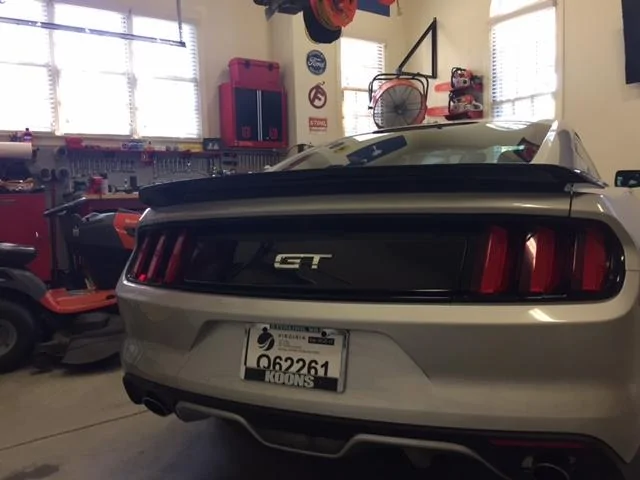

    When we got home, there were already parts boxes at the side door. The track pack rear spoiler from Levittown Ford was the first mod. There was a look of disbelief on my wife's face as she watched me drilling into a car that we only had less than 48 hours.

  3. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0
    #3 Boston23, Dec 26, 2017
    Last edited: Mar 9, 2019

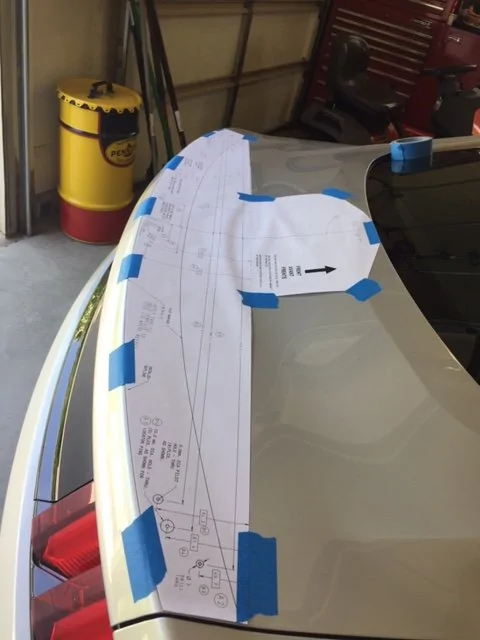

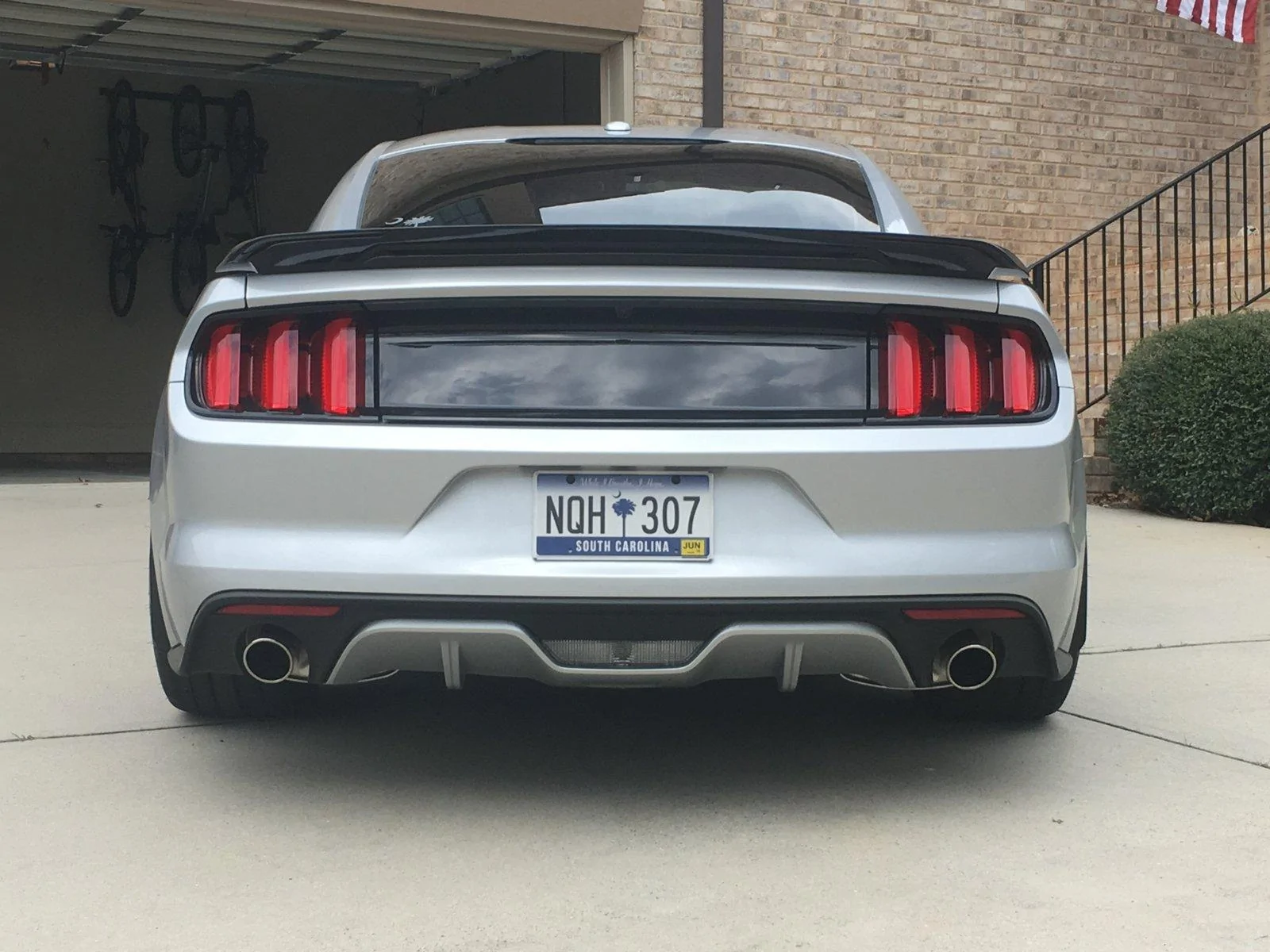

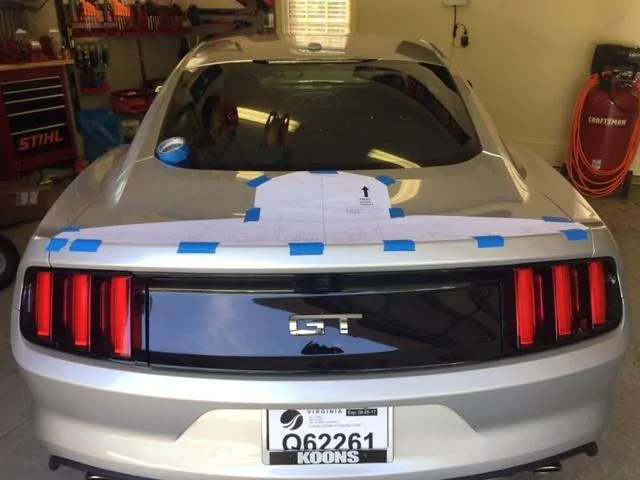

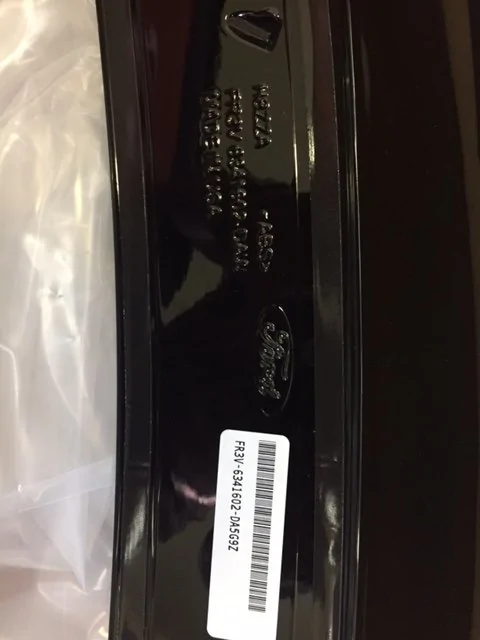

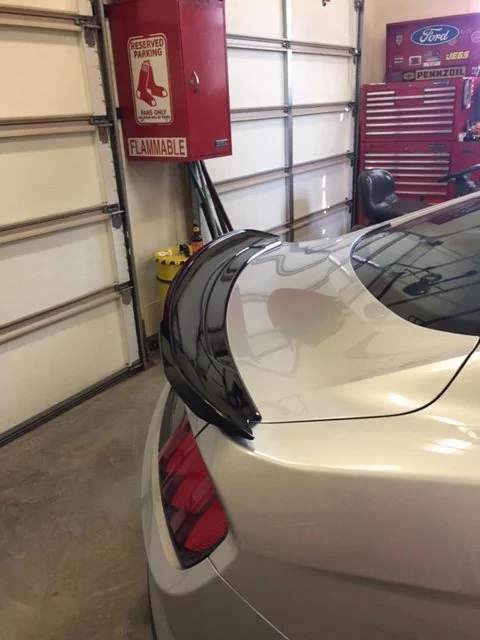

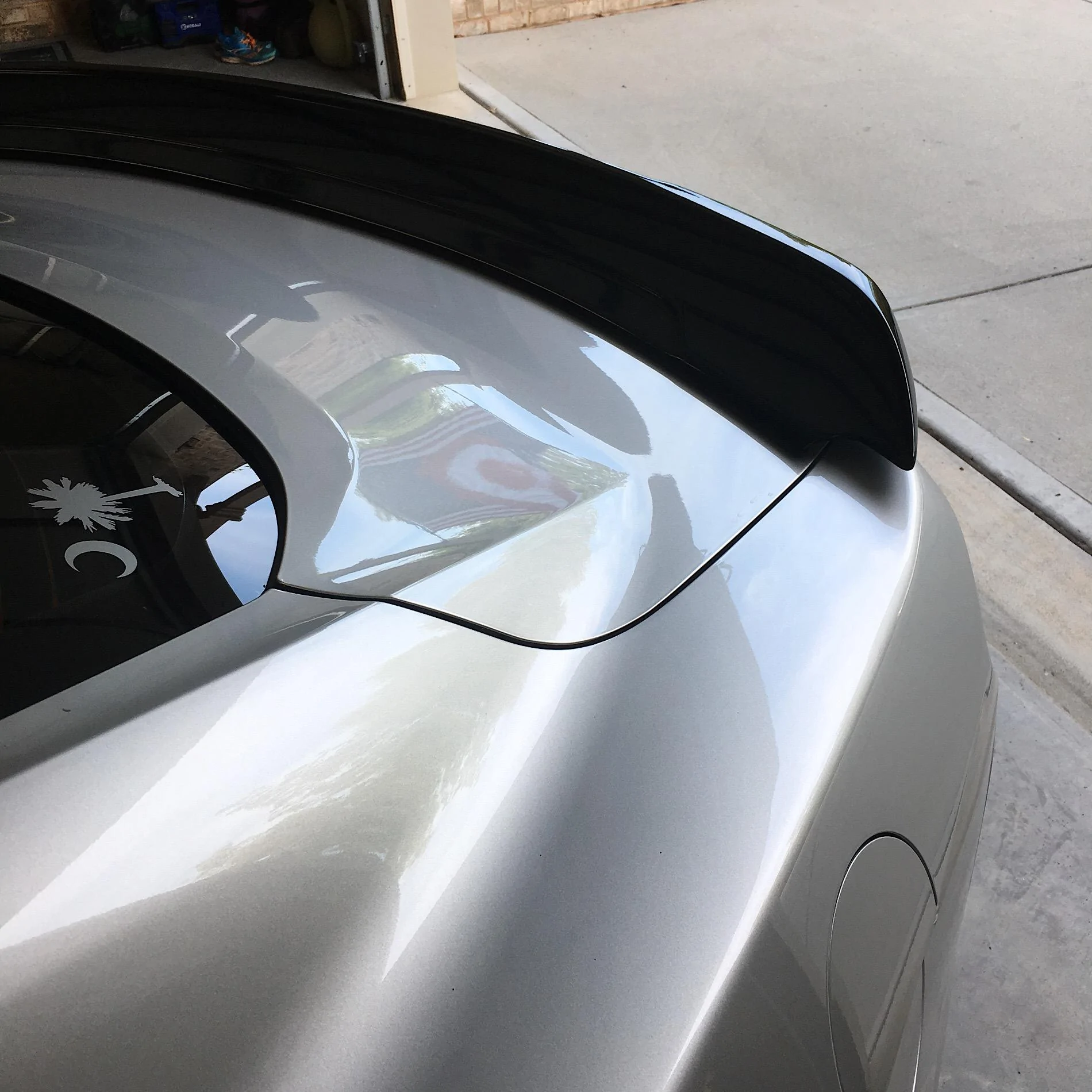

    The track pack. The GT PP looks very clean without a spoiler. If it wasn’t the Track Pack, I’m not sure I would have added a spoiler. 58C5BCD6-6BEC-4686-A168-45AEB09EBBE5.jpeg 9C223237-819E-40DC-938F-9006C26D9815.jpeg 76C1CE50-5802-4213-BBC8-92107E4EDE6B.jpeg 0299BA53-FC3D-41FC-BD9C-0C45EC1056DC.jpeg BBD517F0-934D-453D-B756-22EADC2DAD0E.jpeg 07A7421D-8F26-4A05-9751-2D25C3D505F0.jpeg 56800167-32F5-416C-95D0-8EF9DF33B91F.jpeg 1B47E402-CBB1-437A-8927-E8675C871725.jpeg 2E520D1F-39C3-45FB-8FE4-8E50935251CF.jpeg 380DE0C4-A99B-42F8-A8AE-70DA5CA81717.jpeg

    Martinnfb likes this.
  4. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0
    #4 Boston23, Dec 26, 2017
    Last edited: Dec 26, 2017

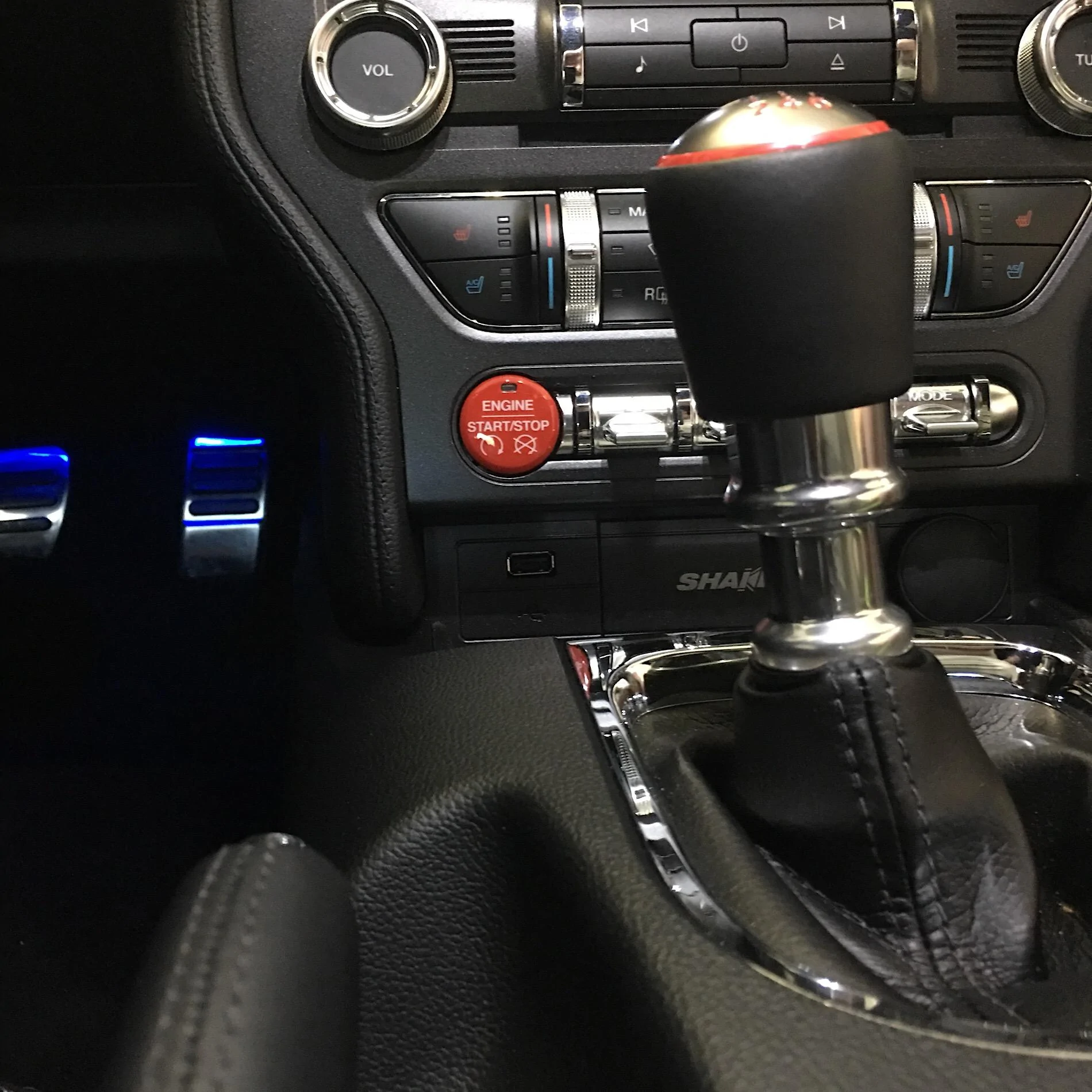

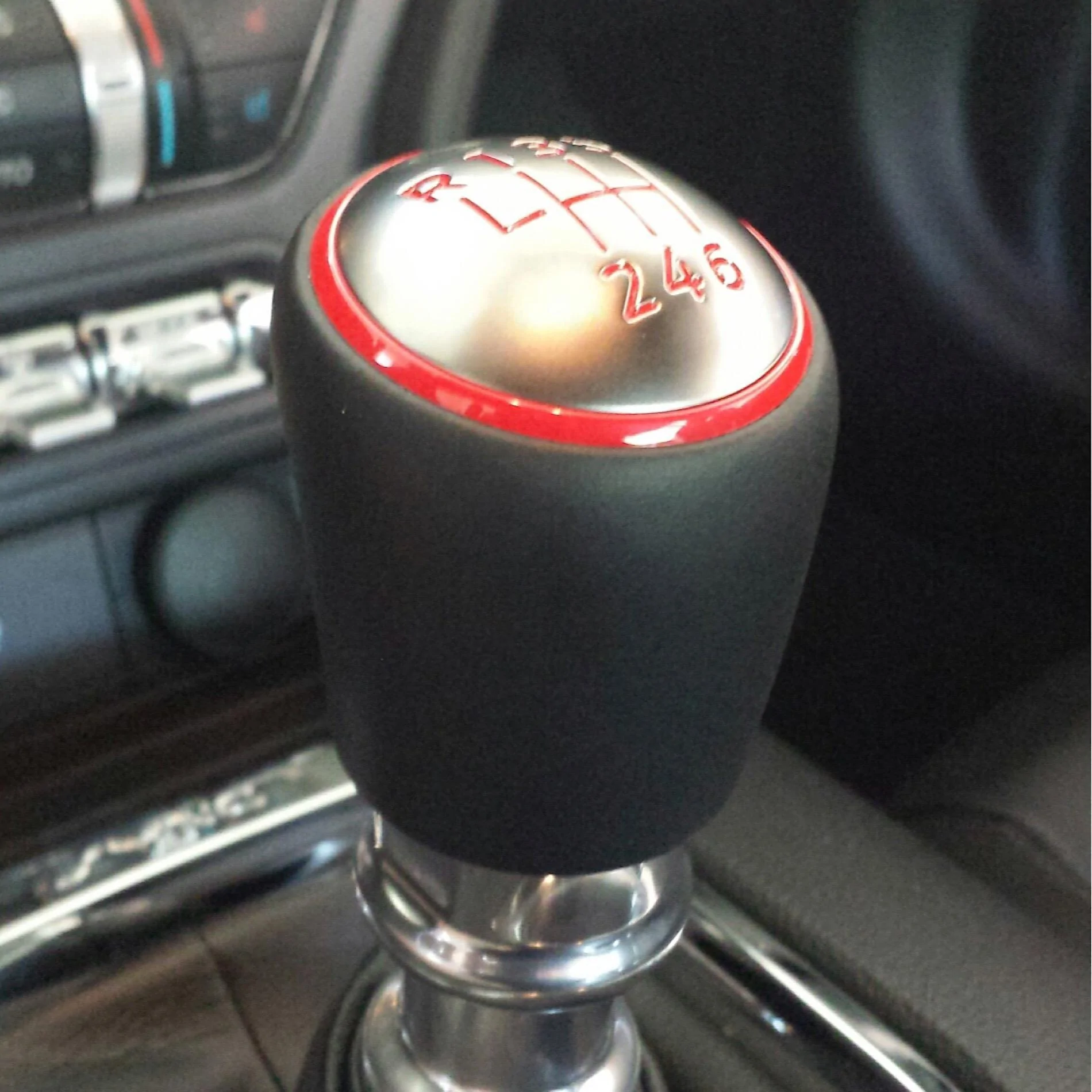

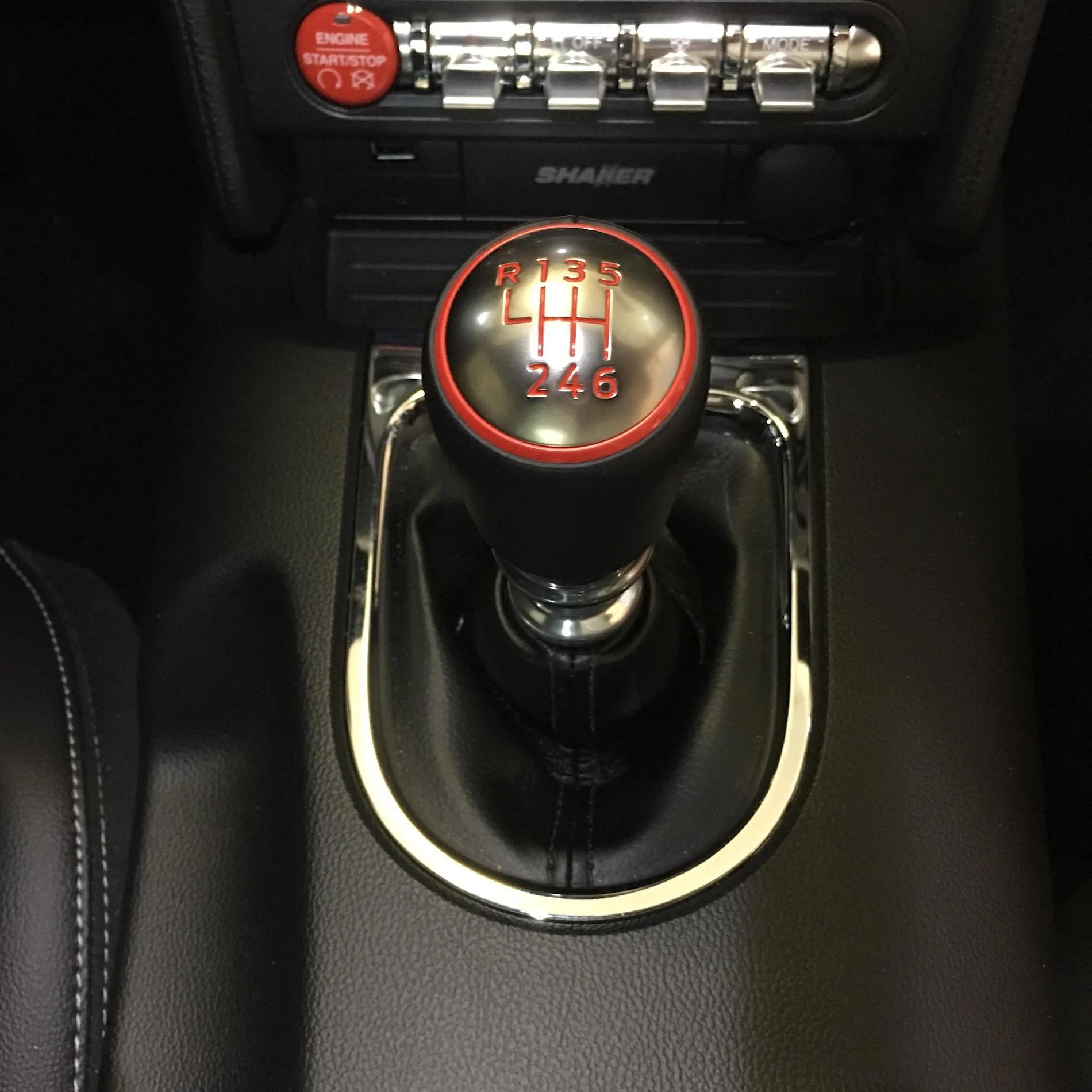

    CJPP had the GT350 shift knob with the correct thread for the GT. I got 13 full revolutions when installing the knob. Beyond that, the reverse lockout won’t fully engage. The original OEM knob has some heft to it and so does the 350 knob.

    I swapped out the start button at the same time. I used the pick method and the button was installed in less than a minute. 2C43014C-BEE3-454B-88FC-5CE74D905013.jpeg 9C3A310C-4D90-4B43-9786-8E8F9C0C2565.jpeg 1B08E378-0B5D-428A-92DB-68EA53D1056B.jpeg

    Martinnfb likes this.
  5. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

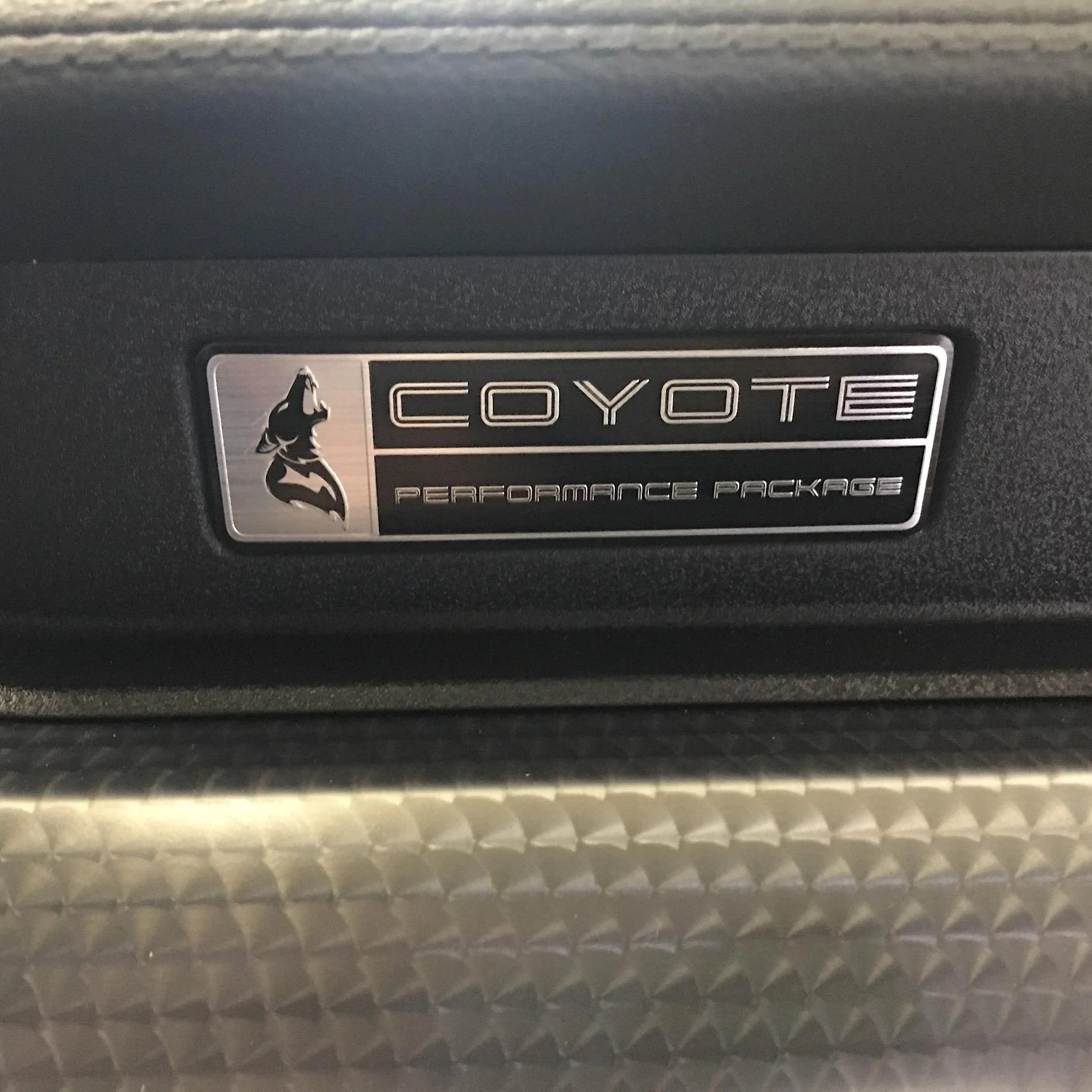

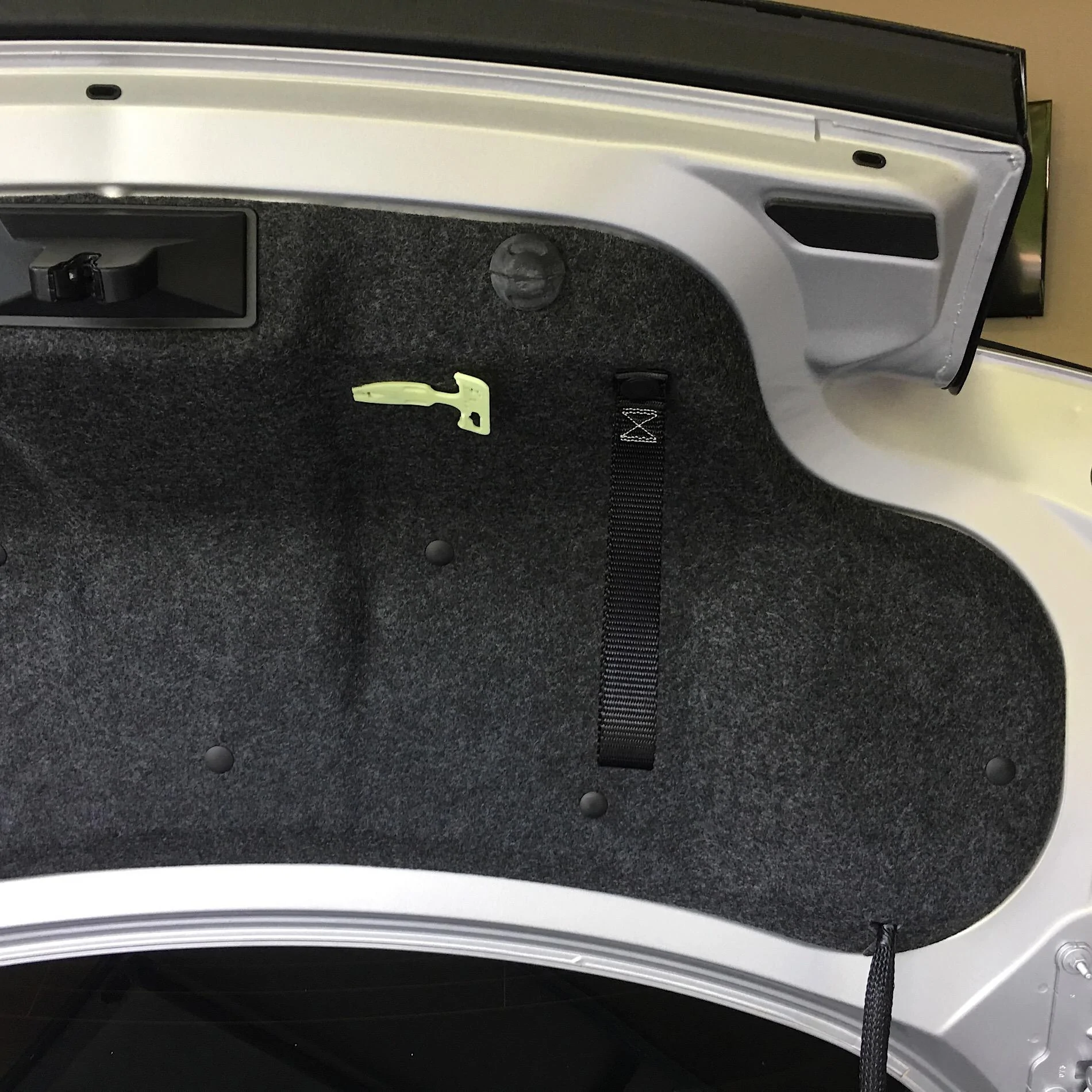

    I picked up the dash plaque and trunk strap from SCS. Most people think they were OEM. 1947027C-0433-4E62-A6FC-C7202F74EB0F.jpeg E9A12765-FAAC-4463-969D-05E77CBFCEE5.jpeg

    Martinnfb likes this.
  6. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

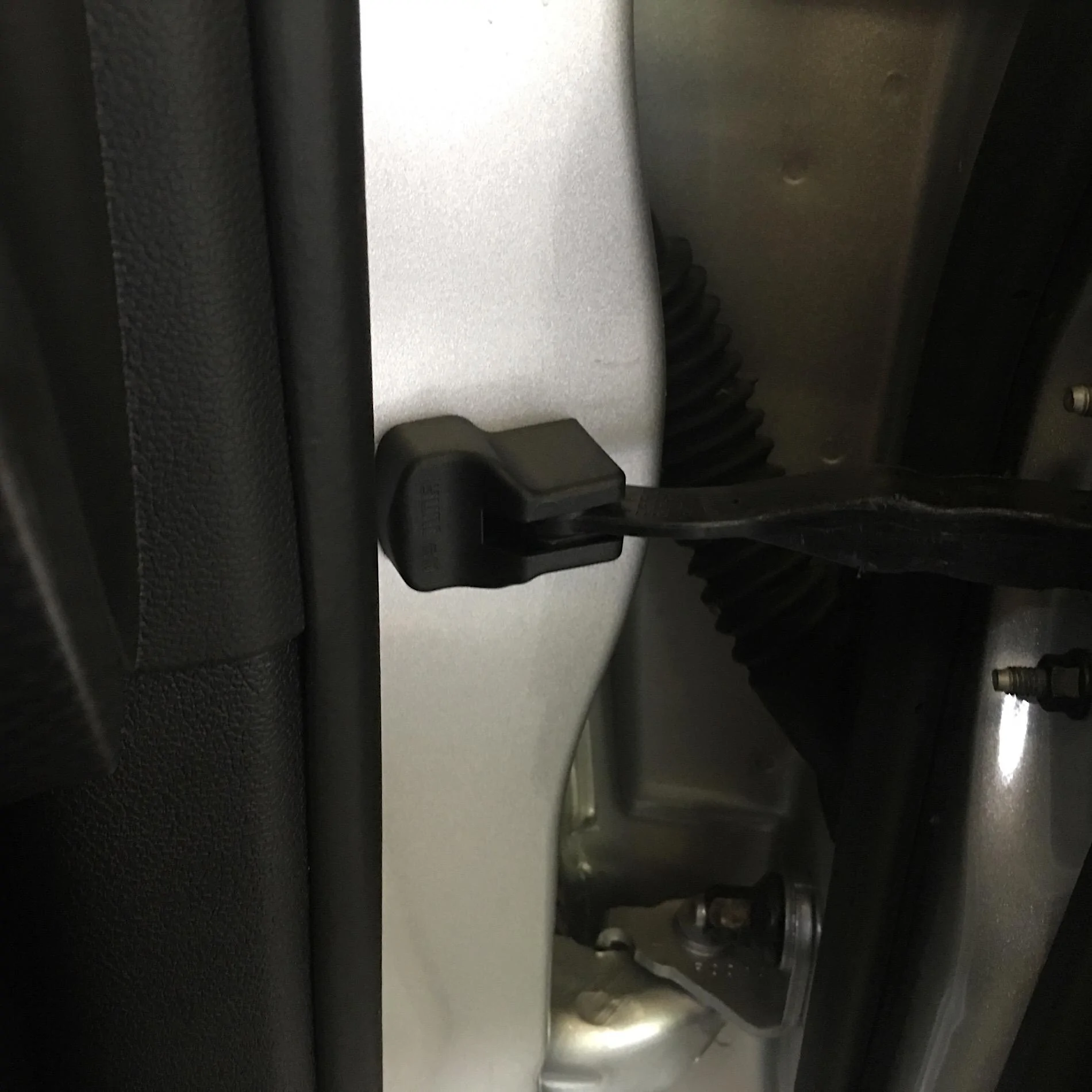

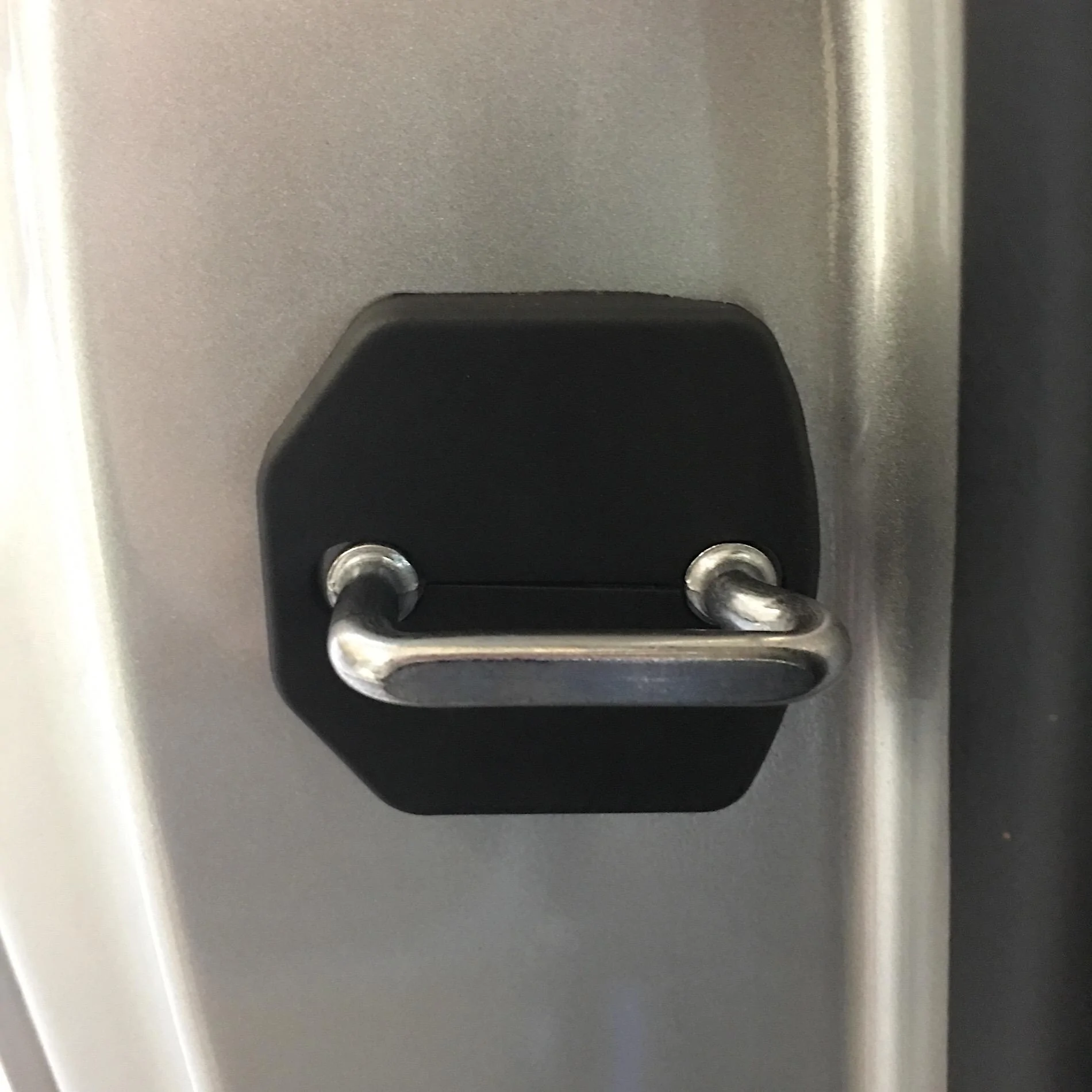

    The truly inexpensive mods under $5 B9569DE1-86CE-4169-9572-8C5CCF56E1F1.jpeg 99E2F352-B959-4D24-9A4D-0D46C51CBA23.jpeg

  7. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

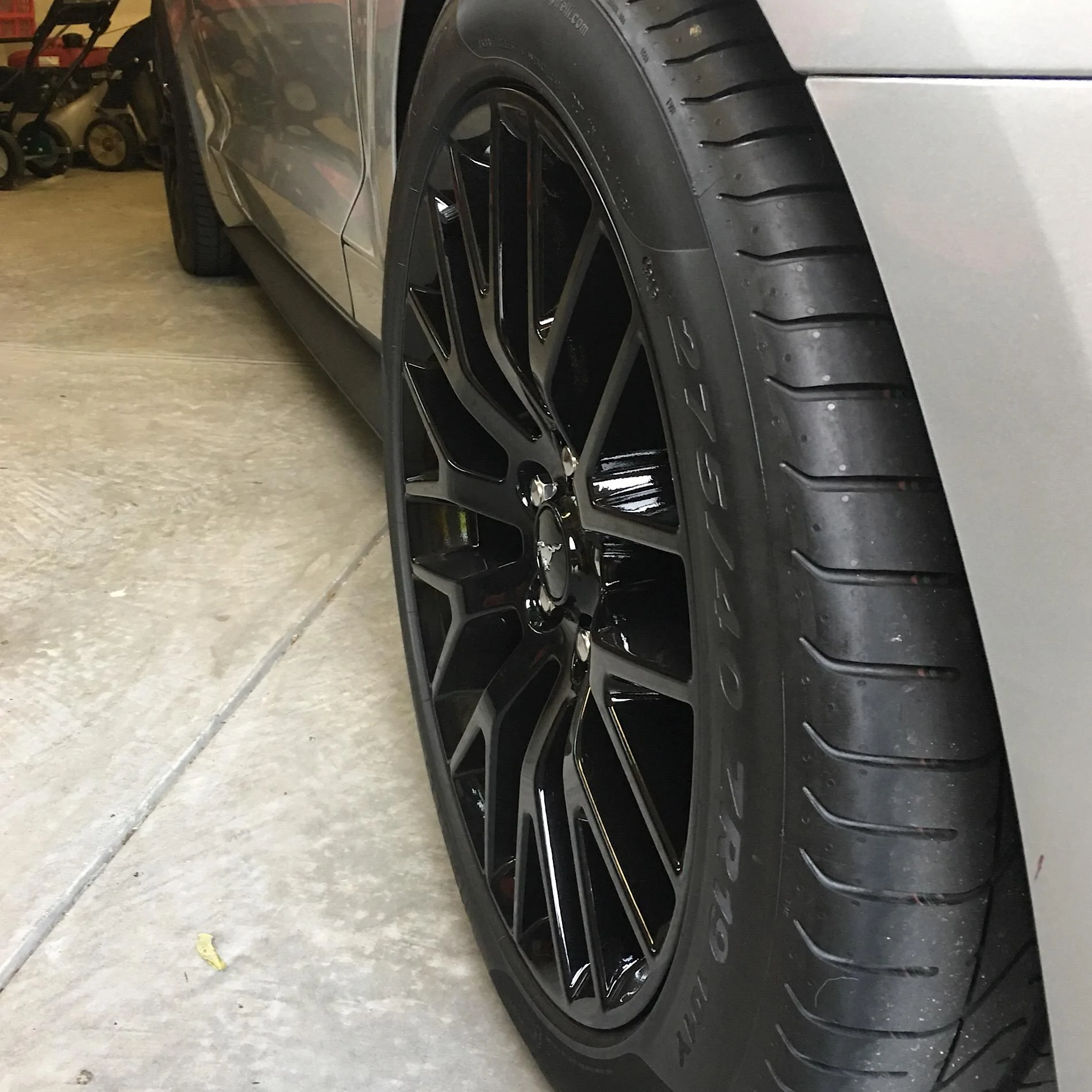

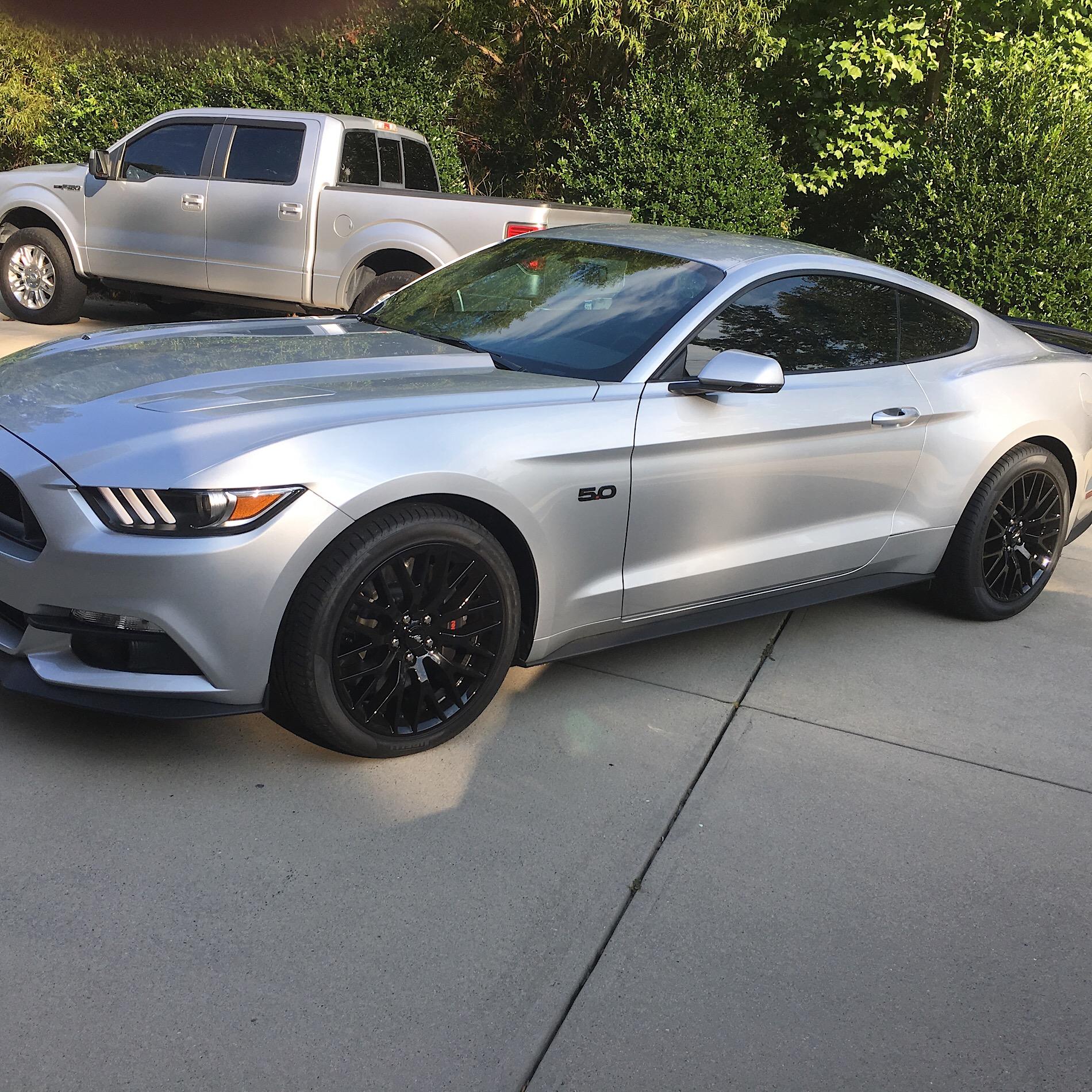

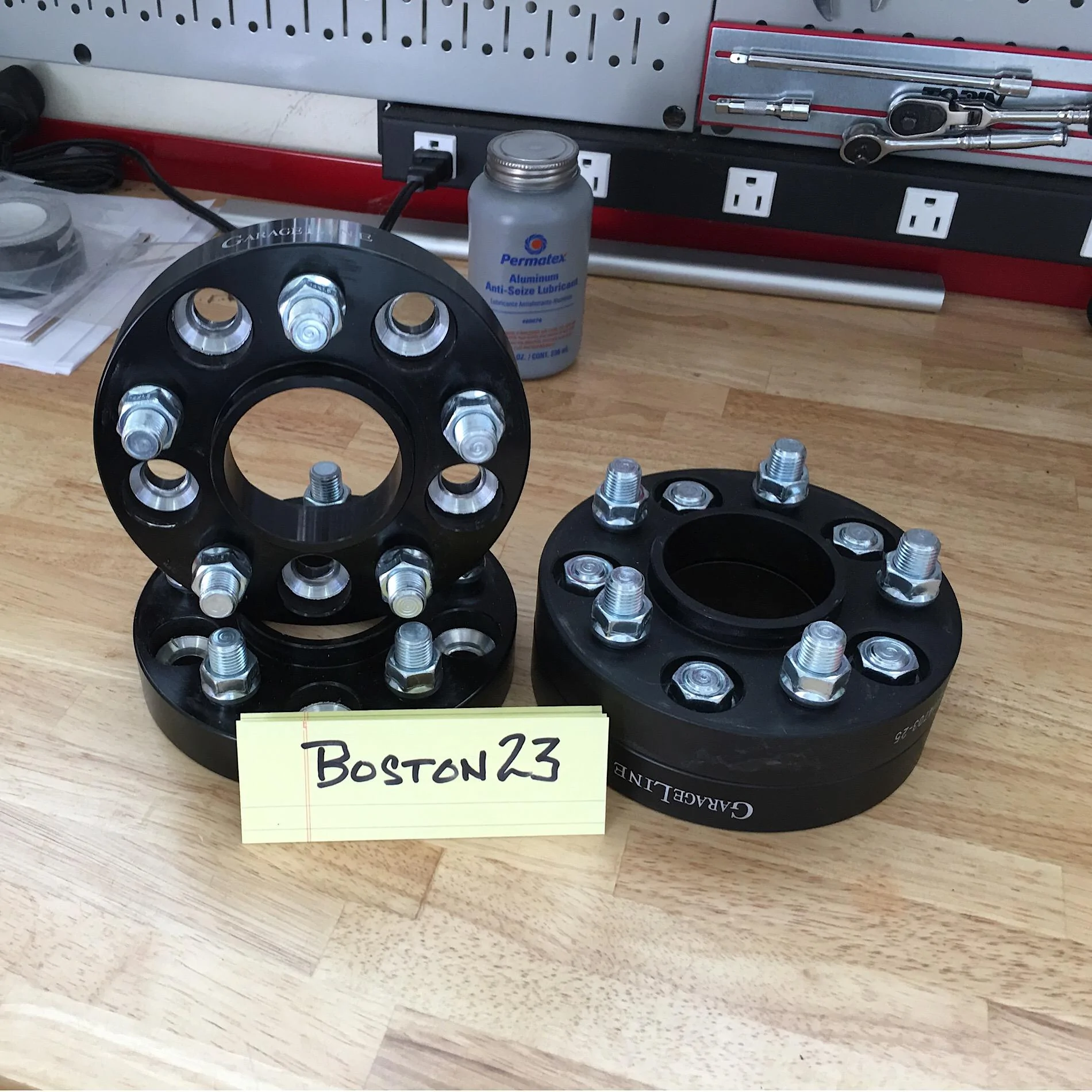

    I ran the Garageline 25mm wheel spacers for about 5 months before I bought new wheels. There was a lot of discussion about there being tire poke on the rear with the 25 mm but I think the fitment was fine. 7531F3D1-C8CE-471D-B7C7-767EB1FFFBA2.jpeg B68971B3-CE09-4BE9-919D-29B84A3713F7.jpeg DFF29355-49D1-468D-9F5A-590882B573D2.jpeg

    Martinnfb likes this.
  8. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

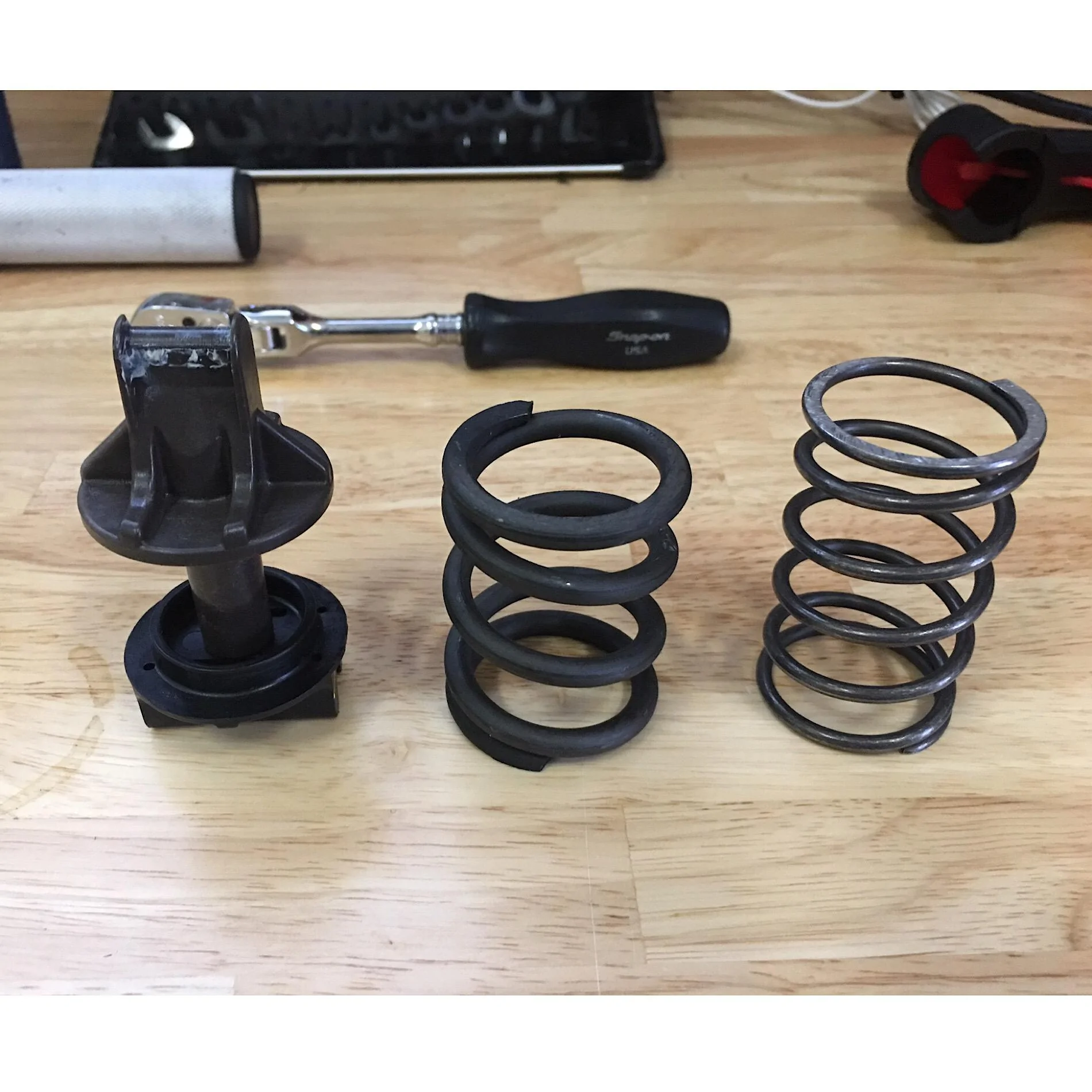

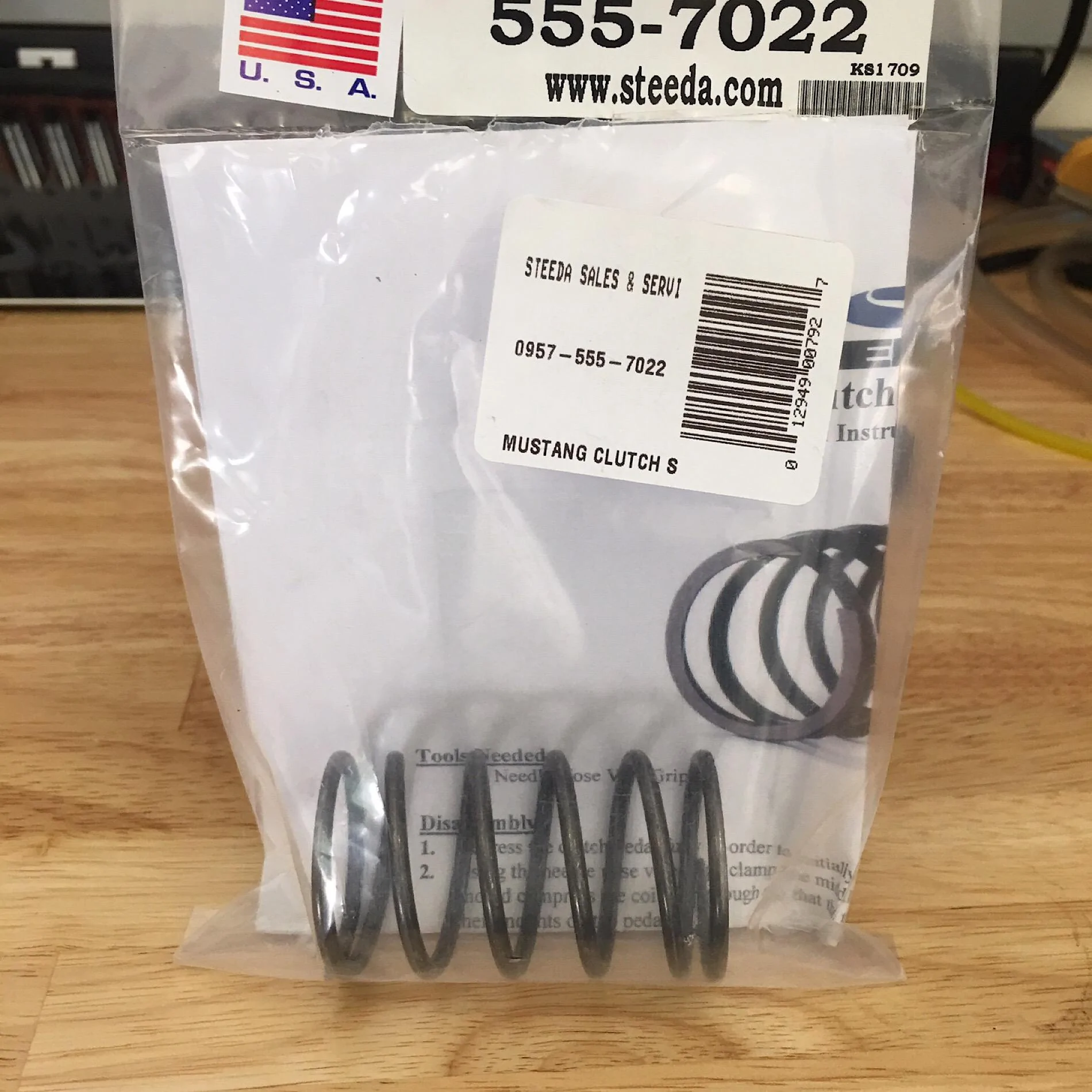

    The Steeda clutch spring might have been the easiest and quickest mod. 4125F8BF-4A99-41DC-ADB0-8A659447BD4B.jpeg 4CFA29C0-2D66-4BC3-B73F-B86D4D9AE4BB.jpeg

    Martinnfb likes this.
  9. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0
    #9 Boston23, Dec 26, 2017
    Last edited: Jan 2, 2018

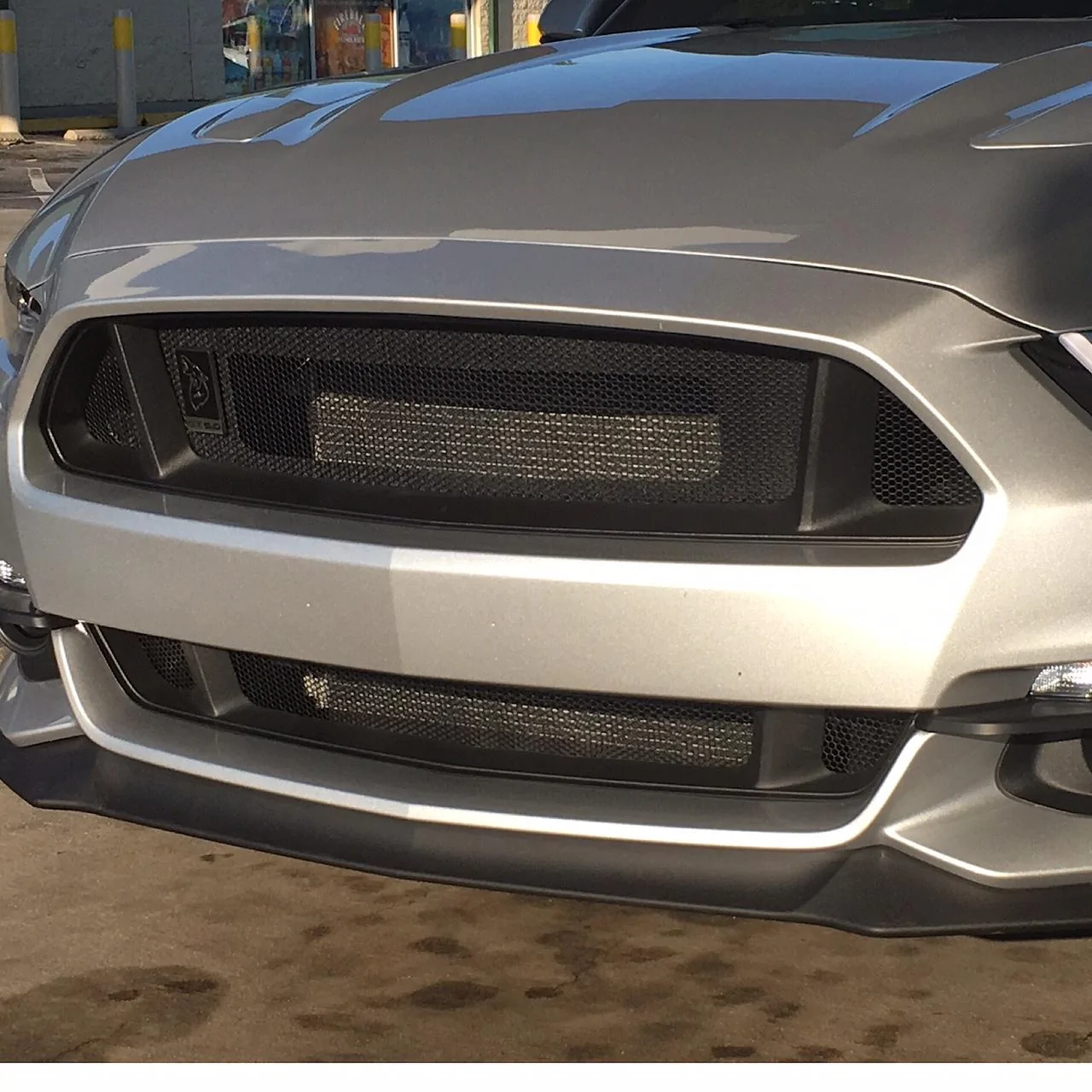

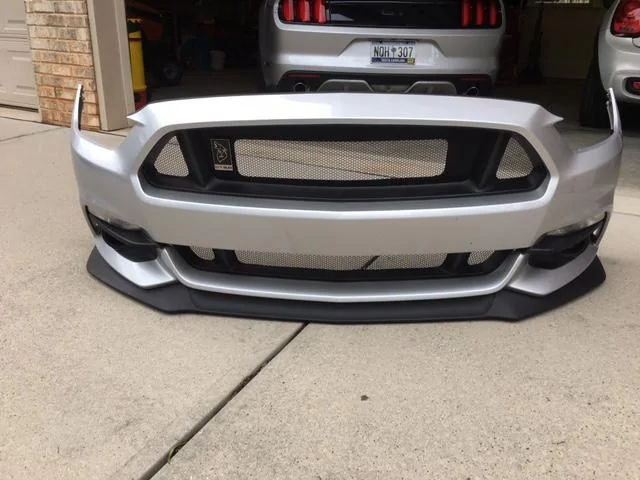

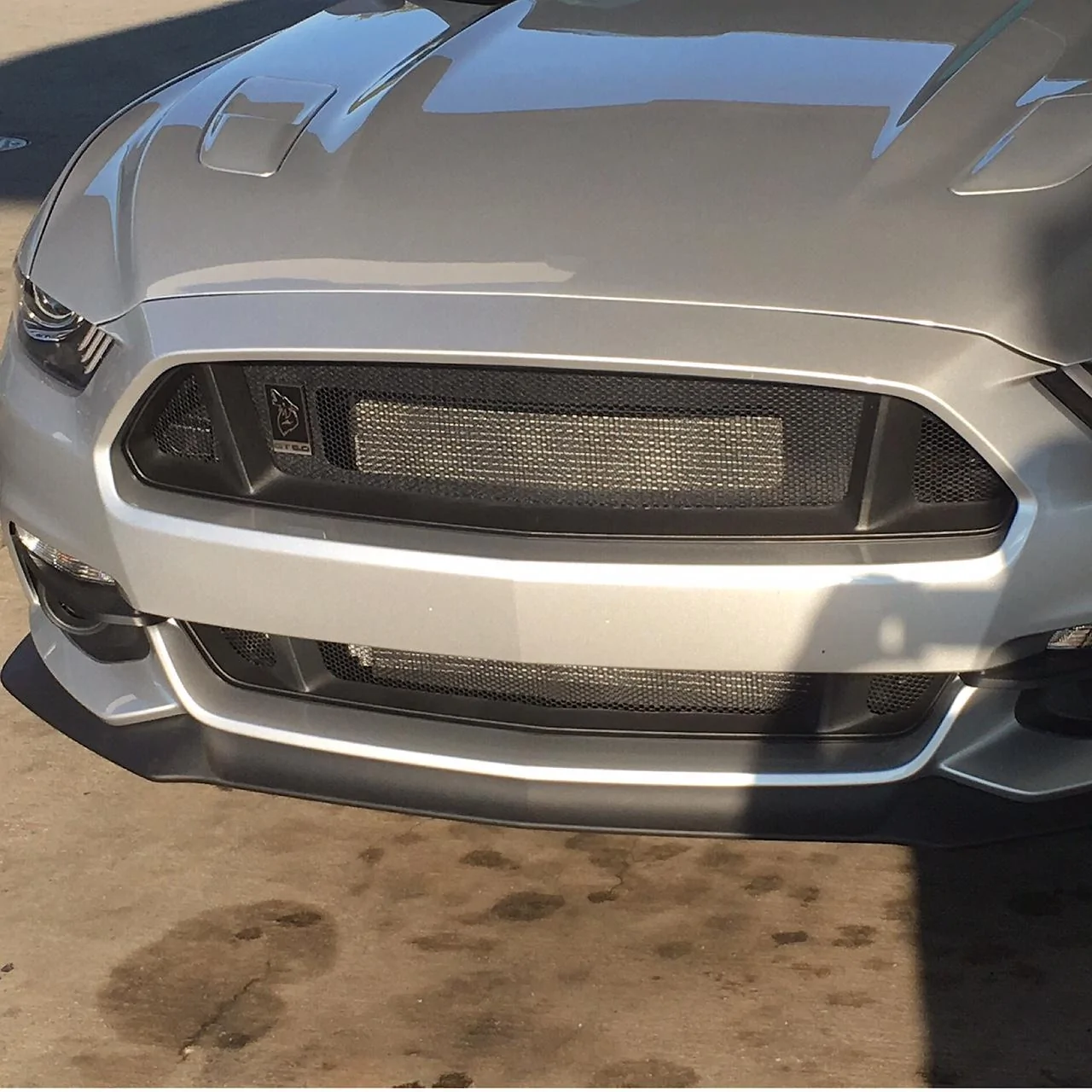

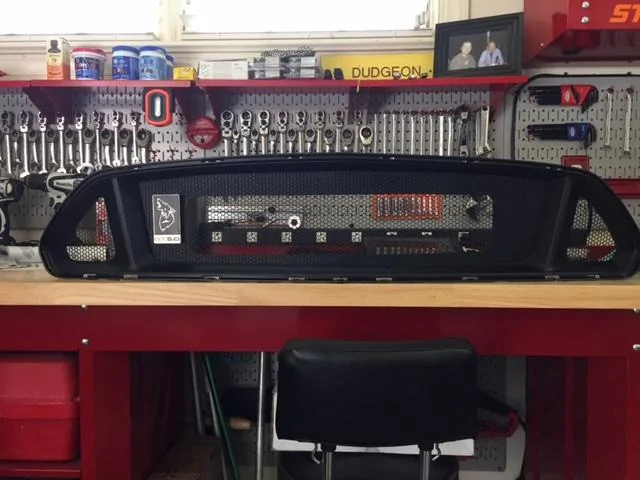

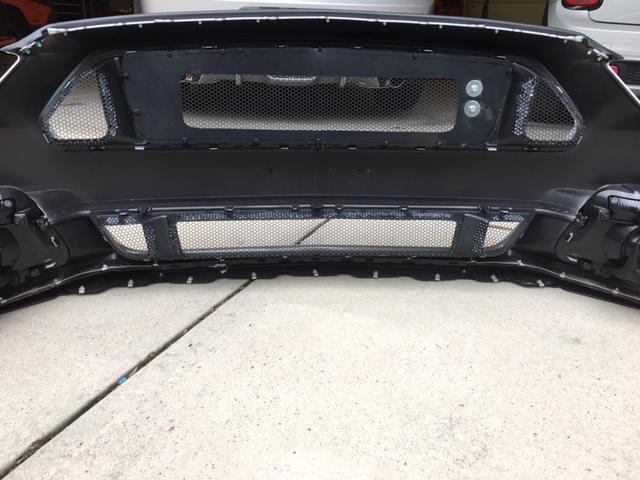

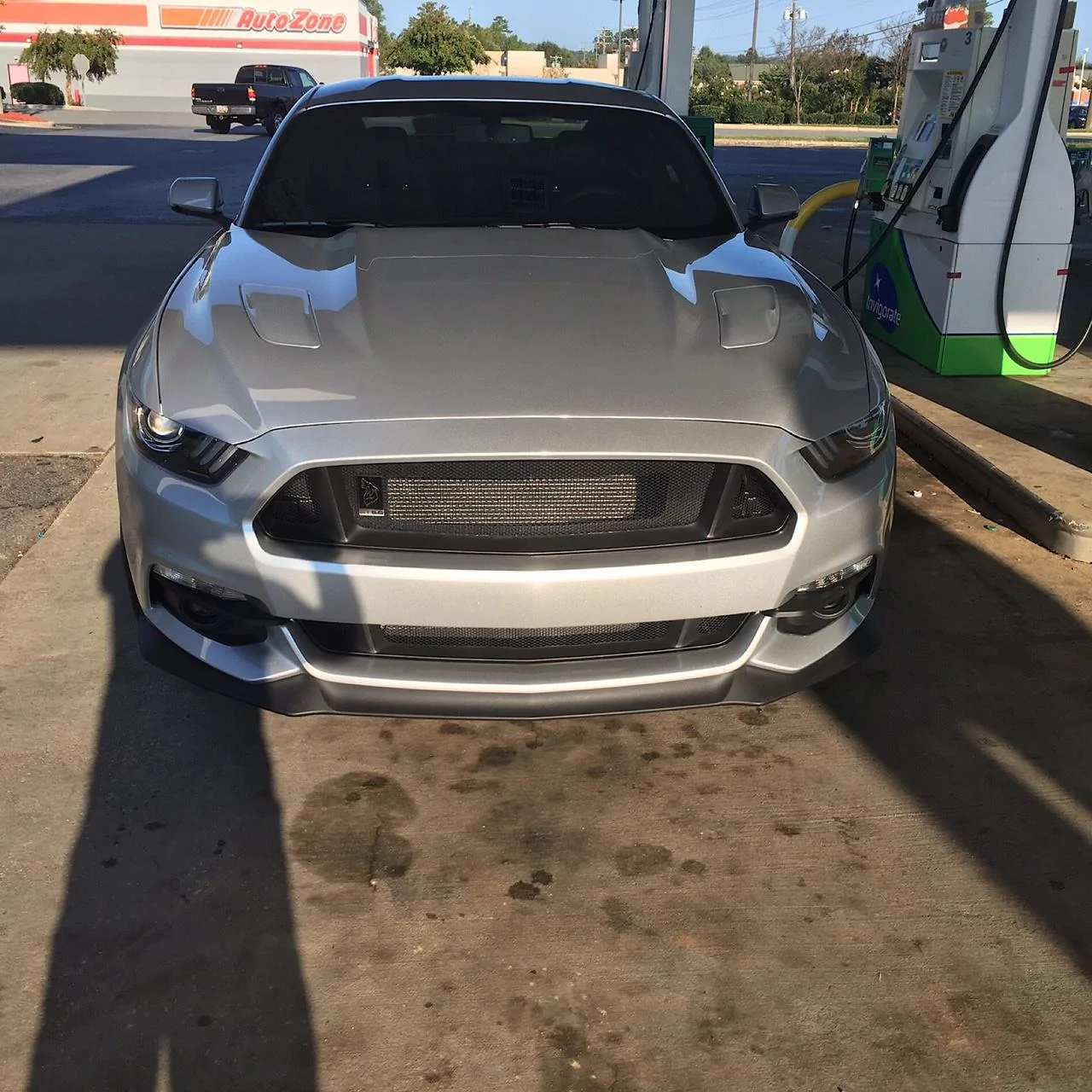

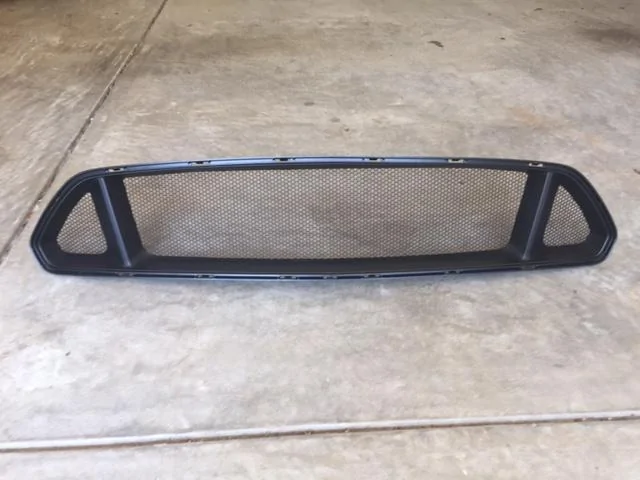

    The front grill delete mod took a little while to complete. I just purchased a new upper grill to gut so I didn’t have my front bumper off the car the entire time. The new mesh came from Custom Car Grills.

    I received a couple of PM's on this project so I'll try to detail as much of it as possible as that's what is great about this forum. I'd like to thank member Nathan Brummer as I got the idea for this project from his previous grill project. I'll start with the parts list first and where I got them but you may be able to source them elsewhere cheaper.

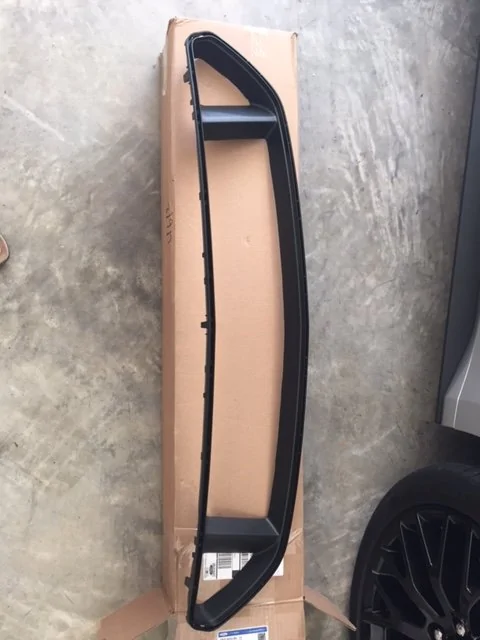

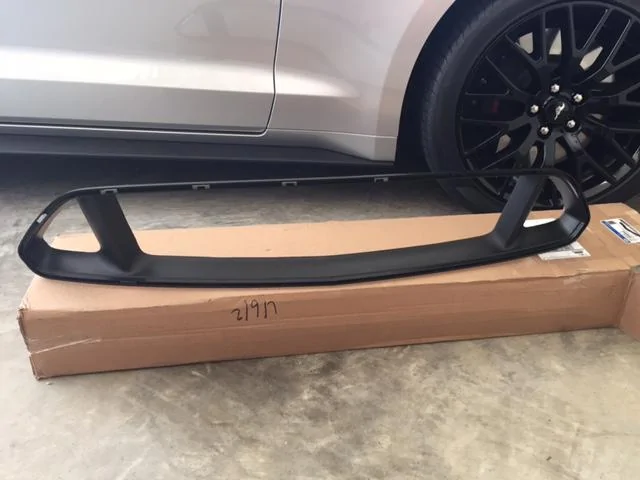

    Grill - FR3Z-8200-BA $42.00. This is the OEM Upper Grill for the 2015-2017 Mustang GT. You can obviously use the grills currently on the car but given the time involved and it was my first time doing this, I decided to get a spare grill. I gutted the grill using a cutting wheel on a Dremel tool. you can visit customcargrills.com and watch the video and follow the same procedure. After the rough cut, you'll need a file and sandpaper to clean it up.

    Grill Mesh - Honeycomb Mesh Grill Kit for 2015-2017 Ford Mustang GT $84.99. I bought the mesh kit from customcargrills.com. The mesh kit comes with 6 pieces of preformed mesh that will cover the 6 openings in the grills after you gut them (3 upper, 3 lower). While they are preformed, you'll need to massage them to get the sides flat against your grill for bonding. Take your time and work the metal. I used diagonal cutters to snip some of the corners to get a better fit. Once you're happy with the fit, zip tie the pieces in place and use Amazing Goop Automotive adhesive to bond the mesh to the grill. I went through two and a half tubes to complete the upper and lower grill. The adhesive truly is amazing and takes about 24 hours to cure. The adhesive will settle into the honeycomb so you'll likely make a couple of applications. This adhesive will run if you apply to much to quickly so take your time and you'll have less to clean up. Be careful not to let it run on the face of the grill. Once everything is cured, you can cut the zip ties.

    Adhesive - Amazing Goop Automotive Adhesive $6.90 on Amazon. I bought three tubes and used two and a half. Some local hardware stores may have this but it was cheaper and easier to get it from Amazon. customcargrills.com also sells this and you can add it to your cart when you buy the mesh.

    ABS Sheet - 1/16" x 24" x 48" (haircell textured) $11.30 on Amazon. I purchased from vendor Sibe Automation. It was very well packed in heavy cardboard and shipped flat. I only used have the sheet but I couldn't find a smaller piece. (if someone is in the Lake Wylie or Charlotte area that wants the remaining half, you can have it). Getting the rough cut on the ABS is a bit tricky as the grill itself is contoured so take your time getting it right. I actually did my measuring and sizing before I glued the mesh on. You need to leave an overhang of ABS material to tie the ABS to the grill. When it got it centered, I left an overhang of a .5" all the way around. I used a small drill bit to create an opening just large enough to slide a zip tie through. Drill your holes side by side to create that opening. Keep in mind where your tangs are on the grill and drill your holes in between the tangs on the ABS. I used 1" cable tie mounting tabs that have self adhesive to anchor the cable ties. Once you have the location for the mounting tabs, use the Amazing Goop adhesive around the outside of the mount to make sure it's not coming off. The large opening in the ABS sheet measured 22" x 3.75". This opening has more material up top than on the bottom. Google pictures of the GT350 grill to give yourself some ideas. On the upper grill, I used 14 cable ties, 5 top, 5 bottom and 2 on each side.

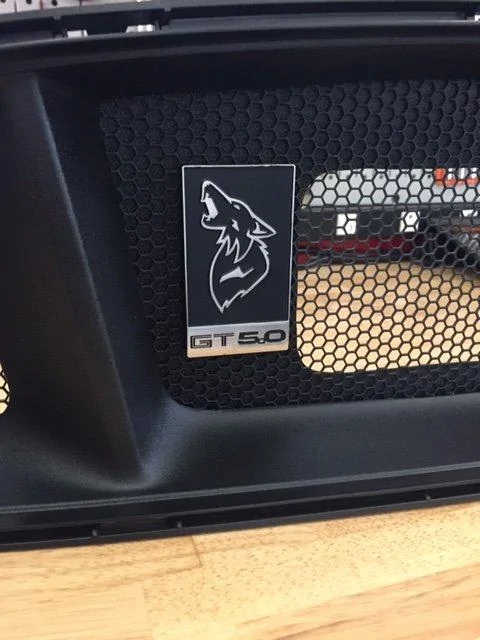

    Howler Badge - $43.00 which included the grill mount from MF_Autodesigns. I went with the black and chrome but there are multiple colors to choose from. I got this on Ebay before they became a vendor on this site. I will say this badge is a heavy hunk of metal. As I don't have any chrome on the car, I dulled down the finish but spraying it with clear matte. There are two mounting bolts that go through the base, the mesh and the ABS plastic sheet. I tried to follow the GT350 design but where you place it is up to you. Adding the base mount adds rigidity to the finished grill. The base is smaller than the badge so you will have some ability to get your badge centered up the way you want it. The badge affixes with 3M double sided tape that comes on the back of the badge.

    I used the lower grill from the car as it's $80 new. Not sure why Ford has it priced almost double what the upper is. I think that about covers it but happy to answer any questions. I know Nathan used a different style mesh as did Labradog but this gives you an idea. Pulling the bumper and removing the grills is another story in itself but there are plenty of youtube videos online available to walk you through that process. Happy modding! F9CE2EC4-6F2F-44F7-8330-229FCD1B0BAE.jpeg 58BA7819-152D-4F16-AEE6-94A1E9117AB0.jpeg A4ECE80E-35B0-451D-B51F-7AB9C459793D.jpeg 0F15E6C9-F18E-4A61-9E38-8B5B2D8E9A8D.jpeg 80CE8381-AD26-4B6D-8218-F6E442DF7E37.jpeg AD3C0A27-4AEC-4B00-99CD-58E55C6C38CC.jpeg ED87B4E1-3B78-4389-878E-3738C19D28E7.jpeg 38F7D7E0-5FB3-46EB-BD0F-2C7D549C6038.jpeg B84AED25-6B00-4E01-A597-54C7ACBA8CDA.jpeg 25D89576-6214-4CB9-8144-AB2D37E256C5.jpeg

    Martinnfb likes this.
  10. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

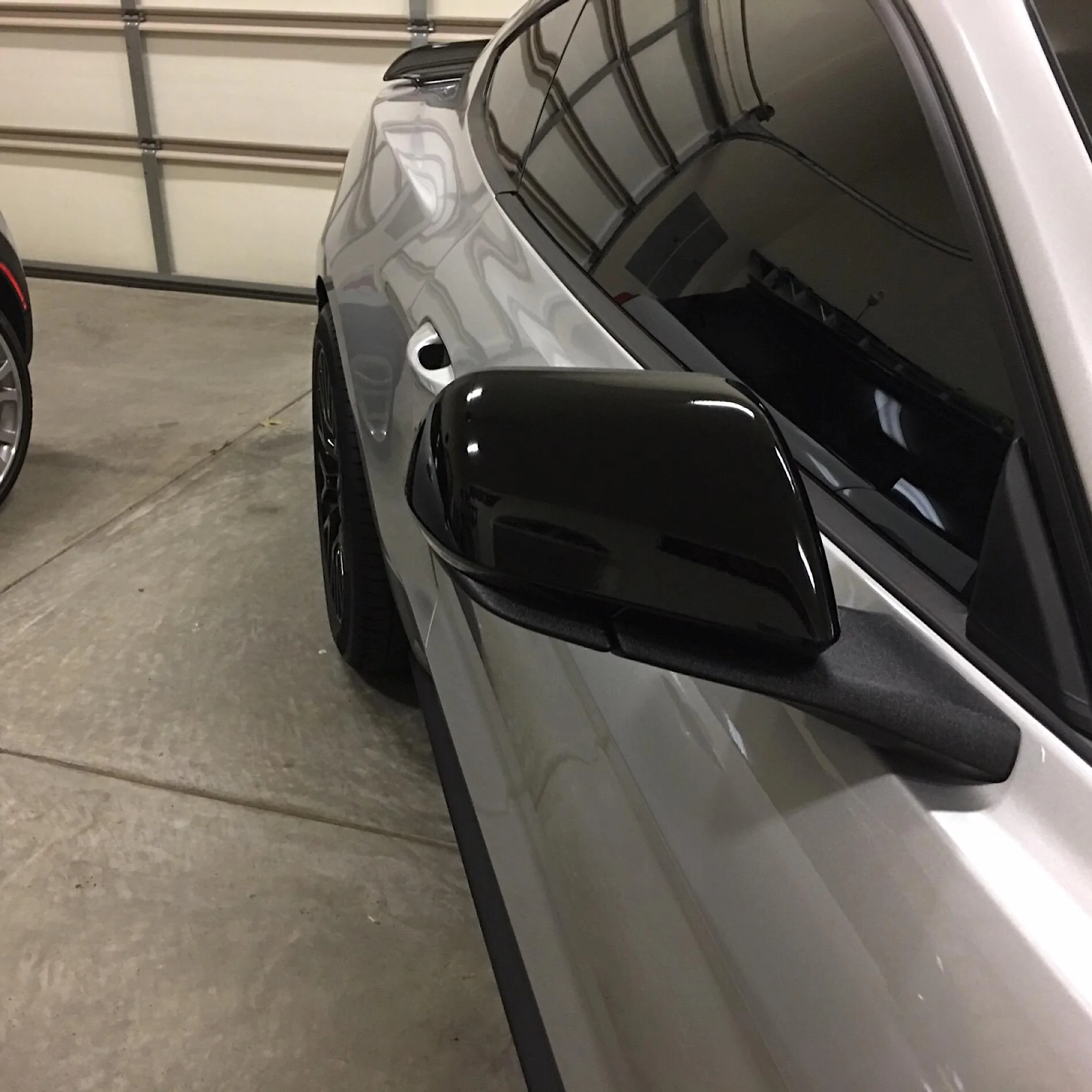

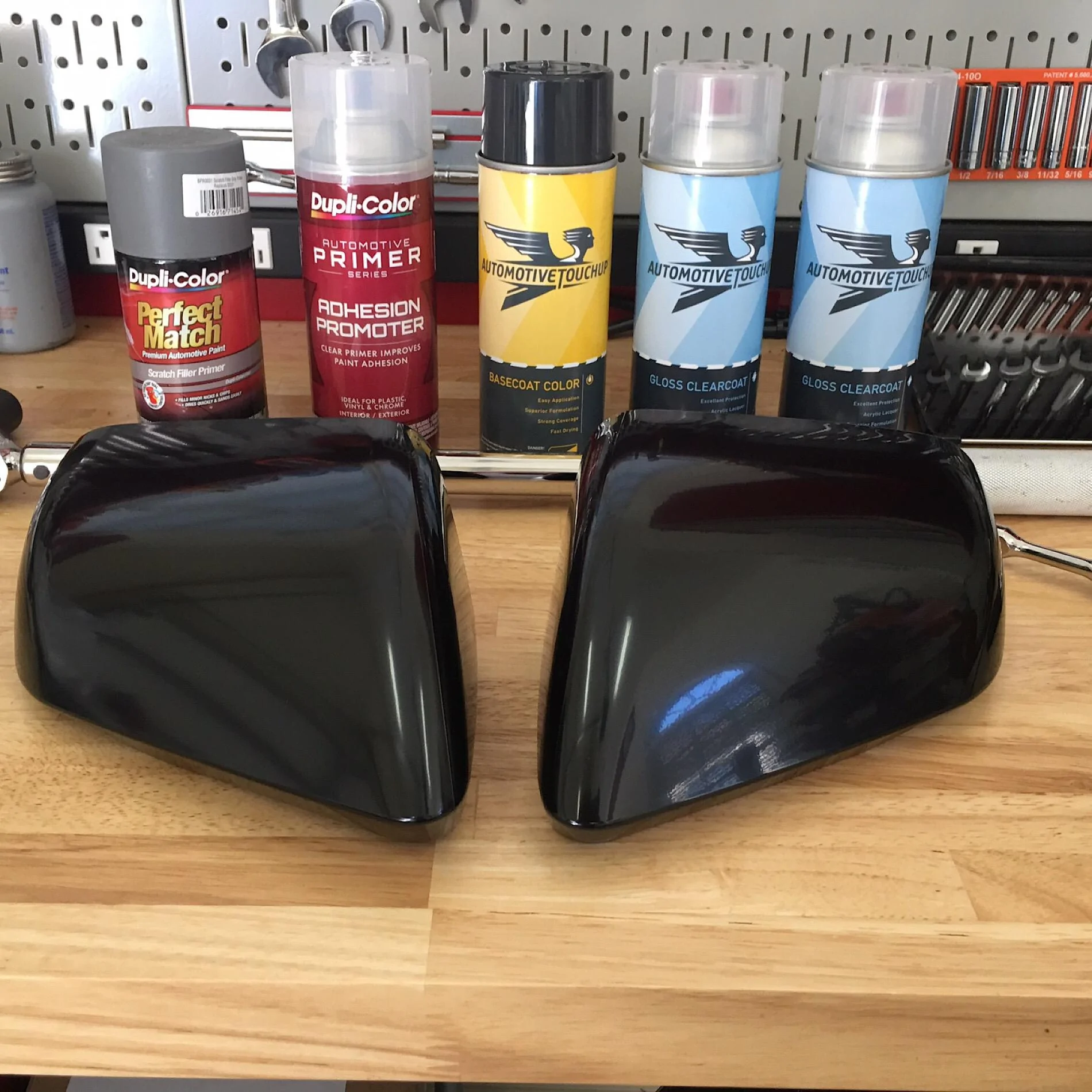

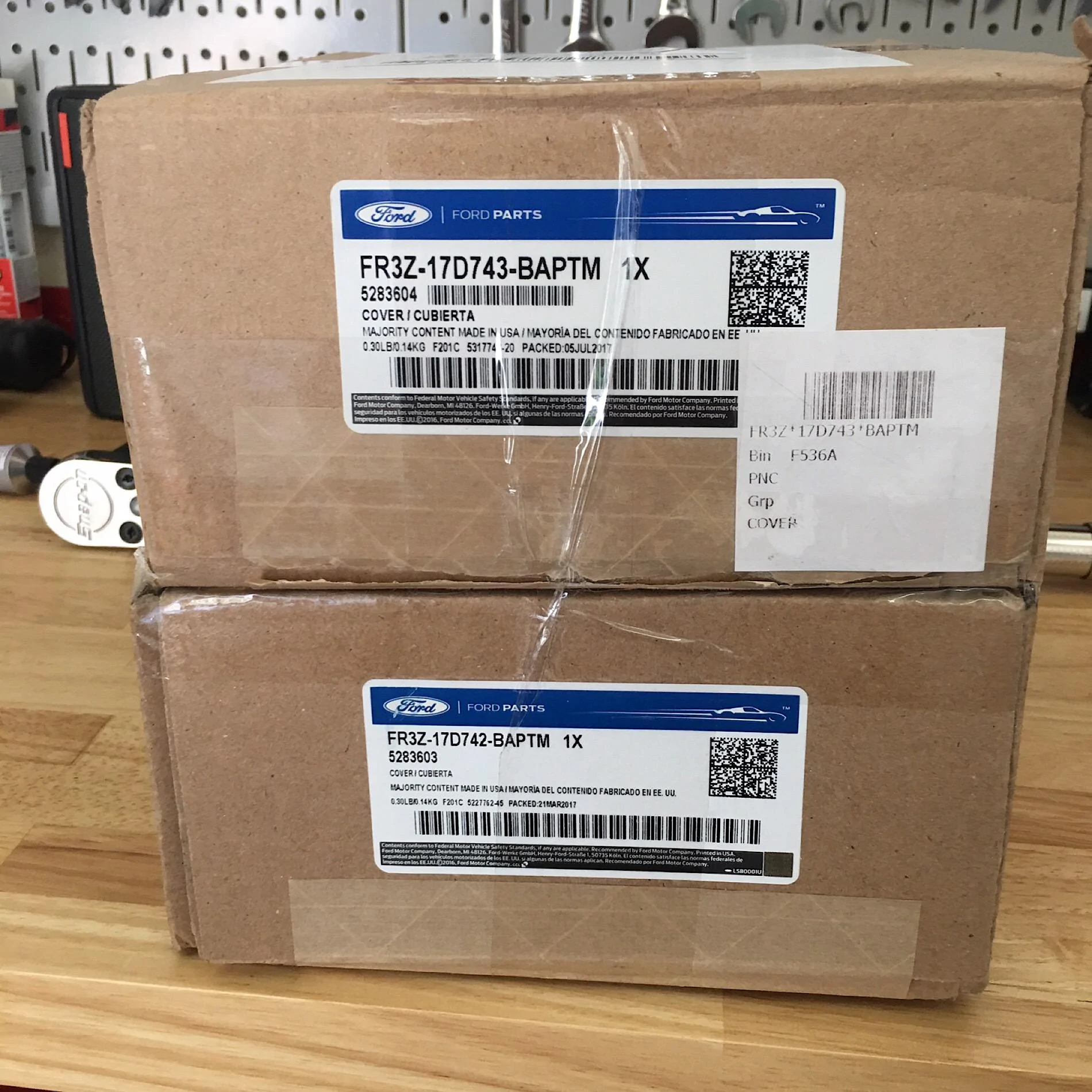

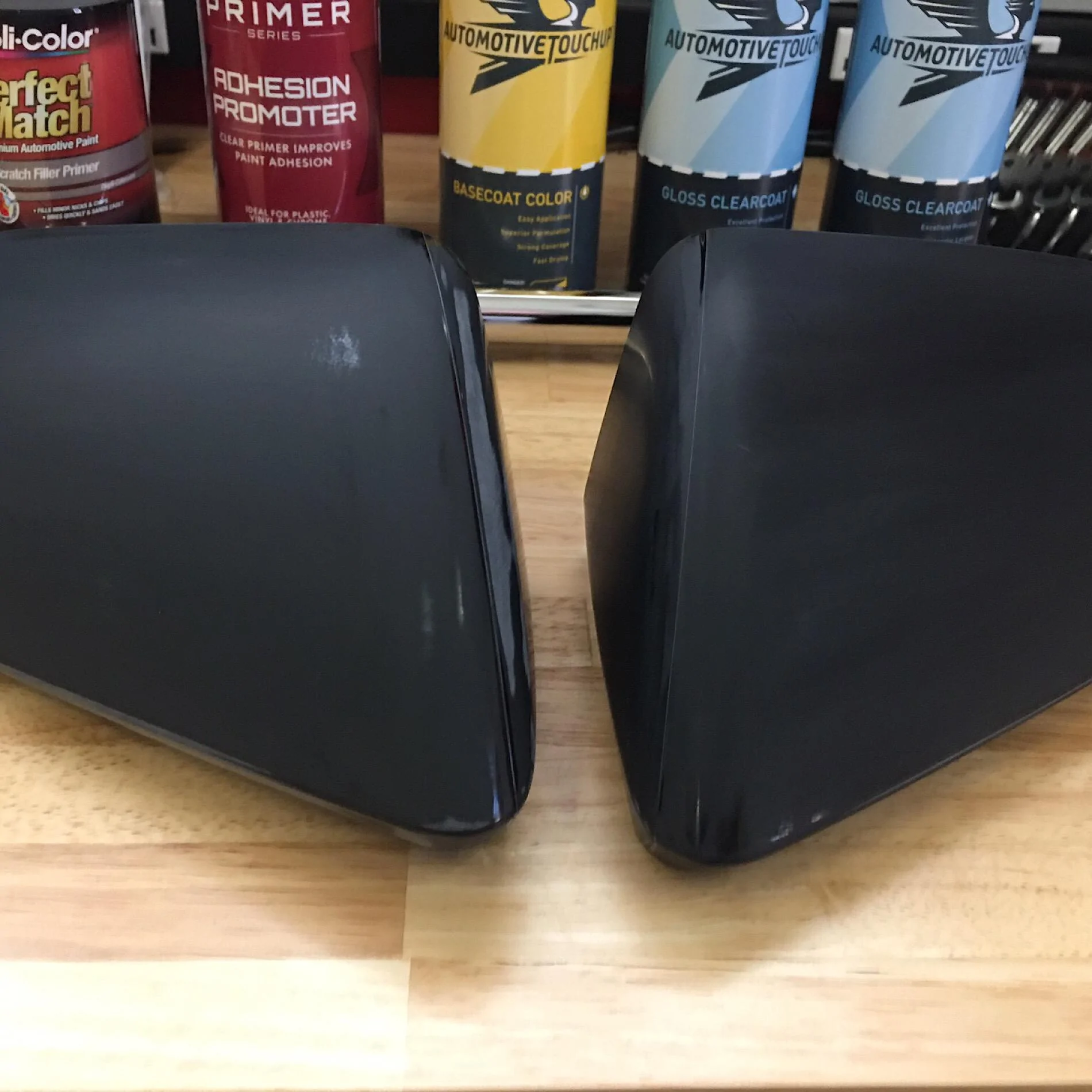

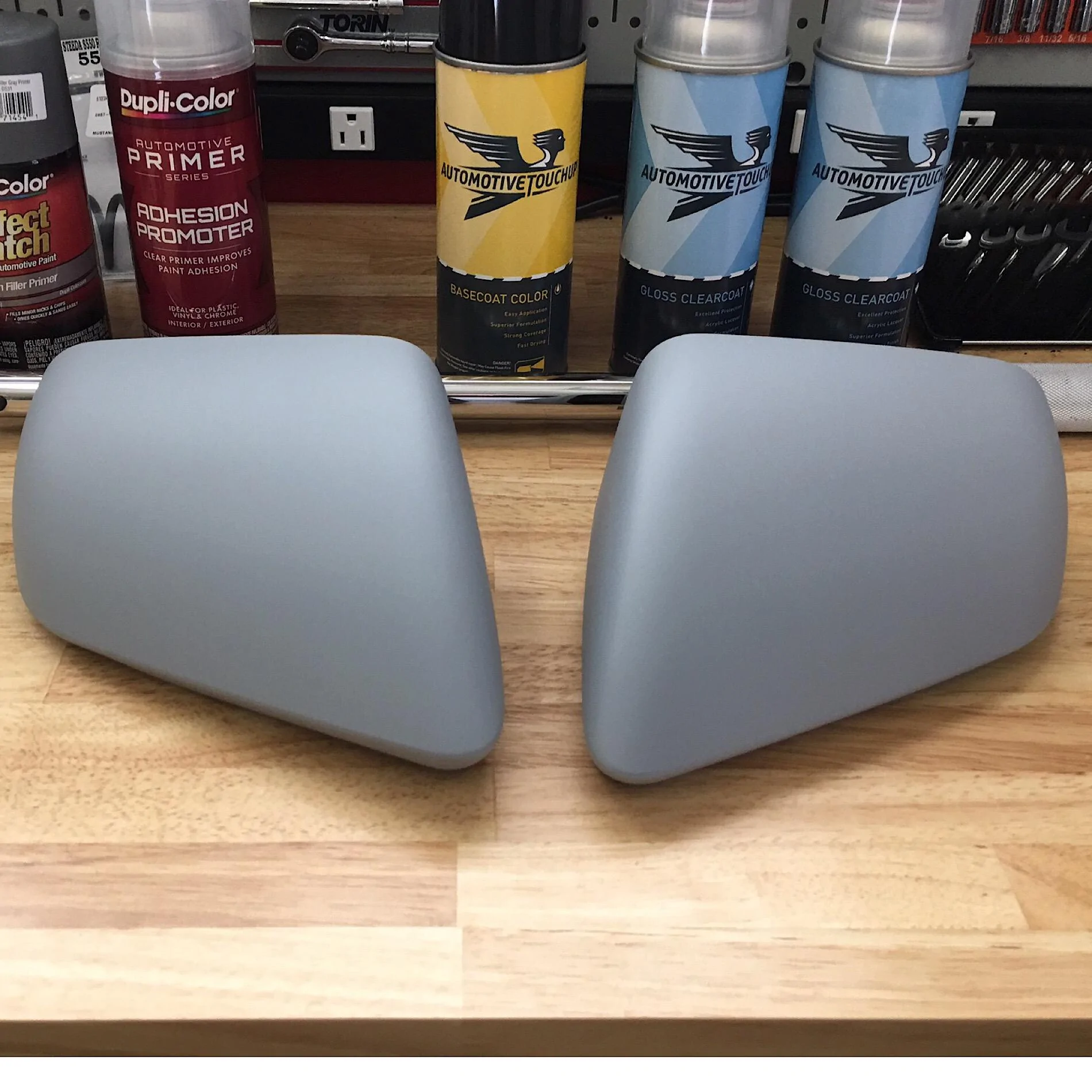

    I had looked for mirror covers but decided to go the paint route. 39068758-00CA-40C4-8B32-56730F02F19A.jpeg C9476A26-05F7-4C13-B1AC-A9CFBA7267B0.jpeg 7BC11F02-76AC-414B-ABB2-A31AA2CA8FCF.jpeg FC738247-4F0F-4D4F-8A72-628BC9E1AD82.jpeg 35AF9787-A6A4-49E3-90A3-77A02B665D2D.jpeg

    Martinnfb and bjstang like this.
  11. Nomadic

    Nomadic King of Europe

    Vehicle(s):
    Current: '19 Mustang GT base 6spd, ruby red, '14 VW Jetta SE 1.8
    Joined:
    Oct 11, 2015
    Location:
    Stay classy San Diego
    Posts:
    1,119
    Likes Received:
    445
    0   0   0

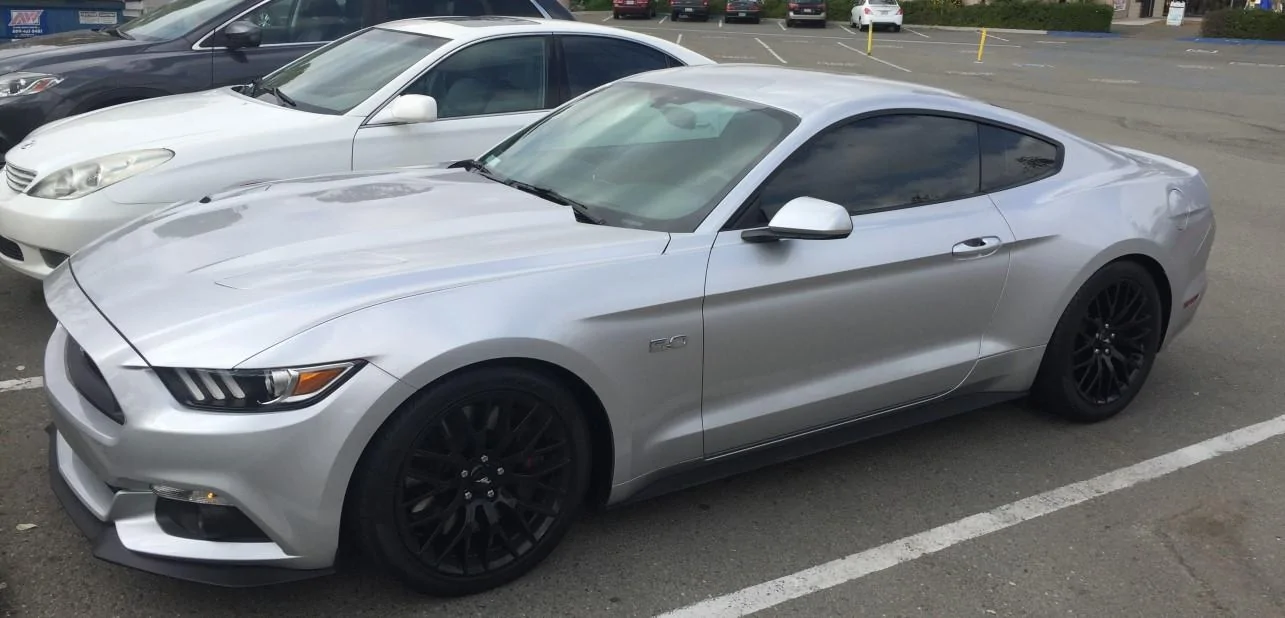

    Nice car. Like the spoiler. I have the same color. :)
    You are mod maniac!
    LOL IMG_1464.jpg

    Boston23 likes this.
  12. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

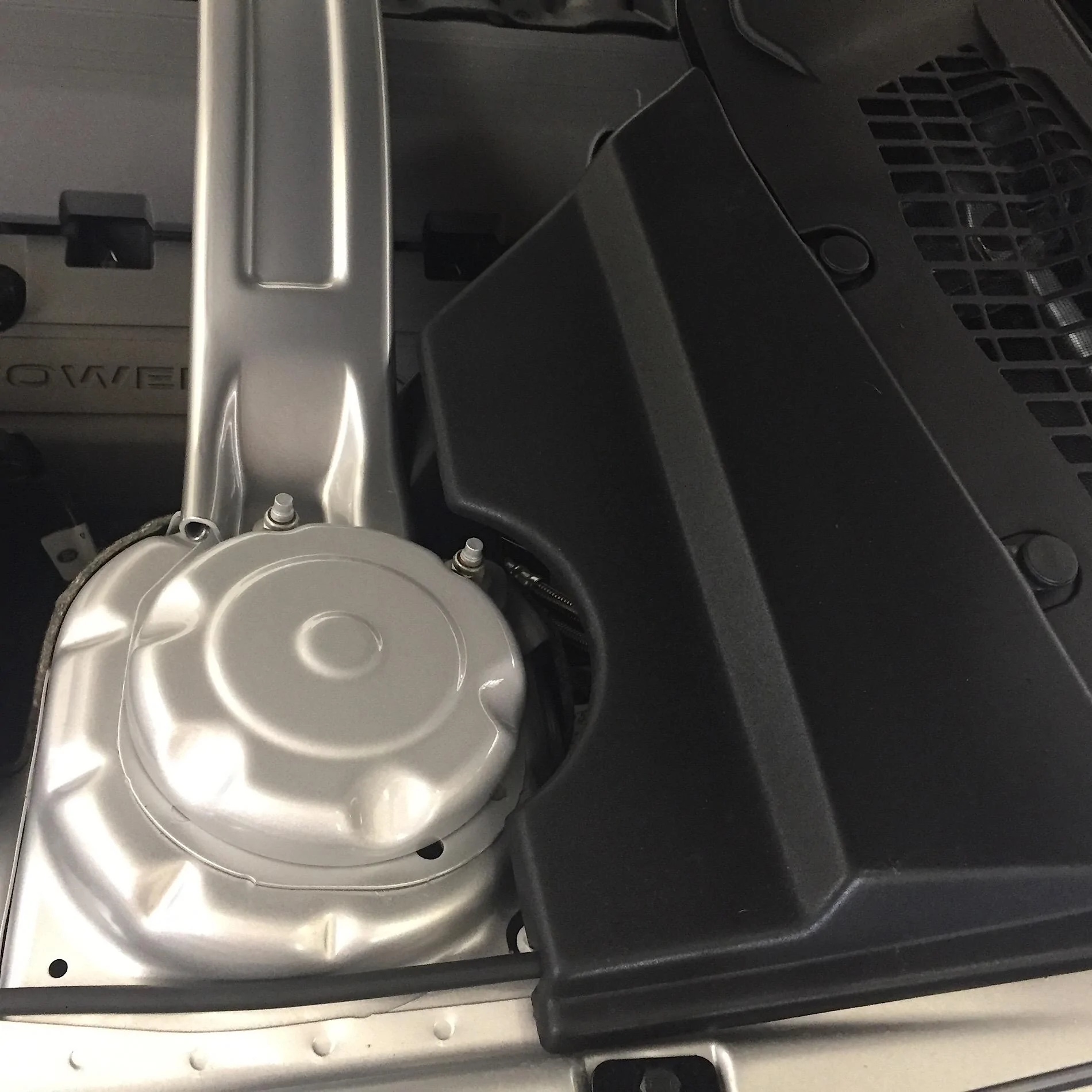

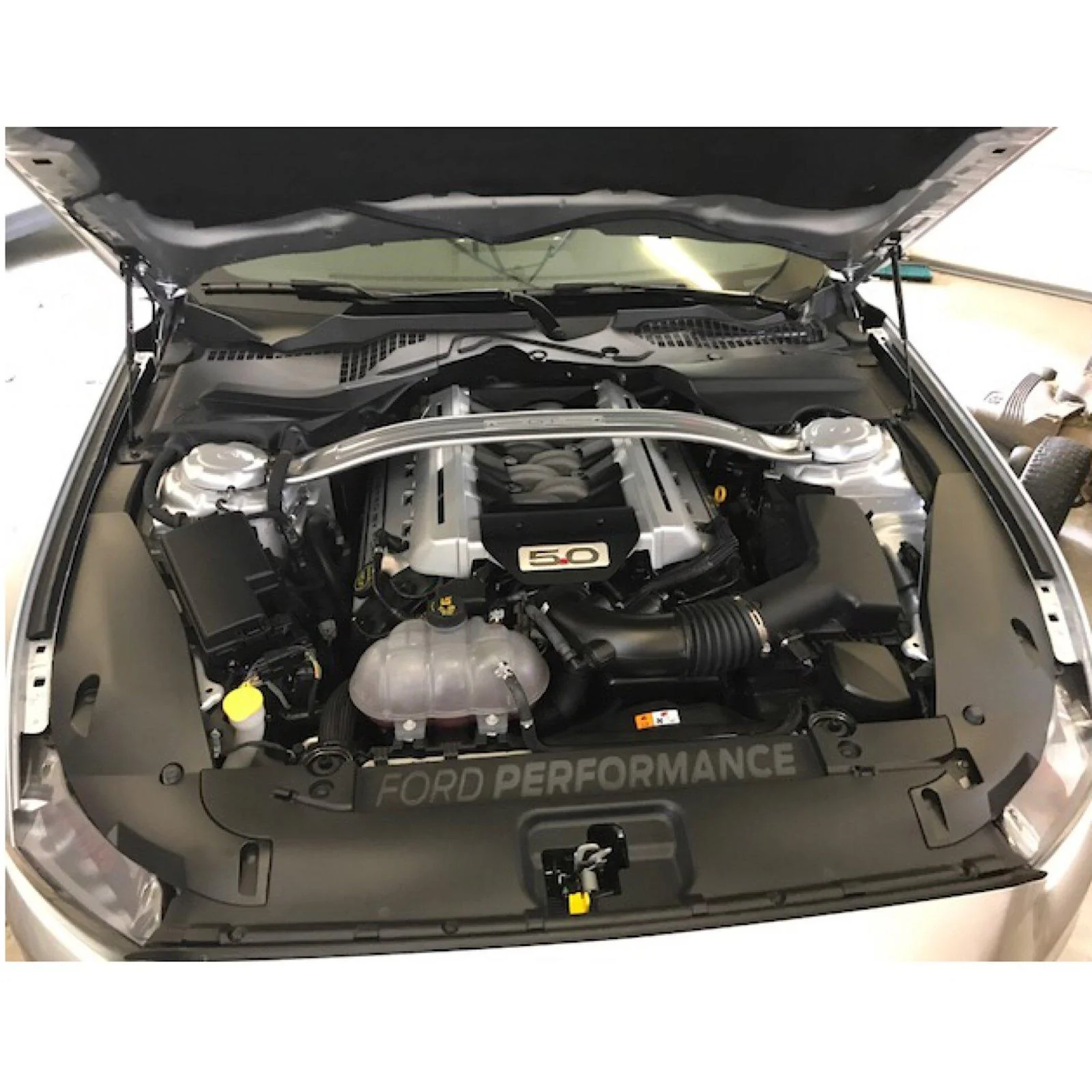

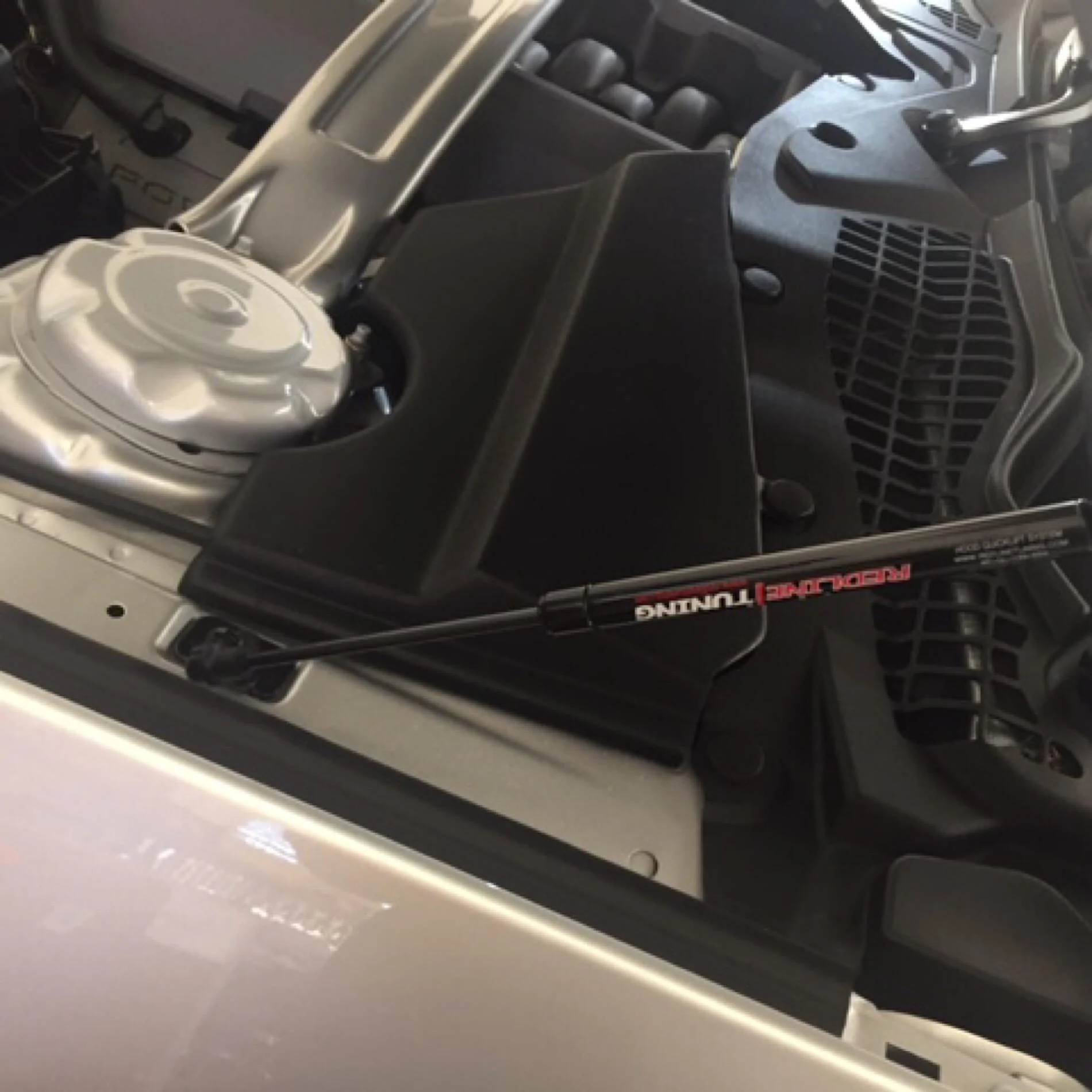

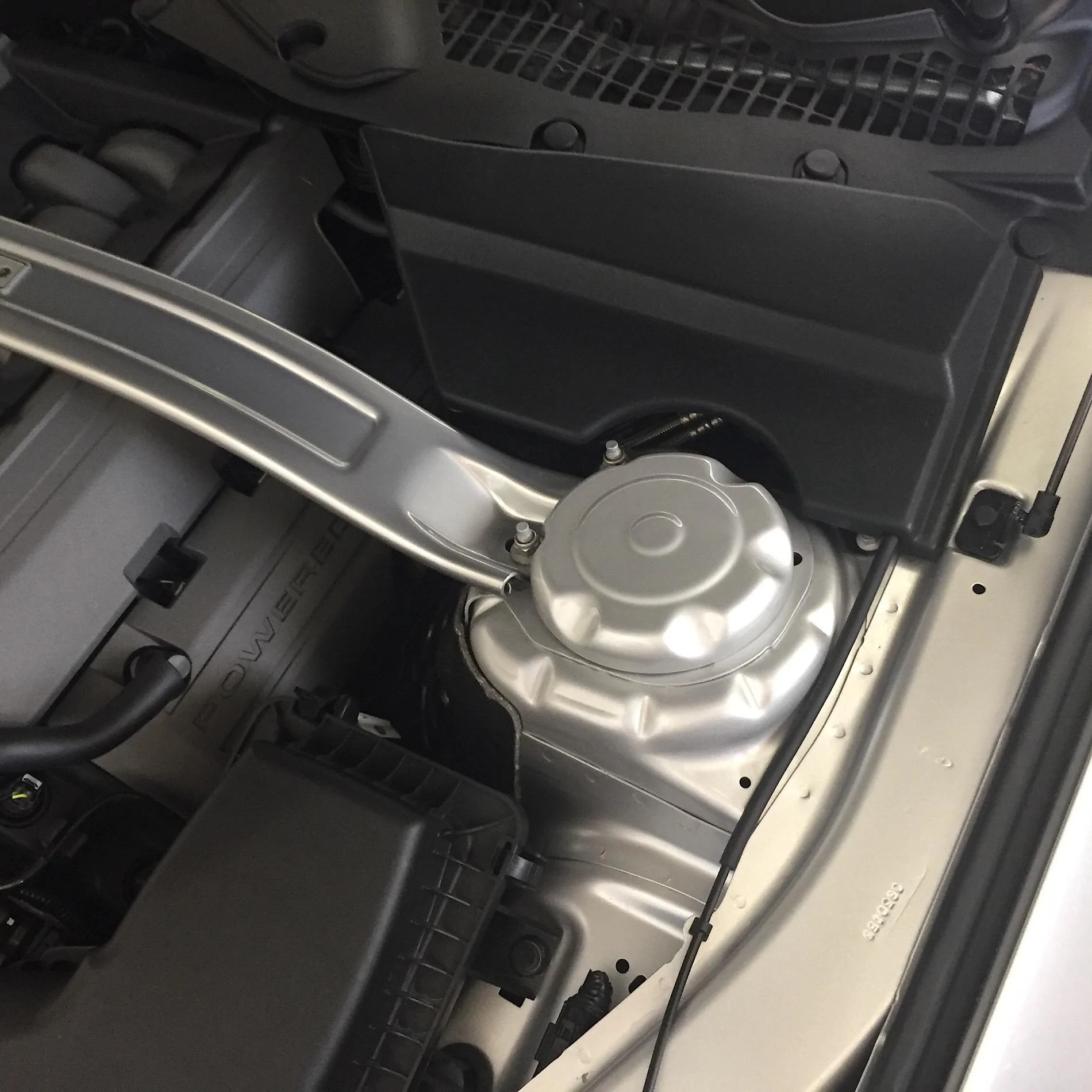

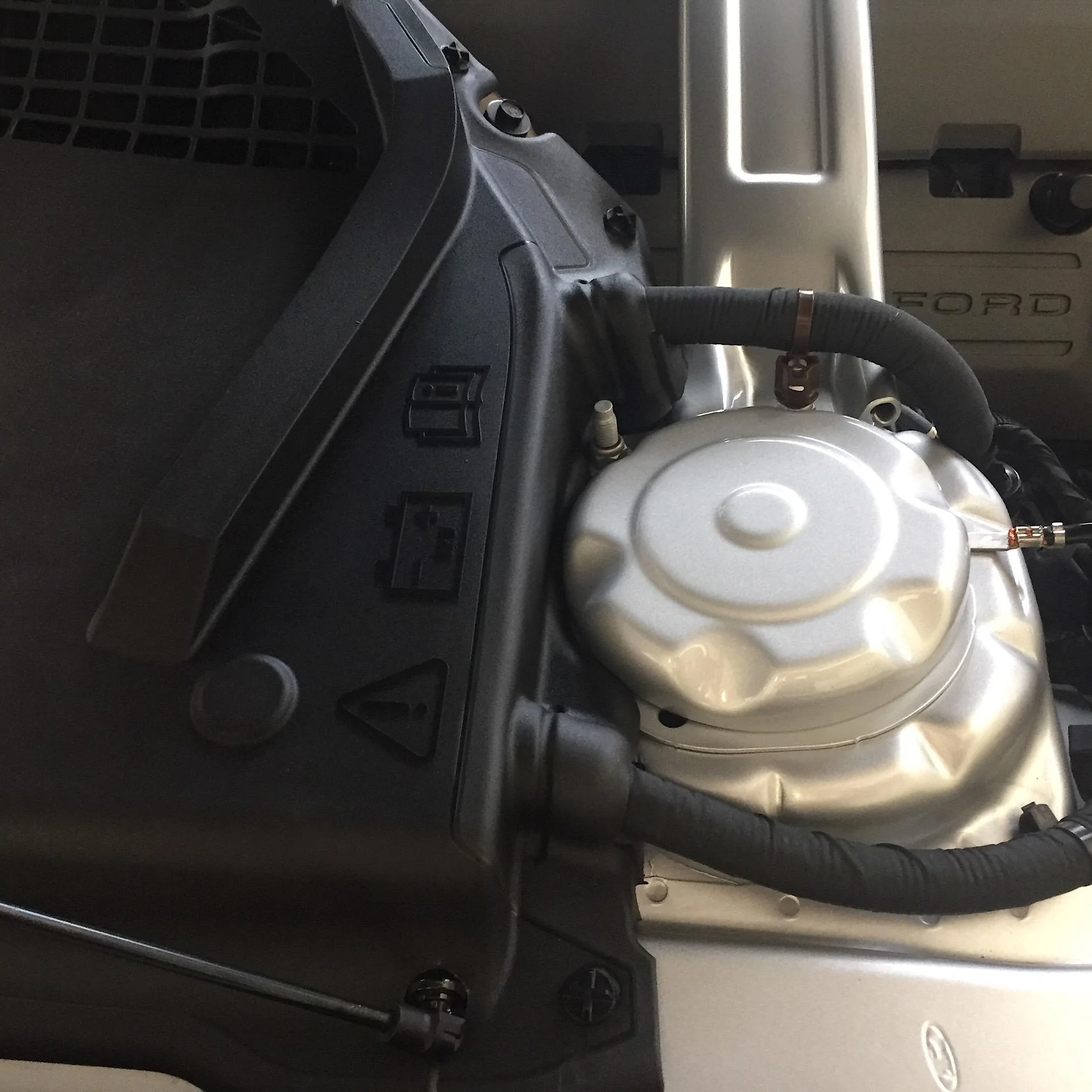

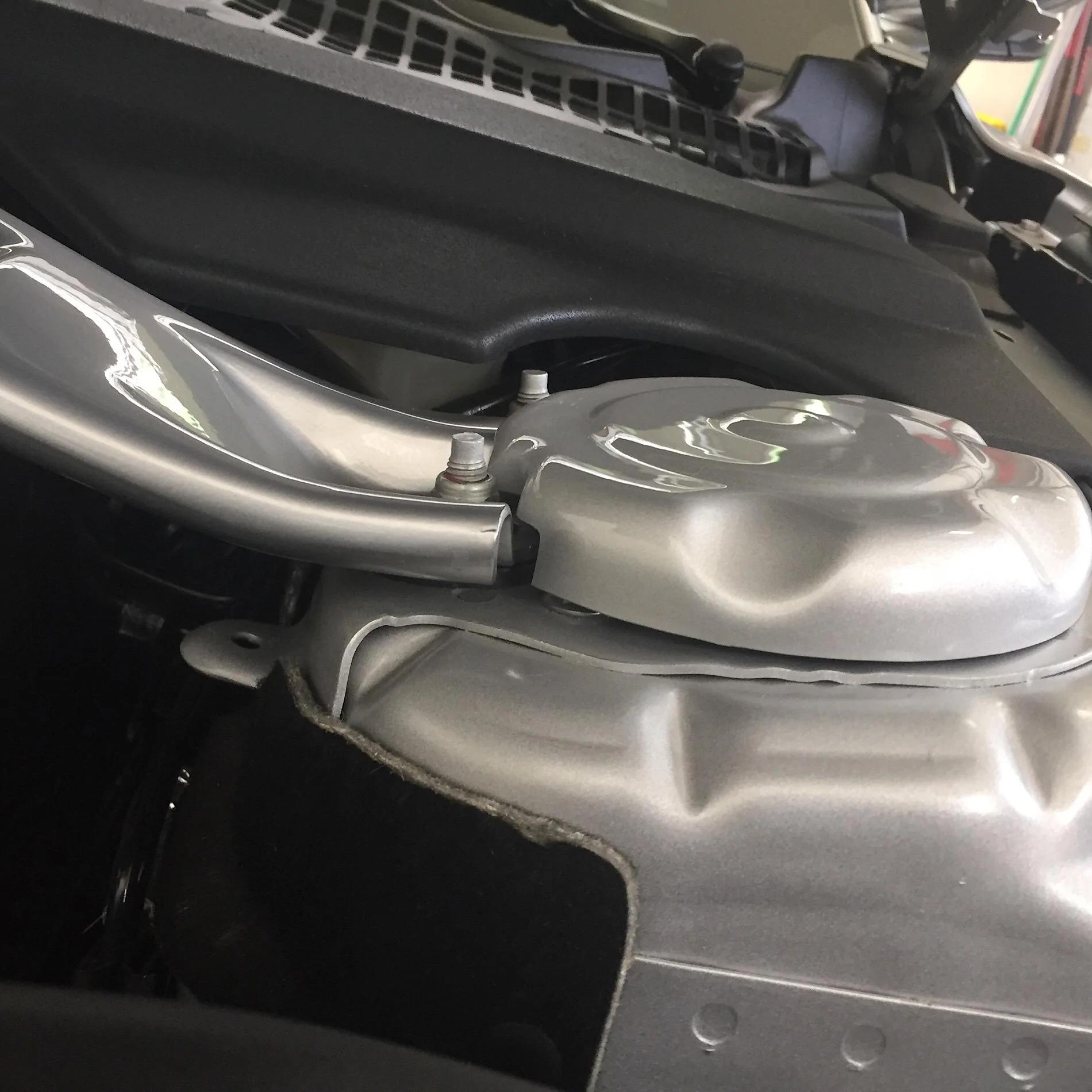

    The Redline Hood Struts should have been my first mod. The JLT master cylinder cover and strut tower covers. The paint match was excellent. 345753CF-D258-4719-89B2-AE0E6730CC6D.jpeg 8FE5AC32-9937-4829-983D-F244E7E1757B.jpeg 4D8EB043-749A-4934-8346-EF08062DB835.jpeg 7FC4A20C-F765-4D01-BA2D-DF57C793B39D.jpeg 36814B23-176C-47DA-B160-32CDAE128311.jpeg 40DD4FC3-A884-42E1-B0D0-7081D7A5FA69.jpeg

    Martinnfb likes this.
  13. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0
    #13 Boston23, Dec 26, 2017
    Last edited: Jan 2, 2018
    At some point, I installed Steeda jacking rails. Don’t they look great? I said the hood struts should have been the first mod, the jacking rails should have happened even before that.

  14. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

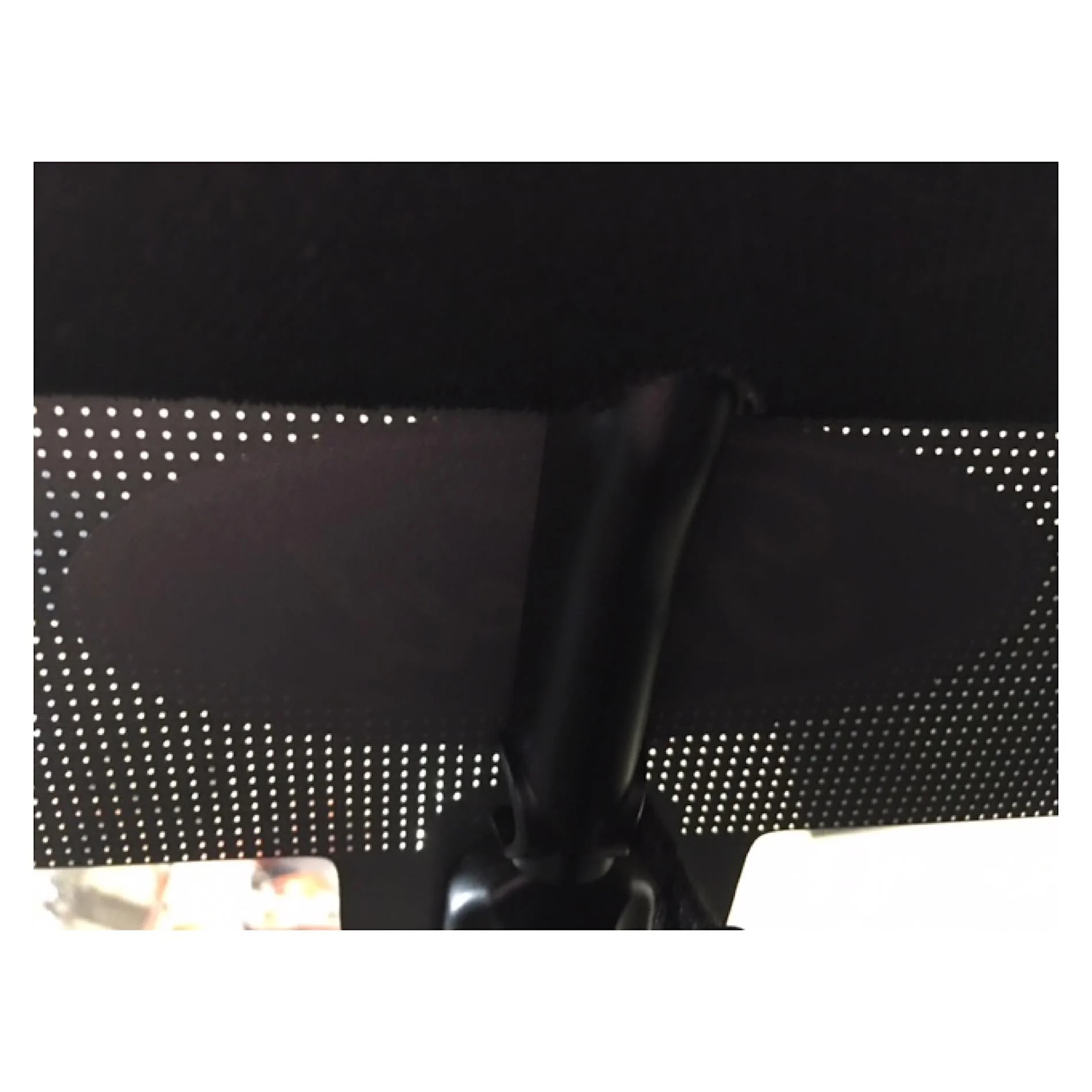

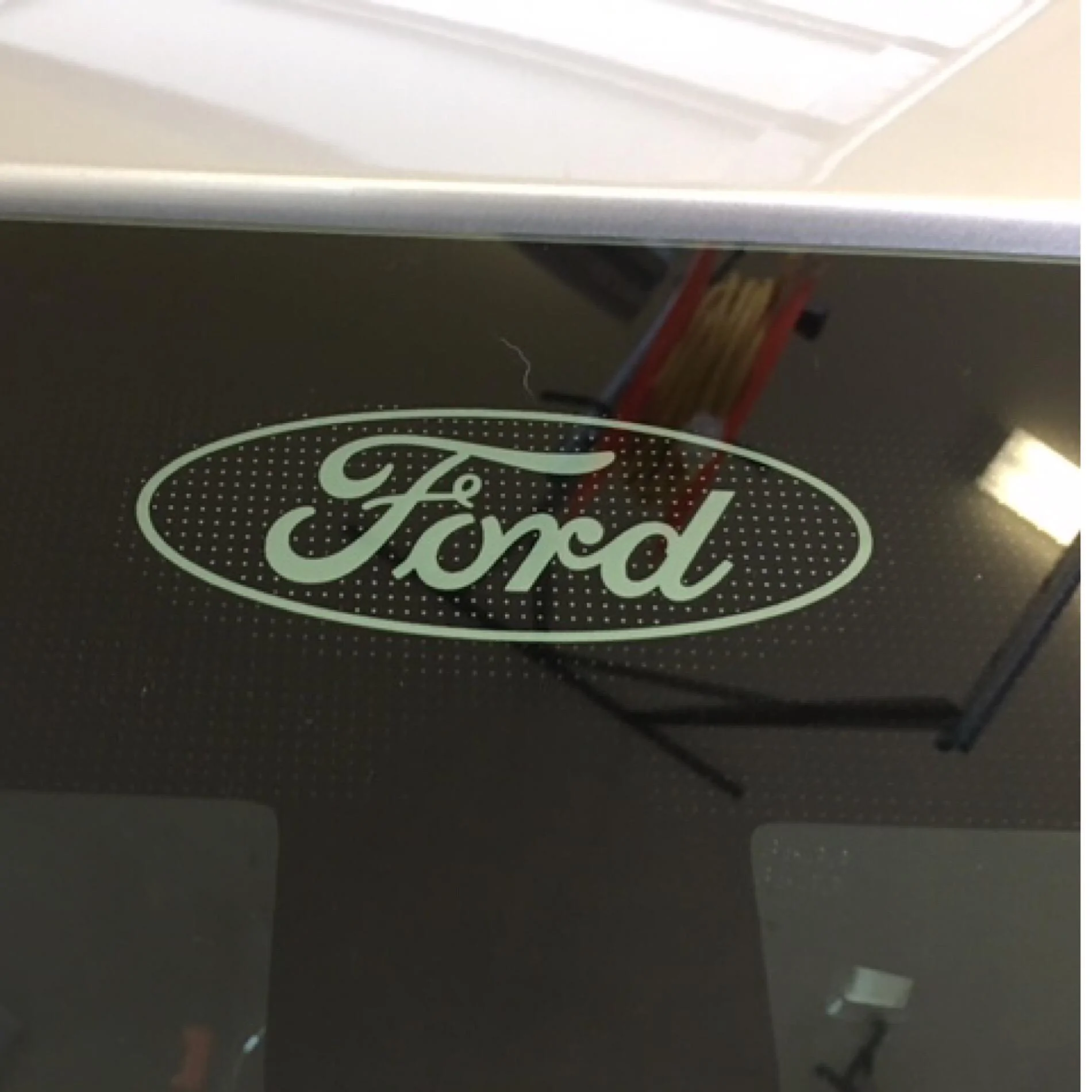

    Zombie Mike’s Ford Logo vinyl. Precision cut and came with the blackout backing. 697AF128-BE17-4C3C-8B99-1FE070EFB510.jpeg 84365C49-BE28-4181-A924-BD33E08AB79D.jpeg

  15. OP
    OP
    Boston23

    Boston23 Well-Known Member

    First Name:
    Bruce
    Vehicle(s):
    2017 GT PPP Ingot Silver
    Joined:
    Jun 16, 2015
    Location:
    South Carolina
    Posts:
    518
    Likes Received:
    453
    Rating:
    100%
    2   0   0

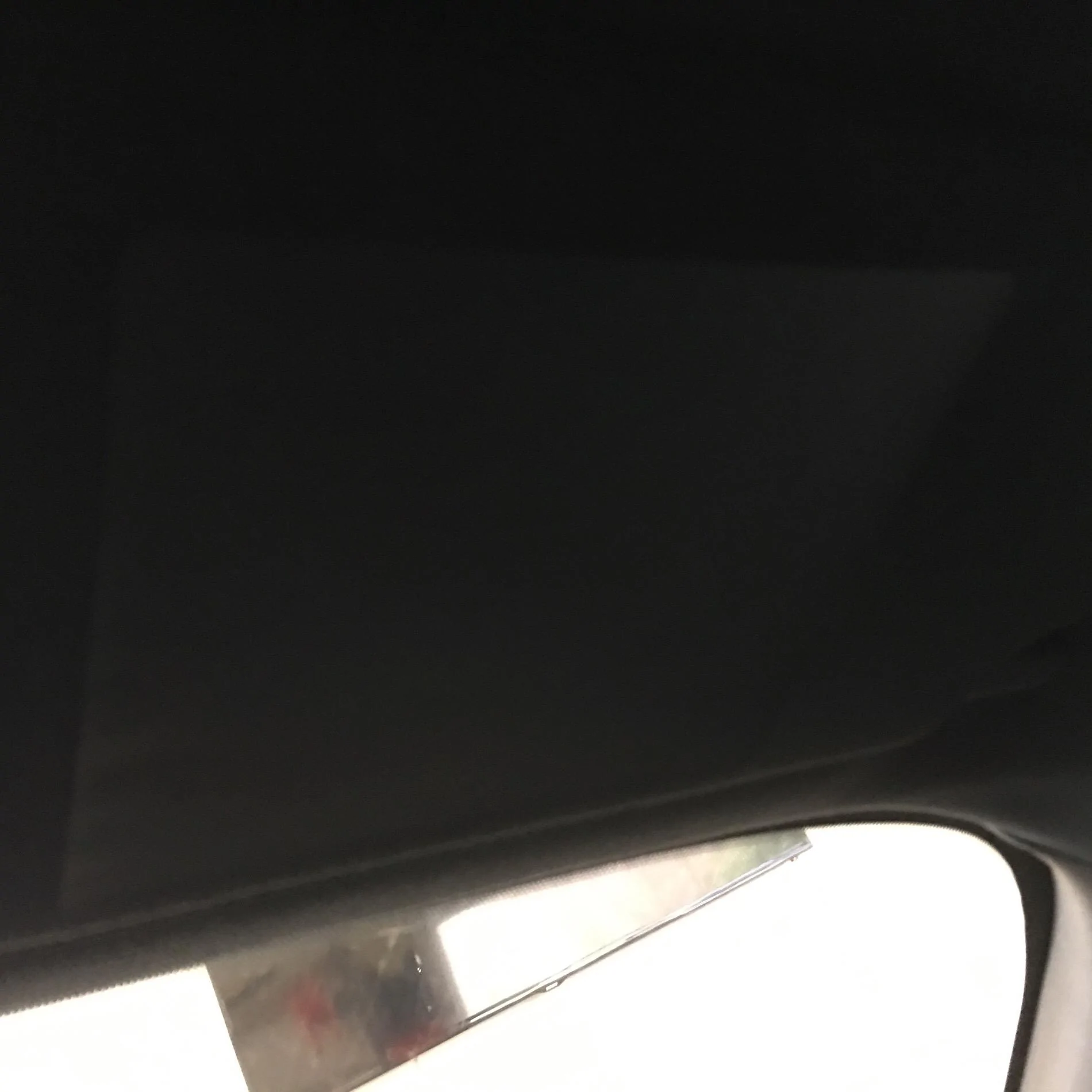

    And the visor blackout from Zombie Mike 1F070709-E9CC-4413-A5DA-FC88D7E59418.jpeg 1DDA739D-6692-4865-A3FB-07325D5646B2.jpeg
