Body control Module.

pinero61

Well-Known Member
Joined
Dec 3, 2014
Threads
20
Messages
2,166
Reaction score
412
Location
Houma, La
Vehicle(s)
'15 Ruby Red Base GT PP
Need some help...

Trying to find and replace my BCM, but I cannot locate it on Tasca or in the car.
Sponsored


OP
OP
pinero61

pinero61

Well-Known Member
Joined
Dec 3, 2014
Threads
20
Messages
2,166
Reaction score
412
Location
Houma, La
Vehicle(s)
'15 Ruby Red Base GT PP
Exhaust shop welded on my car without isolating the battery, and caused a few issues.

I replaced the SRS module and ABS module already. They both accepted the new programming, but I'm still showing comms faults on the ABS module. The BCM should control the CAN comms on the system, so it's the next step in repairing this. Unfortunately, I do not have the equipment to flash it myself, so I'm troubleshooting through proxy.


FeedtheNeed

Well-Known Member
Joined
Oct 5, 2014
Threads
6
Messages
85
Reaction score
24
Location
Virginia
Vehicle(s)
2015 DIB GT Premium
There are two BCMs. I believe they are located one on each side of the car.

I couldn't find the actual part on fordparts.com, but it was in the image for another control module.

Part number 14B533 in the blow up image for a different control module from fordparts.com
http://www.fordparts.com/Commerce/P...search=true&year=2015&make=Ford&model=Mustang

I'm not certain this is what you're looking for, but I hope it helps.

OP
OP
pinero61

pinero61

Well-Known Member
Joined
Dec 3, 2014
Threads
20
Messages
2,166
Reaction score
412
Location
Houma, La
Vehicle(s)
'15 Ruby Red Base GT PP
Thanks, I'll run by the local dealer, and get it on the way.


Sponsored

rvlyssup

Vag...Gun...Stang-NUT
Joined
Apr 11, 2015
Threads
100
Messages
1,225
Reaction score
446
Location
Palmdale...The High Desert of SoCal.
First Name
Rand
Vehicle(s)
Lotsa...
Damn...how much welding did the shop do to fry all those modules?

OP
OP
pinero61

pinero61

Well-Known Member
Joined
Dec 3, 2014
Threads
20
Messages
2,166
Reaction score
412
Location
Houma, La
Vehicle(s)
'15 Ruby Red Base GT PP

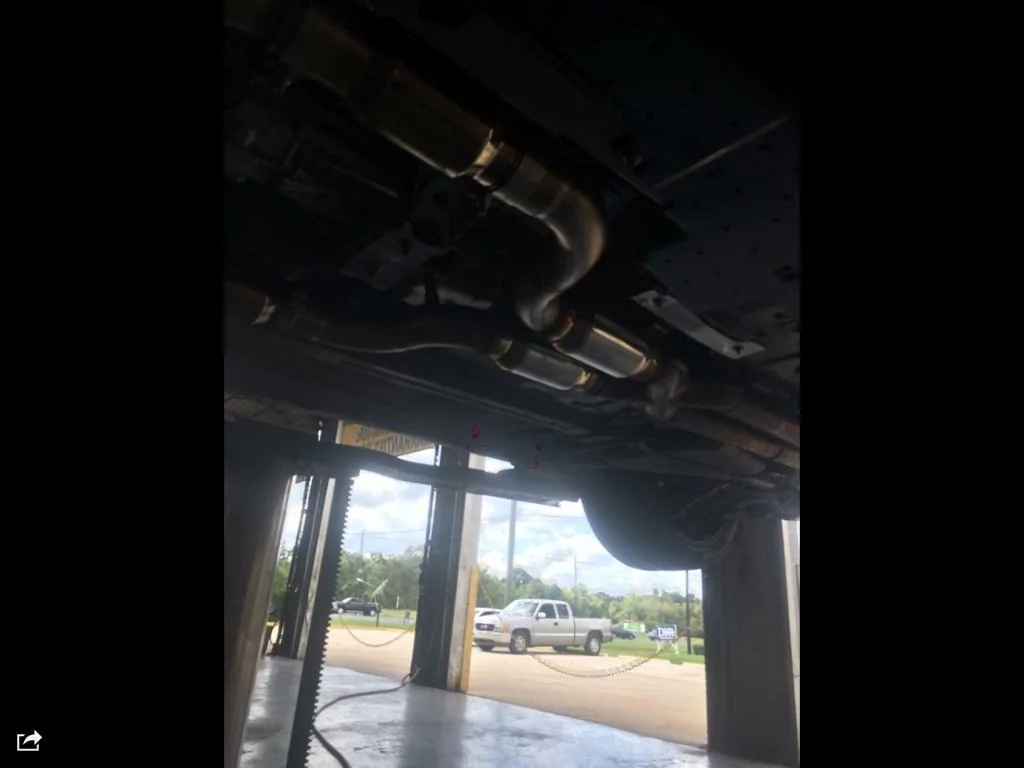

Welded in the resonators and the 3" connections for my headers.


rvlyssup

Vag...Gun...Stang-NUT
Joined
Apr 11, 2015
Threads
100
Messages
1,225
Reaction score
446
Location
Palmdale...The High Desert of SoCal.
First Name
Rand
Vehicle(s)
Lotsa...
Hmm...curious, but isn't the shop suppose to take steps to make sure no electrical components get damaged?

Like properly grounding the car or disconnecting the battery...


347CobraII

Well-Known Member
Joined
Jul 16, 2015
Threads
5
Messages
803
Reaction score
103
Location
iowa
Vehicle(s)
2015 GT
You should see what happens when vehicles get hit by lightning.

OP
OP
pinero61

pinero61

Well-Known Member
Joined
Dec 3, 2014
Threads
20
Messages
2,166
Reaction score
412
Location
Houma, La
Vehicle(s)
'15 Ruby Red Base GT PP
Hmm...curious, but isn't the shop suppose to take steps to make sure no electrical components get damaged?

Like properly grounding the car or disconnecting the battery...

Yes, but in this case they did not, and claim that welding with the battery connected cannot harm the vehicle.


Sponsored

ViolentDreams

Well-Known Member
Joined
Jul 26, 2015
Threads
2
Messages
97
Reaction score
106
Location
Southern California
Vehicle(s)
'99 Silverado - '15 Ecoboost
The car has 2 BCM's, the main one is located behind the passenger lower cowl trim panel, and BCM-B is located in the trunk on the passenger side behind the side trim panel.

BCM:



BCM-B:


OP
OP
pinero61

pinero61

Well-Known Member
Joined
Dec 3, 2014
Threads
20
Messages
2,166
Reaction score
412
Location
Houma, La
Vehicle(s)
'15 Ruby Red Base GT PP
Which of these controls CAN comm's for the ABS module and SRS module.


ViolentDreams

Well-Known Member
Joined
Jul 26, 2015
Threads
2
Messages
97
Reaction score
106
Location
Southern California
Vehicle(s)
'99 Silverado - '15 Ecoboost
The main one in the passenger footwell.

OP
OP
pinero61

pinero61

Well-Known Member
Joined
Dec 3, 2014
Threads
20
Messages
2,166
Reaction score
412
Location
Houma, La
Vehicle(s)
'15 Ruby Red Base GT PP
Thanks, I'll get one on the way.
