BMR's "CB005" S550 IRS Cradle Bushing Lockout Kit - PICS & INFO!

Discussion in 'Suspension, Brakes & Chassis' started by BMR Tech, May 15, 2015.

  1. BMR Tech

    BMR Tech Well-Known Member
    Gold Sponsor


    First Name:
    Dion
    Vehicle(s):
    2018 GT, 2010 GT500, 2019 F-150 5.0
    Joined:
    Sep 4, 2014
    Location:
    Tampa, FL
    Posts:
    5,109
    Likes Received:
    3,575
    0   0   0
    #1 BMR Tech, May 15, 2015
    Last edited: Aug 24, 2017
    So, due to the overwhelming emails, messages and calls about this kit - I decided to make this thread to show you guys what our CB005 Kit is.

    When we first got out S550 Mustangs and started ripping it apart, I knew that a large portion of the market would want a "plug and play" kit for the rear IRS cradle on these cars. So the team and I got to work!

    Fast forward to now, and we have tested not only 4 different unique designs of this kit, but also the competitors product as well.

    What we have come up with, is a kit that focuses on practically "locking" the cradle out. This kit reduces fore, aft and vertical movement of the cradle SUBSTANTIALLY, just about as good as it will get without replacing the bushings. It also does a great job at centering the cradle, AND it adds a nice convenient jacking point out back. :thumbsup:

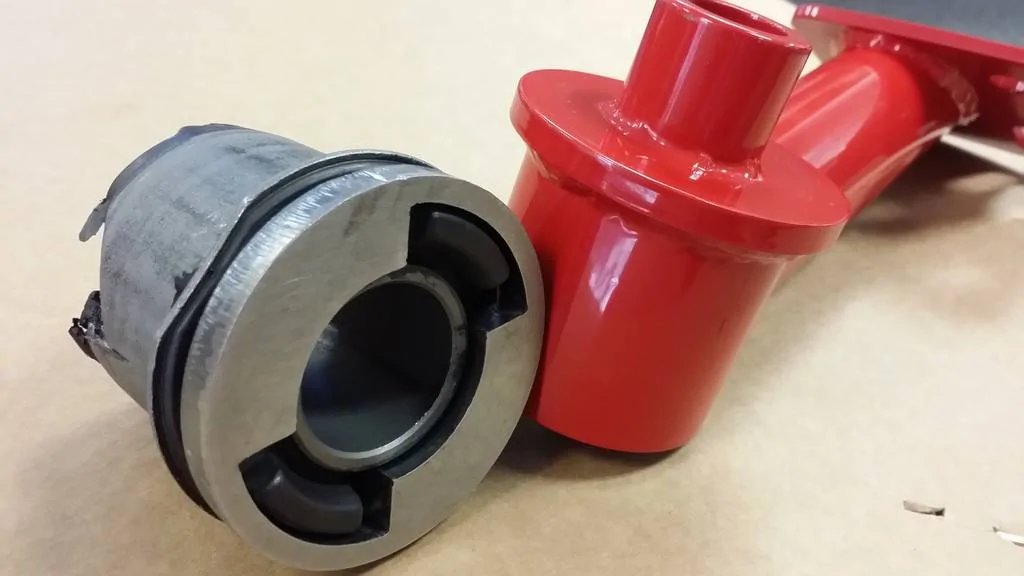

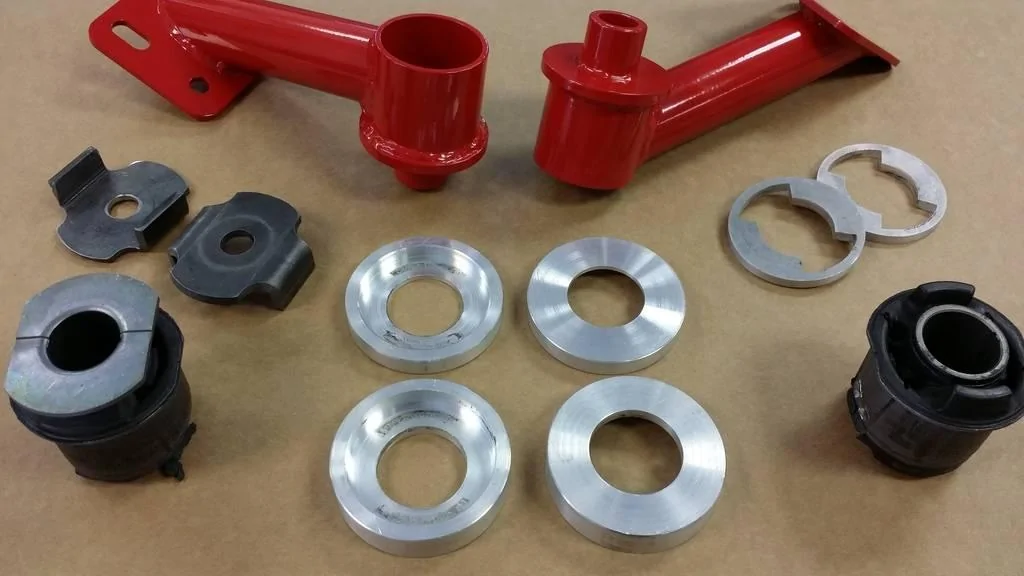

    First, here is a shot of the prototype kit we have been testing, and finalized our design with. *Production has started.

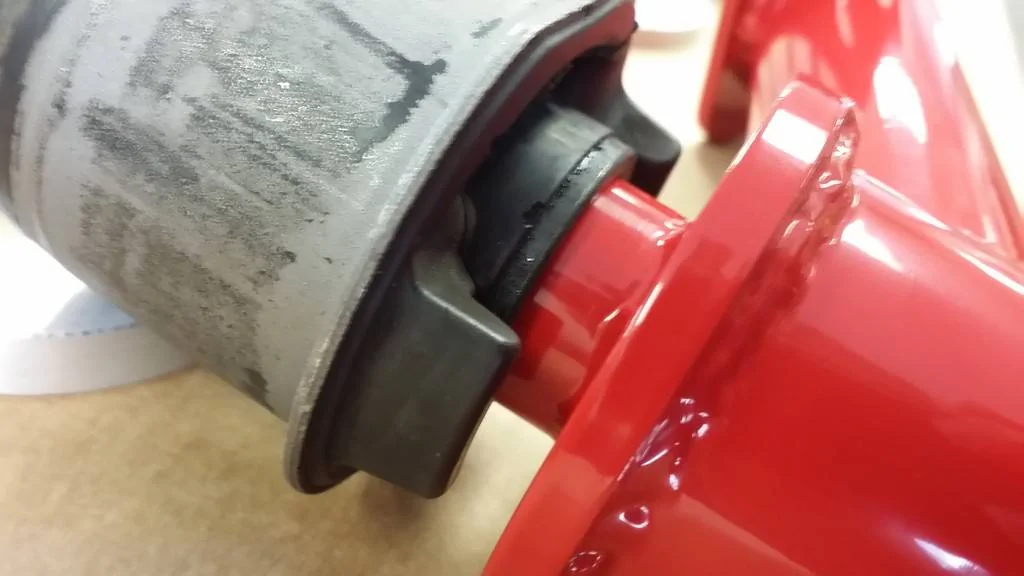

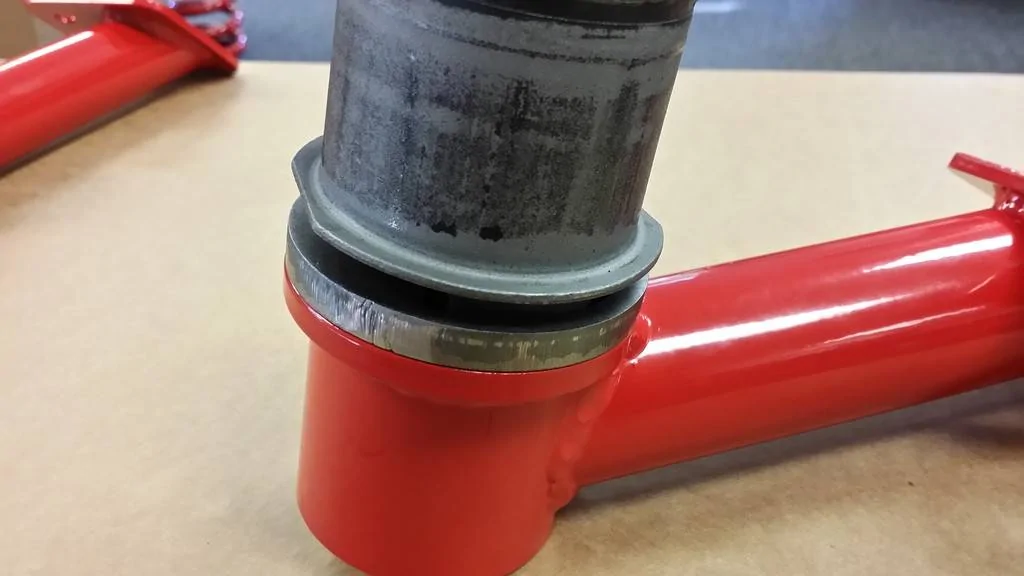

    The Red Braces replace the OEM Cradle Plates. They center the cradle, and add support to the lower portion of the sleeve that is locked out atop the bushing on the chassis side. These also add a jacking point.

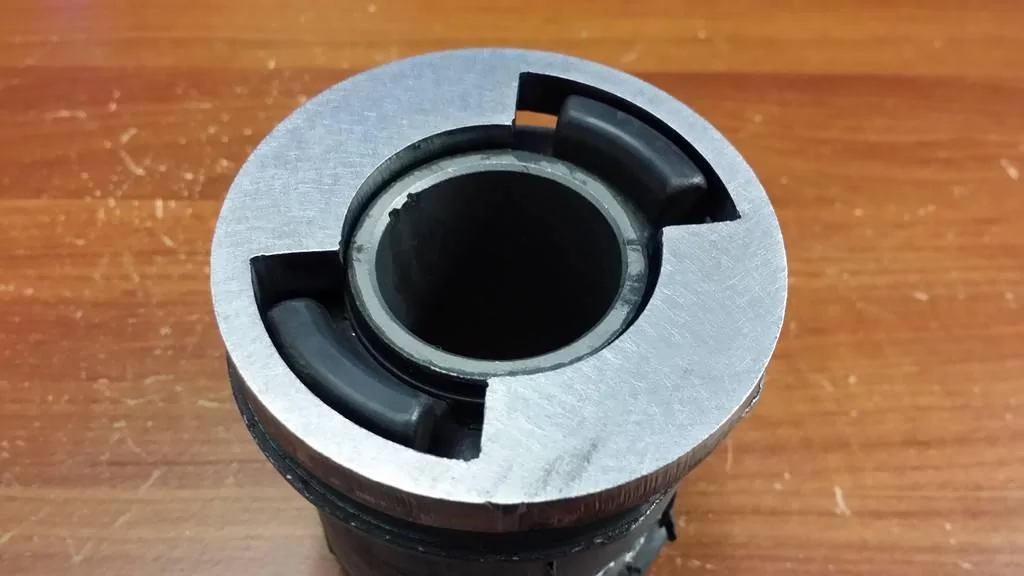

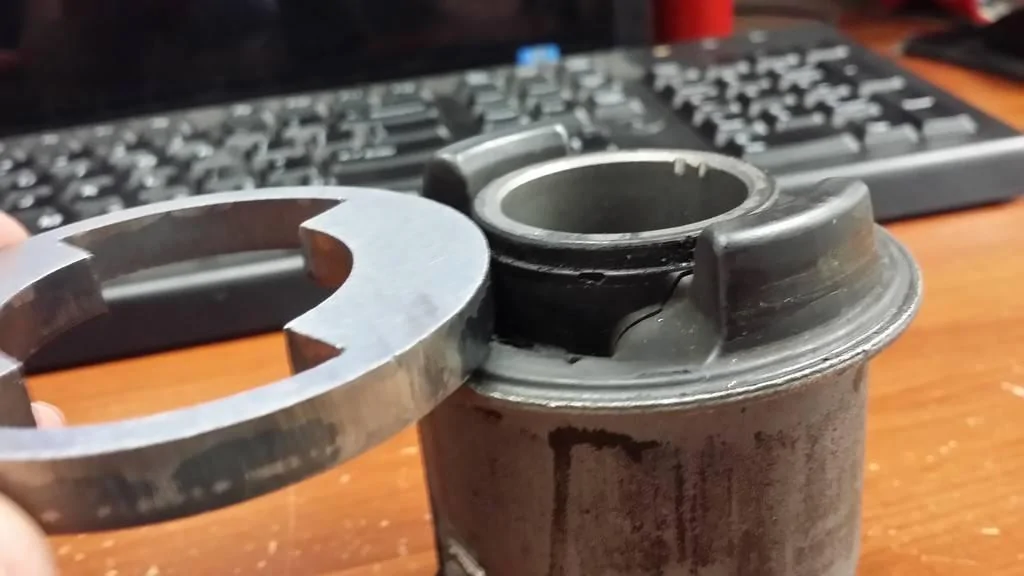

    Between the Brace and the bushing housing, we add a thick HD Steel washer to lock the vertical movement of the front cradle mounts out.

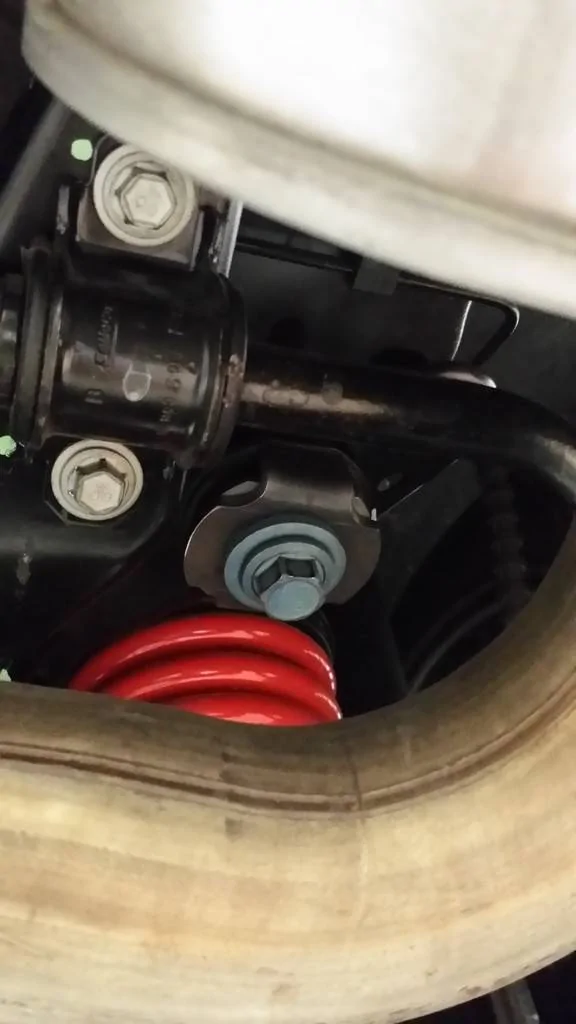

    For the rear bushings, in OEM form they tend to want to move substantially (vertically) and causing a rocking motion for the cradle. In other words, if this is not addressed, the cradle "bounces" around like CRAZY under WOT acceleration and corner entrance/exit. This vertical lock-out washer basically accomplishes the same thing that the competitors bolt-together 2-piece wedges do. Props to their design, we truly like it. We just wanted to make our product entirely different, and make it as easy as just remove the bolt, put in place, and re-install the bolt.

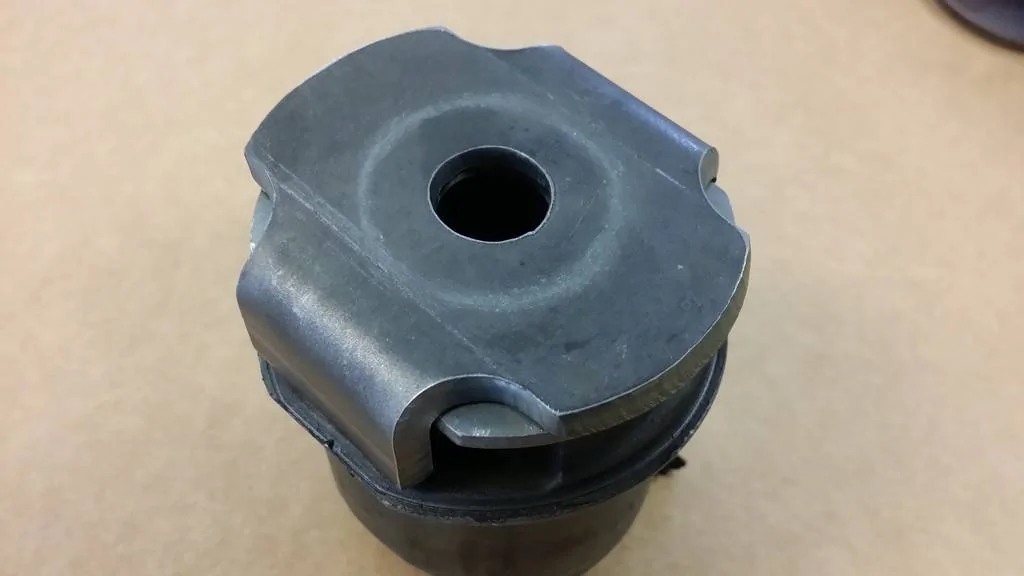

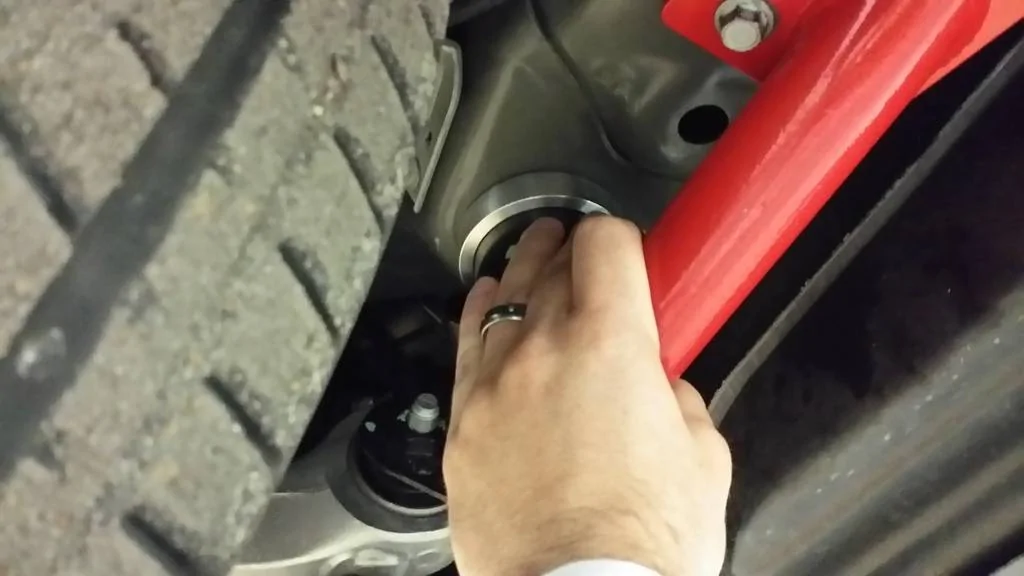

    As you can see, the thick steel plate forms down and over/around the OEM Washer flange and applies pressure to the OEM steel sleeves.

    Since the we lock the top out with the aluminum top hats - this piece locks the bottom out.


    We are on pace to start taking orders and shipping these kits out in about 2-3 weeks. Pricing is TBD.

    Thanks M6G!

    PS - Like stated above, this is the raw prototype test kit we have been using. PRODUCTION PIECES WILL BE FINISHED AND BE OF MUCH NICER APPEARANCE AND QUALITY.

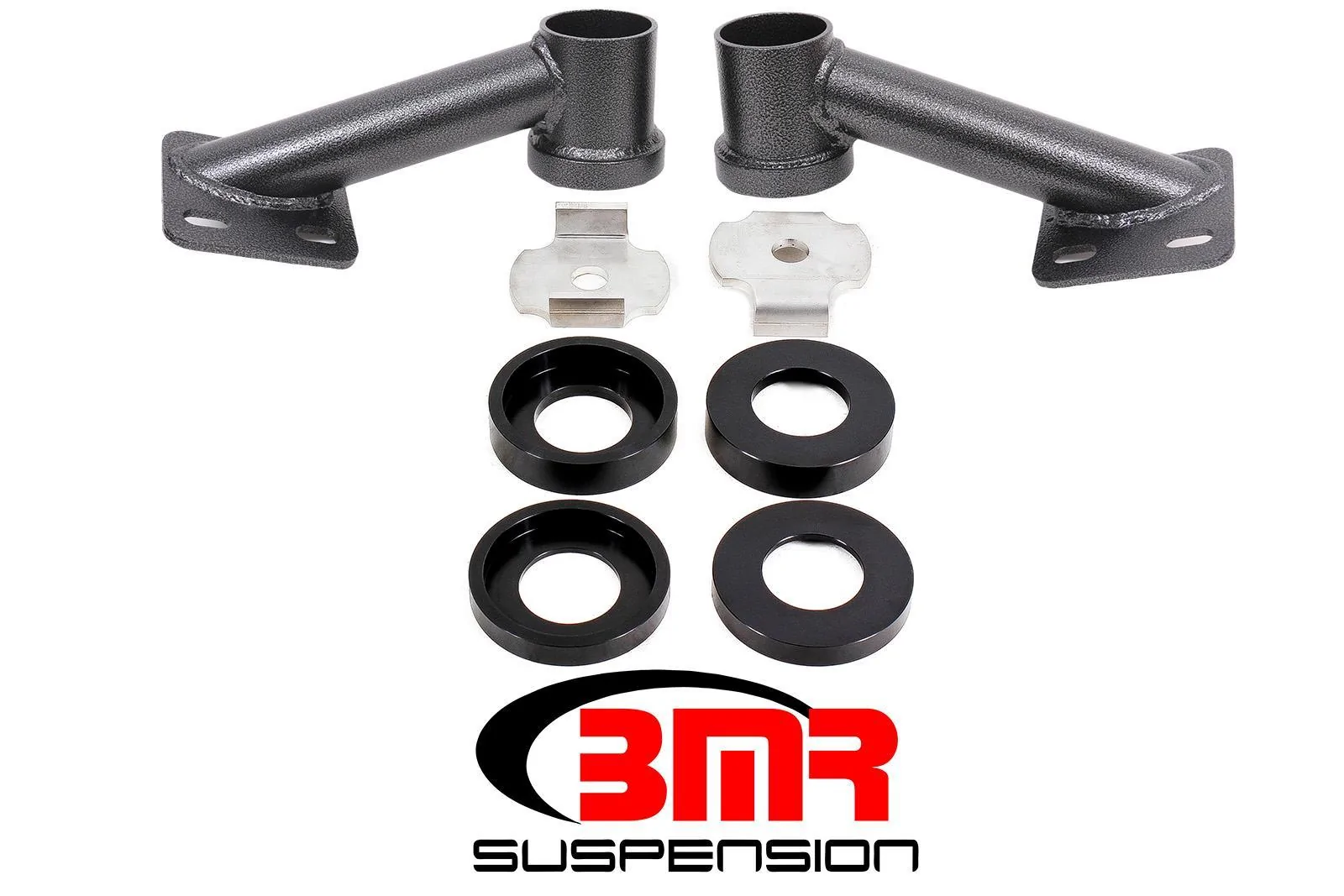

    ***PRODUCTION VERSION IN PIC BELOW


  2. dubster99

    dubster99 Well-Known Member

    Vehicle(s):
    2015 Ingot Silver GT PP
    Joined:
    Aug 12, 2014
    Location:
    Nor*Cal
    Posts:
    2,519
    Likes Received:
    424
    Rating:
    100%
    1   0   0
    Pics installed! :) Looks awesome.

    BMR Tech likes this.
  3. Anthony@HTM

    [email protected] Well-Known Member

    Vehicle(s):
    GT350 Track Pack
    Joined:
    Dec 7, 2014
    Location:
    SF
    Posts:
    1,466
    Likes Received:
    605
    Rating:
    100%
    1   0   0
    This one is going to fly off the shelves. For anyone who doesn't want to pull the rear end out this looks like cake to install.

    superman07, greg hazlett and BMR Tech like this.
  4. EcoSwag1990

    EcoSwag1990 Well-Known Member

    Vehicle(s):
    2016 Triple Yellow GT
    Joined:
    Oct 12, 2014
    Location:
    West Chester, PA
    Posts:
    3,280
    Likes Received:
    905
    0   0   0
    I'll be one of the first to order this! It looks awesome and I love that you tested competitor designs as well

    So what real world benefits have you guys observed with this kit? Also a lot of us are worried about increased NVH which I know you said would be minimal with this kit. What increases did you notice?

    BMR Tech likes this.
  5. dragonacc

    dragonacc Well-Known Member

    Vehicle(s):
    2015 Ecoboost PP
    Joined:
    Aug 20, 2013
    Location:
    TN
    Posts:
    1,667
    Likes Received:
    407
    Rating:
    100%
    2   0   0
    Looks great and a lot of bang for the buck. Think I'll be giving this one a shot!

    greg hazlett and BMR Tech like this.
  6. SpaceGhost

    SpaceGhost Well-Known Member

    Vehicle(s):
    S550
    Joined:
    Jan 10, 2015
    Location:
    KC
    Posts:
    333
    Likes Received:
    48
    Rating:
    100%
    1   0   0
    Any installed pics? Thanks.

  7. ridenfish39

    ridenfish39 Well-Known Member

    Vehicle(s):
    2015 Guard GT PP
    Joined:
    Feb 25, 2015
    Location:
    Philthydelphia
    Posts:
    407
    Likes Received:
    138
    0   0   0
    I just commented on your Facebook post lol. I can't wait to get this,springs and my Bathurst on the car

  8. tevaburns

    tevaburns Well-Known Member

    First Name:
    Tiberius
    Vehicle(s):
    2015 GT Premium PP
    Joined:
    Mar 3, 2015
    Location:
    Clawson, MI
    Posts:
    365
    Likes Received:
    148
    Rating:
    100%
    1   0   0
    Hey BMR, will there be a no NVH solution for the diff to go with this?

    Also, do either the BMR Vertical Links or the BMR Toe Rods increase NVH?

  9. OP
    OP
    BMR Tech

    BMR Tech Well-Known Member
    Gold Sponsor


    First Name:
    Dion
    Vehicle(s):
    2018 GT, 2010 GT500, 2019 F-150 5.0
    Joined:
    Sep 4, 2014
    Location:
    Tampa, FL
    Posts:
    5,109
    Likes Received:
    3,575
    0   0   0
    Yes, we do have a diff kit coming soon. The NVH is in between the Poly and ALuminum Diff Bushings. The Poly is the way to go on the diff mounts, IMO.

    The TR005 Toe Rods do not increase NVH at all.

    The TCA045 Vert Links can increase NVH occasionally, as they have bearings that rotate. For those who hear the occasional "click" - it's nothing an O-Ring cannot fix. Well over 100 of them have been installed, and I have not gotten one response of NVH increase. We also have a Delrin/Bearing Vertical Link coming...and it will not increase NVH at all.

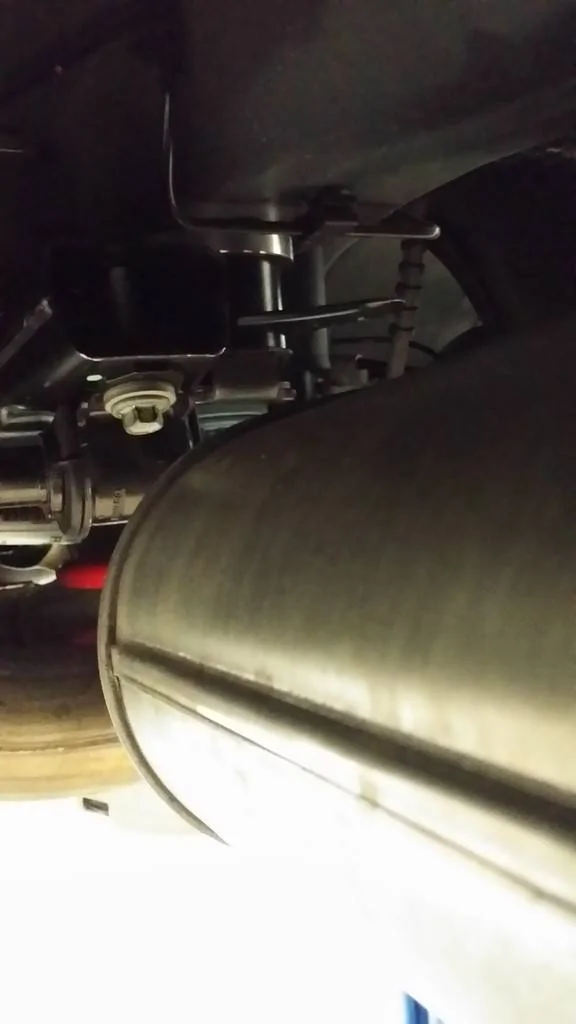

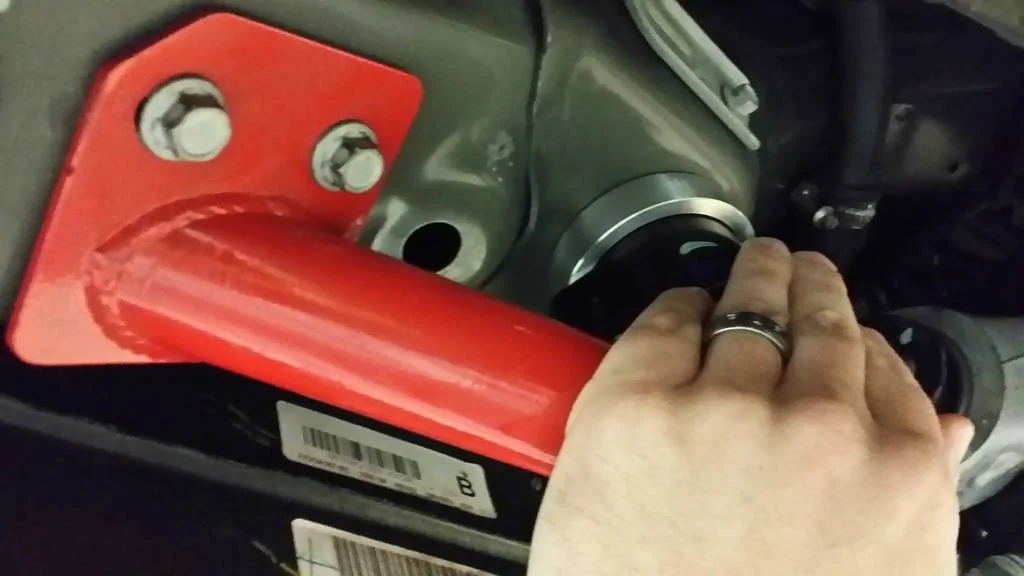

    For those requesting installed pics, this is about all I have right now.

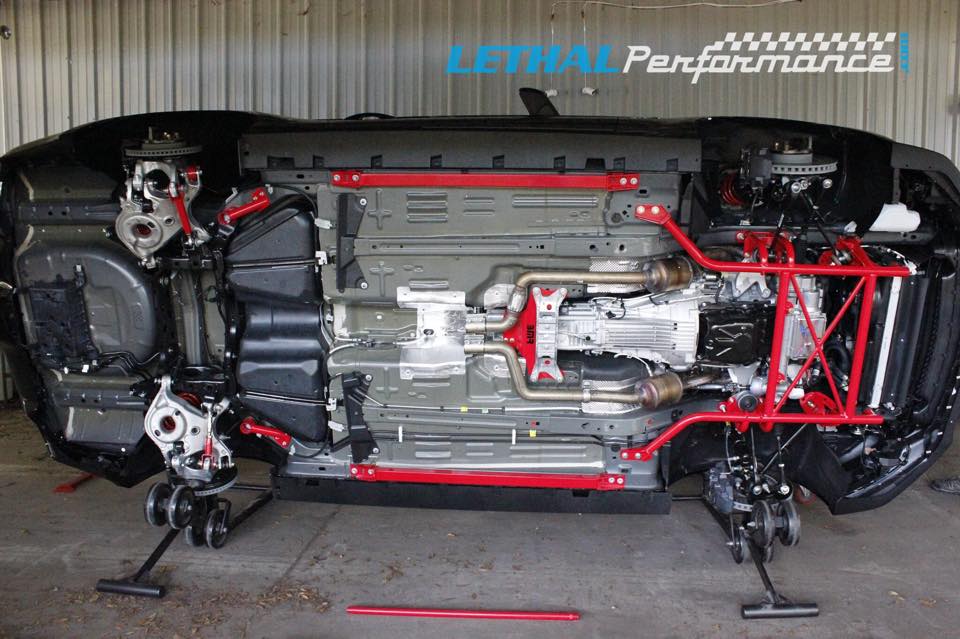

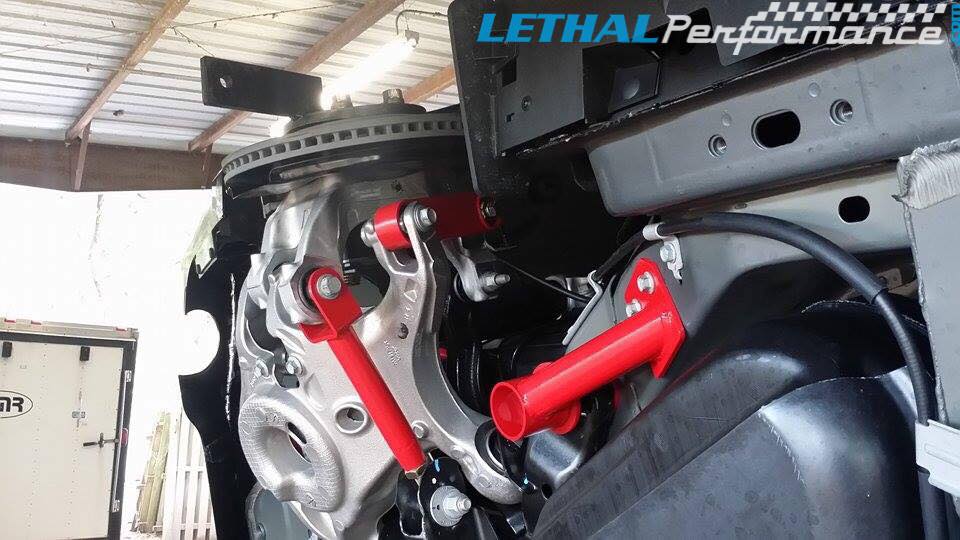

    Some early shots from October of 2014.



    Rc18, pb29590, Palmtrees&2.3s and 4 others like this.
  10. rio16

    rio16 MAD_50HH

    First Name:
    Rio
    Vehicle(s):
    2015 Mustang GT Whippled Competition Orange
    Joined:
    Jan 8, 2015
    Location:
    Bay Area SJ, CA
    Posts:
    2,023
    Likes Received:
    778
    Rating:
    100%
    4   0   0
    dang..i want my car looking like that great job Kelly.. ill be ordering these when they come out.. thanks

  11. esacteksab

    esacteksab Well-Known Member

    Vehicle(s):
    2015 Mustang GT
    Joined:
    Apr 4, 2015
    Location:
    CO & KS
    Posts:
    1,428
    Likes Received:
    232
    0   0   0
    I want everything in that last picture.

  12. Iceman2733

    Iceman2733 Well-Known Member

    Vehicle(s):
    GT
    Joined:
    Mar 23, 2015
    Location:
    US
    Posts:
    525
    Likes Received:
    111
    Rating:
    100%
    3   0   0
    Man super killer product I will def be purchasing this kit. Can't be beat at this price point

  13. Tron

    Tron Well-Known Member

    Vehicle(s):
    2015 Ruby Red GT w/PP
    Joined:
    Dec 31, 2014
    Location:
    Ft. Bragg, NC
    Posts:
    66
    Likes Received:
    26
    0   0   0
  14. OP
    OP
    BMR Tech

    BMR Tech Well-Known Member
    Gold Sponsor


    First Name:
    Dion
    Vehicle(s):
    2018 GT, 2010 GT500, 2019 F-150 5.0
    Joined:
    Sep 4, 2014
    Location:
    Tampa, FL
    Posts:
    5,109
    Likes Received:
    3,575
    0   0   0
    Yup!

    The Steeda rear inserts WILL work with this kit.

    09jsw and Tron like this.
  15. ATTFighter

    ATTFighter Well-Known Member

    Vehicle(s):
    2018 Mustang GT
    Joined:
    Nov 4, 2014
    Location:
    Florida
    Posts:
    494
    Likes Received:
    38
    Rating:
    100%
    1   0   0
    Will parts such as steeda rear toe links, irs subframe bushings, vertical links, subframe braces still work with this kit?

    Sent from my SAMSUNG-SM-G870A using Tapatalk
