Bit of wiring help

[Synyster06Gates]

So I am installing the Borla/Ford Racing active exhaust kit and following the instructions I found posted on another thread. Looks g story short - the instructions call for 12v switched power to come from a blue/white wire in the BCM harness that runs through the trunk. I don't have that wire and unfortunately no multimeter at the apartment to check the voltage of the wires I do have. Comparing pictures it doesn't even look like I have the same number of wires.

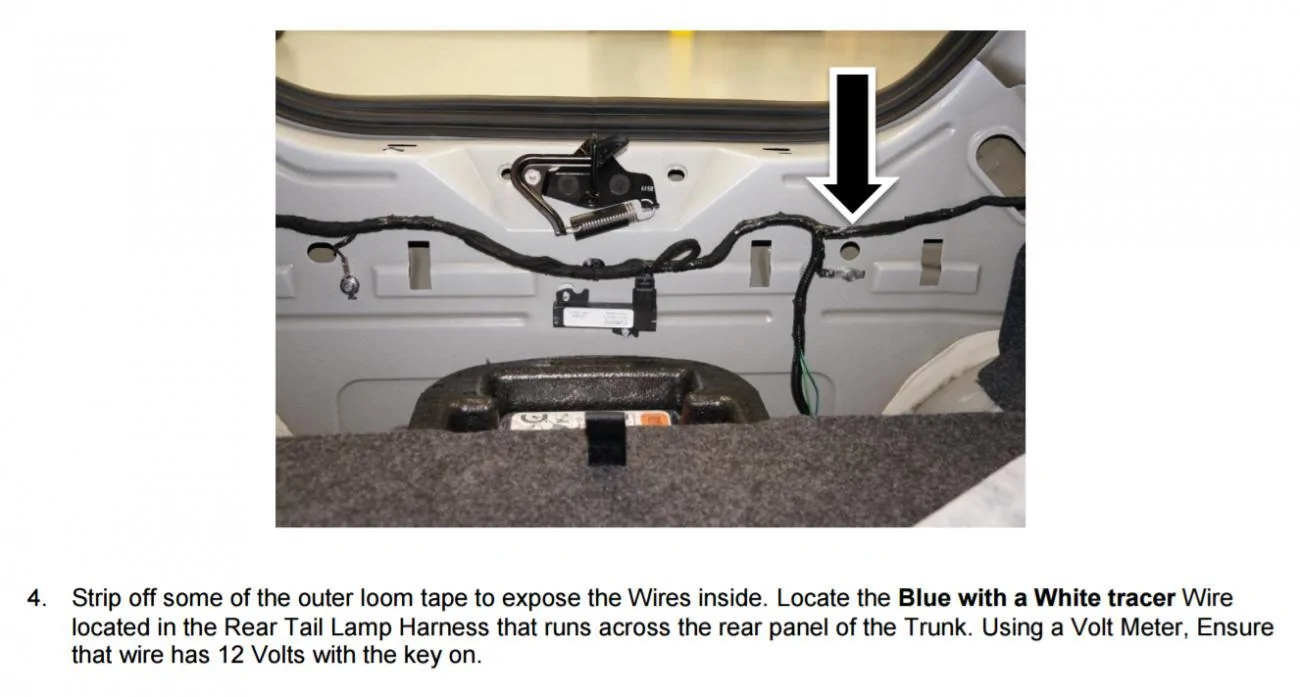

instructions found here

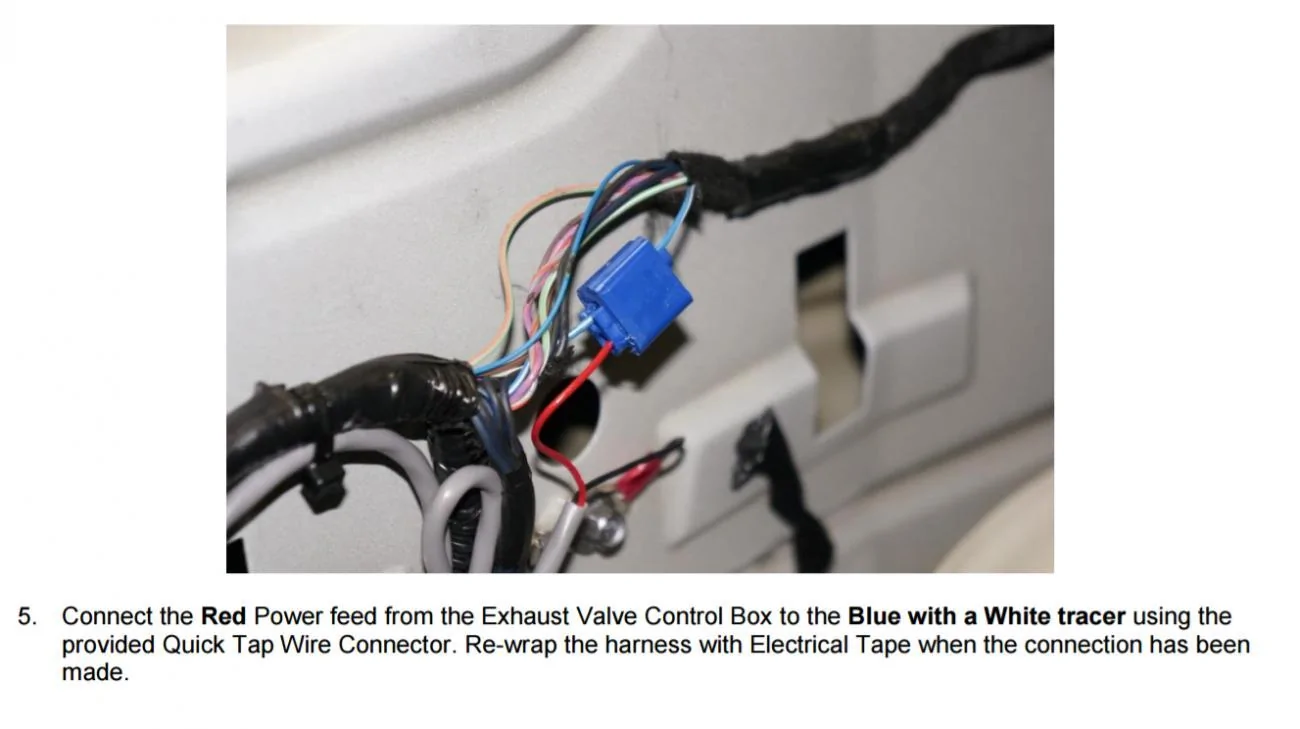

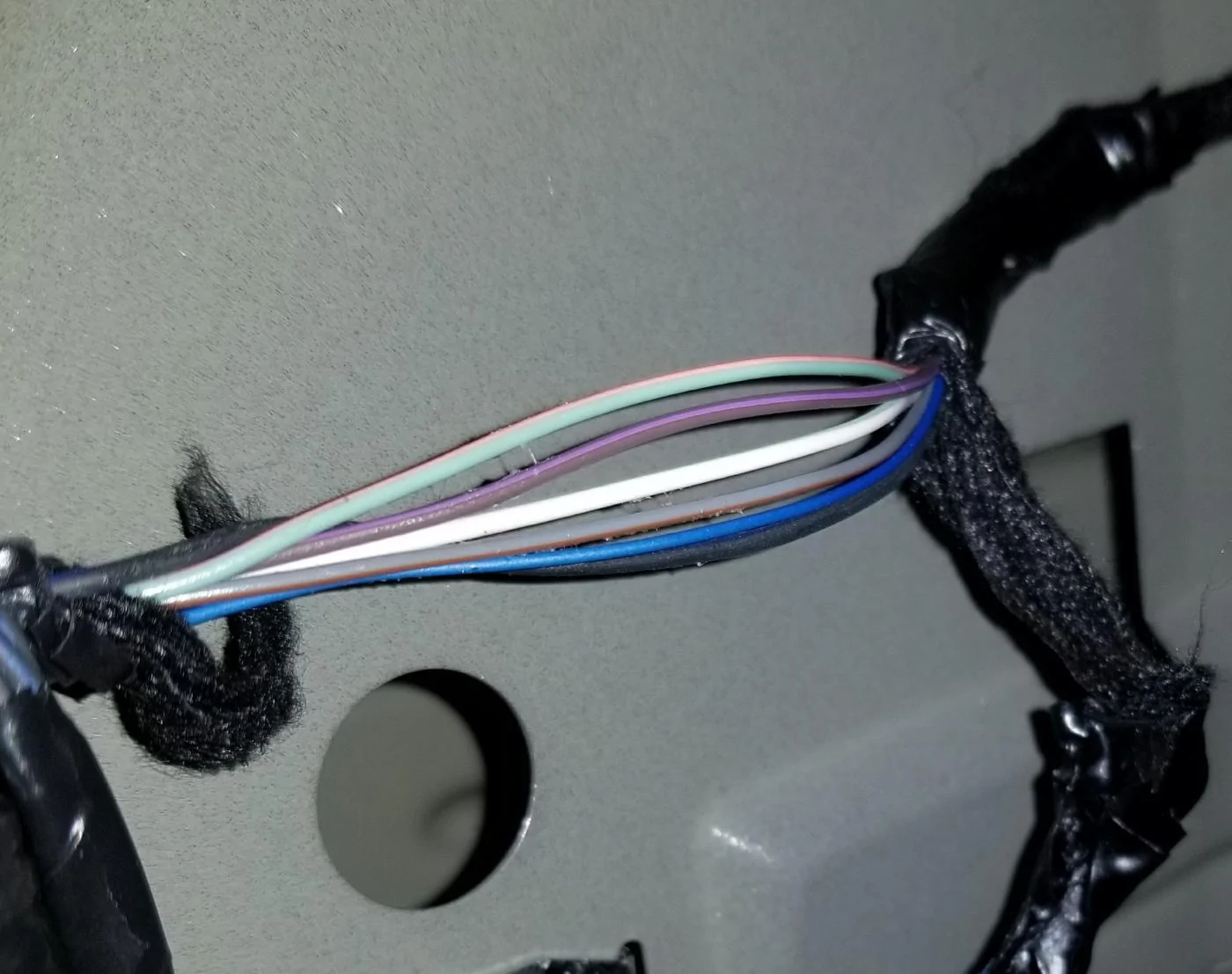

My wires -
Black/blue
Grey/brown
Brown/pink
White/green
Blue
Grey

Anyone know what is switched vs constant power that I can tap into?

Sponsored



[stang1971]

So I am installing the Borla/Ford Racing active exhaust kit and following the instructions I found posted on another thread. Looks g story short - the instructions call for 12v switched power to come from a blue/white wire in the BCM harness that runs through the trunk. I don't have that wire and unfortunately no multimeter at the apartment to check the voltage of the wires I do have. Comparing pictures it doesn't even look like I have the same number of wires.

instructions found here

My wires -
Black/blue
Grey/pink
Brown/purple
White/green
Blue
Grey

Anyone know what is switched vs constant power that I can tap into?

its there... ALL of them have it.... its in the same harness that the rear speaker wires are in. If you pull. down the pass rear seat and pull back the carpet... the harness is there and the blue/white is there.



[Synyster06Gates]

I suppose my problem then is just that it's not the same color I need it. Pulled the wire tape back a bit further and no luck. Anyone able to find any wire diagrams for these cars?



[stang1971]

wrong harness.... the correct one has twisted wires that are the rear speaker wires.



[Fenix]

Yea the harness is near the passenger rear speaker. It's for the back up camera. Blue with white stripe wire



[Synyster06Gates]

wrong harness.... the correct one has twisted wires that are the rear speaker wires.

Not quite sure how it's the wrong harness... Looking at pics and following the text directions in the included instructions, I'm in the right place. The wire won't reach anywhere else.



[Fenix]

If you have extra wire available you could just extend and tap into the same wire under the passenger rear speaker. Then mount the control box wherever you want.



[Synyster06Gates]

Just in case anyone else comes across this - they did make a wiring change and Ford Performance told me to use the green with a pink tracer in cars that do not have the blue/white in that tail light harness.
