Hello,

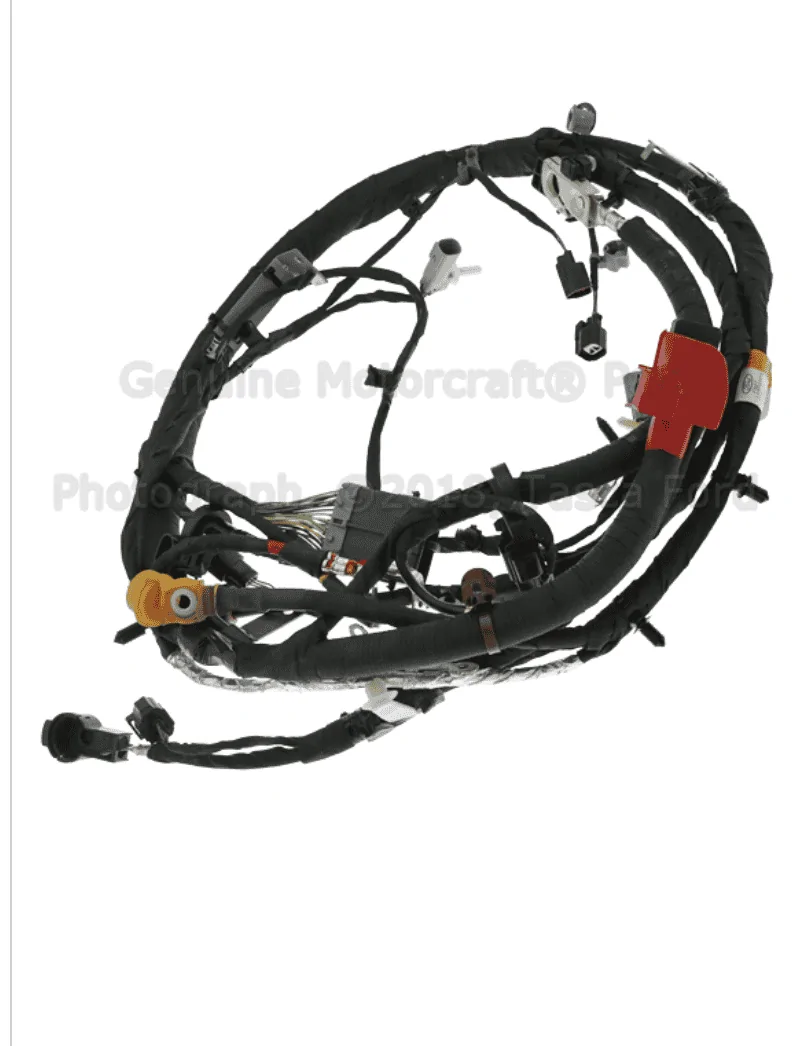

My Battery harness has a short and the dealer recc replacing for $650+!. So I bought the harness online, and it's got an awful lot of connectors! Pic attached. Is this something doable myself. Is there an installation guide anywhere (none shipped with product).

2015 GT.

Screen Shot 2021-10-08 at 2.48.33 PM.png
It must be a fairly common problem, because I got lucky I found 1 instock and its sold out everywhere.


fmc_smt

Well-Known Member
Joined
Jun 4, 2018
Messages
868
Reaction score
992
Location
Cottonwood , Arizona
Vehicle(s)
2015 gt , 2015 Escape , 2015 F250
Vehicle Showcase
1

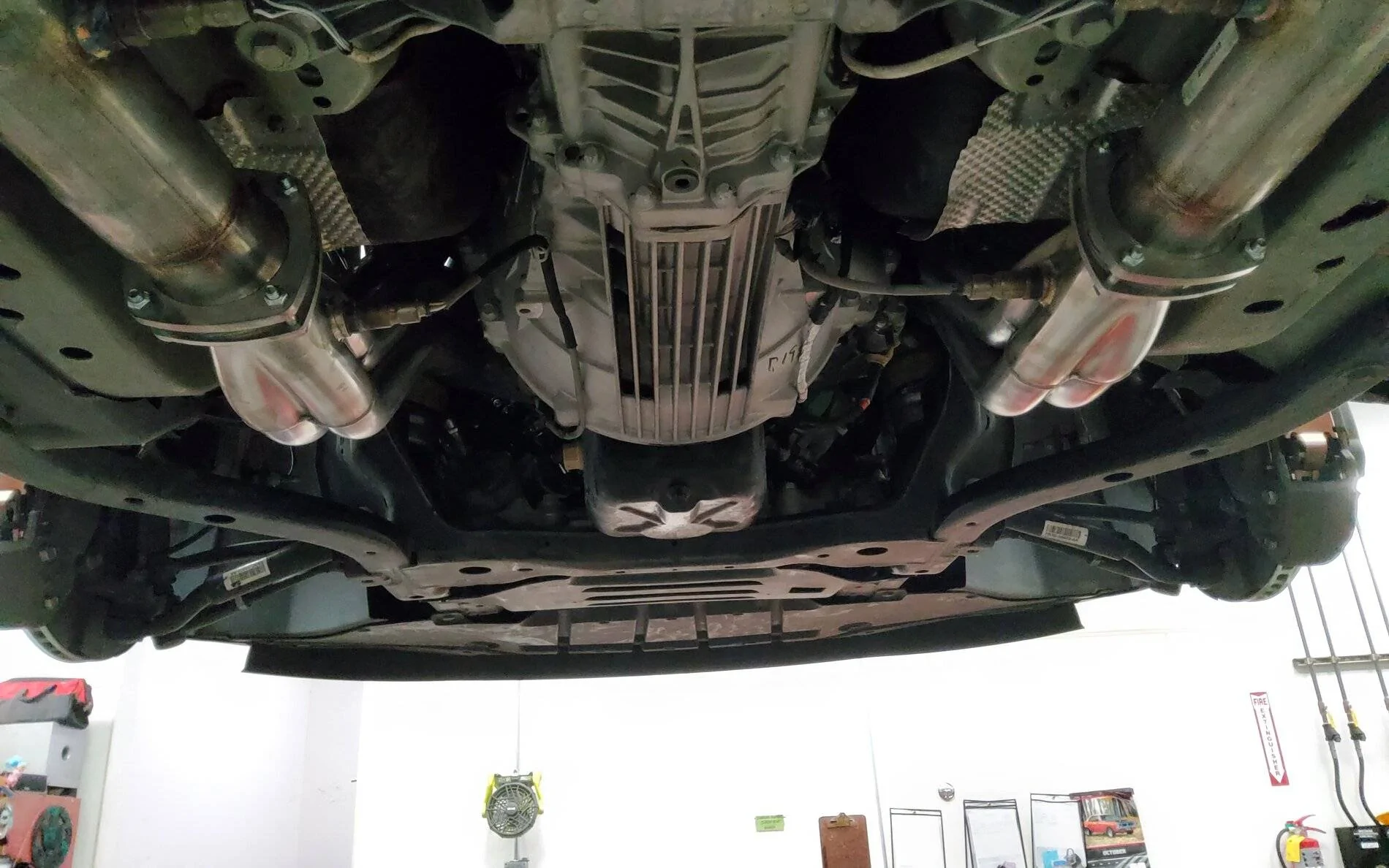

Not a hard job , just a pain in the ass . Start at one end and work to the other . You will need to get under the car , so ramps , jack stands or lift will help . As far as instruction you can order an online service manual, don't think it will be much help with this repair .


Cobra Jet

Well-Known Member
Joined
Feb 12, 2015
Messages
9,939
Reaction score
12,123
Location
NJ
Vehicle(s)
2018 EB Prem. w/PP and 94 Mustang Cobra
That's a lot of "to do" for a battery harness repair!

Was your issue due to the common corrosion problem? Did one of your terminals rot off due to the corrosion?

OP
OP
schenoy1

schenoy1

Well-Known Member
Joined
Nov 3, 2015
Messages
109
Reaction score
24
Location
Waxhaw (Charlotte area)
First Name
Steve
Vehicle(s)
Mustang GT 2015. Ruby Red
That's a lot of "to do" for a battery harness repair!

Was your issue due to the common corrosion problem? Did one of your terminals rot off due to the corrosion?
No corrosion. A short in the cable, have to wiggle it around near the fuse box to get it to power on. Going to tackle it tomorrow. Identified the first 5 connections, another 12 or so to go. lol.
