Anyone Know What Indicator this Is?

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
238
Messages
3,492
Reaction score
1,774
Location
Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2

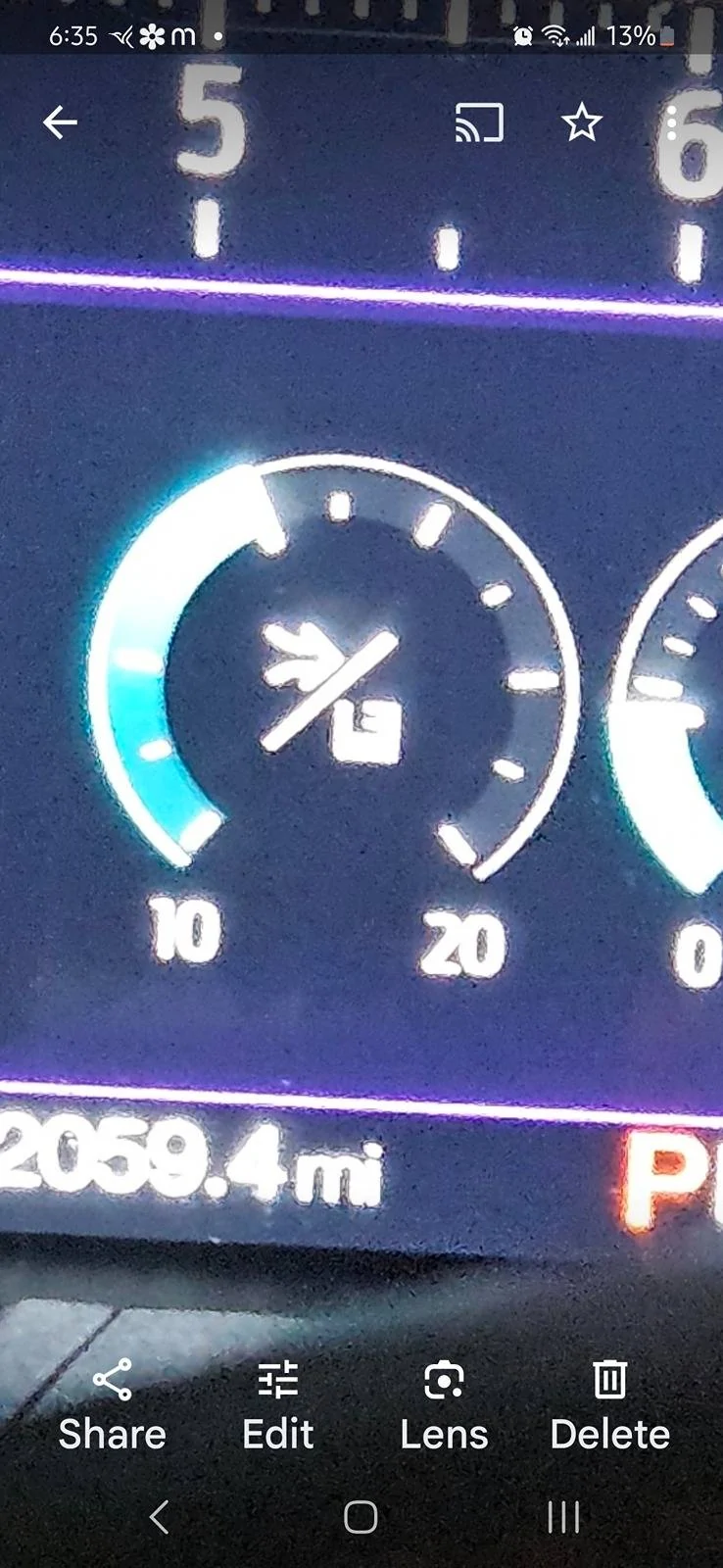

I cannot find my owners manual but wanted to know what indicator is this. Do you know where the sensor is located?.
Thanks for your help.
Sponsored



Farkel

Well-Known Member
Joined
Oct 14, 2019
Threads
9
Messages
408
Reaction score
545
Location
Cartoon City, Nirvana
First Name
Marc
Vehicle(s)
'20 GT Premium PP1, 2012 Jeep JK, 2022 Harley 48
Last edited:
OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
238
Messages
3,492
Reaction score
1,774
Location
Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
Thans for the help. At idle my AFR stays at 14.5 but when I get on it goes erratic pegs 20, then goes to zero then goes back to 14.5 while easy cruising. No miss fires and no fault codes. I must have pinch my rear o2 sensor wires when I removed the after LTH aft cat pipe. I will check it out tomorrow. I can always OHM if I had a wire diagram of the wire.


Sponsored

CorvZ061

Well-Known Member
Joined
Sep 9, 2020
Threads
18
Messages
434
Reaction score
442
Location
Oxford, Ga
First Name
Travis
Vehicle(s)
2022 GT
Thans for the help. At idle my AFR stays at 14.5 but when I get on it goes erratic pegs 20, then goes to zero then goes back to 14.5 while easy cruising. No miss fires and no fault codes. I must have pinch my rear o2 sensor wires when I removed the after LTH aft cat pipe. I will check it out tomorrow. I can always OHM if I had a wire diagram of the wire.
Rear o2 has zero to do with anything but monitoring cat efficiency. the upstream o2's are the widebands that matter.

OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
238
Messages
3,492
Reaction score
1,774
Location
Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
Rear o2 has zero to do with anything but monitoring cat efficiency. the upstream o2's are the widebands that matter.
So the front two O2 sensors control the AFR gauge? I will jack it and inspect the wiring and do a system diagnostics check and go from their. Appreciate your help.


CorvZ061

Well-Known Member
Joined
Sep 9, 2020
Threads
18
Messages
434
Reaction score
442
Location
Oxford, Ga
First Name
Travis
Vehicle(s)
2022 GT
So the front two O2 sensors control the AFR gauge? I will jack it and inspect the wiring and do a system diagnostics check and go from their. Appreciate your help.
correct, front o2 sensors are the ones that controls that meter, they’re the ones the pcm uses to keep everything running right

OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
238
Messages
3,492
Reaction score
1,774
Location
Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
correct, front o2 sensors are the ones that controls that meter, they’re the ones the pcm uses to keep everything running right
Thank you for the help. Even though my tuner said my fuel readings were good, I will replace the two front sensors and inspect the wiring.

OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
238
Messages
3,492
Reaction score
1,774
Location
Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
Daryl from Wengerd said that is normal under the conditions I described to him.
i will remove that gauge from my cluster.
Thank you all for your help.


Sponsored

Wengerd Performance

Well-Known Member
Gold Sponsor
Joined
Feb 27, 2021
Threads
0
Messages
196
Reaction score
659
Location
Paris, Tn
Website
wengerdperformance.com
First Name
Derel
Vehicle(s)
18 GT Whipple 15 Mustang GT TT 18 F150 VMP ODIN
Afr should be between between 11.2 ish to 20.

Idle part throttle cruising 14.08, wot 10.3-11.5 depending on if cat over temp thresholds are met to see the 10s on afr

Decel 20

OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
238
Messages
3,492
Reaction score
1,774
Location
Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
Afr should be between between 11.2 ish to 20.

Idle part throttle cruising 14.08, wot 10.3-11.5 depending on if cat over temp thresholds are met to see the 10s on afr

Decel 20
Thank you for your help, and letting me know.
