Another NA car breaks diff bolts...

aleccolin

Well-Known Member
Joined
Jun 7, 2017
Messages
693
Reaction score
223
Location
VA
Website
www.CarClubVT.com
First Name
Colin
Vehicle(s)
2016 GT PP
For a threaded connection, ideally you would want a counterbored hole in the ear which would allow the grip of the bolt to extend fully through the joint and into the ear before the threads engage. That would require some sort of custom shoulder bolt or a sleeve sized to the counterbore, which is what I mentioned earlier. Ultimately, it is easier to drill out the threads to 16mm nominal diameter and through-bolt with a 16mm bolt. You can go larger than that, if you want to also drill out the bushing.
Advertisement



shogun32

Well-Known Member
Joined
Feb 8, 2019
Messages
9,385
Reaction score
6,095
Location
Northern VA
First Name
Matt
Vehicle(s)
2019 GT+PP, SS+1LE, 2020 F150
Vehicle Showcase
2
he only way I would clearance the ears on my diff. would be on a mill, not with a grinder or Dremel
naturally. But a standoff (5mm?) should also let the nut clear. Either way it's a piss-poor design and puts the sheer into the threaded portion of the fastener which is grade F engineering.


KellTrac

Well-Known Member
Joined
Dec 25, 2019
Messages
245
Reaction score
225
Location
Florida
Website
www.kelltrac.com
Vehicle(s)
2020 Mustang GTPP1, 2020 Charger ScatPack
If you are using the factory threads, you really have not made a true upgrade. No current offering that still retains the OE threads has been immune to failures, regardless of what marketing materials may claim.

The best way to avoid issues is to simply use larger diameter hardware.

I will also add, the Steeda diff bracing should help tremendously as well. It all depends on how you want to set it up.


NGOT8R

Well-Known Member
Joined
Jul 19, 2020
Messages
1,837
Reaction score
879
Location
Florida
First Name
Adrian
Vehicle(s)
2019 Bullitt
If you are using the factory threads, you really have not made a true upgrade. No current offering that still retains the OE threads has been immune to failures, regardless of what marketing materials may claim.

The best way to avoid issues is to simply use larger diameter hardware.

I will also add, the Steeda diff bracing should help tremendously as well. It all depends on how you want to set it up.
I hear you KellTrac. I’ve heard of some auto guys breaking the ears tight off their diffs on hard lunches with sticky tires. Steeda and BMR, what say you on all of this?


KellTrac

Well-Known Member
Joined
Dec 25, 2019
Messages
245
Reaction score
225
Location
Florida
Website
www.kelltrac.com
Vehicle(s)
2020 Mustang GTPP1, 2020 Charger ScatPack

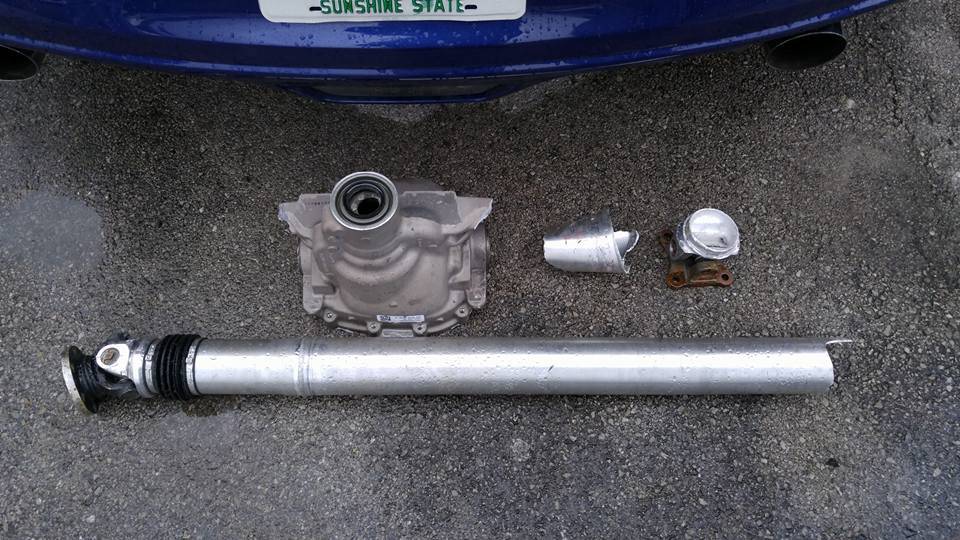

I was the first person to snap ears off the diff, actually. October 2015. I am well aware.

If NVH is not an issue, a solid Diff bushing is the best solution 100%, there is zero debate. It strengthens the entire system and I have never seen a single "failure" with them. I am not referring to inserts or lockouts, I am referring to solid aluminum full replacement.

Personally, I tell people to keep the bushings stock. Then if you tear a bushing, use a through bolt kit with a diff "lockout" or "insert" in poly material.

BG Break.jpg


shogun32

Well-Known Member
Joined
Feb 8, 2019
Messages
9,385
Reaction score
6,095
Location
Northern VA
First Name
Matt
Vehicle(s)
2019 GT+PP, SS+1LE, 2020 F150
Vehicle Showcase
2
I hear you KellTrac. I’ve heard of some auto guys breaking the ears tight off their diffs on hard lunches with sticky tires.
the point is to minimize freedom of movement. If it can't move, it can't break (within reason).
I used the WhiteLine total replacement system. Cheap and effective and very minor noise compared to the 'puck' solutions.


WD Pro

Well-Known Member
Joined
Jan 18, 2018
Messages
2,676
Reaction score
3,760
Location
United Kingdom
Vehicle(s)
Lime GT
Vehicle Showcase
1

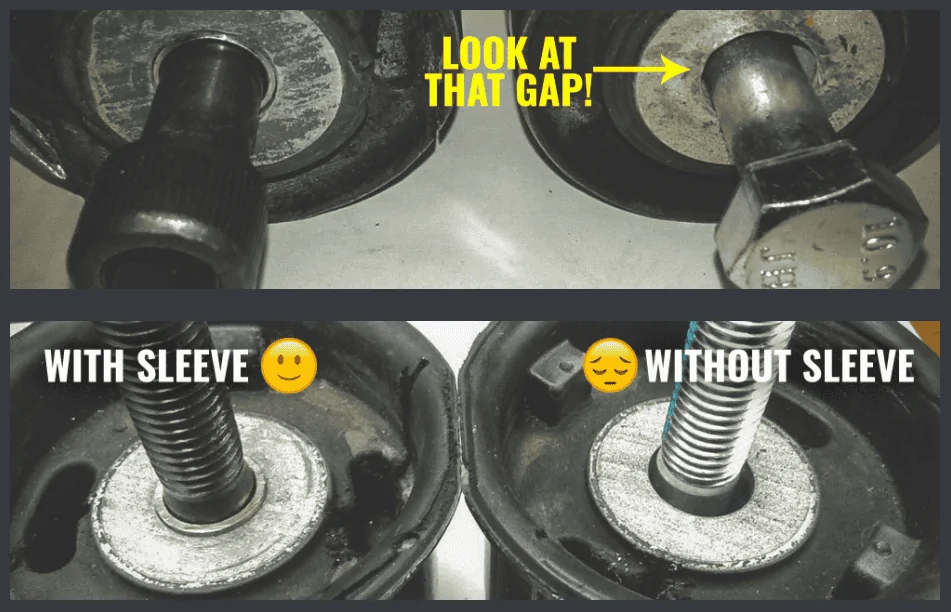

just one example. There are at least 3 companies offering this. I'm talking about the top left/right item. It reduces the 16mm hole in the Ford bushing to 14mm to match the dia of the bolt. It's a mind-blowing catastrophic error by Ford engineering which apparently they can't be arsed to fix in 5 years. I wonder if the GT500 got a correctly designed part.

http://m.bmrsuspension.com/?page=products&productid=1764
That’s for the subframe, need the rear diff bolt bushings, 16mm OD, 14mm ID
smidge shy of 2"
Let hope you guys are right … :like:



WD :like:


WD Pro

Well-Known Member
Joined
Jan 18, 2018
Messages
2,676
Reaction score
3,760
Location
United Kingdom
Vehicle(s)
Lime GT
Vehicle Showcase
1

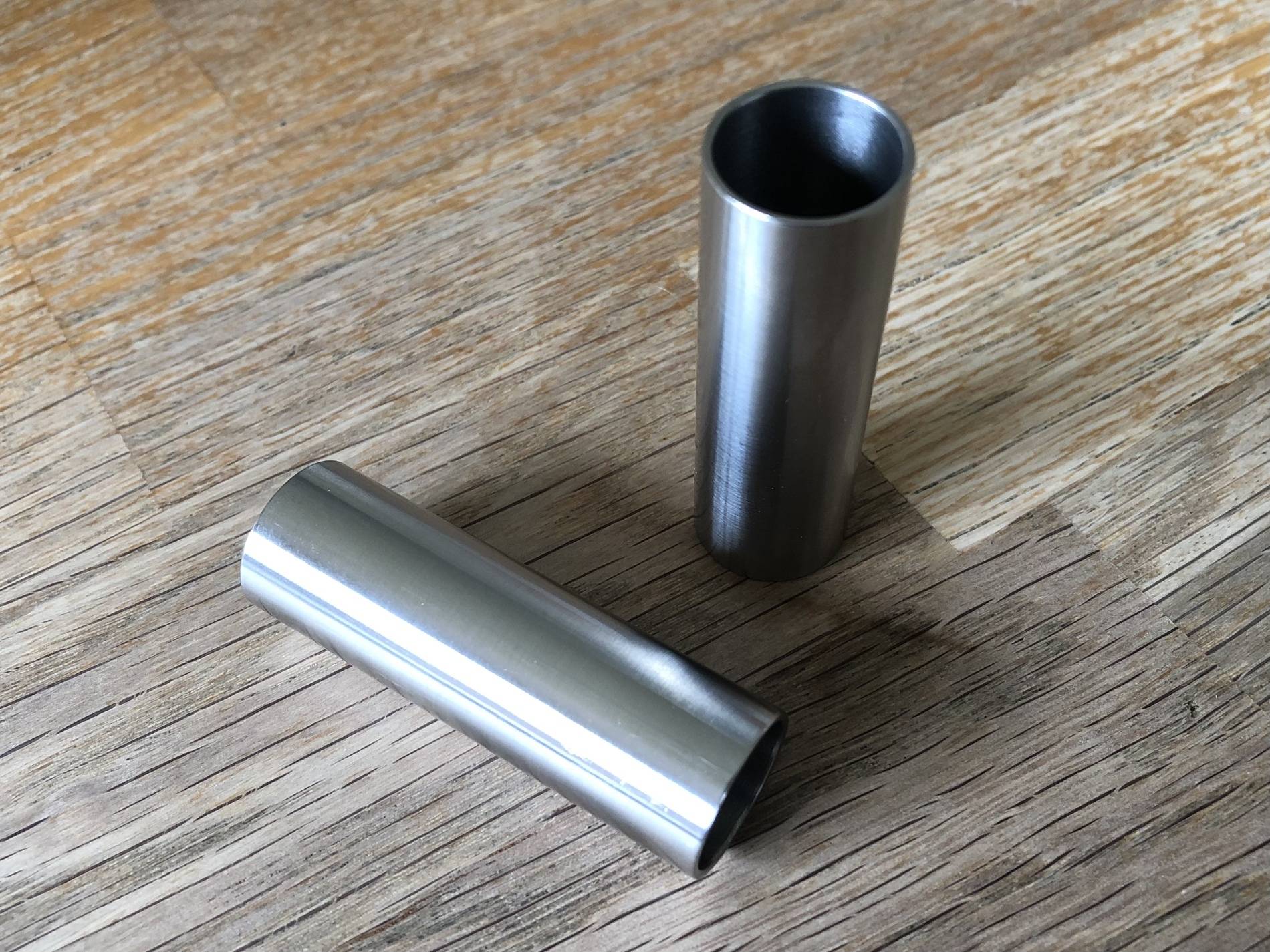

Stainless :like: Ti is for my (push) bikes …

WD :like:


WD Pro

Well-Known Member
Joined
Jan 18, 2018
Messages
2,676
Reaction score
3,760
Location
United Kingdom
Vehicle(s)
Lime GT
Vehicle Showcase
1
Are you planning to counterbore the ears on the diff cover for these?
No, they just take up the sloppy fit of the M14 bolt in a 16mm clearance hole :



WD :like:


aleccolin

Well-Known Member
Joined
Jun 7, 2017
Messages
693
Reaction score
223
Location
VA
Website
www.CarClubVT.com
First Name
Colin
Vehicle(s)
2016 GT PP
What would be better, carbon fiber or titanium? I found 16mm OD x 1mm wall round tube in both, similar price. Probably too many variables to carbon fiber composite to know the exact compressive strength, but having trouble even finding a ballpark for comparison.

I also found copper for even less, but assumed it was too soft. However, maybe it would still work in this application?

Also I was thinking it would probably help to use some ARP lube on the threads and under the head of the bolt when torquing to be sure you get 100% of the bolt stretch to increase friction between the ear on the diff and the mounting bushing, making it less likely to slip under load. I need to look at how the grade of the bolt affects the required installation torque.

Last edited:

shogun32

Well-Known Member
Joined
Feb 8, 2019
Messages
9,385
Reaction score
6,095
Location
Northern VA
First Name
Matt
Vehicle(s)
2019 GT+PP, SS+1LE, 2020 F150
Vehicle Showcase
2
you can probably use Delrin and suffice. the point is reducing freedom of movement. Do NOT lube the threads without reducing the torque value. A giant WAG is 30% reduction from dry. All of the female threads are in AL as I recall so ripping out the threads with a steel fastener is a distinct possibility. Save yourself the trouble and just drill the threads out and thru-bolt it. :)


GTP

Deutsche Pony
Joined
May 27, 2015
Messages
3,150
Reaction score
1,037
Location
Indy
Website
www.BambergAudio.com
First Name
Philip
Vehicle(s)
Poor Man's McLaren
What would be better, carbon fiber or titanium? I found 16mm OD x 1mm wall round tube in both, similar price. Probably too many variables to carbon fiber composite to know the exact compressive strength, but having trouble even finding a ballpark for comparison.

I also found copper for even less, but assumed it was too soft.
...
Let us know when you find them in steel or stainless. I couldn't.
