Aftermarket Transmission Cooler Installed

Discussion in 'Shelby GT350 Mustang' started by Side_Pce, Oct 5, 2017.

  1. Side_Pce

    Side_Pce Well-Known Member

    Vehicle(s):
    2016 GT350
    Joined:
    Sep 5, 2015
    Location:
    NY
    Posts:
    393
    Likes Received:
    155
    Rating:
    100%
    1   0   0
    #1 Side_Pce, Oct 5, 2017
    Last edited: Oct 5, 2017
    Just wanted to make a quick post about my Transmission cooler install.

    Parts I used:

    Weldon Racing 9200 pump

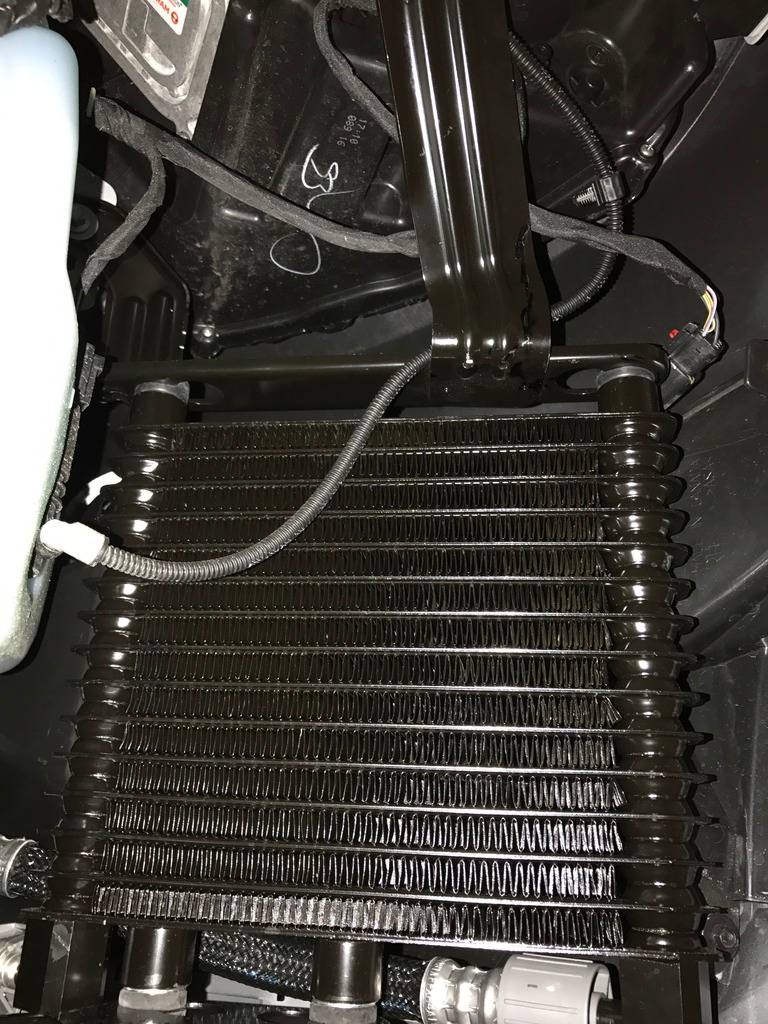

    OEM Cooler
    OEM forward lines
    Earls hardline to AN fitting
    Aeroquip (2) -8AN straight push lock
    Aeroquip (2) -8AN 45 push lock
    Aeroquip (2) -8AN 90 push lock
    Aeromotive (2) 1/2 NPT to -8AN
    Aeroquip socketless AQP lines 15' (used 10')
    Aeroquip line hangers
    (2) hose separators

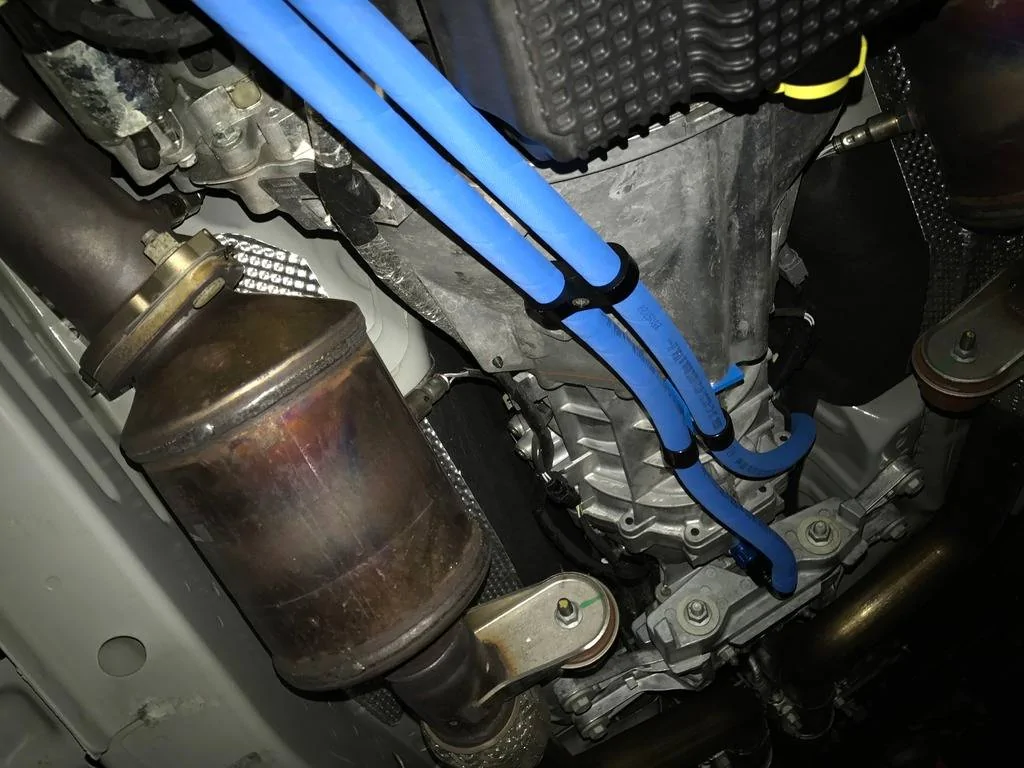

    Hose mount bracket (used an L bracket, mounted under transmission using existing threaded holes.)
    Painless performance Relay kit
    Dorman rocket switch (LED)
    Dephi weatherpack connecter (+ crimper)
    Various wiring parts, tools.
    Hose cutter
    Bolts, nuts, washers.

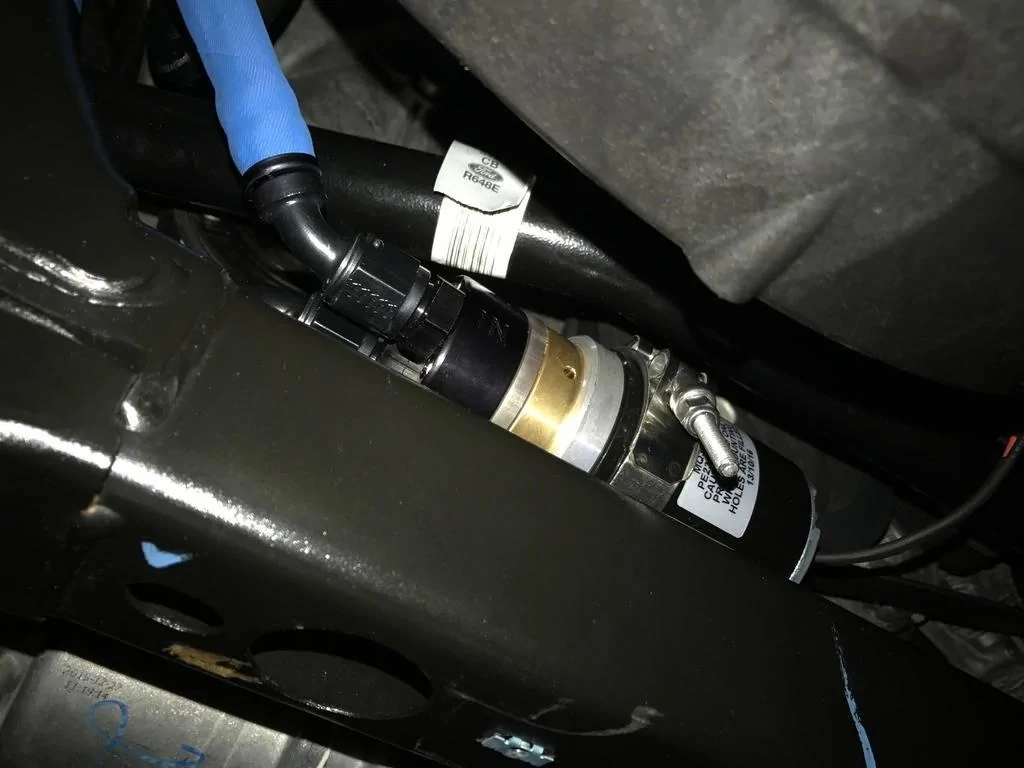

    Fabricated mount for the pump. (I used (2) 5"x1"x1/8" stainless plates, drilled holes and tapped threads in one side to sandwich the pump T-Clamp onto the lower engine frame, right under the front sway bar. It was the only location I could find that limited the amount of line used and still be in the location of where the forward line ends. It wasn't the first place I wanted to mount it, but I didn't have the tools to make one.)
    Amsoil ATF fluid

    This is about all I can think of for parts.

    I made a short video here. #### ####




    [​IMG]




    CSL, Hack, rb92gt and 7 others like this.
  2. Tomster

    Tomster Beware of idiots

    First Name:
    Tom
    Vehicle(s):
    2 - '17 and 1 - '18 GT350 R's
    Joined:
    Feb 20, 2016
    Location:
    FL
    Posts:
    7,919
    Likes Received:
    6,520
    0   0   0
    Nice job! congrats!

  3. sigintel

    sigintel Well-Known Member

    Vehicle(s):
    2018 GT
    Joined:
    Nov 24, 2015
    Location:
    Republic of Texas
    Posts:
    1,679
    Likes Received:
    753
    Rating:
    100%
    1   0   0
    Very nice

  4. TDC

    TDC Well-Known Member

    Vehicle(s):
    2016 GT350, 2019 Challenger Scat Pack Widebody
    Joined:
    Jan 27, 2015
    Location:
    Long Island
    Posts:
    2,215
    Likes Received:
    1,301
    Rating:
    100%
    1   0   0
    Used the factory lines as well; makes all the difference in routing through the engine bay. Another tech pack comes to life!

    Tank likes this.
  5. Tank

    Tank 9/11 - Never Forget

    First Name:
    Jim
    Vehicle(s):
    G0853 Never Forget
    Joined:
    Feb 19, 2016
    Location:
    New England
    Posts:
    2,697
    Likes Received:
    1,452
    0   0   0
    Excellent!! Congrats [MENTION=18362]Side_Pce[/MENTION]
    Thanks for posting your parts list :thumbsup:

  6. OP
    OP
    Side_Pce

    Side_Pce Well-Known Member

    Vehicle(s):
    2016 GT350
    Joined:
    Sep 5, 2015
    Location:
    NY
    Posts:
    393
    Likes Received:
    155
    Rating:
    100%
    1   0   0
    Thanks everyone. Picked up a lot of info on this forum so I'll try and share as much information as I can. I ran into a number of road blocks for sure. Tools being limited, it was a struggle to make a bracket, and put the fittings in the hose. It's doable with hand tools and a little bit of imagination.

  7. OP
    OP
    Side_Pce

    Side_Pce Well-Known Member

    Vehicle(s):
    2016 GT350
    Joined:
    Sep 5, 2015
    Location:
    NY
    Posts:
    393
    Likes Received:
    155
    Rating:
    100%
    1   0   0
    Tracked it today. Was consistent at 190. The last session it went to 210, but I think that was because I forgot to turn it on the first lap. Was in the hight 70's. Id call that a success. Just need to change the Diff fluid now.

    Tank likes this.
  8. User5.2

    User5.2 Well-Known Member

    Vehicle(s):
    19 GT350R, 19 Miata RF 30th Aniv.
    Joined:
    Sep 12, 2016
    Location:
    Colorado
    Posts:
    65
    Likes Received:
    72
    0   0   0
    Awesome, another tech on the track! I definitely recommend changing the diff oil as mine looked murky and dark black after 1 autocross and 2 track sessions.

  9. rb92gt

    rb92gt Well-Known Member

    First Name:
    Ryan
    Vehicle(s):
    2016 GT350 Cooled Tech
    Joined:
    Jul 23, 2015
    Location:
    Ponte Vedra, FL
    Posts:
    588
    Likes Received:
    367
    0   0   0
    Nice job, clean install. Do you remember what size Earl's hardline to AN fitting you used? Particularly the hardline size. Thx.

  10. OP
    OP
    Side_Pce

    Side_Pce Well-Known Member

    Vehicle(s):
    2016 GT350
    Joined:
    Sep 5, 2015
    Location:
    NY
    Posts:
    393
    Likes Received:
    155
    Rating:
    100%
    1   0   0
    I used a 1/2" to -8an male hardline adapter.

    rb92gt likes this.
  11. Caballus

    Caballus Well-Known Member

    Vehicle(s):
    GT350
    Joined:
    Jan 24, 2016
    Location:
    Europe
    Posts:
    2,258
    Likes Received:
    932
    0   0   0

    [MENTION=18362]Side_Pce[/MENTION]--a few questions for you:
    - What modifications did you have to make to the OEM forward lines? How much did you cut? Do you have the part numbers for the adapters?

    - Do you have the part number for the L-shaped hose bracket?

    - Where did you position the relay?

    Thanks much!

  12. OP
    OP
    Side_Pce

    Side_Pce Well-Known Member

    Vehicle(s):
    2016 GT350
    Joined:
    Sep 5, 2015
    Location:
    NY
    Posts:
    393
    Likes Received:
    155
    Rating:
    100%
    1   0   0

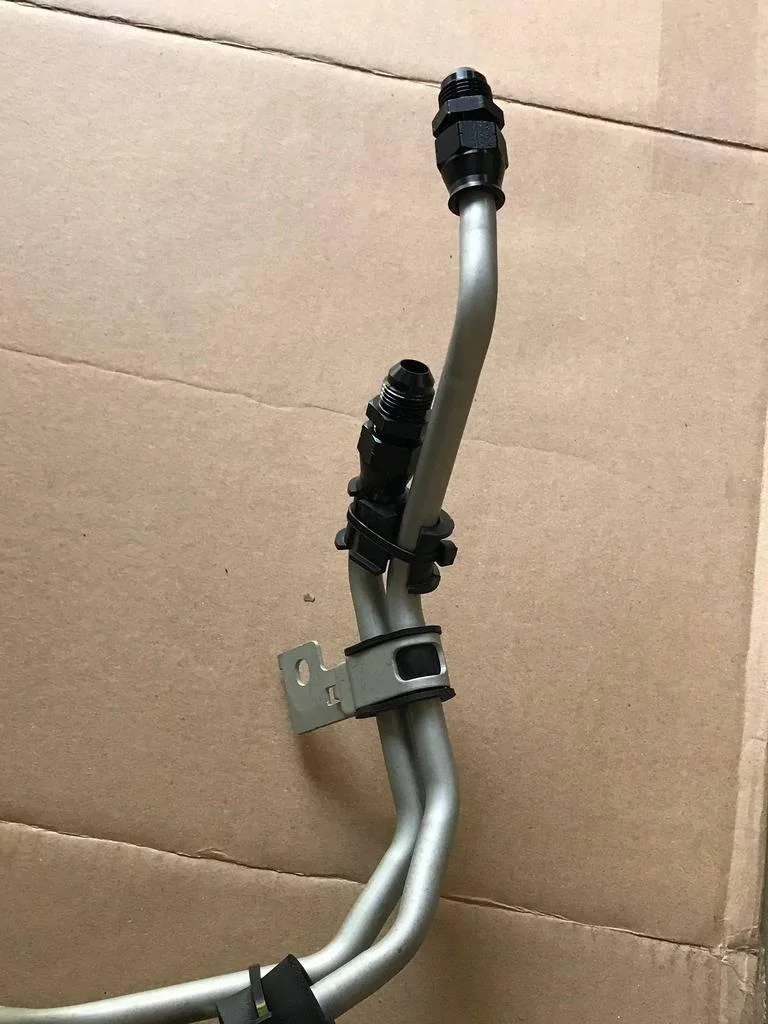

    I made cuts on the straight bits of the line with a pipe cutter, staggering the cuts so the fittings didn’t hit each other.

    I don’t have the L bracket part # off hand.

    The relay is tricky, but not hard to set up. You’re better off buying an all weather relay and mounting it somewhere in the enginebay. I mounted it under the pass side dash with a machine screw. Worked fine enough.

    Caballus likes this.
  13. Sir_Apoc

    Sir_Apoc Member

    Vehicle(s):
    2016 GT350
    Joined:
    Jan 11, 2018
    Location:
    OR
    Posts:
    14
    Likes Received:
    10
    0   0   0
    Nice job!

    Anyone know if the factory setup is constantly cycling transmission fluid, or if it's temp specific? I wonder if you could do away with the rocket switch if you could set up a temp switch to trigger the pump.

  14. OP
    OP
    Side_Pce

    Side_Pce Well-Known Member

    Vehicle(s):
    2016 GT350
    Joined:
    Sep 5, 2015
    Location:
    NY
    Posts:
    393
    Likes Received:
    155
    Rating:
    100%
    1   0   0
    The 16' track packs and 17'-18' constantly cycle fluid in the transmission. The rear axle is temp controlled.

    You can set up a temp switch to trigger the relay but I only use it if I'm tracking the car or on a hot day so I didn't feel the need to try and set that up.

  15. Caballus

    Caballus Well-Known Member

    Vehicle(s):
    GT350
    Joined:
    Jan 24, 2016
    Location:
    Europe
    Posts:
    2,258
    Likes Received:
    932
    0   0   0
    Perfect. Thanks!
