Adding a subwoofer amp...lc2i or speaker level inputs?

SVT-DADDY

World's heaviest S550
Joined
Apr 28, 2016
Threads
93
Messages
1,513
Reaction score
472
Location
CT
Vehicle(s)
2015 GT Convertible
Vehicle Showcase
1
I have a 12 speaker Shaker system. My car is a 2015 Premium convertible.

I've upgraded my center speaker(Polk db3651 and subwoofer (Polk db840dvc) speakers. The car now sounds more like I expected it to when I bought it.

I'd like to push that little 8" Polk a little harder. While I can rebuild a motor, my understanding of car audio is on a 4th grade level. So I'd like to keep things as simple as possible.

My synopsis of my options is this:

Option one- Take signal from one of the rear speakers, and run it to an amp that has speaker level inputs. However I don't have a rear deck with 6x9's just waiting for me to tap into. It's my understanding that I can't use the signal going into the subwoofer amp because it's different? Can someone confirm this?

Option two- Connect the output of the existing amp to an LC2i and connect the LC2i to the amp. Then the amp to the speakers.

These are the amps I am considering if it makes any difference:

https://www.crutchfield.com/Product...eItems=01|575P300X2&compareItems=01|575R250X1

My question is what are the pros and cons of each option. Again I am not an audiophile, so please feel free to break is down is 4th grader terms.

Thanks!
Sponsored


Last edited:

stang1971

Well-Known Member
Joined
Feb 2, 2016
Threads
32
Messages
522
Reaction score
184
Location
kcmo
Vehicle(s)
2018 Premium Plus Magnetic GT
I used a PAC audio sni-15 and works perfect

OP
OP
SVT-DADDY

SVT-DADDY

World's heaviest S550
Joined
Apr 28, 2016
Threads
93
Messages
1,513
Reaction score
472
Location
CT
Vehicle(s)
2015 GT Convertible
Vehicle Showcase
1

Droid_Junky

Well-Known Member
Joined
Jul 4, 2014
Threads
5
Messages
306
Reaction score
101
Location
Gulf Coast
Vehicle(s)
2015 DIB Mustang

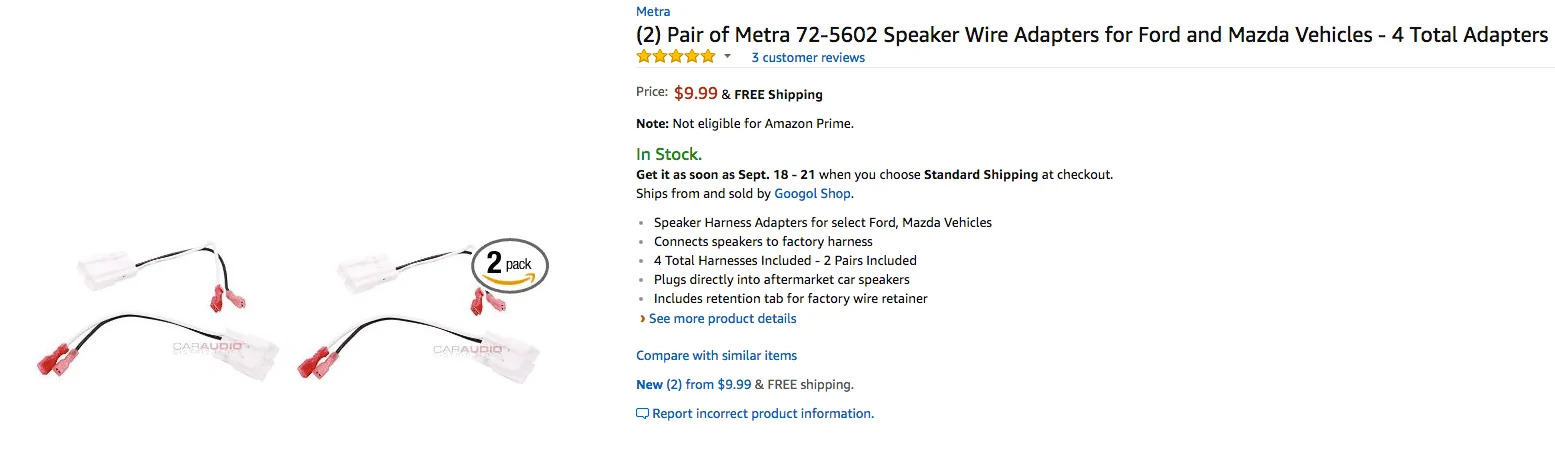

If it has speaker level inputs you don't need the LC2i. But your not just tapping one speaker. You need to tap both rear speakers. I did something similar and bought these wire adapters on Amazon. The picture is not exactly what I received. The connector actually had four wires. I just cut the two wires that weren't being used and attached the speaker level inputs.

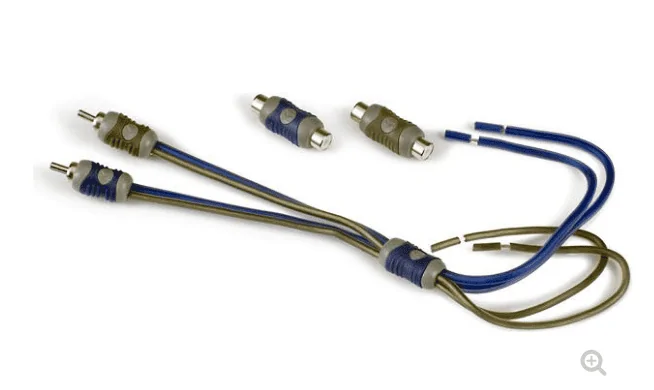

The second pic is the RCA to speaker level input.
Screen Shot 2017-09-12 at 3.44.36 PM.png
Screen Shot 2017-09-12 at 3.43.40 PM.png


2016Gruv

Well-Known Member
Joined
Jun 2, 2016
Threads
0
Messages
96
Reaction score
32
Location
Ogden, UT
Vehicle(s)
2016 GT
Why can't the signal to the OEM sub amp be used?

The Polk sub is rated at 90wpc at each coil, so the Rockford Fosgate Punch P300X2 would be a good fit. I can't say whether it will get noticeably louder without knowing the rating of the OEM amp. It takes double the power to get a 3dB increase in SPL. If the Rockford Fosgate amp has 2x the power of the OEM amp, you notice a slight increase in output and probably better handling of low frequency transients.


Sponsored

OP
OP
SVT-DADDY

SVT-DADDY

World's heaviest S550
Joined
Apr 28, 2016
Threads
93
Messages
1,513
Reaction score
472
Location
CT
Vehicle(s)
2015 GT Convertible
Vehicle Showcase
1
If it has speaker level inputs you don't need the LC2i. But your not just tapping one speaker. You need to tap both rear speakers. I did something similar and bought these wire adapters on Amazon. The picture is not exactly what I received. The connector actually had four wires. I just cut the two wires that weren't being used and attached the speaker level inputs.

The second pic is the RCA to speaker level input.
Thanks that makes option one a bit easier!

Why can't the signal to the OEM sub amp be used?

The Polk sub is rated at 90wpc at each coil, so the Rockford Fosgate Punch P300X2 would be a good fit. I can't say whether it will get noticeably louder without knowing the rating of the OEM amp. It takes double the power to get a 3dB increase in SPL. If the Rockford Fosgate amp has 2x the power of the OEM amp, you notice a slight increase in output and probably better handling of low frequency transients.
My limited understanding leads me to believe that some formating is done in the oem amp.


kingofsting

Well-Known Member
Joined
Dec 9, 2014
Threads
2
Messages
91
Reaction score
42
Location
NYC
Vehicle(s)
2016 Mustang GT Shadow Black / Redline Interior
I replaced the OEM sub with an 8" kicker sub powered by the JL HX 300/1 amp. I cut the wiring from the OEM amp to the OEM sub, daisy-chained the JL amp using speaker wire to RCA adapters, and ran speaker wiring from the JL amp back to the kicker sub. To be honest, I'm not sure what if any effect keeping the OEM amp in the loop has. I do notice that the sub output increases/decreases using the factory Bass setting control


c_me_pass_u

Member
Joined
Feb 4, 2018
Threads
4
Messages
13
Reaction score
0
Location
Texas
Vehicle(s)
2015 Mustang GT
I replaced the OEM sub with an 8" kicker sub powered by the JL HX 300/1 amp. I cut the wiring from the OEM amp to the OEM sub, daisy-chained the JL amp using speaker wire to RCA adapters, and ran speaker wiring from the JL amp back to the kicker sub. To be honest, I'm not sure what if any effect keeping the OEM amp in the loop has. I do notice that the sub output increases/decreases using the factory Bass setting control
Would you happen to know the part number for that 8" sub


c_me_pass_u

Member
Joined
Feb 4, 2018
Threads
4
Messages
13
Reaction score
0
Location
Texas
Vehicle(s)
2015 Mustang GT
I've upgraded my center speaker(Polk db3651 and subwoofer (Polk db840dvc) speakers.
I was looking up Polk db840dvc but results kept pointing to polk db842dvc would either work?..I wanna upgrade my 8" oem sub


Vicr

Well-Known Member
Joined
Mar 8, 2018
Threads
47
Messages
523
Reaction score
337
Location
Fortuna Foothills, AZ
First Name
Vic
Vehicle(s)
2015 Mustang Ecoboost Premium

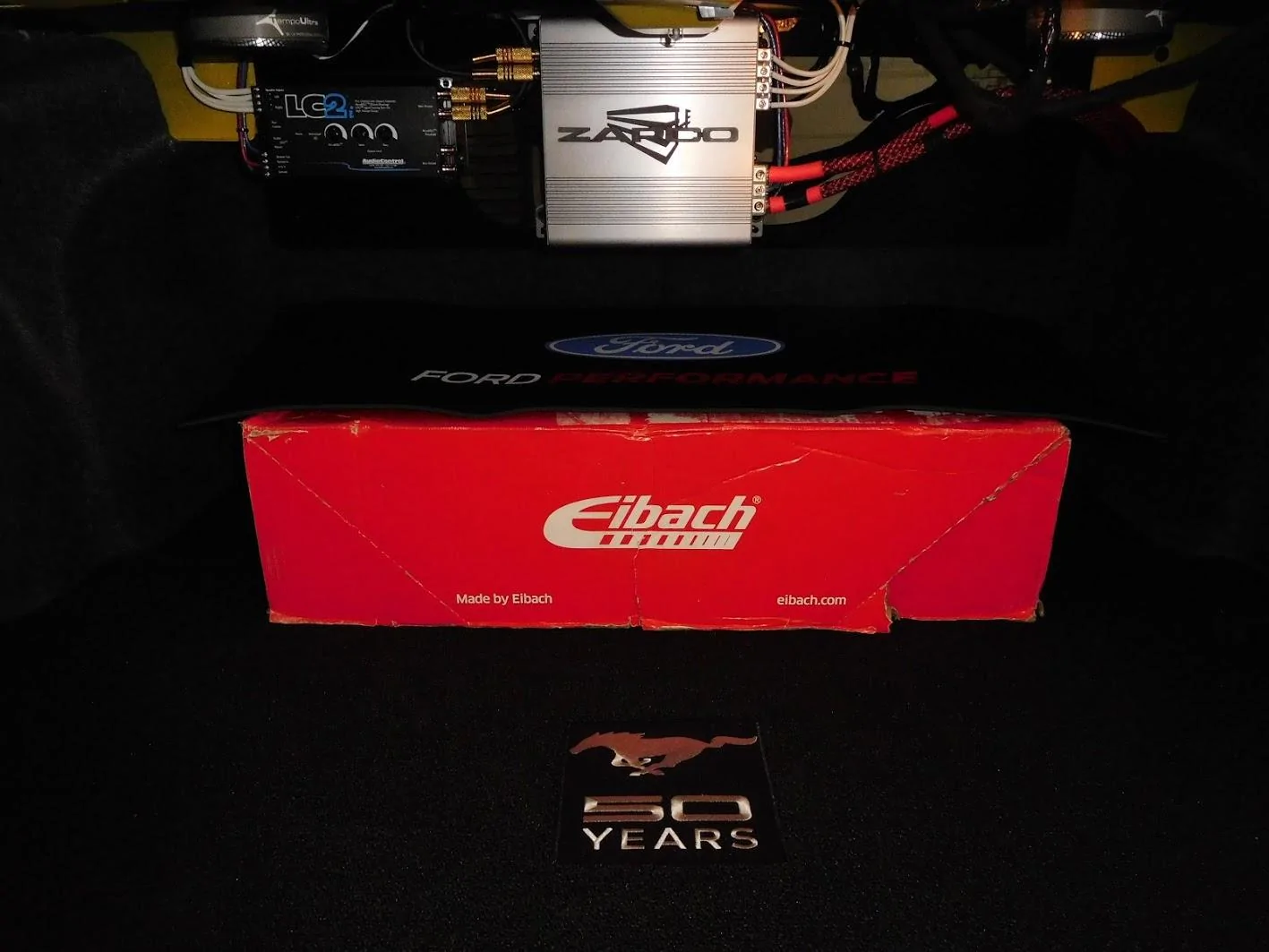

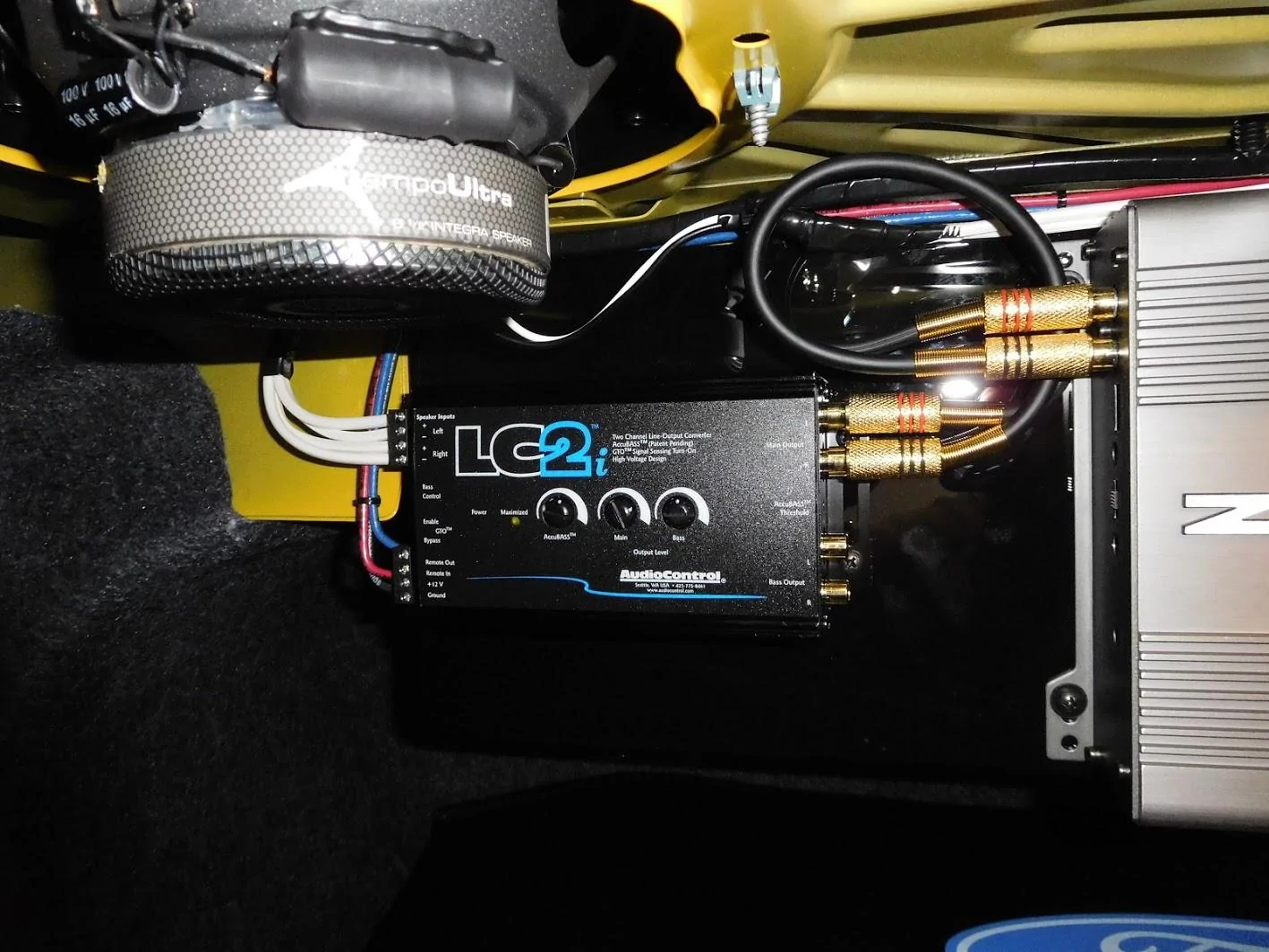

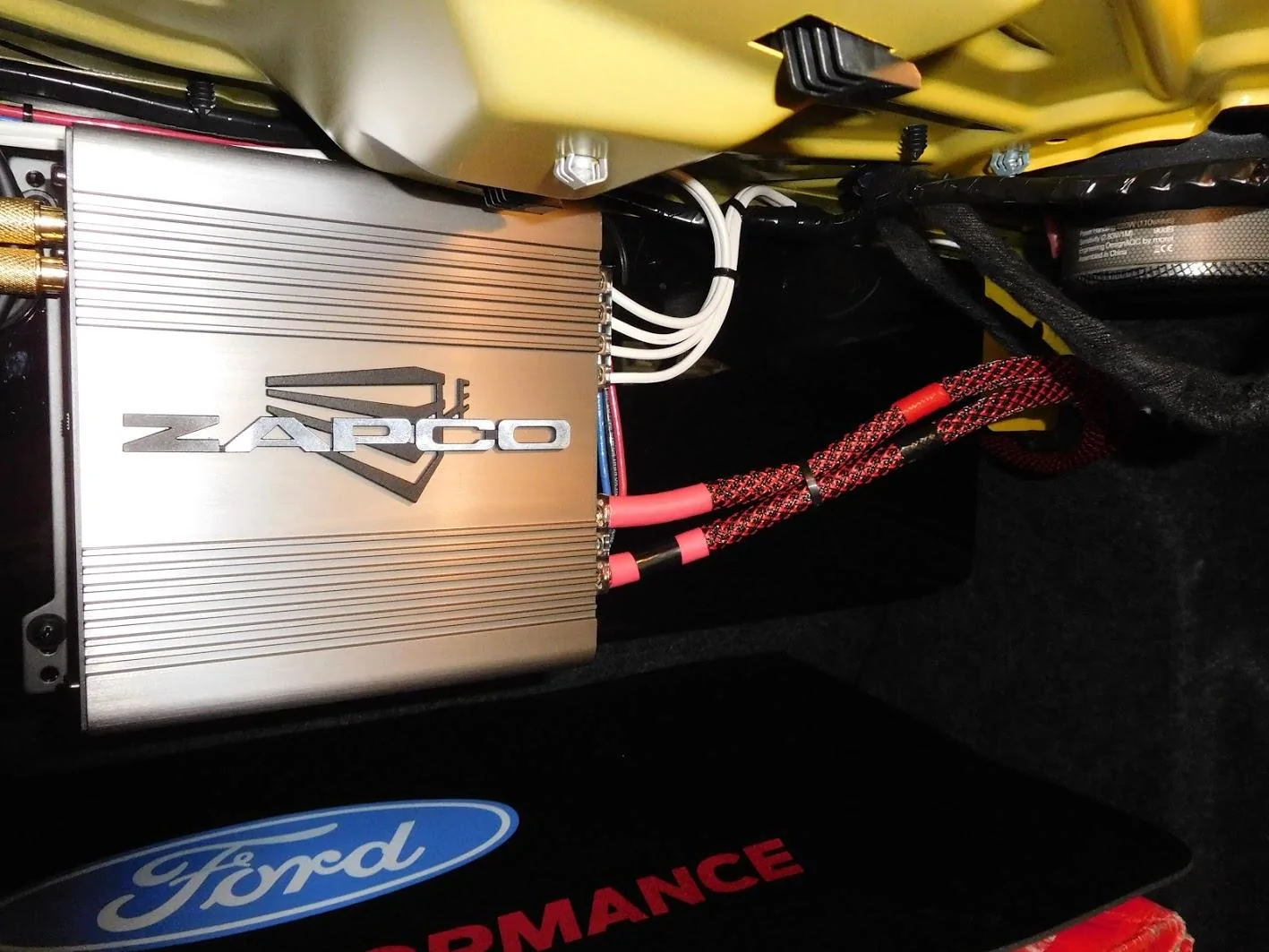

Here's my set up. I replaced the 6.5" rear deck speakers with Morel Tempo Ultra 602's, speaker level inputs to an LC2i and pre-amp inputs into a Zapco ST-2D amp. After some adjusting of the pre-amp out puts on the LC2i and a slight bump on the gain on the amp I now have a balanced sound system and the fader works as it should. I left room on the plexiglass plate to add another amp that will power a proper 8" sub by-passing the factory sub amp.
7xUaljz-TcXBwxg28z1s-LCj9fwIKaLGCne5-6eczxvvQcVMCcXZ7j2M1SucnKnqlZMi30LyHL4lF987g=w1418-h1063-no.jpg
IvaPADWwWgwuUtyP1P5lRTzJeXpuc8k8AiZDt6OMtBr2j5ijuGM-ftLUwsXF1hiBrKQQtYQvBLnH9sUbA=w1418-h1063-no.jpg
UoBrg6kAOnU1YoXkfaMBX_zsFac04fk9I0ZWowQA5m7AZc4O8Ip4xrCSfXOgQUDBlG8T2wYqF_qIn6e6w=w1418-h1063-no.jpg


Sponsored

Chef jpd

Well-Known Member
Joined
Apr 1, 2016
Threads
63
Messages
3,015
Reaction score
3,148
Location
Brooklyn, NY
First Name
John
Vehicle(s)
2020 GT PP1 6M, Grab ass lime. Ex: 2016 EB PPP CO
Vehicle Showcase
1

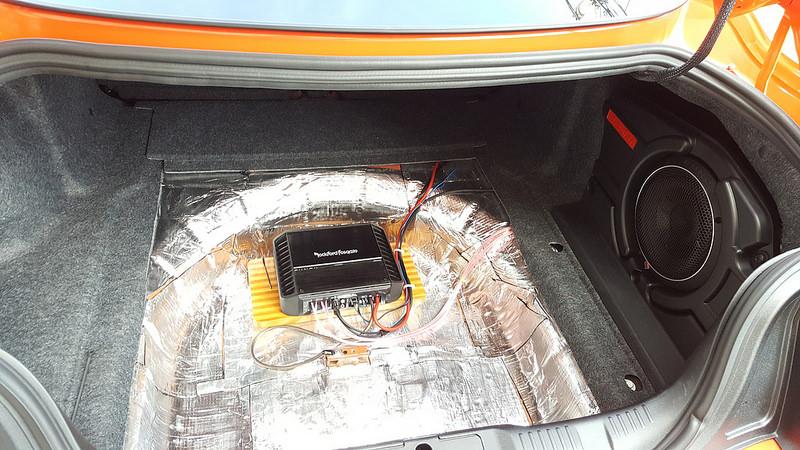

I used the speaker level RCA connectors as above.
i used a Rockford P300 amp and a RF P3D2-8 sub.
20170411_152007 by chefjpd, on Flickr

Last edited:
OP
OP
SVT-DADDY

SVT-DADDY

World's heaviest S550
Joined
Apr 28, 2016
Threads
93
Messages
1,513
Reaction score
472
Location
CT
Vehicle(s)
2015 GT Convertible
Vehicle Showcase
1
I was looking up Polk db840dvc but results kept pointing to polk db842dvc would either work?..I wanna upgrade my 8" oem sub
That will work, I think it's just the latest model.


Vicr

Well-Known Member
Joined
Mar 8, 2018
Threads
47
Messages
523
Reaction score
337
Location
Fortuna Foothills, AZ
First Name
Vic
Vehicle(s)
2015 Mustang Ecoboost Premium
Did you you get it done and how does it sound? Sub replacement is my next sound mod after getting my Sportline springs installed.
