5.2L VooDoo Firing Order

Discussion in 'Shelby GT350 Mustang' started by Zitrosounds, Mar 18, 2016.

  1. Zitrosounds

    Zitrosounds Well-Known Member

    First Name:
    Harold
    Vehicle(s):
    16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
    Joined:
    Oct 20, 2015
    Location:
    Madison, AL
    Posts:
    3,411
    Likes Received:
    2,153
    0   0   0
    I have been combing the internet and have come up empty. I know ford purchased a 458 Italia motor for RND and that the firing order is different on the 350. The question is, What is the firing order for the Voodoo?

  2. GT P-TREE

    GT P-TREE Well-Known Member

    Vehicle(s):
    2016 GT350 Track Pack
    Joined:
    Aug 13, 2015
    Location:
    Virginia Beach, VA
    Posts:
    483
    Likes Received:
    110
    0   0   0
    The 458 was also attached to the motor for the R&D. I do not know the cylinders firing order though. I think it's UDDU whatever that means :D (Someone will come in soon and correct me)

  3. OP
    OP
    Zitrosounds

    Zitrosounds Well-Known Member

    First Name:
    Harold
    Vehicle(s):
    16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
    Joined:
    Oct 20, 2015
    Location:
    Madison, AL
    Posts:
    3,411
    Likes Received:
    2,153
    0   0   0
    Up down down up crank pin position.

  4. yellowragtop

    yellowragtop Well-Known Member

    Vehicle(s):
    2001 mustang conv
    Joined:
    Feb 19, 2015
    Location:
    Dallas, TX
    Posts:
    124
    Likes Received:
    26
    0   0   0
    #4 yellowragtop, Mar 18, 2016
    Last edited: Mar 18, 2016
    [FONT=&quot]I carefully examined the crankshaft (which is Up-down-UP-down), then I looked at the headers on the driver, and passenger side to see which exhaust ports are "shared".

    Based on this, [FONT=&quot][FONT=&quot]The following is the only fir[FONT=&quot]ing order it can be:[/FONT][/FONT][/FONT]
    (1-7-2-8-3-5-4-6).

    [FONT=&quot]Here is some data:
    [/FONT][/FONT]
    [FONT=&quot][FONT=&quot][FONT=&quot]Looking at photos of the Voodoo, we will see that these Cylinder exhausts were matched together: (1 and 3), (2 and 4) on passenger side and (5 and 7) and (6 and 8) on the drivers side.[/FONT]

    [/FONT][/FONT][FONT=&quot][FONT=&quot][FONT=&quot]If the exhaust truly is set up so that cylinders which fire 360 deg. apart have their exhaust connected together, (and[FONT=&quot] t[FONT=&quot]wo cylinder[FONT=&quot]s cannot fire one after the other on the same cylinder head)[/FONT][/FONT][/FONT] then I computed [FONT=&quot]th[FONT=&quot]is[/FONT][/FONT] firing order: 1-7-2-8-3-5-4-6.

    Notice here where 1 and 3 are in the firing order. (360 Degrees apart and their exhaust ports are shared). [/FONT][/FONT][/FONT][FONT=&quot][FONT=&quot][FONT=&quot][FONT=&quot][FONT=&quot][FONT=&quot]
    [/FONT][/FONT][/FONT]
    [/FONT][/FONT][/FONT][FONT=&quot][FONT=&quot][FONT=&quot][FONT=&quot]This link here will explain fully about connecting exhaust ports where you want to have the ones firing 360 degrees apart to have the exhaust shared: http://www.fordfe.info/Exhaust/180FEHeaders.htm

    [/FONT][/FONT]
    [FONT=&quot]E[FONT=&quot]DIT: [FONT=&quot]Apparently this com[FONT=&quot]bination also does work [/FONT][/FONT][/FONT][/FONT][/FONT][/FONT][FONT=&quot][FONT=&quot][FONT=&quot][FONT=&quot][FONT=&quot][FONT=&quot]1, 5, 4, 8, 3, 7, 2, 6 but I think I [FONT=&quot]did not pick this because if you look at how the pistons are firing, it jus[FONT=&quot]t seems odd[FONT=&quot] to me.[/FONT][/FONT][/FONT][/FONT][/FONT][/FONT][/FONT]



    [/FONT] [/FONT]

    F1-R and Zitrosounds like this.
  5. krt22

    krt22 Well-Known Member

    Vehicle(s):
    2016 GT350 Track Pack
    Joined:
    May 27, 2015
    Location:
    CA
    Posts:
    4,563
    Likes Received:
    2,010
    0   0   0
    Its 1, 5, 4, 8, 3, 7, 2, 6. , the coyote is 1, 5, 4, 8, 6, 3, 7, 2.

    raiderjatt02 and Zitrosounds like this.
  6. OP
    OP
    Zitrosounds

    Zitrosounds Well-Known Member

    First Name:
    Harold
    Vehicle(s):
    16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
    Joined:
    Oct 20, 2015
    Location:
    Madison, AL
    Posts:
    3,411
    Likes Received:
    2,153
    0   0   0
    Thanks for the info. Where did you get it? For reference please.

    Thanks,

  7. krt22

    krt22 Well-Known Member

    Vehicle(s):
    2016 GT350 Track Pack
    Joined:
    May 27, 2015
    Location:
    CA
    Posts:
    4,563
    Likes Received:
    2,010
    0   0   0
    I cant post the link due to the forum war with SVTP. but they did an article on it, they pulled the firing order directly from the PCM

    Zitrosounds likes this.
  8. OP
    OP
    Zitrosounds

    Zitrosounds Well-Known Member

    First Name:
    Harold
    Vehicle(s):
    16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
    Joined:
    Oct 20, 2015
    Location:
    Madison, AL
    Posts:
    3,411
    Likes Received:
    2,153
    0   0   0
    Using the info you gave me I found an official source.

  9. OP
    OP
    Zitrosounds

    Zitrosounds Well-Known Member

    First Name:
    Harold
    Vehicle(s):
    16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
    Joined:
    Oct 20, 2015
    Location:
    Madison, AL
    Posts:
    3,411
    Likes Received:
    2,153
    0   0   0

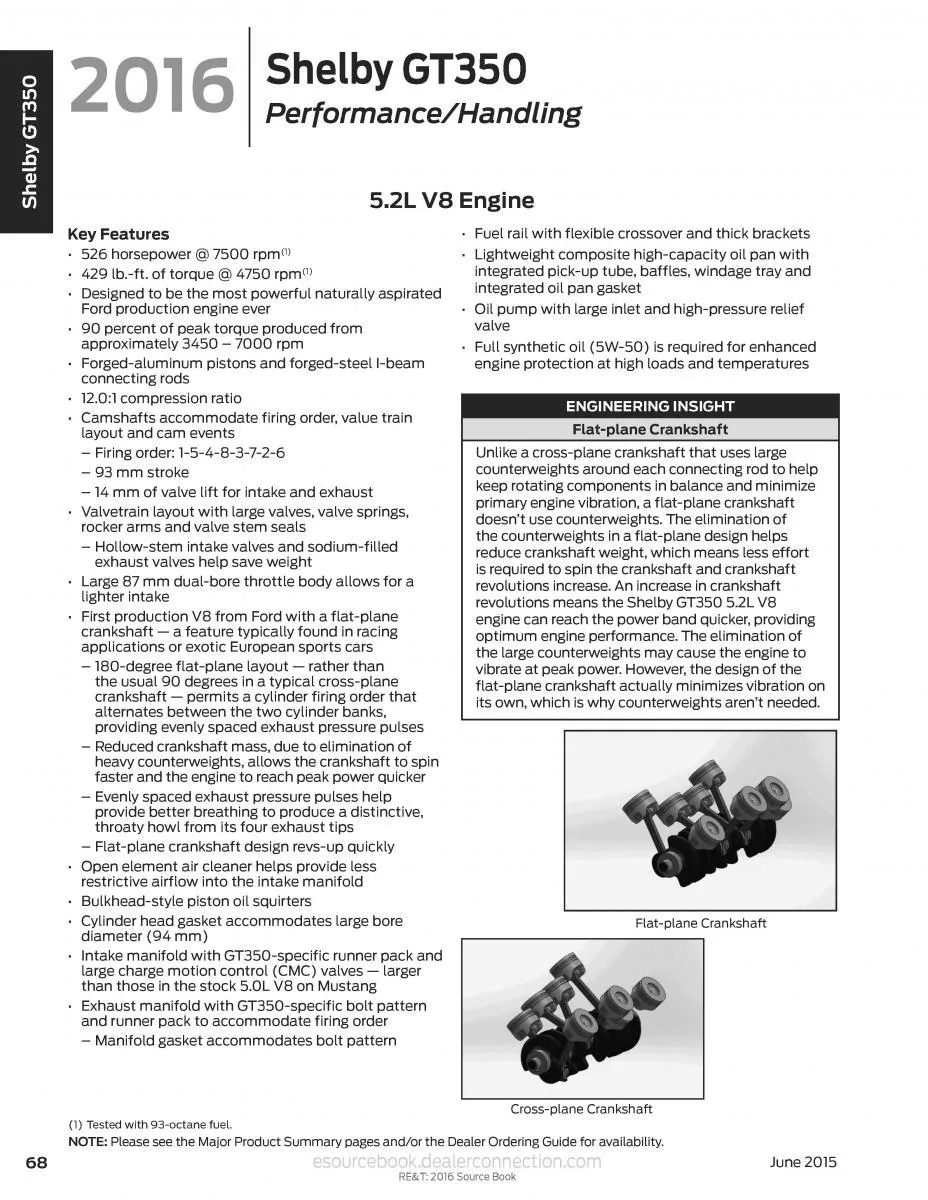

    It is in the 2016 Shelby GT350 SourceBook. I was unable to upload the entire .pdf file as it is to large. An easy internet search with the title provided will garner results. 2016 Shelby GT350 SourceBook_Page_08.jpg

    Old Car Guy, drainey and raiderjatt02 like this.
  10. OP
    OP
    Zitrosounds

    Zitrosounds Well-Known Member

    First Name:
    Harold
    Vehicle(s):
    16 GT350R/16 GT350TP/15 GT-PP/12 GT-PP
    Joined:
    Oct 20, 2015
    Location:
    Madison, AL
    Posts:
    3,411
    Likes Received:
    2,153
    0   0   0
    Old Car Guy likes this.
