The stock PP rims come with 21mm acorn nuts, most aftermarket rims use 19mm acorn nuts. While the heads are obviously different, does anyone know whether the acorn end of the nut is different? If not is there any reason why you couldn't use the 19mm nuts on the stock PP rims?

Thanks,
<TED>





Advertisement


OP
tedj101

tedj101

Well-Known Member
Joined
Mar 10, 2016
Posts
277
Reaction score
149
Location
Wilmington, DE
First Name
Ted
Vehicle(s)
2018 Shelby 350GT Steeda springs, sways, camber plates, toe links etc: 14 BMW 328d
  • Thread starter
  • Thread Starter
  • #5
Oem use buldge seat

Aftermarket is acorn seat

Is that what you mean ?
I did not realize that the seat is different. Presumably, if the seat is different you need the proper nut. So I should not use the 19mm on PP wheels?

<TED>


Wheel_Guy

Wheel_Guy
Joined
Jan 20, 2016
Posts
39
Reaction score
7
Location
Minneapolis, MN
Vehicle(s)
2015 GT Premium Convert
The 19mm hex aftermarket bulge lugs are slightly smaller in diameter at the bulge than the OE lugs. It's like 0.92" & 1.0"


Optimum Performance

Well-Known Member
Gold Sponsor
Joined
Mar 13, 2016
Posts
1,306
Reaction score
679
Location
Titusville, Florida
Website
www.facebook.com
First Name
Tommy
Vehicle(s)
'15 GT PP
I did not realize that the seat is different. Presumably, if the seat is different you need the proper nut. So I should not use the 19mm on PP wheels?

<TED>
Acorn and Bulge both use the same seat (60 degree) You can run either on the OE Wheels. The smaller hex just allows the socket to fit in tighter recesses on some aftermarket wheels. You are good to use them.

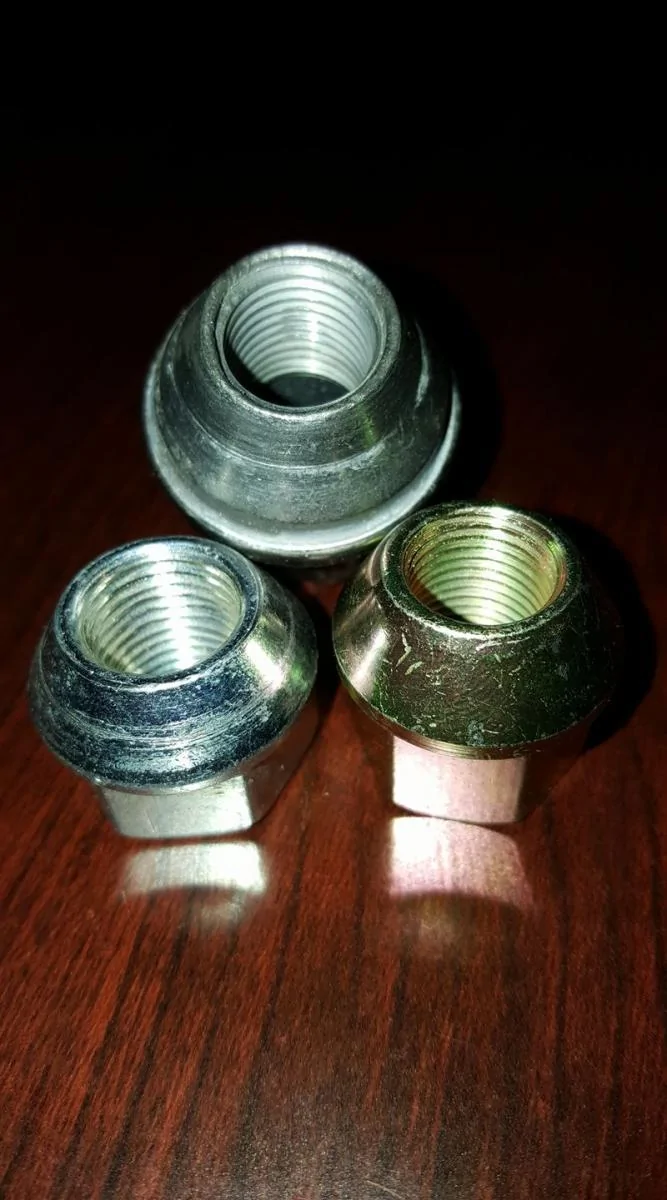

The OEM at top, 14mm left and 1/2" right. The effective part of the seat is the same on all of them.

OP
tedj101

tedj101

Well-Known Member
Joined
Mar 10, 2016
Posts
277
Reaction score
149
Location
Wilmington, DE
First Name
Ted
Vehicle(s)
2018 Shelby 350GT Steeda springs, sways, camber plates, toe links etc: 14 BMW 328d
  • Thread starter
  • Thread Starter
  • #9
Acorn and Bulge both use the same seat (60 degree) You can run either on the OE Wheels. The smaller hex just allows the socket to fit in tighter recesses on some aftermarket wheels. You are good to use them.

The OEM at top, 14mm left and 1/2" right. The effective part of the seat is the same on all of them.
Thanks, Tim!
