15" Wheels on an S550

RBS550

Well-Known Member
Joined
May 10, 2015
Threads
72
Messages
645
Reaction score
437
Location
Port St Lucie Fl
Website
www.youtube.com
First Name
RB
Vehicle(s)
2015 Mustang GT
This post is more to give a fellow forum member an idea of what is involved in getting 15" wheels on an S550. Keep in mind this was a first try and I'm going to a 1" wider rim, with 1" more BS in the near future(15x9.33x6.5BS), this is a total of 2" inward movement from the pics shown below, I may need a small spacer and some grinding. Due to the barrel(inner dia. of the rim) slowly tapering inward, it is necessary to use a "Medium Pad" when using Weld RTS's to clear the caliper. The following pics should help show the problem areas. And the link below is my install of the Aerospace Components brakes, for Drag Racing. I will also be going to a 28" tall tire and 3.31's to keep my rpm's close to my 3.15's, this will give me just a couple more hundred rpm's at the Big End. In the pics those are 26" tall.
http://www.mustang6g.com/forums/showthread.php?t=35232

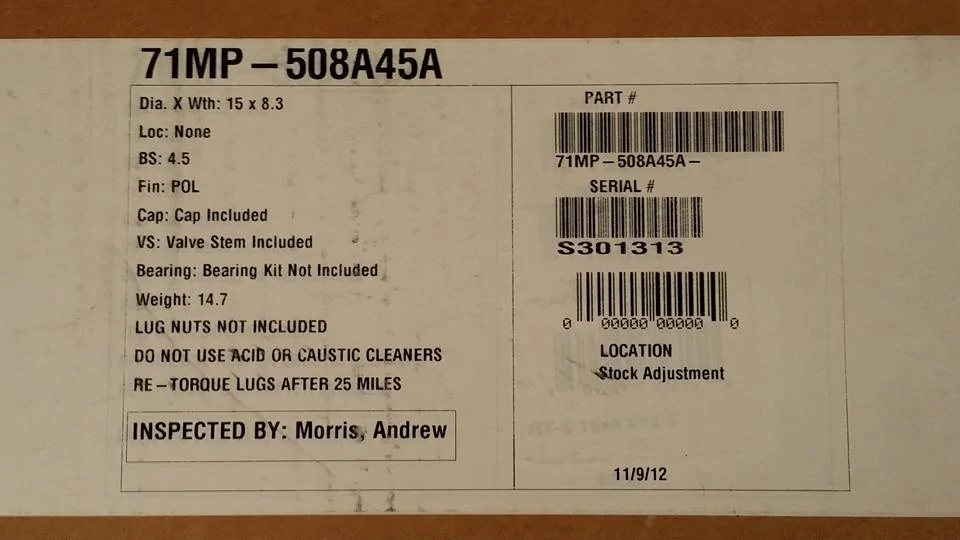

Weld rear part number.jpg

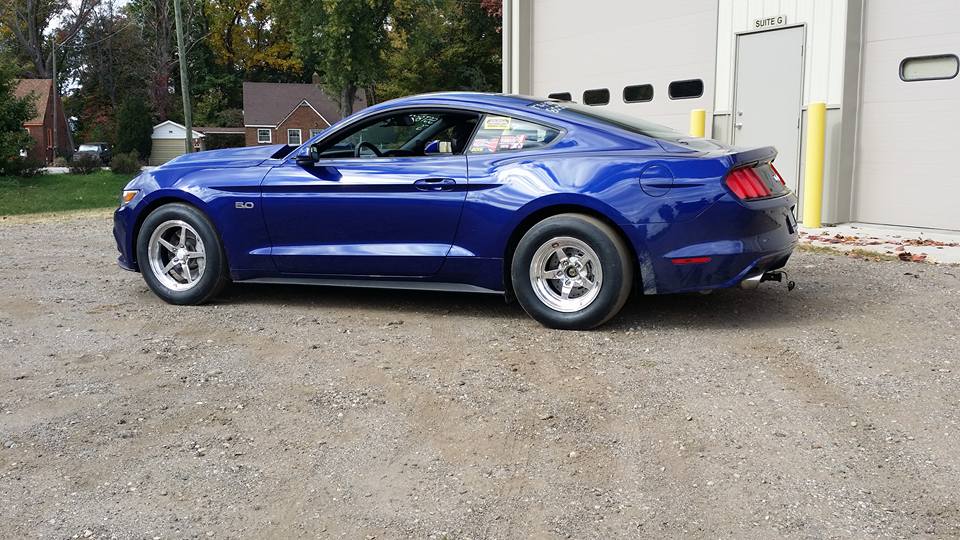

Welds 15 x 8 4.5 bs 2.jpg

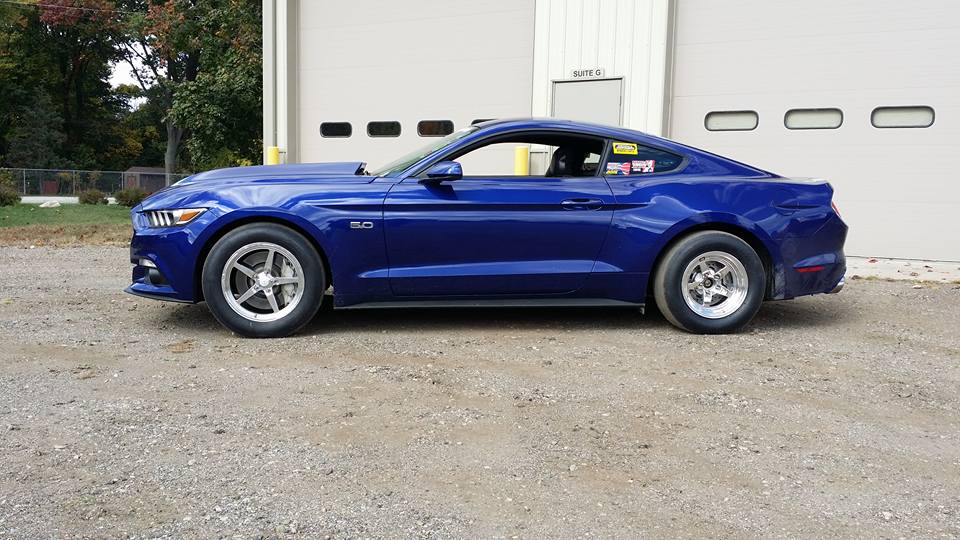

Welds 15 x 8 4.5 bs 3.jpg

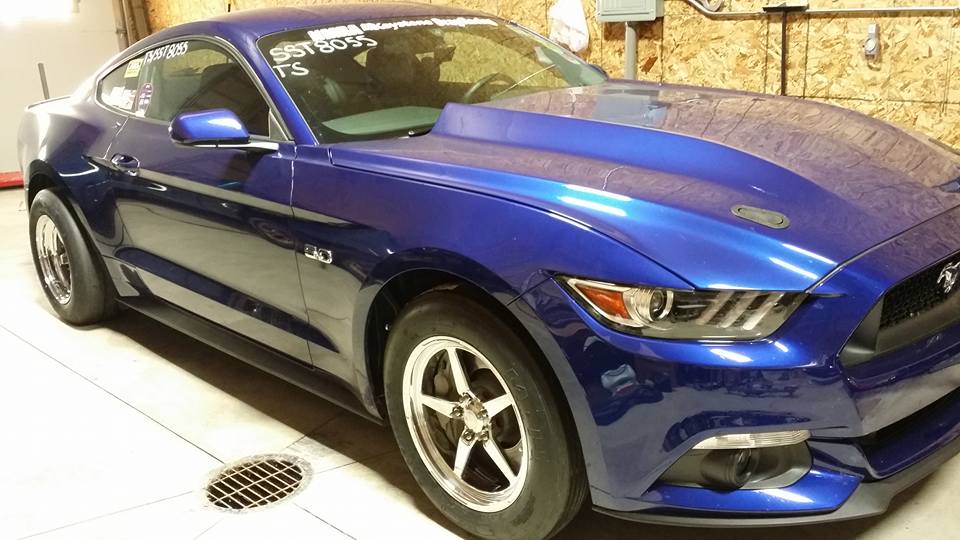

Welds 15 x 8 4.5 bs 4.jpg

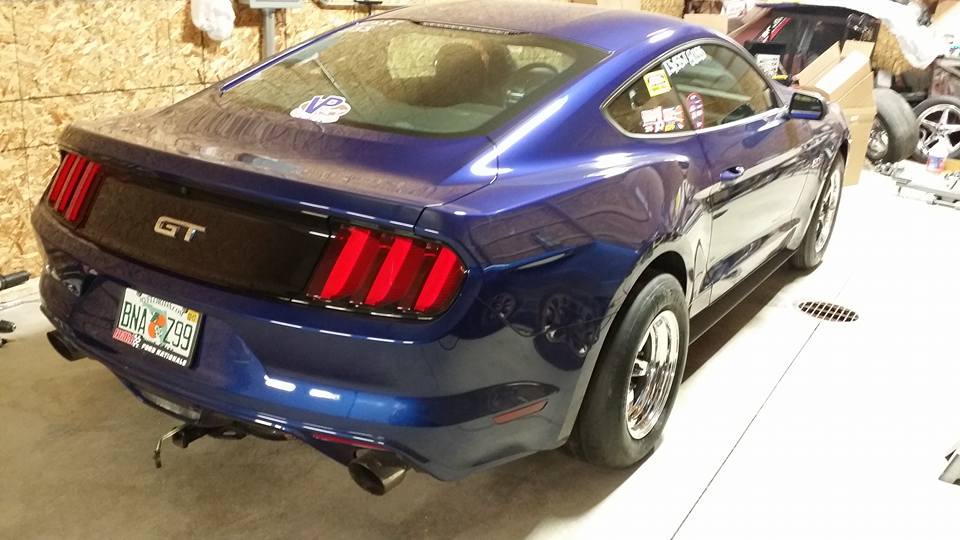

Welds 15 x 8 4.5 bs 5.jpg

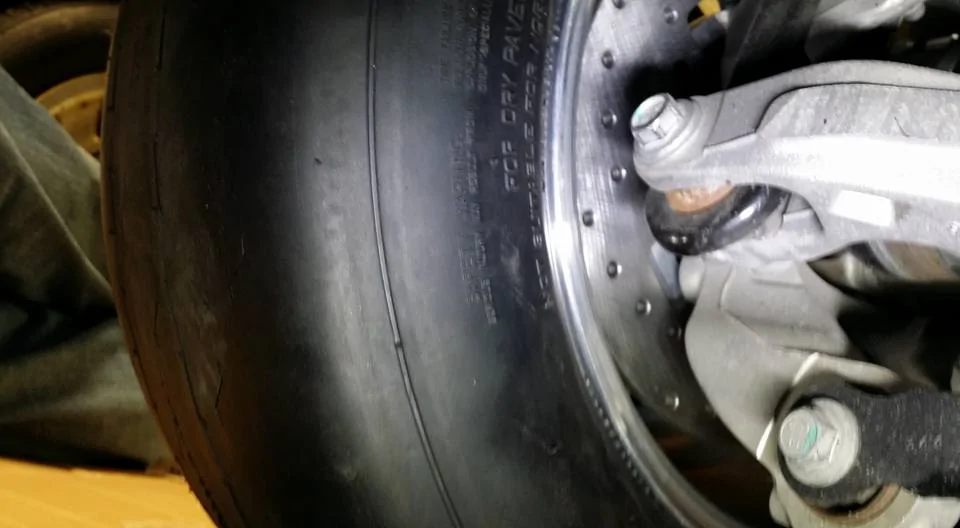

Wheel clearance 1.jpg

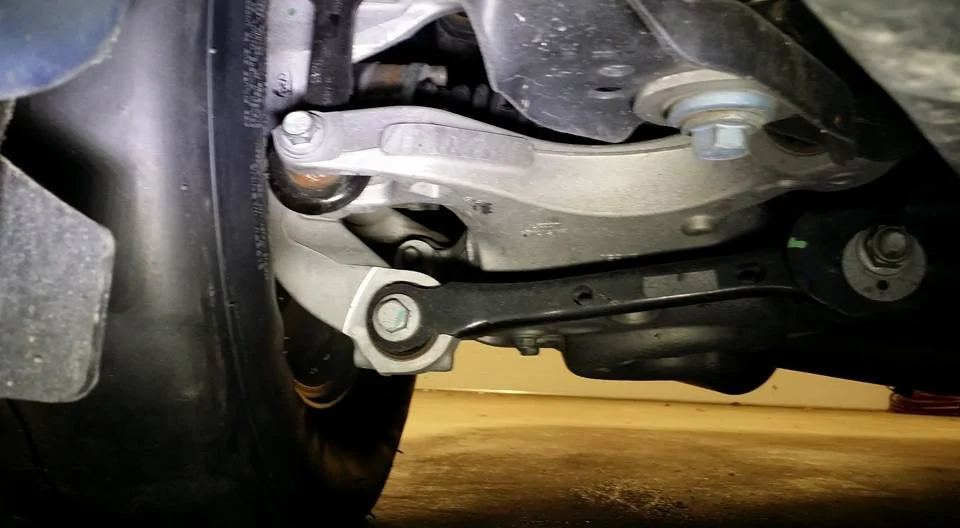

Wheel clearance 2.jpg

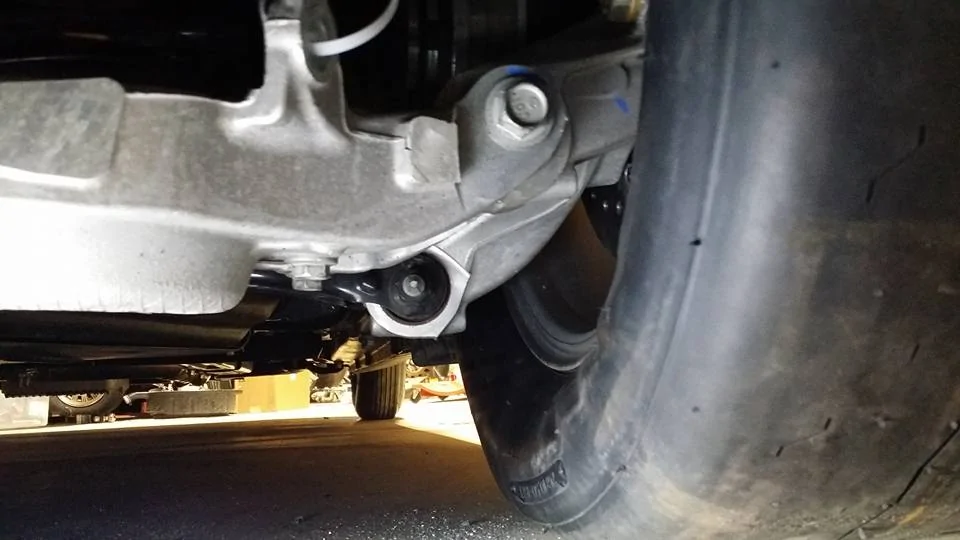

Wheel clearance 3.jpg

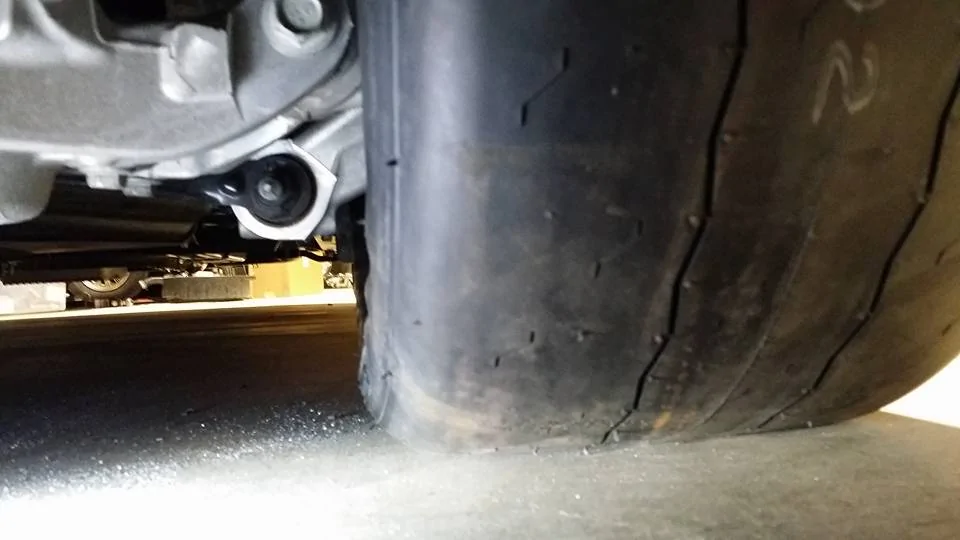

Wheel clearance 4.jpg

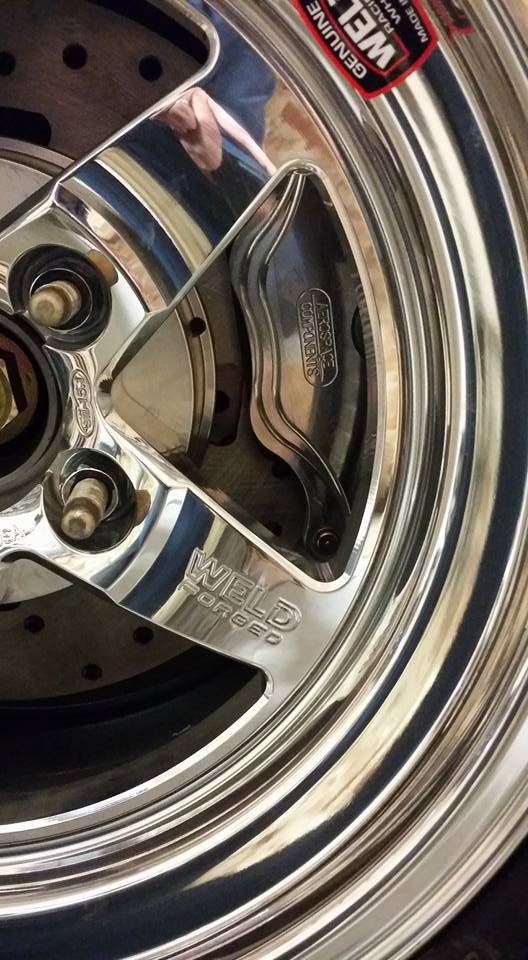

Wheel clearance 5.jpg

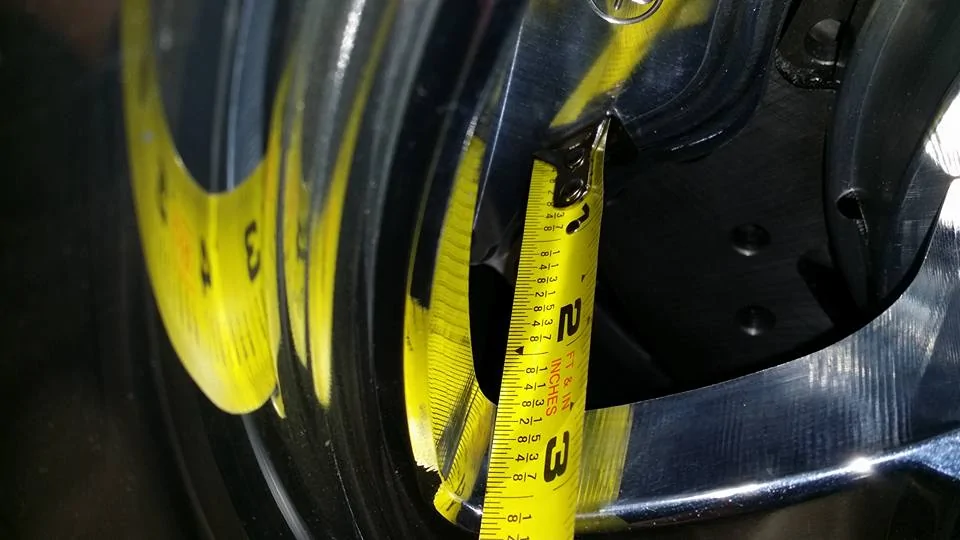

Wheel clearance 6.jpg

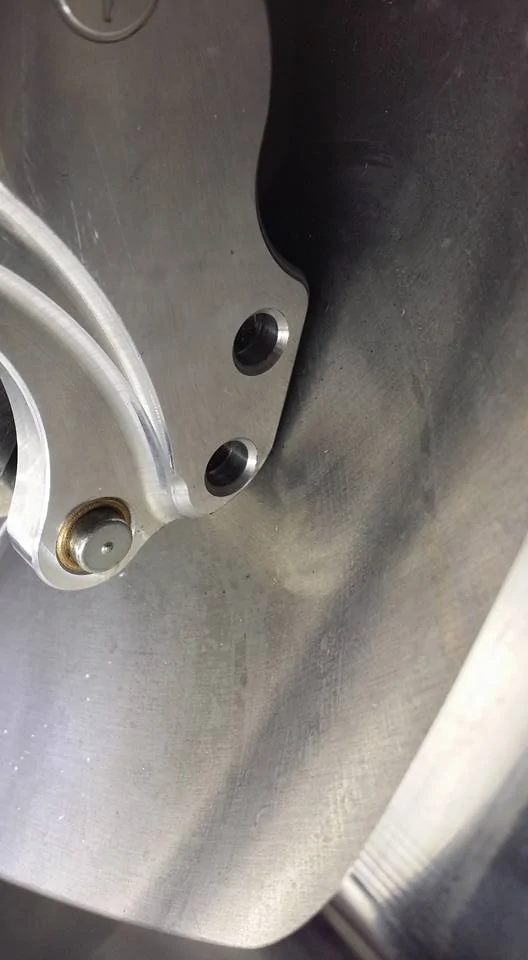

Wheel clearance 7.jpg

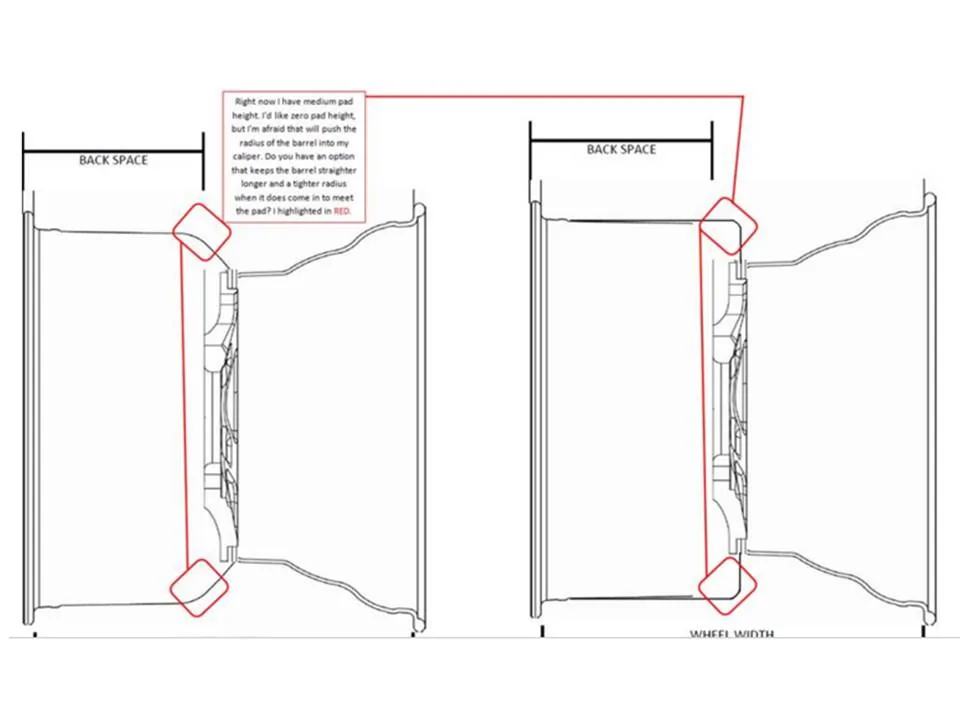

Rim Barrel.jpg
Sponsored


OP
OP
RBS550

RBS550

Well-Known Member
Joined
May 10, 2015
Threads
72
Messages
645
Reaction score
437
Location
Port St Lucie Fl
Website
www.youtube.com
First Name
RB
Vehicle(s)
2015 Mustang GT
Here's a video of the bias-ply tires. The reason went I with 26" is due to their growth at the Big End. In the beginning you are unable to see the rim, but at the Big End you can watch them grow enough to see the rim, at this point they are probably close to 28" tall. I've tried this combo several times and for me they have never been quicker than my much heavier DRs. BTW there are more videos on YouTube at RBS550.
[ame]


Adaraas

Well-Known Member
Joined
Feb 13, 2015
Threads
60
Messages
479
Reaction score
99
Location
Central FL
First Name
Austin
Vehicle(s)
16 Premium GT, 17 Laramie Cummins
How much do you think something like a 7 5" backspace racestar would affect the need for trimming?


Triple Wile E

Paxton'd Wile E
Joined
Jun 17, 2014
Threads
8
Messages
250
Reaction score
38
Location
6G
First Name
Shane
Vehicle(s)
2015 TYPP Mustang GT
I'll let you know when I do mine I have a 15x10 with 7.21 bs so when I get the car back I'll let you know.


Sponsored

2017 GT

Well-Known Member
Joined
Dec 17, 2015
Threads
5
Messages
77
Reaction score
6
Location
Pierre Part, La.
Vehicle(s)
White 2017 GT

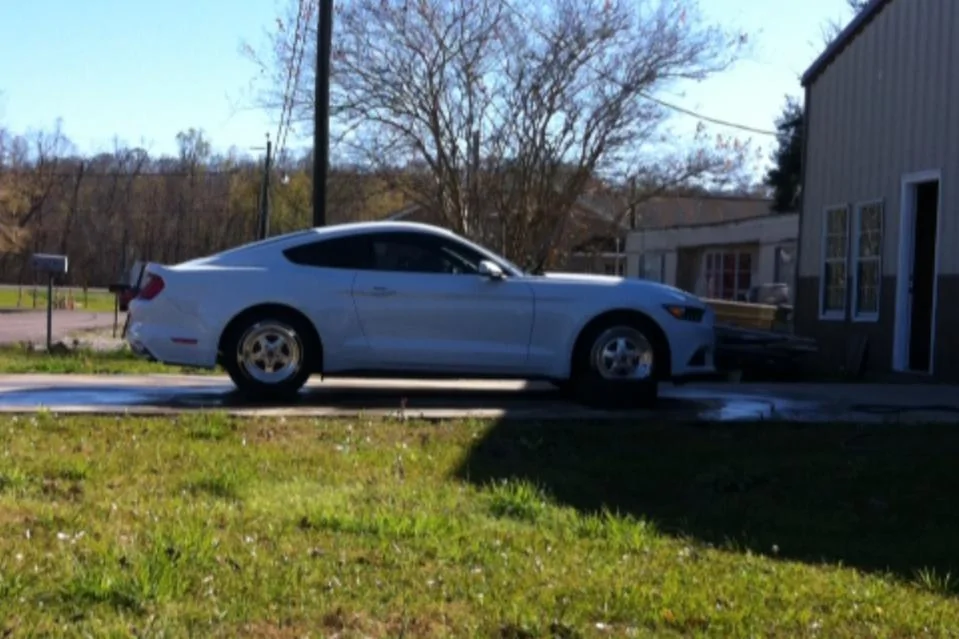

Washed the wife's EB yesterday and did some playing around after, I like 15s. They are not on the car.


jared89

Well-Known Member
Joined
Apr 4, 2015
Threads
20
Messages
206
Reaction score
28
Location
NE PA
Vehicle(s)
2015 mustang gt pp
This is awesome. I have been holding of getting wheels bc i want 15s.


GTFORMULA

Well-Known Member
Joined
Sep 5, 2015
Threads
16
Messages
265
Reaction score
159
Location
FLORIDA
Vehicle(s)
2014 Grey gt500 pp, recaros, nav
I've got sve 15x10 rears on mine with 17x4 fronts. Had to grind on the aerospace brakes and the spindles for fit the wheel. Had to use a minimum of 3/8 spacer also. Ground more off the spindle than I feel comfortable with but it works. 325 50 15 s stick out a little. So I think to sit nice you could do longer studs, 1/2" spacer and 275 60 15s.
